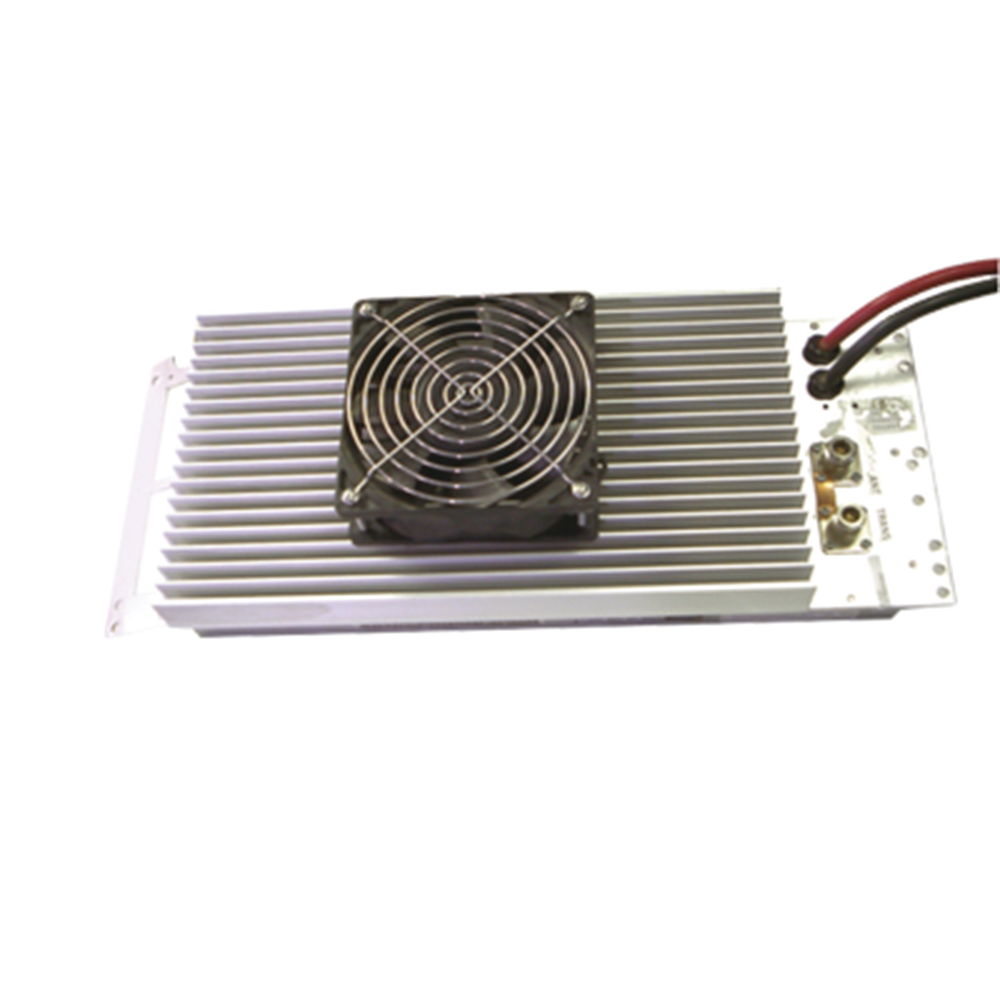

VOCOM Amplifier 100% Duty Cycle, 800 MHz, 400 mW Input / 70 W Output. 13.8 Vdc.

VOCOM Amplifier 100% Duty Cycle, 800 MHz, 400 mW Input / 70 W Output. 13.8 Vdc.

Continuous Duty Cycle VOCOM Amplifier at 800 MHz.

• Frequency: 820-880 MHz. Factory set to the specification on the label.
• Frequency Range: Can be operated +/- 10 MHz from factory frequency without readjustment.
• Input Power: 400 mW.
• Output Power: 70 W.
• Supply Voltage: 13.8 Vdc.
• Current consumption: 22 Amp.
• Connectors: N Female.
• Mounting: 19' Rack (483 mm).
• Duty cycle: 100%.
