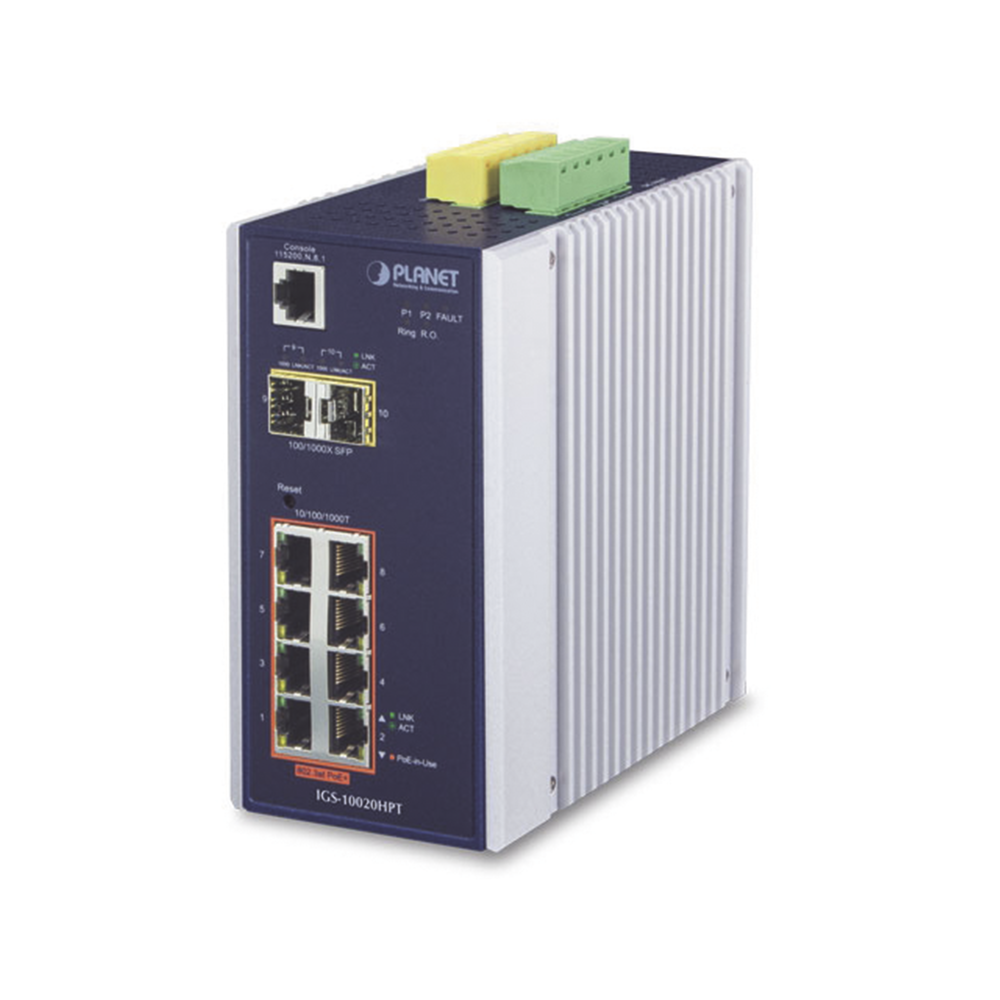

Layer 2 Managed Industrial Switch, 8 Gigabit 802.3af/at PoE ports, 2 1/2.5 Gigabit SFP ports, Secondary Power Input for Redundant Power


Common applications with the IGS-10020HPT switch

Redundant ring, fast recovery for critical network applications

Industrial Ethernet PoE solution for vehicles and ITS

ONVIF support

PoE program for energy savings

Effective alarm alert for better protection

Digital input and digital output for external alarm

Hardware specifications
Version 3

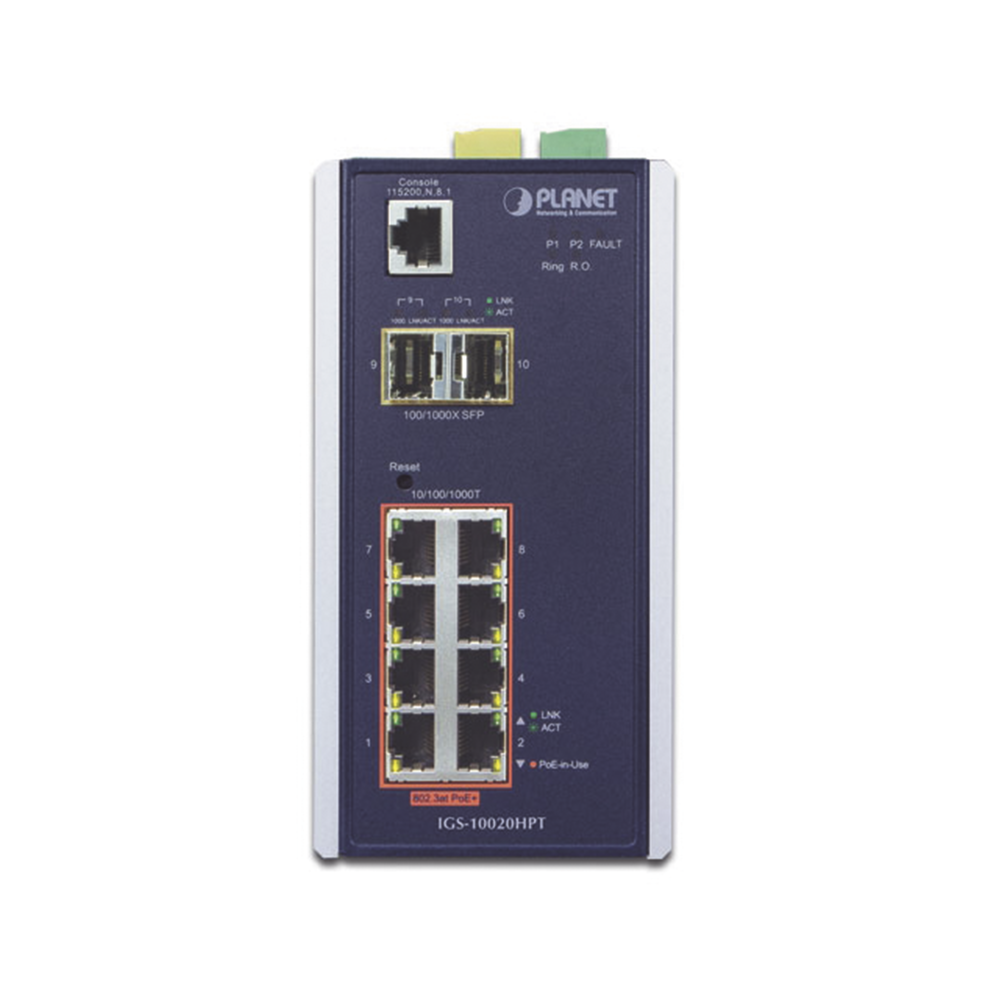

Copper ports 8 ports 10/100/1000BASE-T RJ45 auto-MDI/MDI-X
SFP / mini-GBIC slots 2 mini-GBIC SFP ports 100/1000 /2500BASE-X (Port-9 and Port-10)
Console 1 RJ45 to RS232 serial port (115200, 8, N, 1)
Throughput (packet per second) 14.8Mpps @ 64Bytes packet
Reset button <5 seconds: system reboot
> 5 seconds: factory default
Facility DIN rail kit and wall mount kit

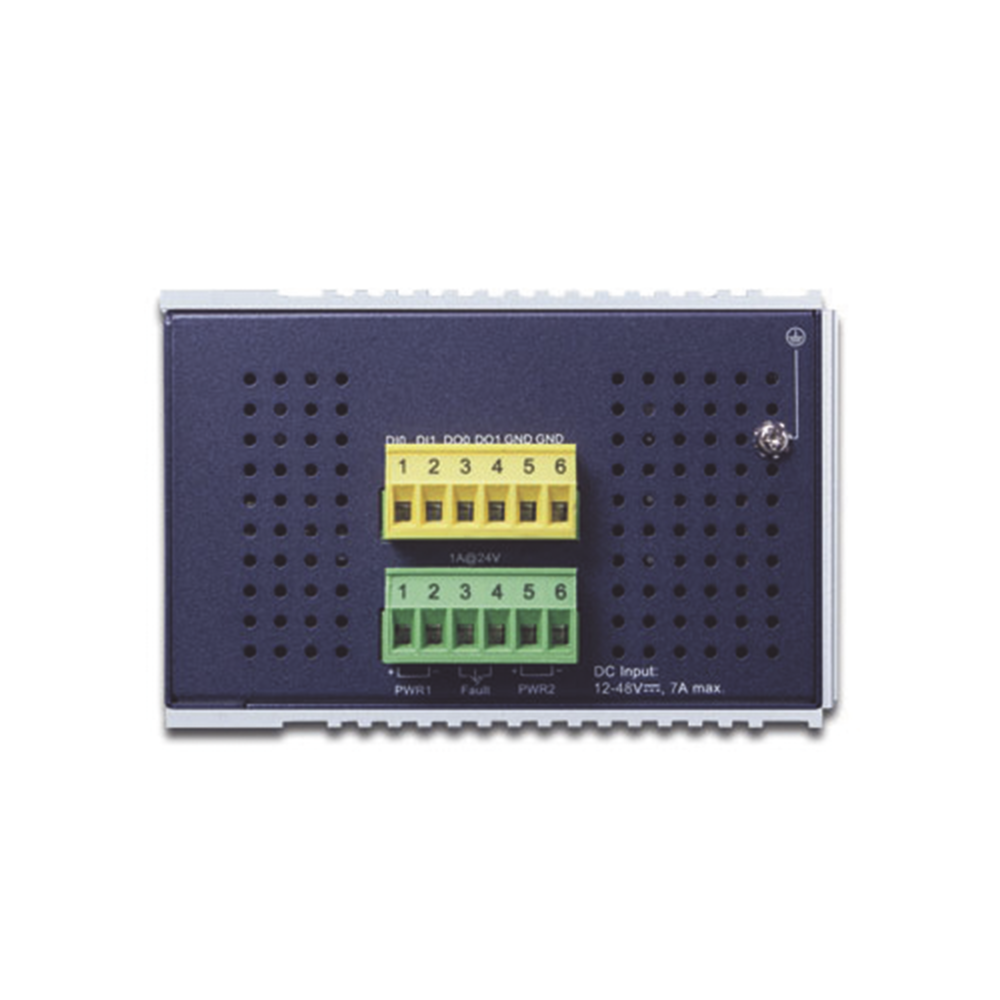

Connector Removable 6-pin terminal block for power input
Pin 1/2 for power 1, pin 3/4 for fault alarm,
pin 5/6 for power 2 Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm One power failure relay output. Alarm relay current carrying capacity: 1A @ DC 24V
Dimensions 76.8 x 107.3 x 152 mm
Weight 1096 g

Energy requirements

(Power supply not included)

 12-48 Vdc
Energy consumption 258 Watts / 880 BTU (full load with PoE function)
Functions in Layer 2 Port configuration, Port status, Port mirroring, VLAN, Link aggregation, QoS, IGMP Snooping, MLD Snooping, Access control list, Bandwidth control and Storm Control.
Functions in Layer 3 IP Interfaces, Routing Table, Routing Protocols
Administration Basic management interfaces (Console, Telnet, Web browser, SNMP v1, v2c), Secure management interfaces (SSH, SSL, TLS, SNMP v3), ONVIF, SNMP MIB
Operating temperature -40 ~ 75 degrees C
Storage temperature -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)
    PoE management features, IP30 rated housing, Features wall or DIN rail mounts, Supports 12 to 48 Vdc power, Features redundant power input, Withstands temperatures from -40 to 75°C
