Cloud Core Router, 16 Core CPU, 17.8Mpps/12Gbps Throughput, 12 Gigabit Ethernet Ports, 2 GB Memory

CCR1016-12G

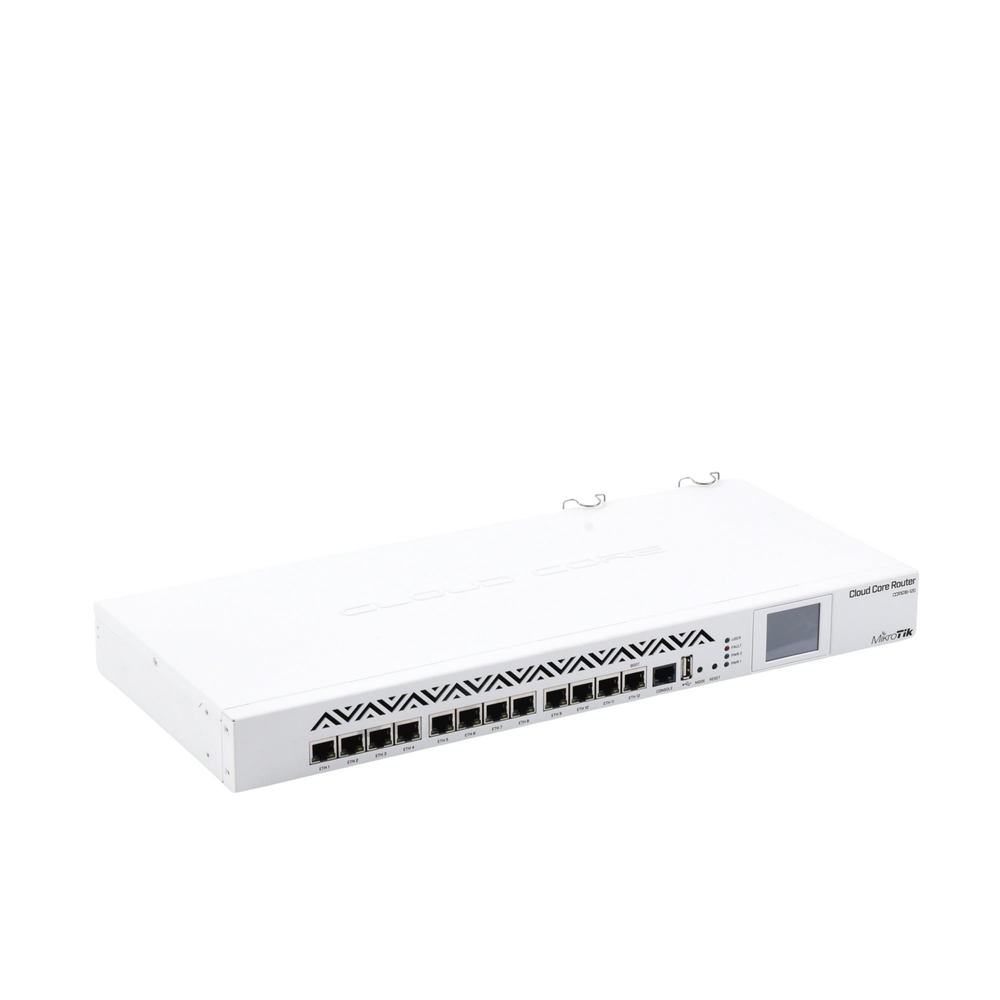

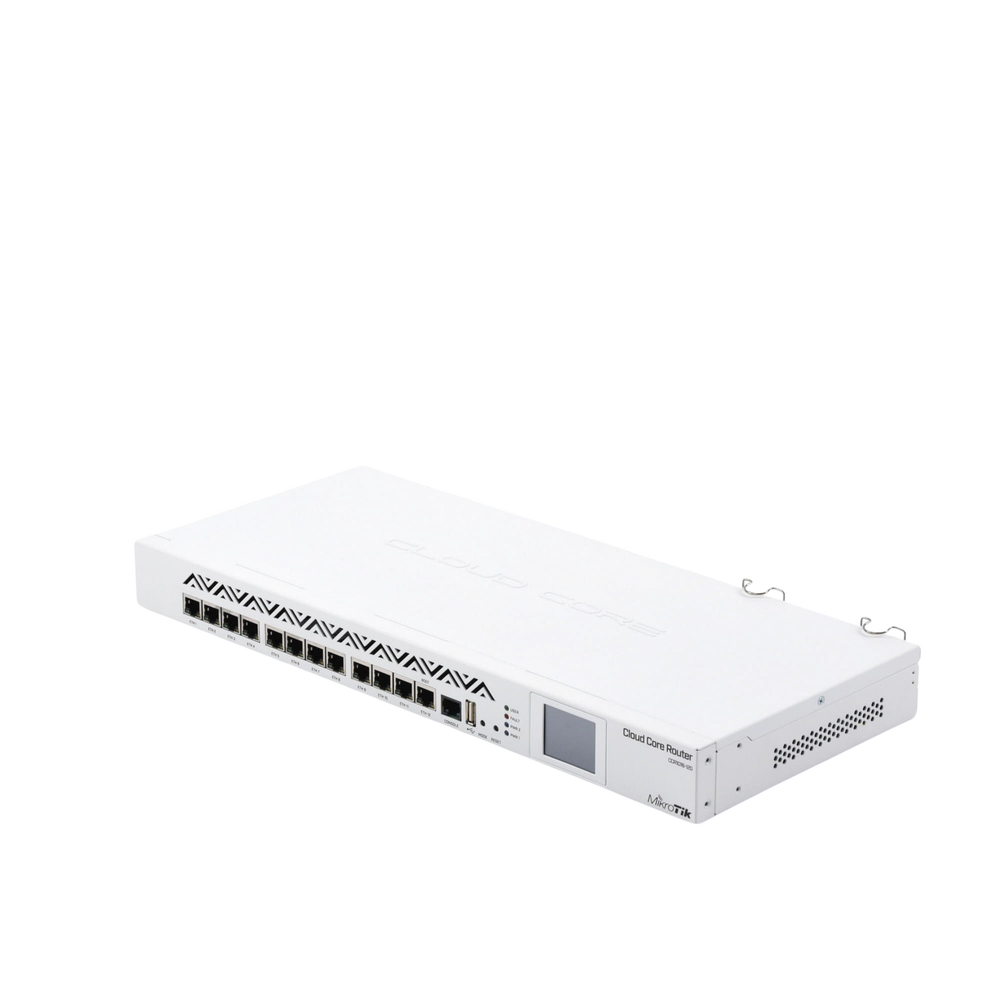

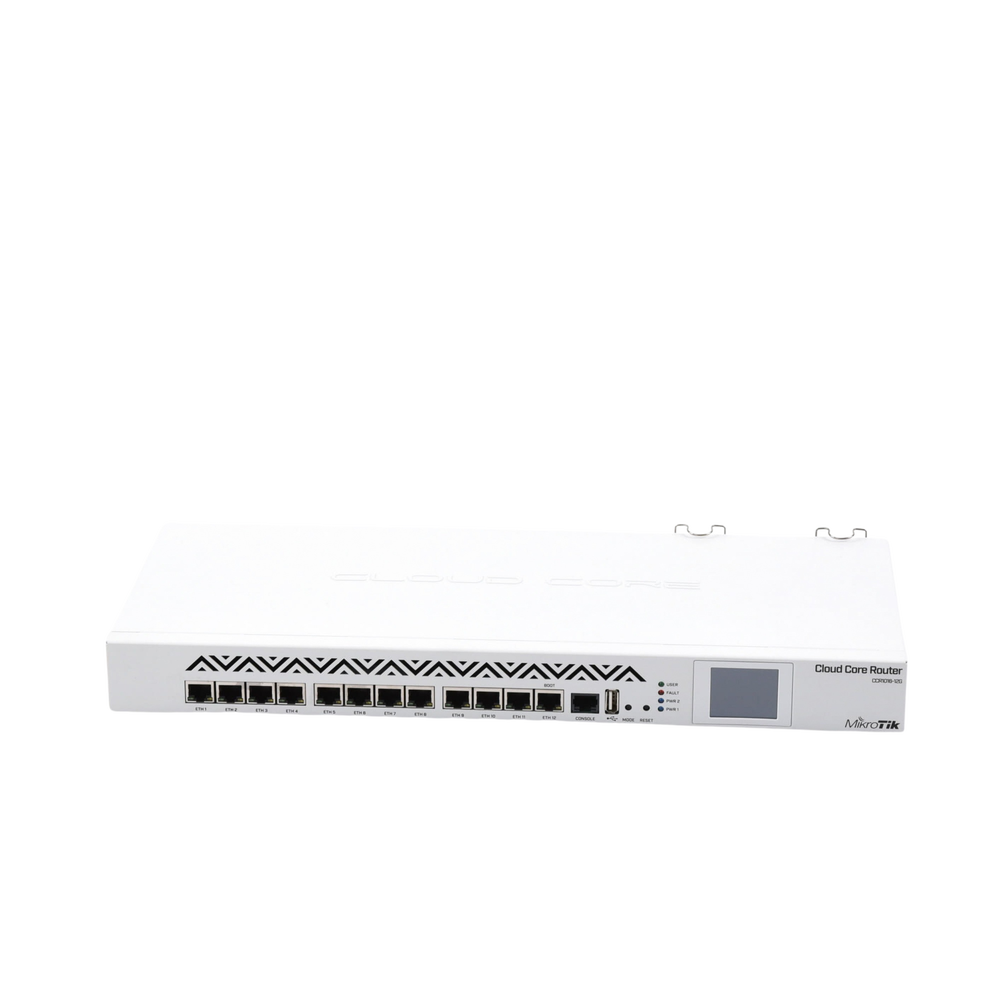

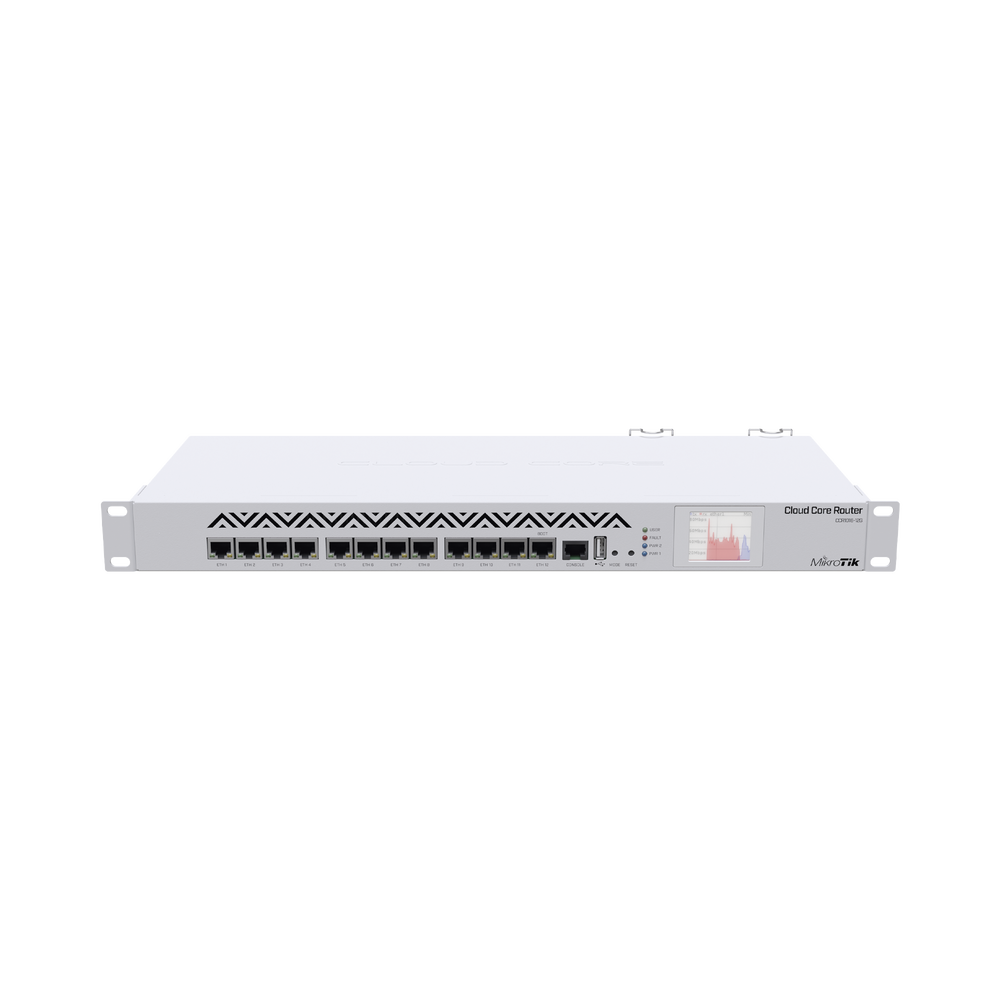

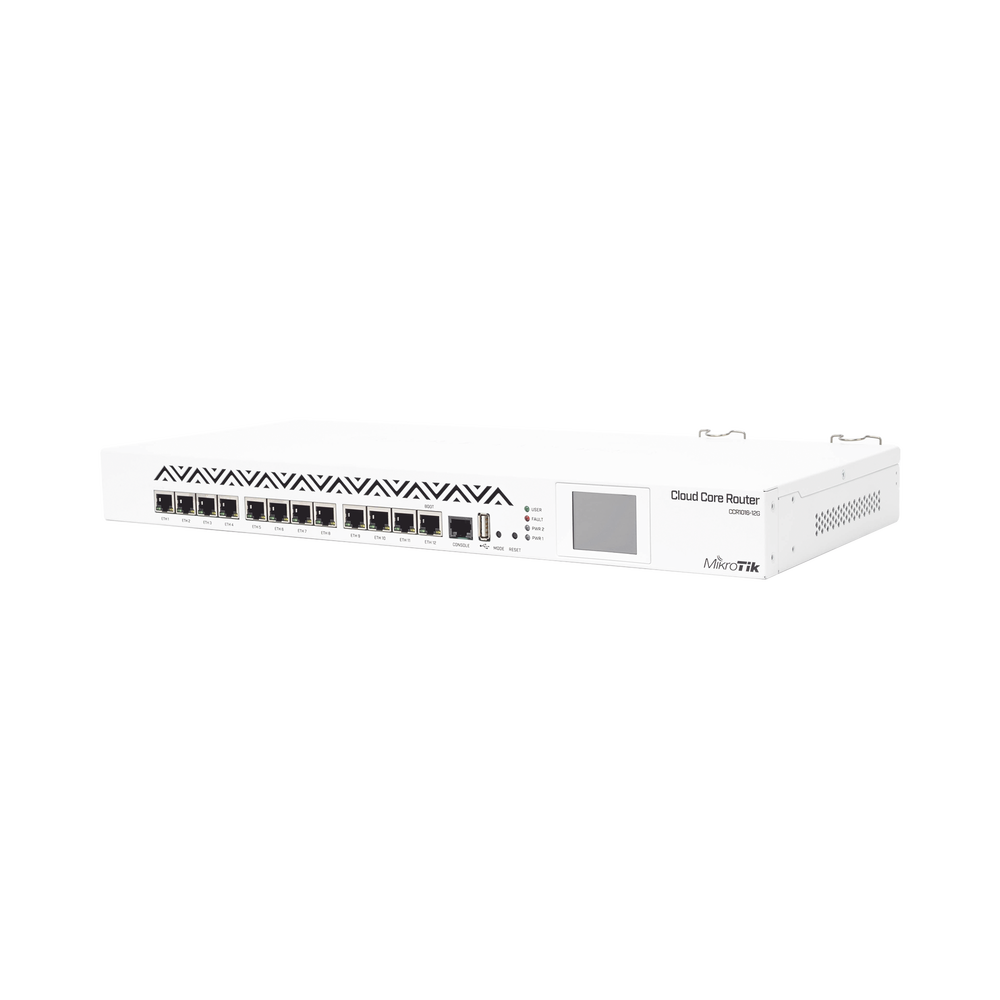

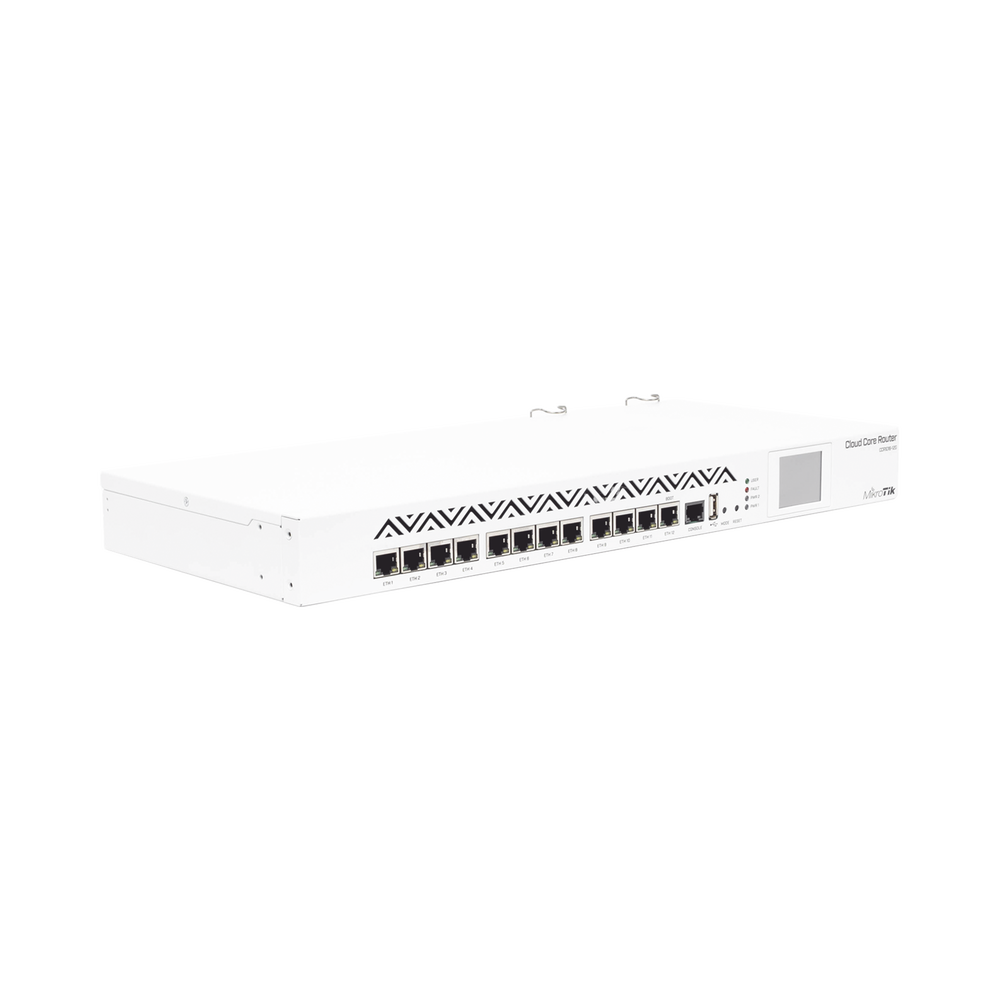

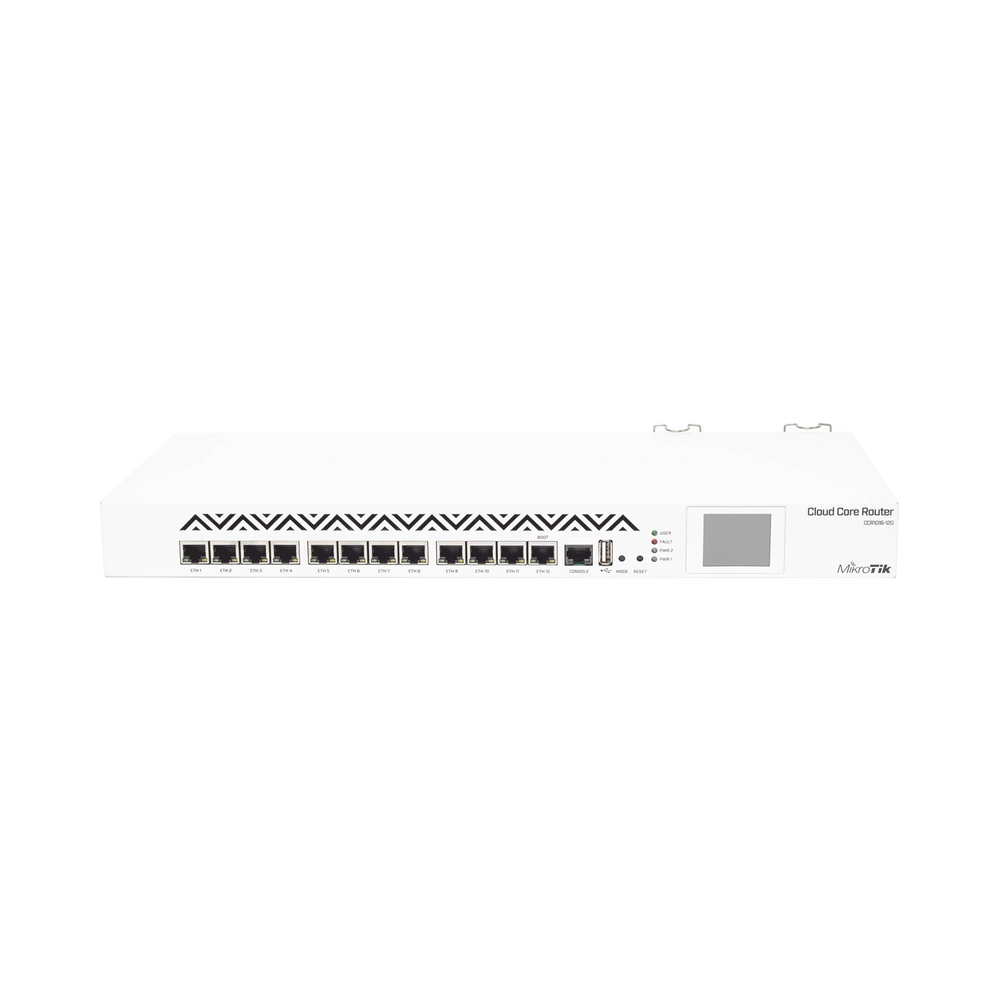

The CCR1016-12G is an industrial-grade router with a state-of-the-art 16-core CPU. If you require millions of packets per second, the Cloud Core Router is your best choice. The unit is equipped with 12 Gigabit Ethernet ports and a color touchscreen LCD.

The new r2 version has 2GB of onboard RAM, full-size USB slot, and dual power supplies for redundancy!

*1 year warranty.

Main features of RouterOS

Specs

Details
Product code	CCR1016-12G
Architecture	TILE
CPU	TLR4-01680
CPU cores	16
Nominal CPU frequency	1.2 GHz
Dimensions	443 x 193 x 44 mm
License level	6
Operating system	RouterOS
RAM size	2 GB
Storage size	512 MB
Storage type	NAND
Room temperature tested	-20°C to 60°C

Feeding

Details

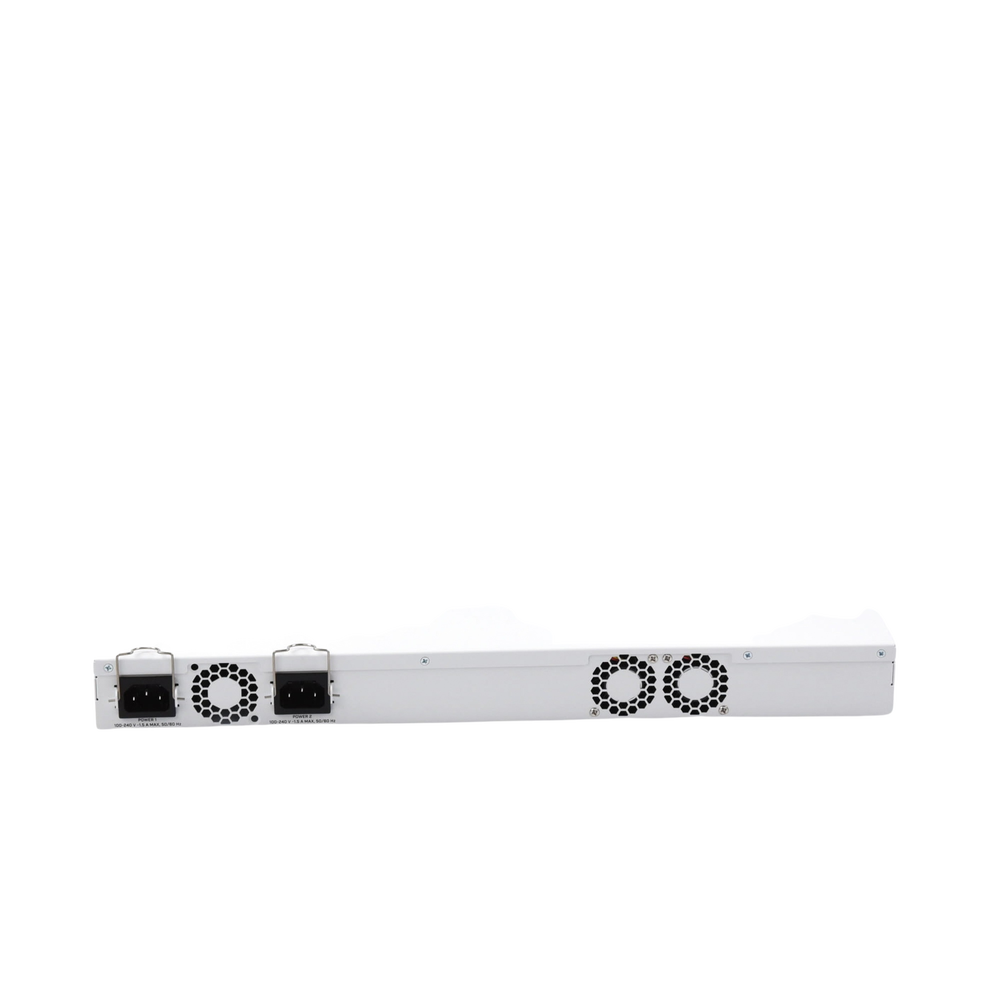

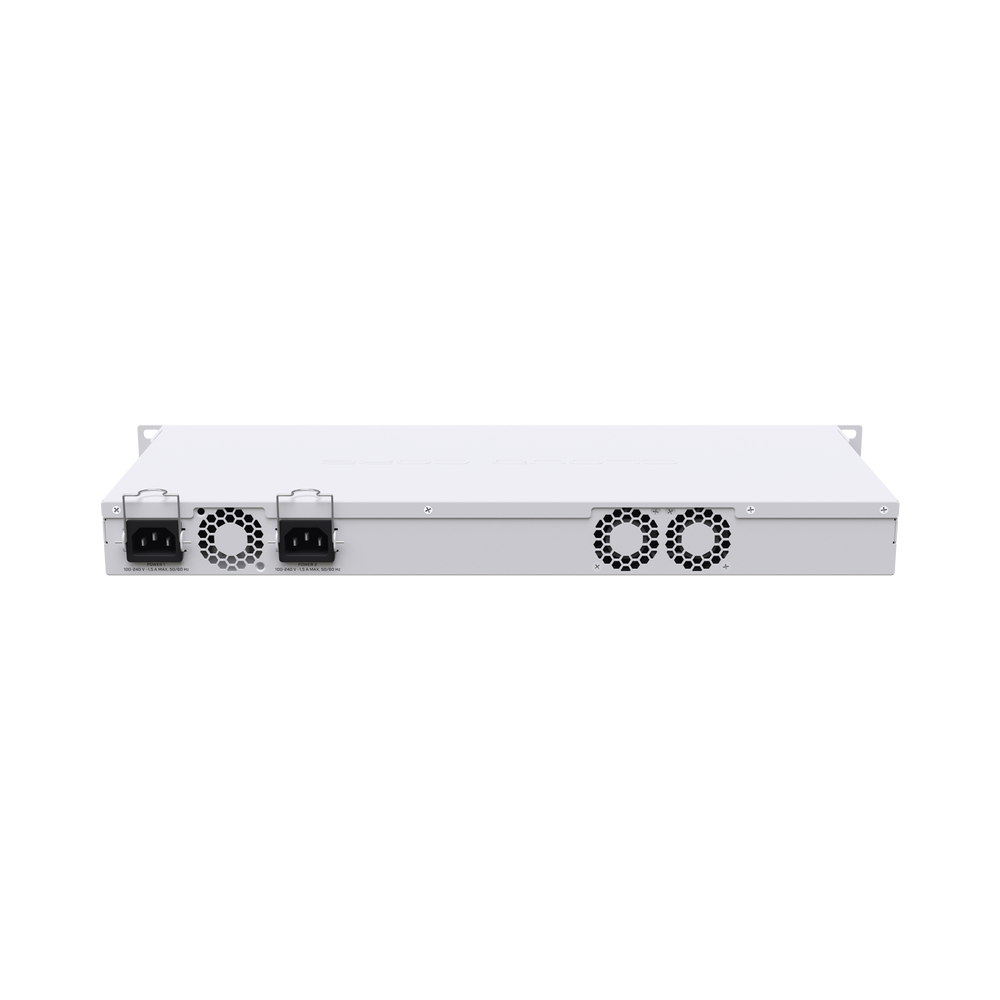

Number of AC inputs	2
AC input range	100-240
Maximum energy consumption	42 W
Maximum power consumption without accessories	37 W

Ethernet

Details
10/100/1000 Ethernet ports	12

Peripherals

Details
Serial port	RJ45
Number of USB ports	1
USB Power Reset	Yeah
USB slot type	USB Type A
Maximum USB current (A)	1

Other

Details
CPU Temperature Monitor	Yeah
PCB Temperature Monitor	Yeah
Mode button	Yeah

Certifications and approvals

Details
Certification	CE/RED, EAC, ROHS

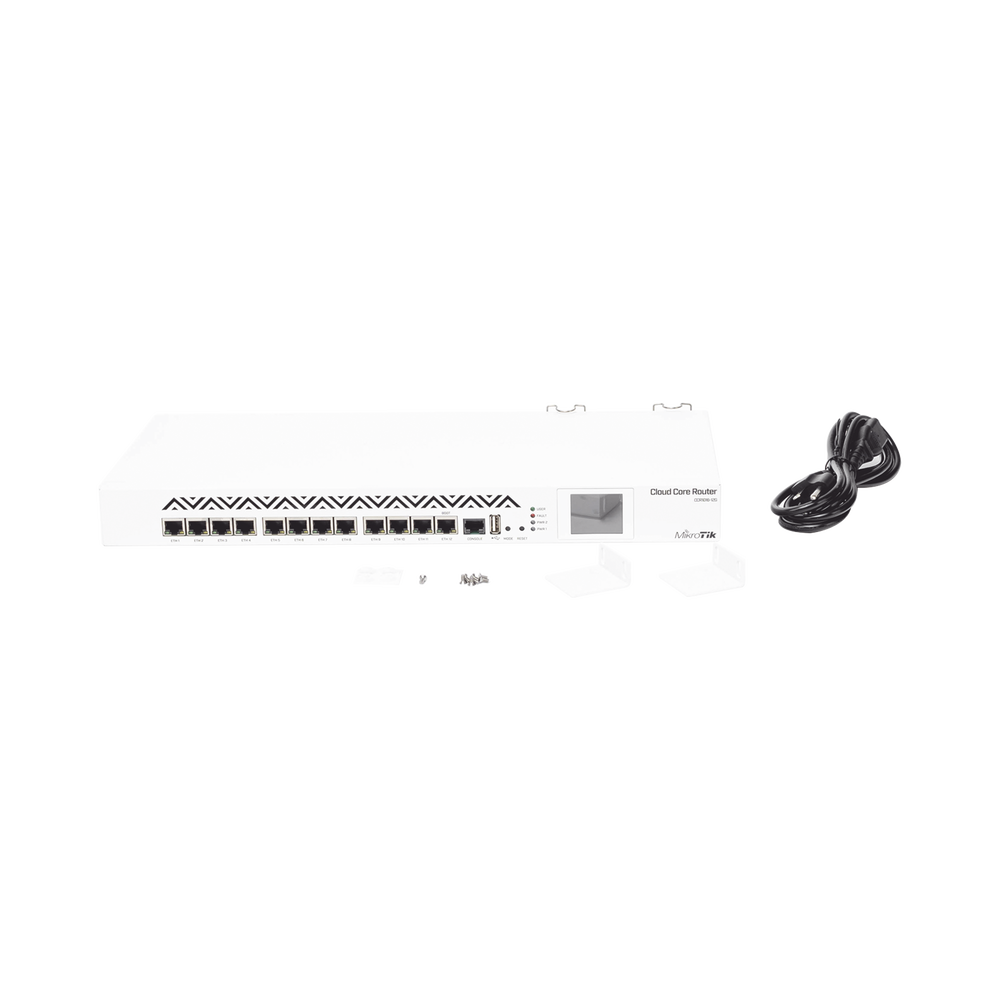

Parts included

•
  Screw and leg kit (K10)
•
  2x IEC cables
•
  Shelf ears

Ethernet test results

CCR1016-12G		Tile 16 core max possible throughput test
Mode	Configuration
