Cloud Core Router, 36-Core CPU, 16Gbps/24Mpps Throughput, 12 Gigabit Ethernet Ports, 4 SFP Ports, and 4GB of Memory, Ideal for IPsec
The CCR1036-12G-4S is an industrial-grade router with a cutting-edge 36-core CPU. If you need millions of packets per second, the 36-core Cloud Core Router is your best choice.
The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit Ethernet ports, a serial console cable, and a USB port.
The new r2 version has 4GB RAM onboard, onboard M.2 slot, full-size USB slot and dual power supply for redundancy!
Specs
| Details | |
|---|---|
| Product code | CCR1036-12G-4S |
| Architecture | TILE |
| CPU | TLR4-03680 |
| CPU cores | 36 |
| Nominal CPU frequency | 1.2 GHz |
| Dimensions | 443 x 193 x 44 mm |
| License level | 6 6 |
| Operating system | RouterOS |
| RAM size | 4GB |
| Storage size | 1 GB |
| Storage type | NAND |
| Room temperature tested | -20°C to 60°C |
Feeding
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Maximum energy consumption | 60 W |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 12 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yeah |
| SFP ports | 4 4 |
Peripherals
| Details | |
|---|---|
| Serial port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yeah |
| USB slot type | USB Type A |
| Maximum USB current (A) | 1 |
Other
| Details | |
|---|---|
| CPU Temperature Monitor | Yeah |
| PCB Temperature Monitor | Yeah |
| Mode button | Yeah |
Certifications and approvals
| Details | |
|---|---|
| Certification | CE/RED, EAC, ROHS |

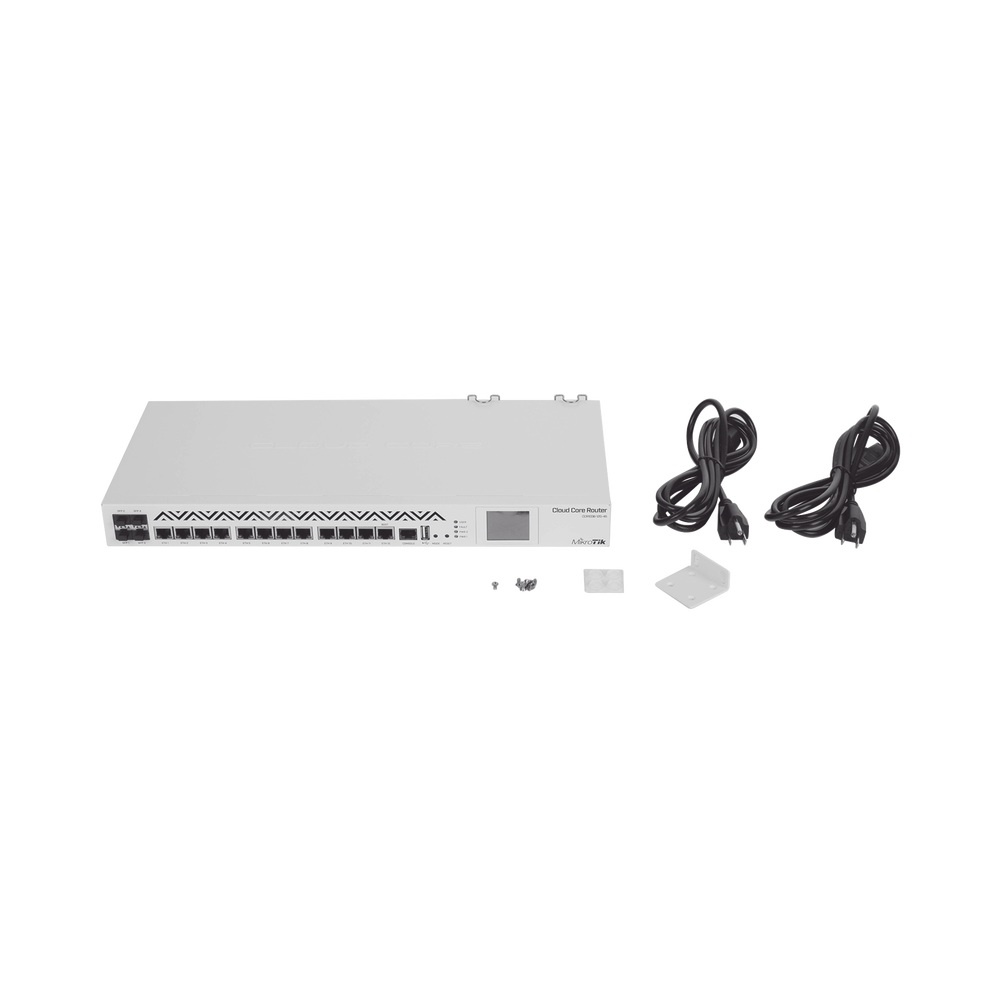

Parts included
-
2x IEC cables -
Shelf ears -
Screw and leg kit (K10)
- Ethernet Throughput: 16Gbps / 24 Mpps, IPsec Throughput: from 9996Mbps for 256 tunnels, 12 Gigabit Ethernet ports, 4 SFP ports, 36-Core 1.2GHz Processor, 4GB RAM
