MIKROTIK

(PowerBox) RouterBoard, 5 Fast Ethernet Ports with Passive PoE, for outdoor use

Name: (PowerBox) RouterBoard, 5 Fast Ethernet Ports with Passive PoE, for outdoor use
Brand: MIKROTIK
SKU: RB750P-PBR2
Price: 466613.00 COP
Availability: OutOfStock

$466.613 COP

~~$510.358 COP~~ $466.613 COP

Sale Sold out

Shipping calculated at checkout.

Quantity

(PowerBox) RouterBoard, 5 Fast Ethernet Ports with Passive PoE, for outdoor use

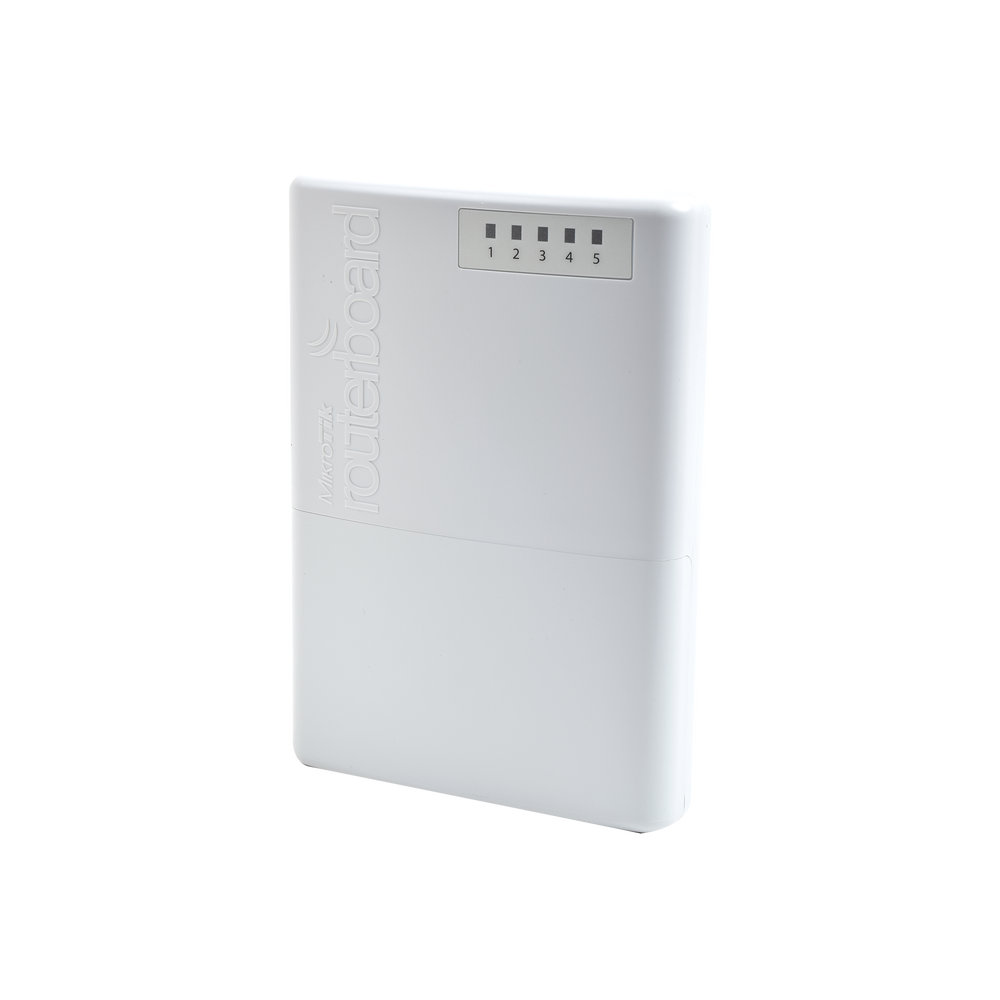

The PowerBox is a five-port Ethernet outdoor router with PoE on four ports. This device can be used to power four PoE-enabled devices, such as our SXT or others.

Since the device has a weatherproof outer casing, it can be mounted on a tower, or in other outdoor locations.

The unit features five shielded Ethernet ports, four of which can power other PoE-compatible devices with the same voltage applied to the unit (maximum output current is 1A per port, total maximum output 2A).

Less power adapters and cables to worry about!

*1 year warranty.

Main features of RouterOS

General Specifications

Details
Product Code	RB750P-PBr2
Architecture	MIPS-BE
CPU	QCA9533
Number of CPU Cores	1
CPU frequency	650 MHz
Dimensions	125x178x48mm
License Level	4
Operating System	RouterOS
RAM memory	64 MB
Storage	16 MB
Storage Type	FLASH
Operating temperature	-35C .. +70C

Feeding

Details
Energy consumption	2W
Power supplies	2 (DC jack, PoE-IN)
PoE power type	Passive PoE
Input voltage on jack	8-30 V DC
Input voltage in PoE	8-30 V DC
PoE output	Passive PoE on ports 2 to 4

Ethernet

Details
Ethernet ports	5 x 10/100 Mbps

Others

Details
Current Monitor	Yeah
PCB Temperature Monitor	Yeah
Voltage Monitor	Yeah

Ethernet Test Results

RB750P-PBr2		QCA9531 (650Mhz) 100M all port test
Mode	Configuration	1518 bytes		512 bytes		64 bytes
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	40.6	493.0	117.4	480.9	217.0	111.1
Bridging	25 bridge filter rules	40.6	493.0	70.1	287.1	70.9	36.3
Routing	none (fast path)	40.6	493.0	117.4	480.9	200.8	102.8
Routing	25 simple queues	40.6	493.0	79.6	326.0	90.8	46.5
Routing	25 IP filter rules	40.6	493.0	42.2	172.8	43.2	22.1

All tests are done with Xena Networks specialized test equipment (XenaBay), and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0.1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
