MIKROTIK
(mAP 2n) 2 Fast Ethernet Ports, 1 MicroUSB Port, WiFi 2.4 GHz 802.11 b/g/n
(mAP 2n) 2 Fast Ethernet Ports, 1 MicroUSB Port, WiFi 2.4 GHz 802.11 b/g/n
Couldn't load pickup availability
(mAP 2n) 2 Fast Ethernet Ports, 1 MicroUSB Port, WiFi 2.4 GHz 802.11 b/g/n
The mAP (micro access point) is a small, dual-chain 2.4GHz system with full RouterOS capabilities. It's highly portable, as it can be powered by a wide variety of sources—USB, passive PoE, and the power connector. It also functions as a PoE injector, with the second Ethernet port providing up to 500 mA of power to another device; for example, an SXT CPE device can be connected to it.
*1 year warranty.
Main features of RouterOS
For the Signal Repeater function, it is required to update the RouterOS
Solution to connect 3G device to a LAN network.
Tests carried out with BAMs
Brand: Huawei Model: E153u-6
Brand: Huawei Model: E1556
Brand: Huawei Model: E3372
​Brand: Nokia Model: CS-11
Brand: ZTE Model: MF100
**Not Compatible Models
Brand: TCT Mobile Model: X602A
Brand ZTE Model: MF180
Brand ZTE Model: MF626

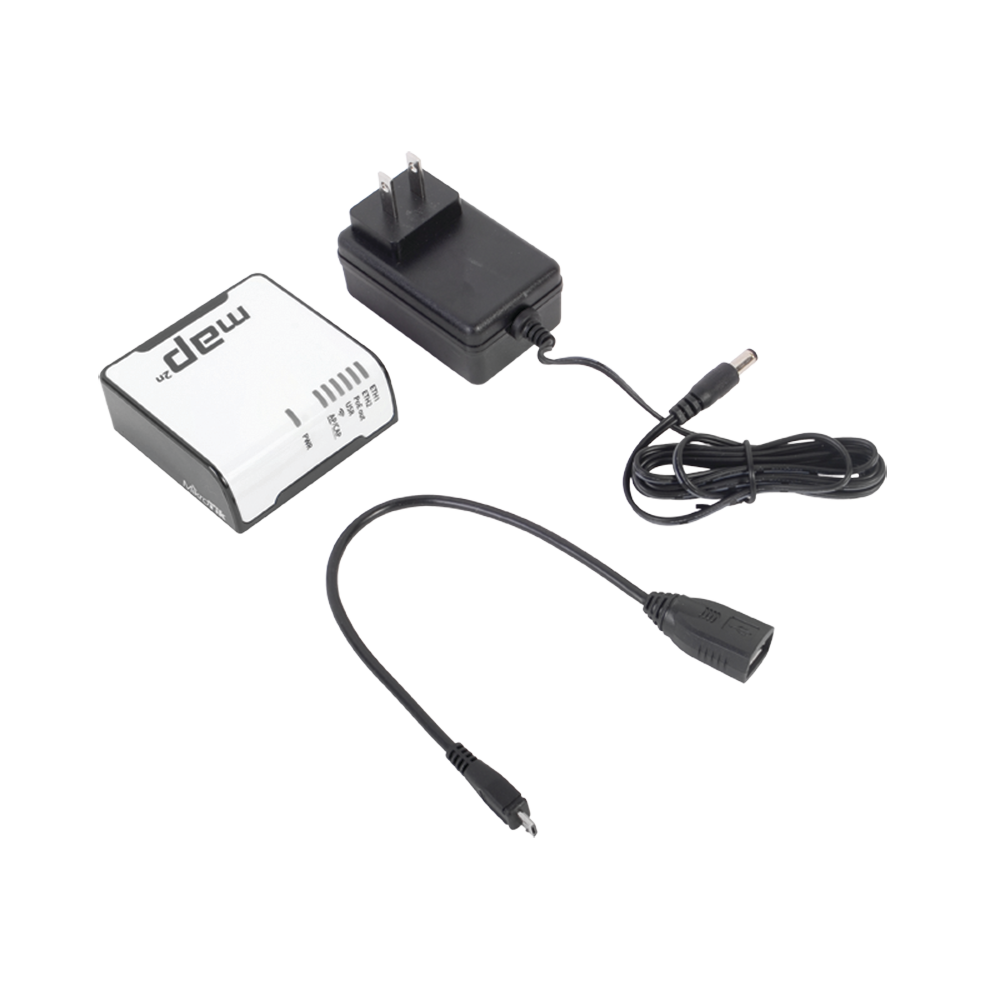

Box Contents:
*Images are for illustrative purposes only
| Mikrotik Code | RBmAP2n |
| CPU speed | 400 MHz |
| Number of CPU cores | 1 |
| RAM memory | 64 MB |
| 10/100 ports | 2 |
| 10/100/1000 ports | 0 |
| MiniPCI Slots | 0 |
| MiniPCI-e Slots | 0 |
| Wireless chip | AR9331-AL1A |
| Wireless Standard | 802.11b/g/n |
| Number of USB ports | 1 |
| Power jack | 1 |
| 802.3af support | No |
| PoE output | Yes (Passive) |
| PoE input | Yes (Passive) |
| Input voltage | 10 V - 57 V |
| Voltage Monitor | No |
| CPU Temperature Monitor | No |
| PCB Temperature Monitor | No |
| Dimensions | 68x68x19mm |
| Operating System | RouterOS |
| Operating Temperature | -10C to +70C tested |
| License Level | 4 |
| Antenna gain | 1.2 |
| Royal Monitor | No |
| CPU | AR9331-AL1A |
| Maximum consumption | 2W |
| SFP ports | 0 |
| SFP+ ports | 0 |
| USB Type | microUSB type AB |
| Number of chains (MIMO) | 1 |
| Serial Port | None |
| RBmAP2nD | QCA9531 100M two-port test | ||||||
| Mode | Configuration | 1518 bytes | 512 bytes | 64 bytes | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 16.3 | 197.9 | 47.1 | 192.9 | 173.6 | 88.9 |
| Bridging | 25 bridge filter rules | 16.3 | 197.9 | 47.1 | 192.9 | 56.7 | 29.0 |
| Routing | none (fast path) | 16.3 | 197.9 | 47.1 | 192.9 | 160.8 | 82.3 |
| Routing | 25 simple queues | 16.3 | 197.9 | 47.1 | 192.9 | 72.6 | 37.2 |
| Routing | 25 IP filter rules | 16.3 | 197.9 | 33.8 | 138.4 | 34.6 | 17.7 |
Applications:
Ideal for 3G and 4G (LTE) mobile applications via USB.
* Car cigarette lighter adapter, Model: PHM243 (Optional)
Out of stock
MODELO: RBMAP2N
