MIKROTIK

RouterBoard, 5 Gigabit Ports, 5 Fast Ports, Level 4 License and Rack Mounting

Name: RouterBoard, 5 Gigabit Ports, 5 Fast Ports, Level 4 License and Rack Mounting
Brand: MIKROTIK
SKU: RB2011IL-RM
Price: 680478.00 COP
Availability: OutOfStock

$680.478 COP

~~$744.273 COP~~ $680.478 COP

Sale Sold out

Shipping calculated at checkout.

Quantity

RouterBoard, 5 Gigabit Ports, 5 Fast Ports, Level 4 License and Rack Mounting

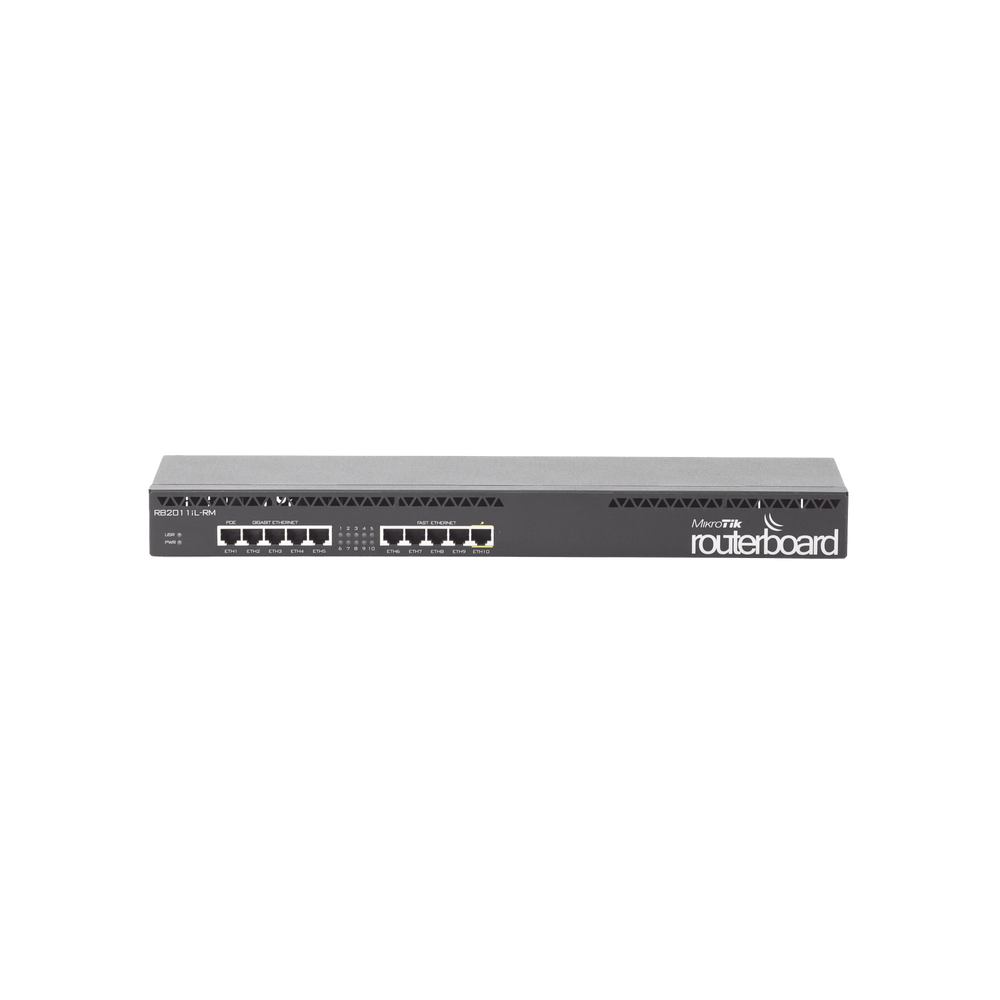

RB2011iL-RM

The RB2011 is a series of low-cost multi-port devices. Designed for indoor use, it is available in various sizes and a multitude of options.

The RB2011 is powered by RouterOS, a full-featured routing operating system that has been continuously improved for fifteen years. Dynamic routing, access point, firewall, MPLS, VPN, advanced quality of service, load and link balancing, real-time configuration and monitoring—just a few of the many features supported by RouterOS.

The RB2011iL-RM includes a new feature—a power injector on Ethernet port 10—that can power other PoE-enabled devices with the same voltage applied to the unit. Fewer power adapters and cables to worry about! The maximum load on the port is 500 mA. It is powered by the new Atheros 600MHz 74K MIPS network processor, has 64 MB of RAM and a Level4 RouterOS license, as well as five Gigabit Ethernet ports and five Fast Ethernet ports.

*1 year warranty.

Main features of RouterOS

General Specifications

Details
Product Code	RB2011iL-RM
Architecture	MIPS-BE
CPU	AR9344
Number of CPU cores	1
CPU frequency	600 MHz
License Level	4
Operating System	RouterOS
RAM memory	64 MB
Storage	128 MB
Storage Type	NAND
Operating temperature	-35C to +65C

Feeding

Details
Energy consumption	6W
Power supplies	2 (DC jack, PoE-IN)
PoE Power Type	Passive PoE
Jack supply voltage	8-30 V DC
PoE supply voltage	8-30 V DC
PoE output	Passive PoE

Ethernet

Details
Ethernet ports	5 x 10/100 Mbps
Ethernet ports	5 x 10/100/1000 Mbps

Ethernet Test Results

RB2011iL-RM		AR9344 1G&100M all port test
Mode	Configuration	1518 bytes		512 bytes		64 bytes
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	122.0	1,481.6	232.0	950.3	269.6	138.0
Bridging	25 bridge filter rules	83.6	1,015.2	86.0	352.3	87.6	44.9
Routing	none (fast path)	122.0	1,481.6	210.0	860.2	226.9	116.2
Routing	25 simple queues	100.5	1,220.5	103.9	425.6	106.6	54.6
Routing	25 IP filter rules	56.8	689.8	59.6	244.1	60.5	31.0

All tests are done with Xena Networks specialized test equipment (XenaBay), and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0.1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
