Router Board, 1 Core CPU, 5 Gigabit Ports, 5 Fast Ports, 1 SFP Port, Level 5 License and Rack Mount

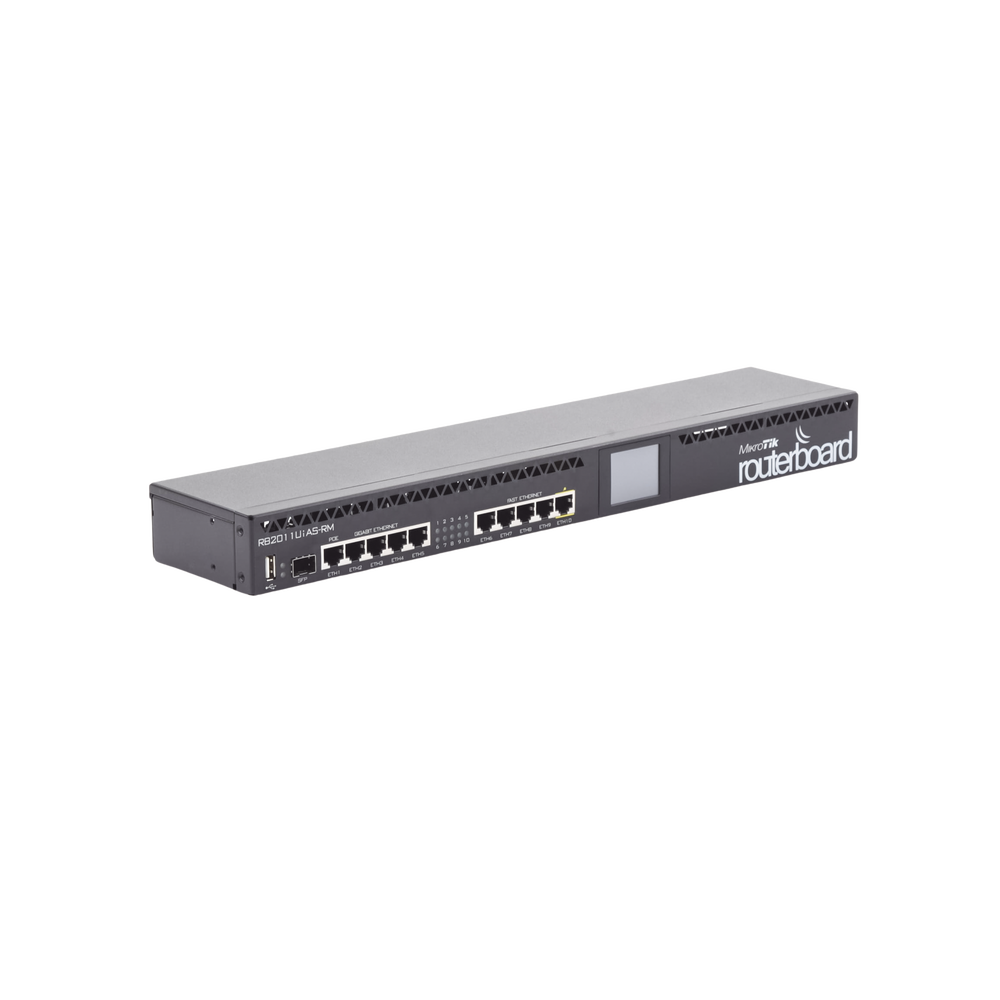

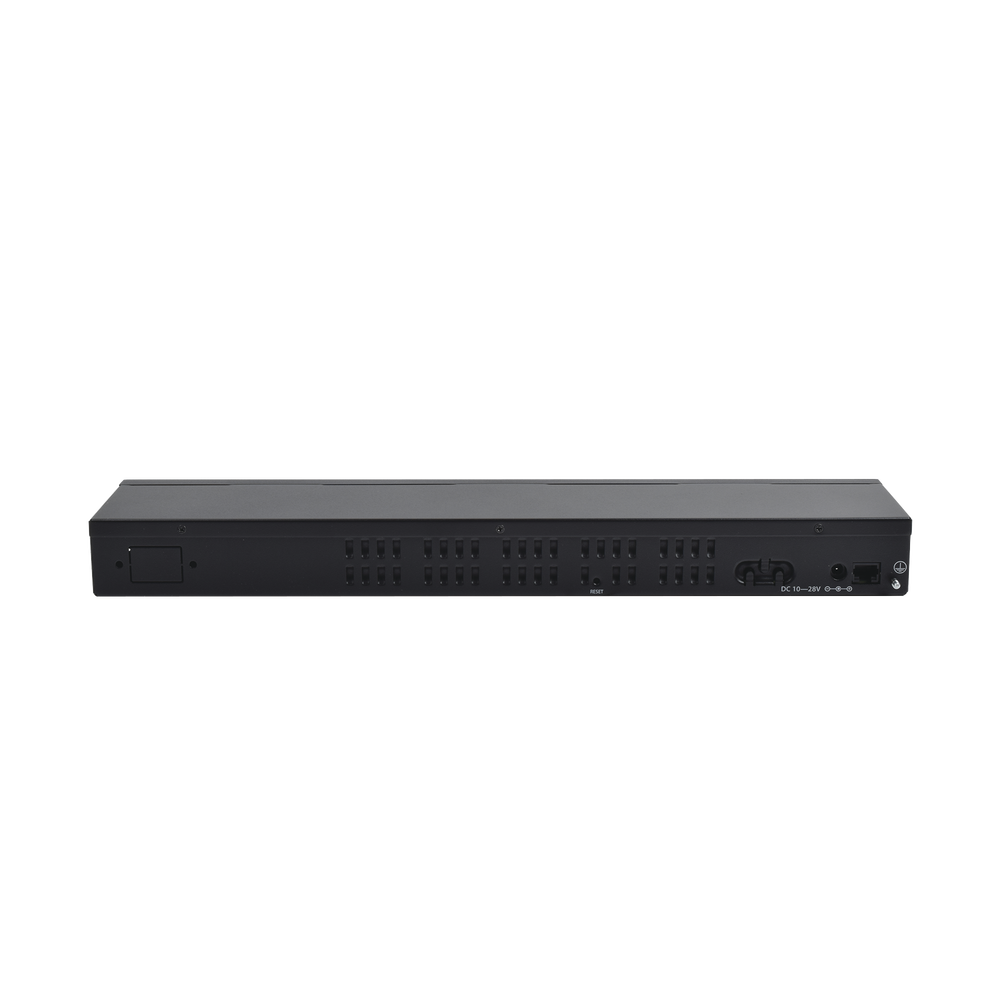

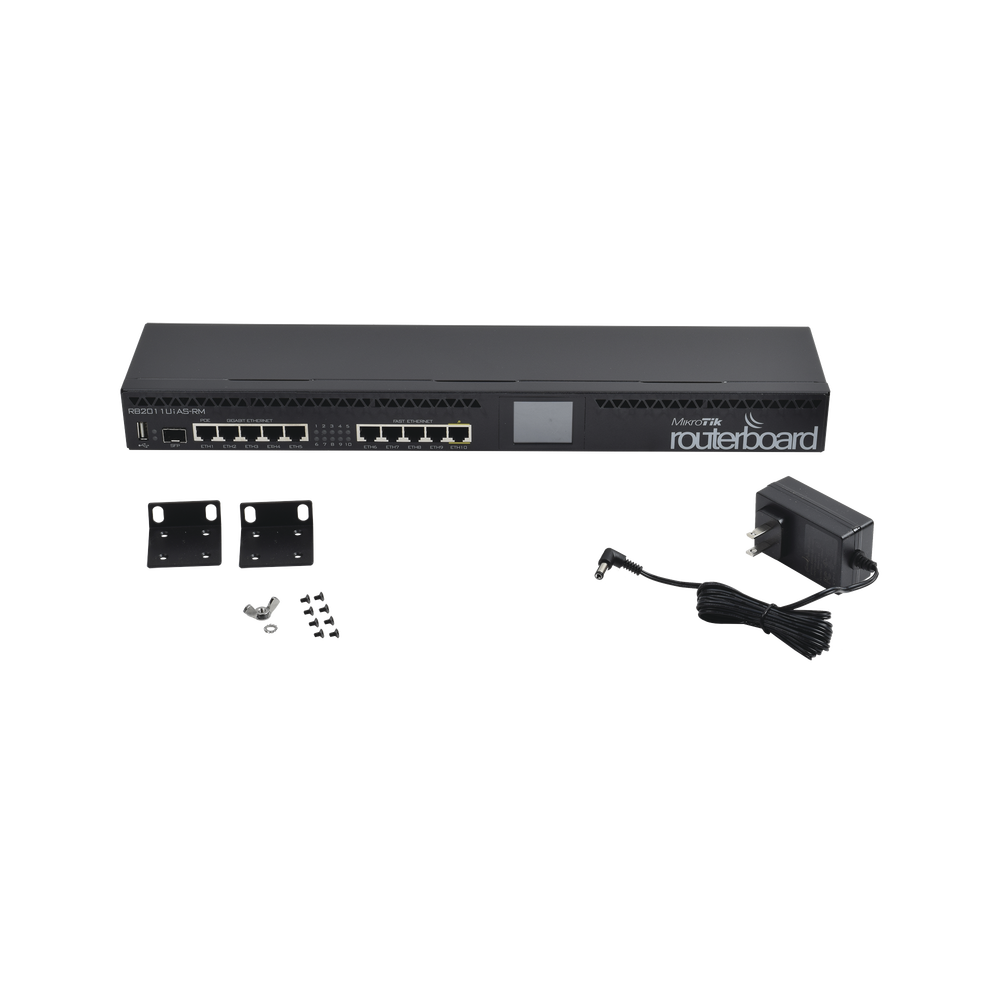

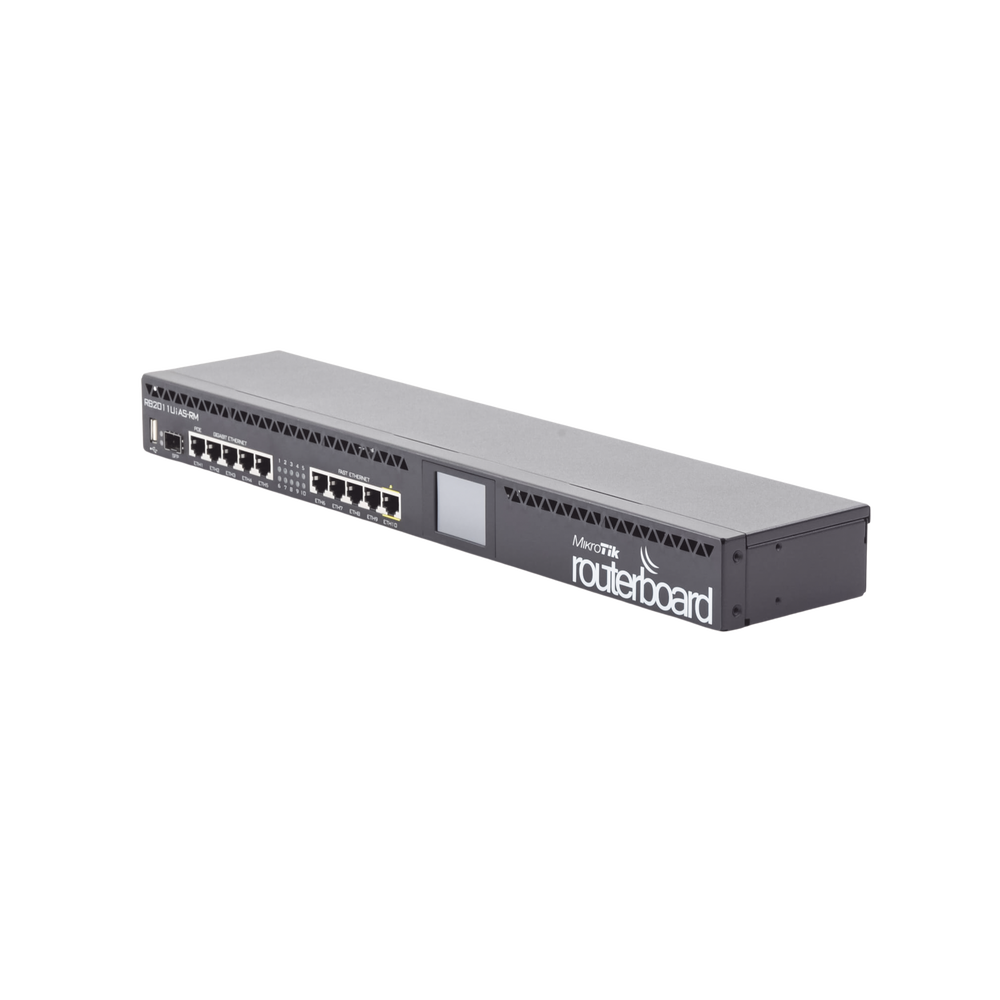

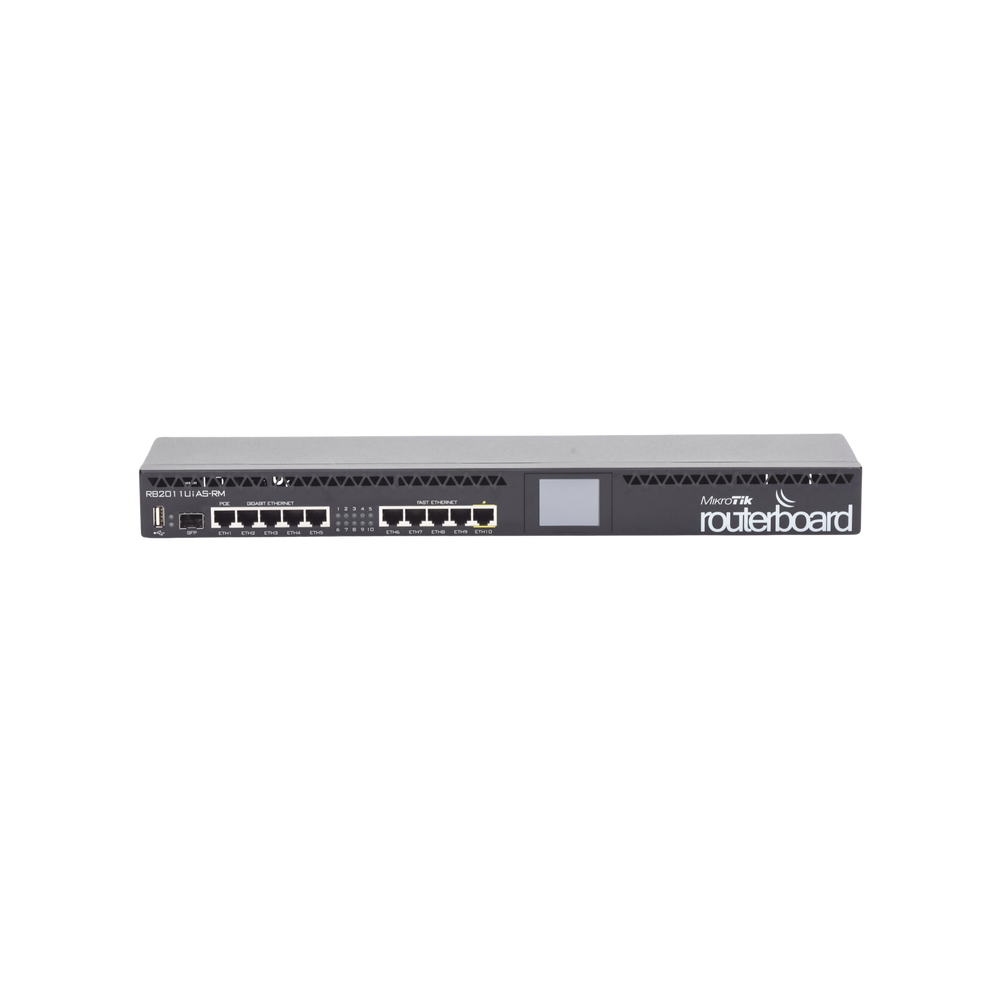

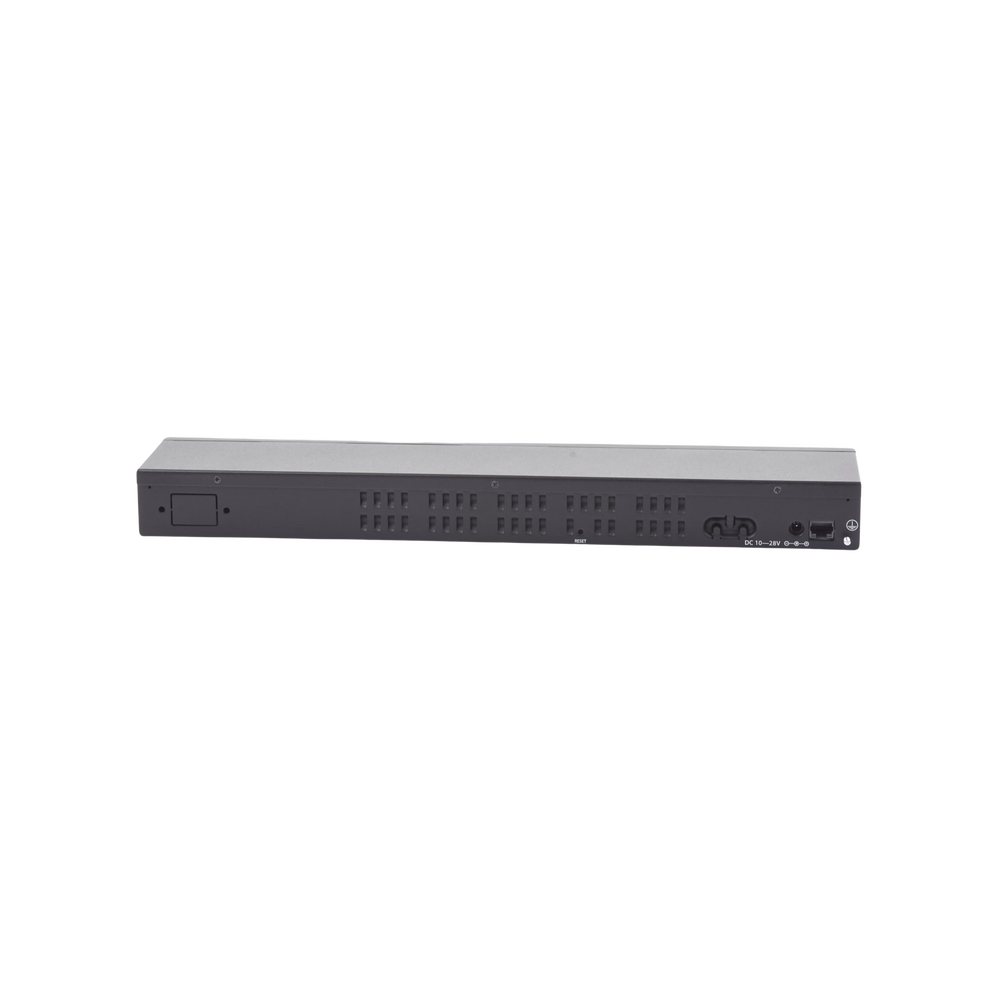

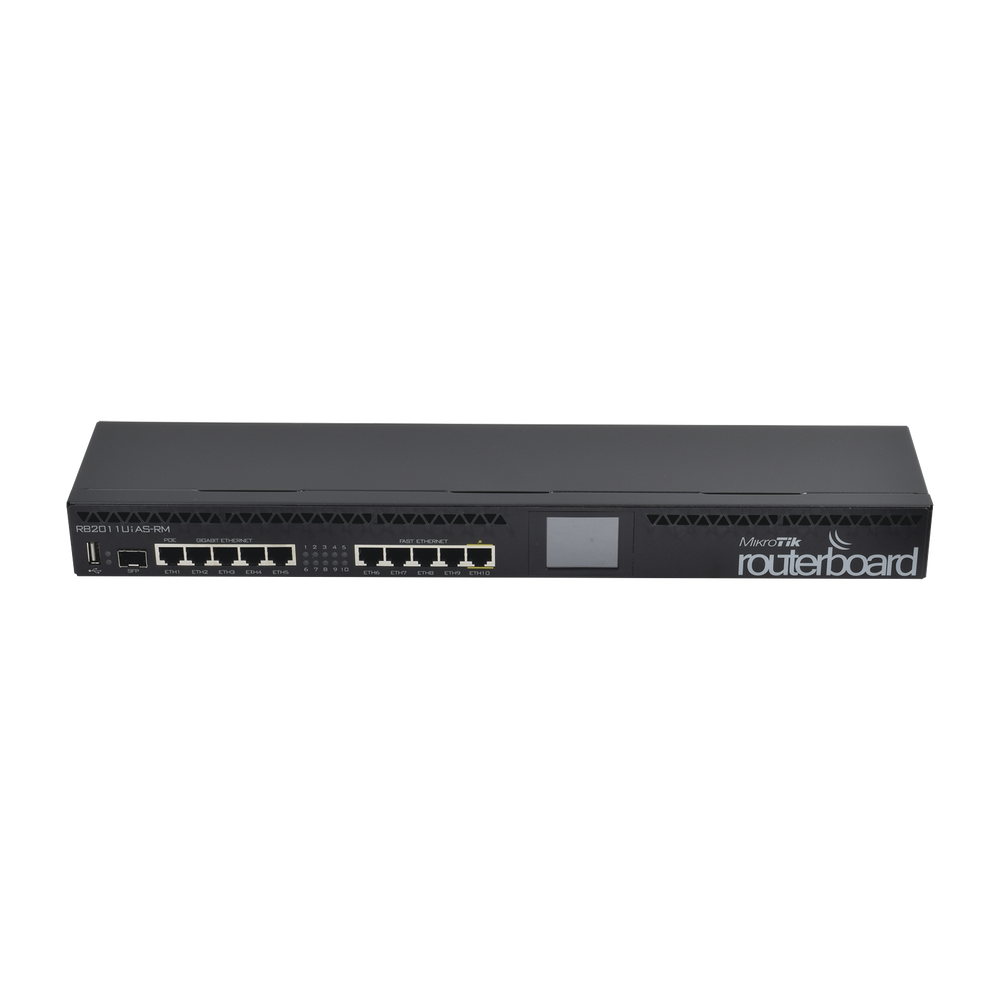

RB2011UiAS-RM

The RB2011 is a series of low-cost multi-port devices. Designed for indoor use, it is available in various sizes and a multitude of options.

The RB2011 is powered by RouterOS, a full-featured routing operating system that has been continuously improved for fifteen years. Dynamic routing, access point, firewall, MPLS, VPN, advanced quality of service, load and link balancing, real-time configuration and monitoring—just a few of the many features supported by RouterOS.

The RouterBOARD 2011UiAS-RM, compared to the RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also an RJ45 serial port, a microUSB port, and more RAM (128 MB instead of 64 MB). It also has a RouterOS L5 license (instead of L4) and a nice touchscreen LCD for configuration. An SFP slot (SFP module not included!)

There is a PoE output function for port #10: you can power other PoE-capable devices with the same voltage applied to the unit. The maximum load on the port is 500 mA.

Tested and recommended for use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included).

*1 year warranty.

Main features of RouterOS

General Specifications

Feeding

Ethernet

Fiber

Peripherals

Other

Ethernet test results

RB2011UiAS-RM		AR9344 1G&100M all port test
Mode	Configuration	1518 bytes		512 bytes		64 bytes
		kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	122.0	1,481.6	232.0	950.3	269.6	138.0
Bridging	25 bridge filter rules	83.6	1,015.2	86.0	352.3	87.6	44.9
Routing	none (fast path)	122.0	1,481.6	210.0	860.2	226.9	116.2
Routing	25 simple queues	100.5	1,220.5	103.9	425.6	106.6	54.6
Routing	25 IP filter rules	56.8	689.8	59.6	244.1	60.5	31.0

1. All tests are done with Xena Networks specialized test equipment (XenaBay), and done according to RFC2544 (Xena2544)
2. Max throughput is determined with 30+ second attempts with 0.1% packet loss tolerance in 64, 512, 1518 byte packet sizes
3. Values ​​in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

*Images are for illustrative purposes only

How to avoid False Contact Problem

5 x 10/100Mbps ports and 5 x 10/100/1000Mbps ports, 1 x SFP port, 1 x USB port, With LCD Display, Rack Mountable, Power: DC Jack or Passive PoE, License Level: 5
