(mANT 15s) Antena Sectorial de 15dBi con Angulo de Apertura de 120° con un rango de 5.17 - 5.825GHz

(mANT 15s) 15dBi Sector Antenna with 120° Opening Angle with a range of 5.17 - 5.825GHz

$465,317
Skip to product information
(mANT 15s) Antena Sectorial de 15dBi con Angulo de Apertura de 120° con un rango de 5.17 - 5.825GHz

(mANT 15s) 15dBi Sector Antenna with 120° Opening Angle with a range of 5.17 - 5.825GHz

$465,317
Shipping calculated at checkout.
Marca
MIKROTIK
Referencia / SKU
MTAS-5G-15D120
Disponibilidad
Agotado por ahora
Descripción y especificaciones

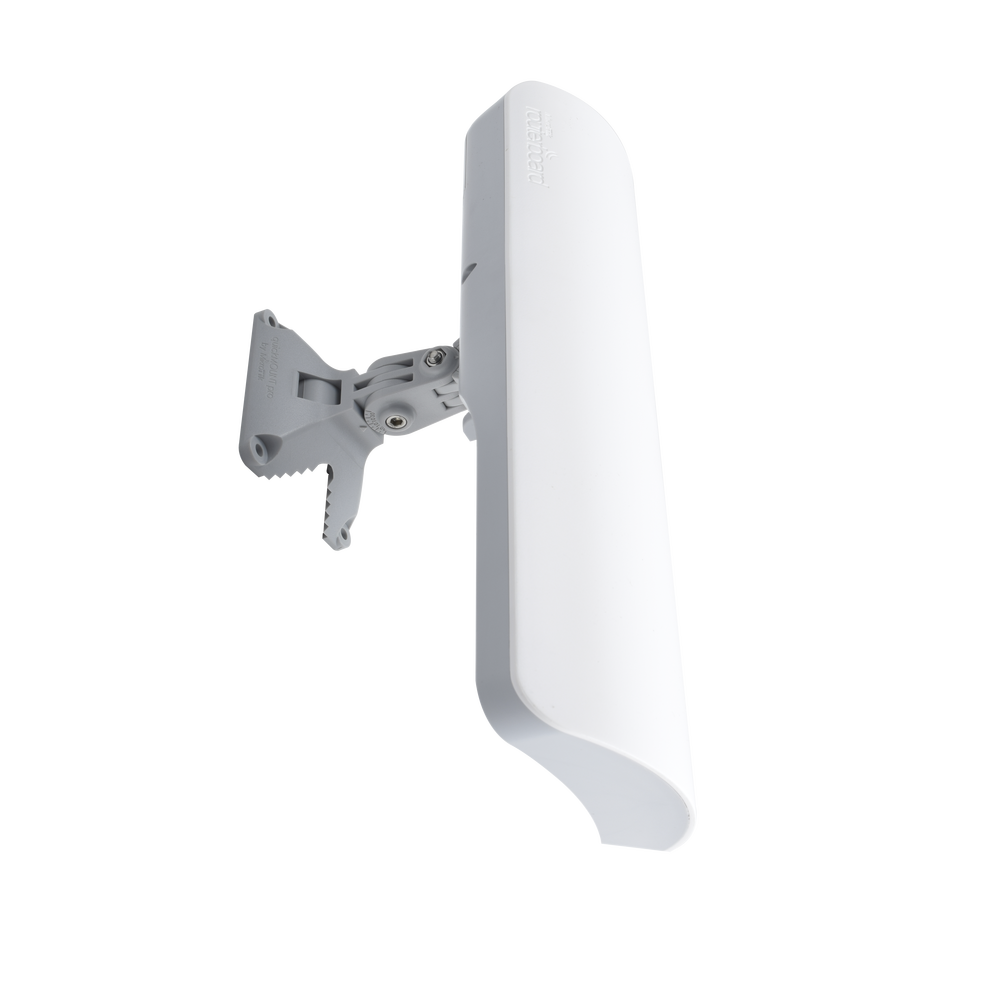

(mANT 15s) 15dBi Sector Antenna with 120° Opening Angle with a range of 5.17 - 5.825GHz


The new MANT antenna sector is the perfect companion for BaseBox, NetBox, NetMetal, or any other outdoor wireless device.
The mANT 15s is a 120° sector antenna with a 15 dBi aperture and dual RP-SMA connectors. It's compatible with SXT mounts, so you can use it with our durable and adjustable QuickMount systems. It includes a quickMOUNT PRO.

Product specifications

Details
Product code MTAS-5G-15D120
Beam width 120 degrees (azimuth) 10 degrees (elevation)
Connector two RP-SMA
Cross polarization > 30 dB
Diameter x depth 140 x 348 x 82 mm
Frequency range 5.17 - 5.825 GHz
Front-to-back relationship > 30 dB
MTBF Approximately 100,000 hours at 25°C
Polarization Vertical and Horizontal
Port-to-port isolation > 40 dB minimum
VSWR 1.43 typical, 1.8 max.
Weight 734 g
