(mANT 19s) 19 dBi Sector Antenna with 120° Opening Angle, Frequency Range 5.17 - 5.825 GHz.
(mANT 19s) 19 dBi Sector Antenna with 120° Opening Angle, Frequency Range 5.17 - 5.825 GHz.
Regular price
$870.209 COP
Regular price
$760.817 COP
Sale price
$870.209 COP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

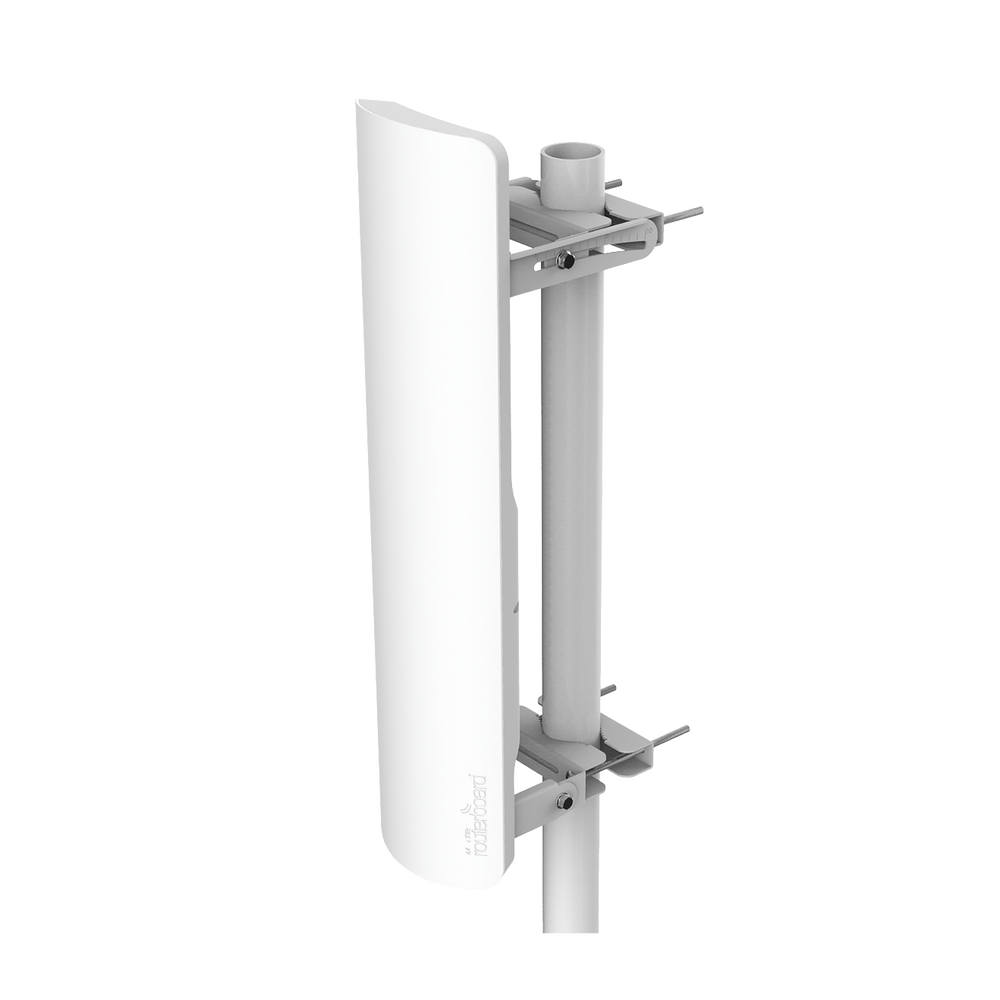

(mANT 19s) 19 dBi Sector Antenna with 120° Opening Angle, Frequency Range 5.17 - 5.825 GHz.
The new mANT sector antennas are the perfect companion for BaseBox, NetBox, NetMetal or any other outdoor wireless device.

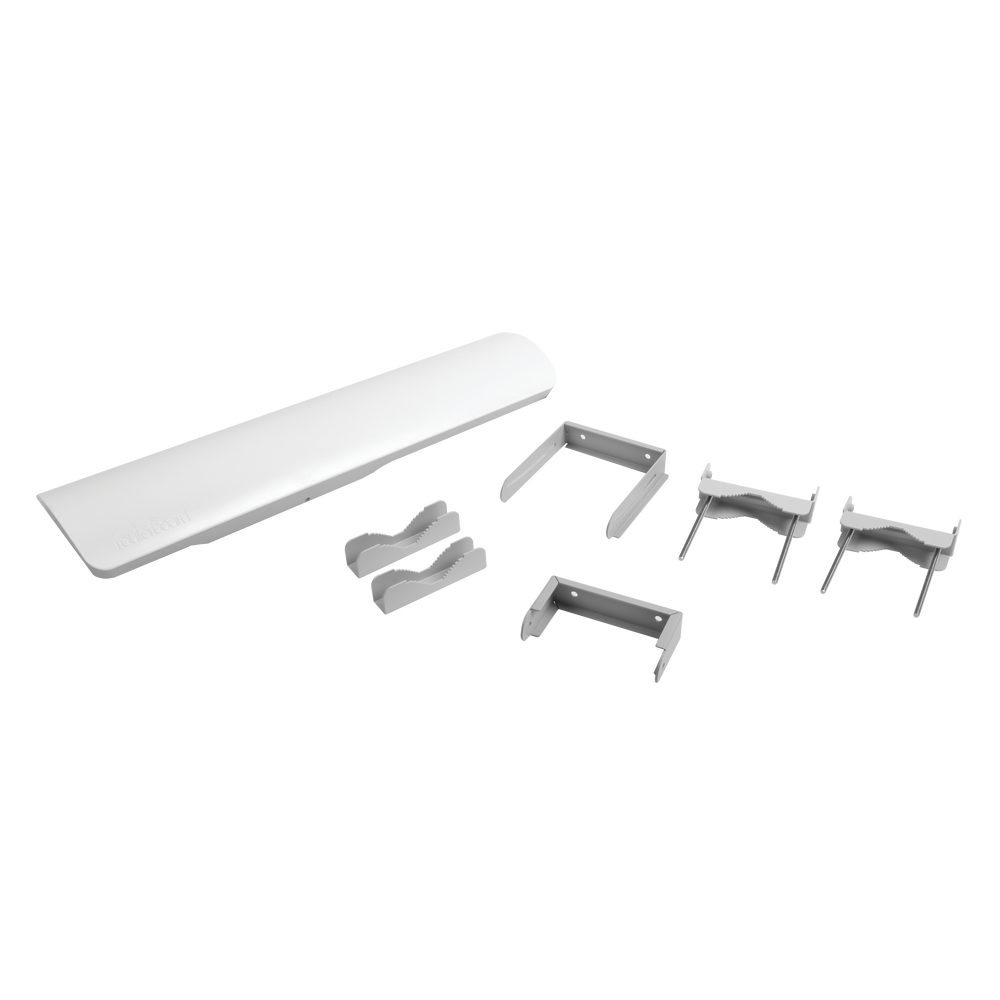

The mANT is a 19dBi, 120-degree beamwidth, dual-polarized antenna with two RP-SMA connectors. It comes with U-bolt metal mounts.
IMPORTANT NOTE: Does not include Jumpers
Product specifications
| Details | |
|---|---|
| Product code | MTAS-5G-19D120 |
| Beam width | 120 degrees (azimuth) 5 degrees (elevation) |
| Connector | two RP-SMA |
| Cross polarization | > 30 dB |
| Diameter x depth | 152 x 598 x 78 mm |
| Frequency range | 5.17 - 5.825 GHz |
| Front-to-back relationship | > 30 dB |
| MTBF | Approximately 100,000 hours at 25°C |
| Polarization | Vertical and Horizontal |
| Port-to-port isolation | > 40 dB minimum |
| VSWR | 1.43 typical, 1.8 max. |
| Weight | 1270 g |
Out of stock
MODELO: MTAS-5G-19D120
