Addressable NAC Control Module / Notification Output / Only for connecting Sirens and/or Strobes / Compatible with Fire-Lite Addressable Panels

Addressable NAC Control Module / Notification Output / Only for connecting Sirens and/or Strobes / Compatible with Fire-Lite Addressable Panels

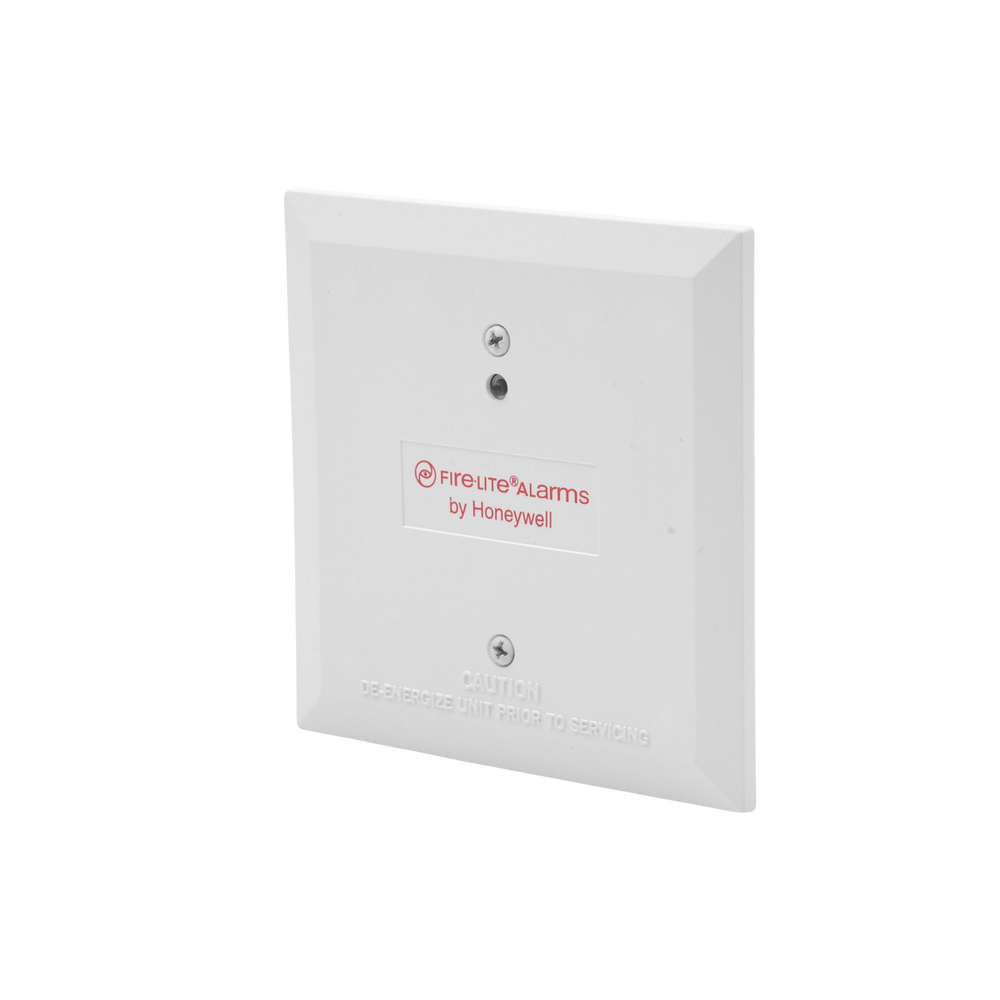

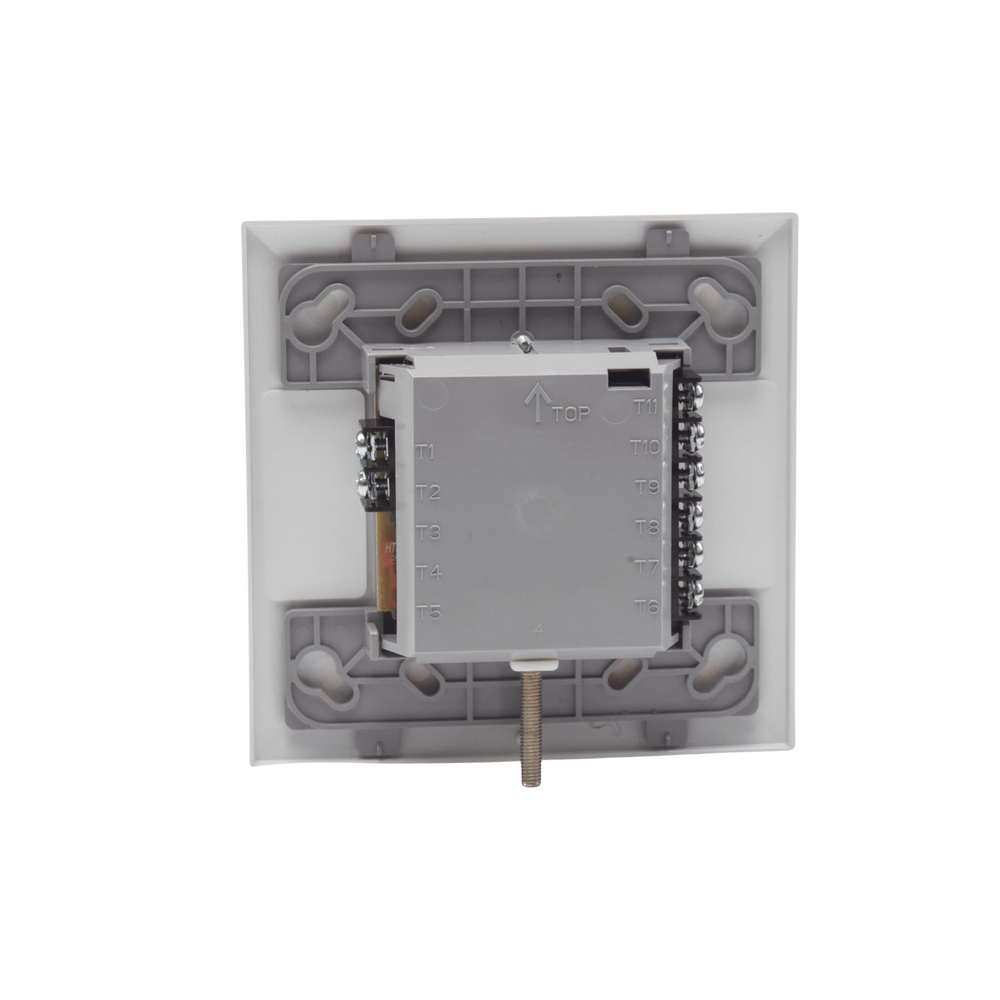

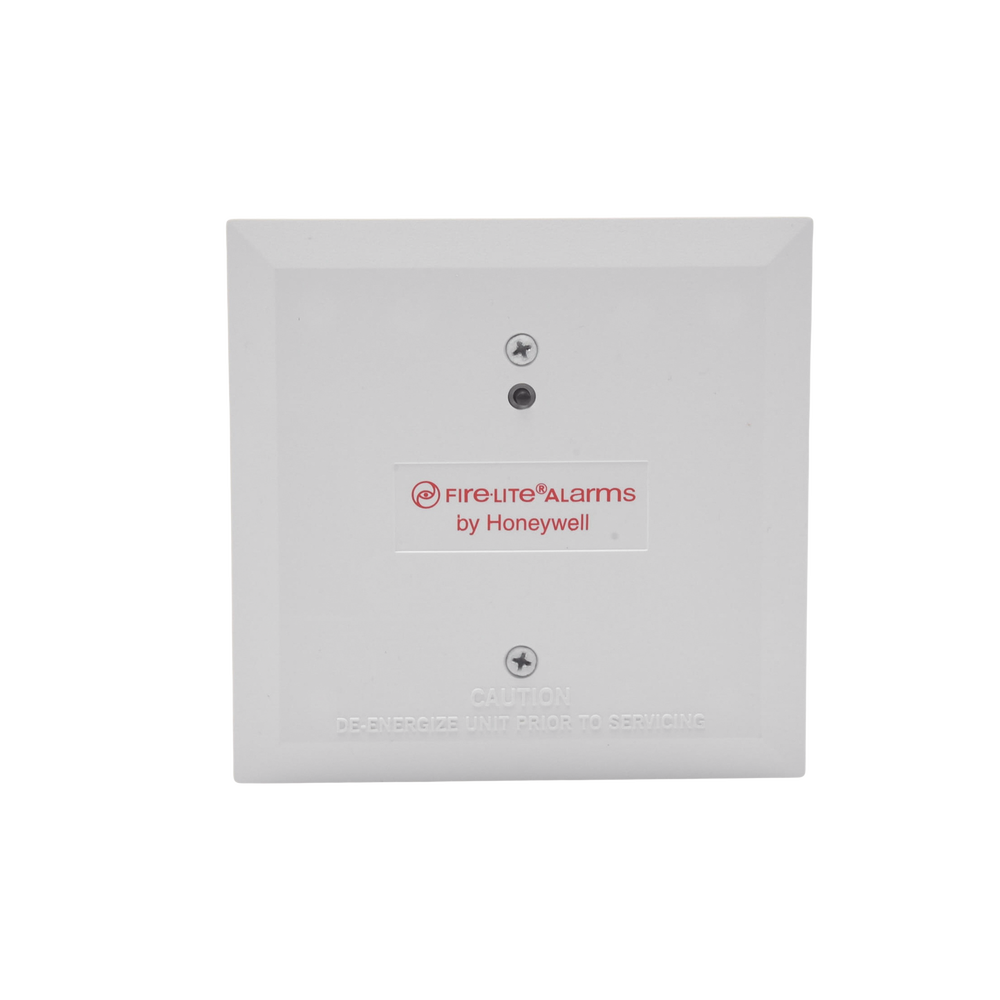

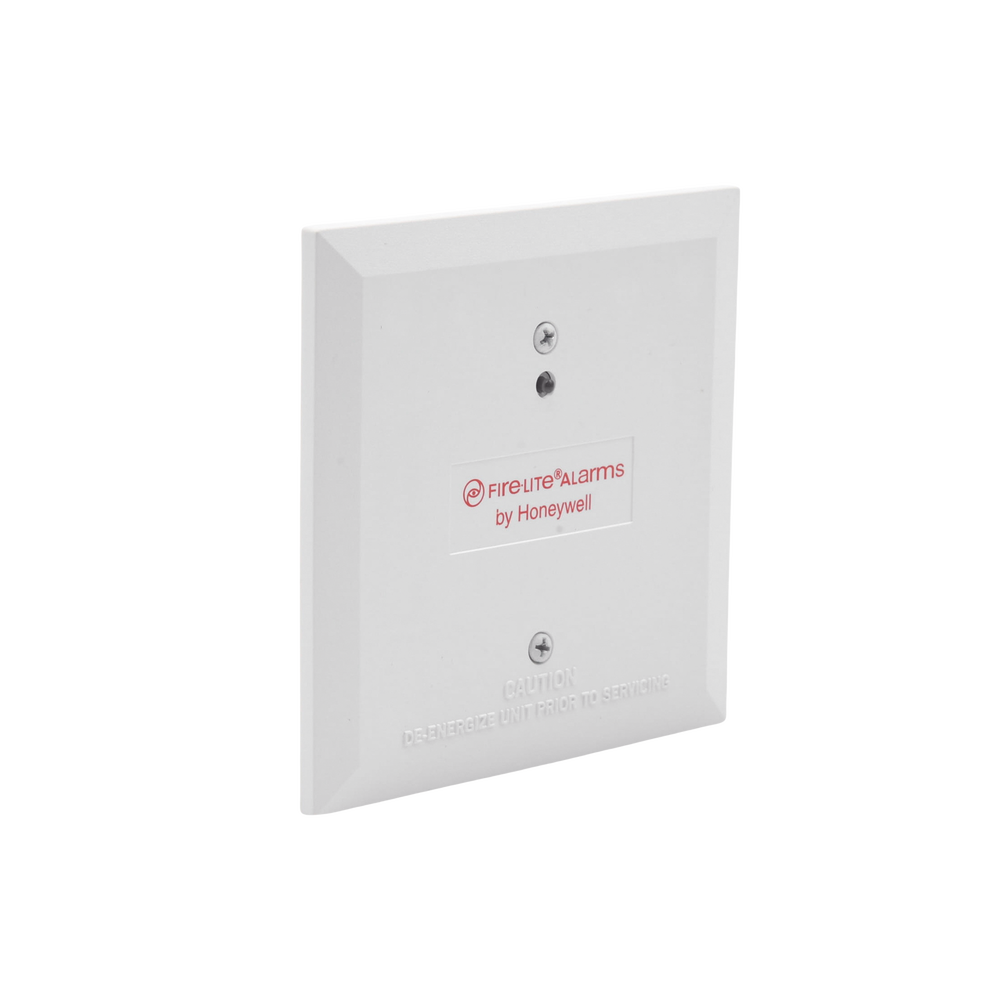

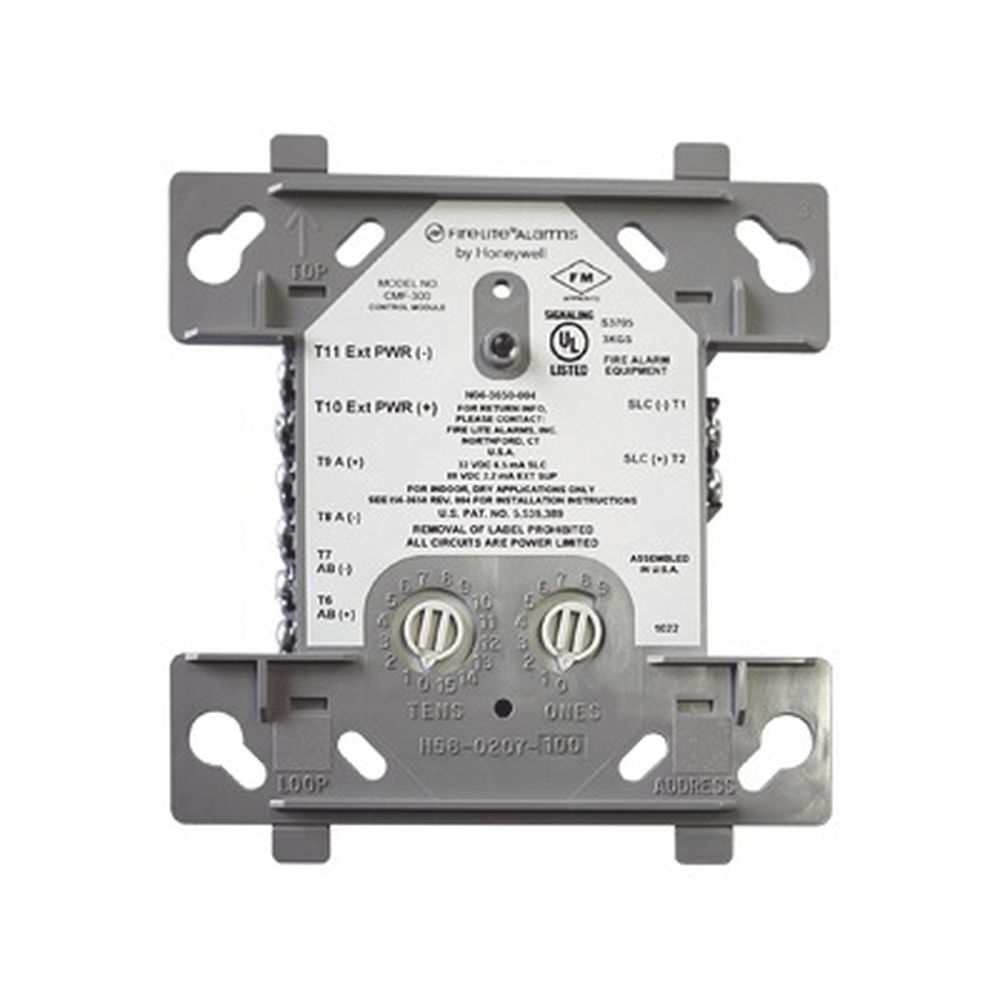

The Fire-Lite CMF-300 Addressable Control Module provides a Class B or Class A supervised circuit for notification appliances (sirens, strobes, etc.). The addressable capability allows the CMF to be activated by panel programming.

Characteristics:

• UL, ULC, MEA, FM and CSFM Listed
• Can be used to switch power to 24 volt NACs
• A trouble condition on the external power supply will never interfere with the rest of the system, to supervise that external power supply the EOL-R1 relay must be used.
• It is automatically identified in the control panel
• Requires a non-resettable filtered 24 Vdc source
• Power supply: 24 Vdc
• Maximum load capacity up to 3-amp
• Consumption: 6.5 mA
• Dimensions: 114 x 101 x 31 mm

Add another NAC circuit, Requires regulated 24 Vdc supply, Class A and B NAC
