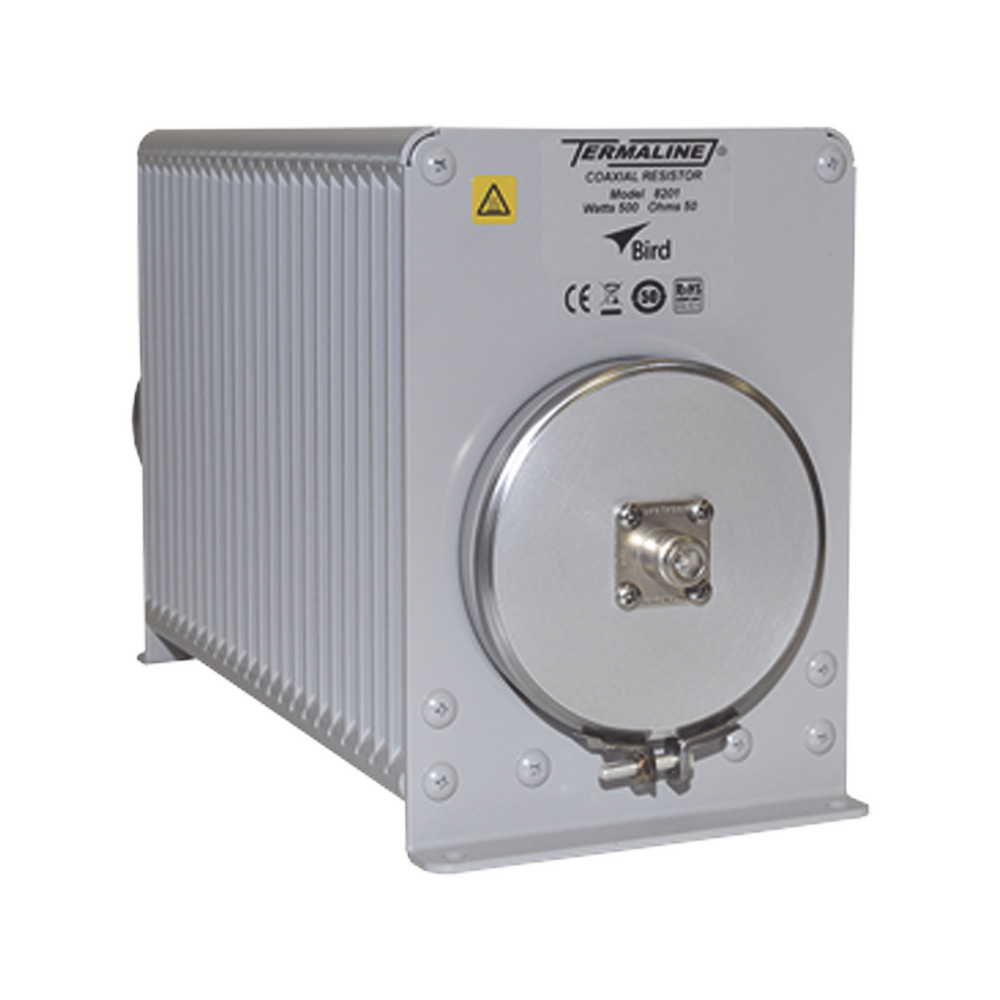

500 Watt, 50 Ohm, Mineral Oil Cooled Portable Terminal Load, N Female Connector.

500 Watt, 50 Ohm, Mineral Oil Cooled Portable Terminal Load, N Female Connector.

500 Watt, 50 Ohm, Mineral Oil Cooled Portable Terminal Load, N Female Connector.

• RF Load is a portable, stand-alone, general-purpose 50 ohm coaxial transmission line termination that requires no external power supply or additional equipment.
• Provides an accurate, reliable, and virtually non-reflective termination for testing and tuning transmitters under radiation-free conditions.
• The load consists essentially of a cylindrical film-type resistor immersed in a dielectric coolant.
• The resistor, individually selected for its precision, is enclosed in a special tapered housing that provides a linear reduction in surge impedance directly proportional to the distance along the resistor.
• This produces a uniform, virtually reflection-free line termination from DC to 2.5 GHz.

Characteristics

• Rugged portable bench load for medium power base station RF testing up to 2.5 GHz.
• Oil-assisted convection cooling for safe, continuous operation up to 500W full rated power.
• Quick Change (QC) connectors to minimize the need for adapters when making critical measurements.
• Low-profile housing with handle for trouble-free operation in the most demanding environments.

Specs

• Model: 8201 (500 Watts, Oil Cooled RF Terminations).
• Nominal power: 500 Watts continuous.
• Frequency Range & VSWR: DC to 1 GHz @ 1.1 max, 1 GHz to 2.5 GHz @ 1.25 max.
• Temperature range: -40 to +45 °C
• Coolant: 0.9 gal. (3.42 liters) Refined Mineral Oil.
• Product Type: Oil Cooled.
• Operating position: horizontal only.
• Connectors: N (Hem.)
• Finish: Grey powder coat.
• Dimensions: 16-13/16' x 8-1/2' x 5-15/16' (LxWxH); 427 x 216 x 151 mm.
• Weight: 21 lbs. (9.5 kg).
