125 Watt Smart Amplifier for Voice Evacuation System, with Power Supply and Battery Backup

125 Watt Smart Amplifier for Voice Evacuation System, with Power Supply and Battery Backup

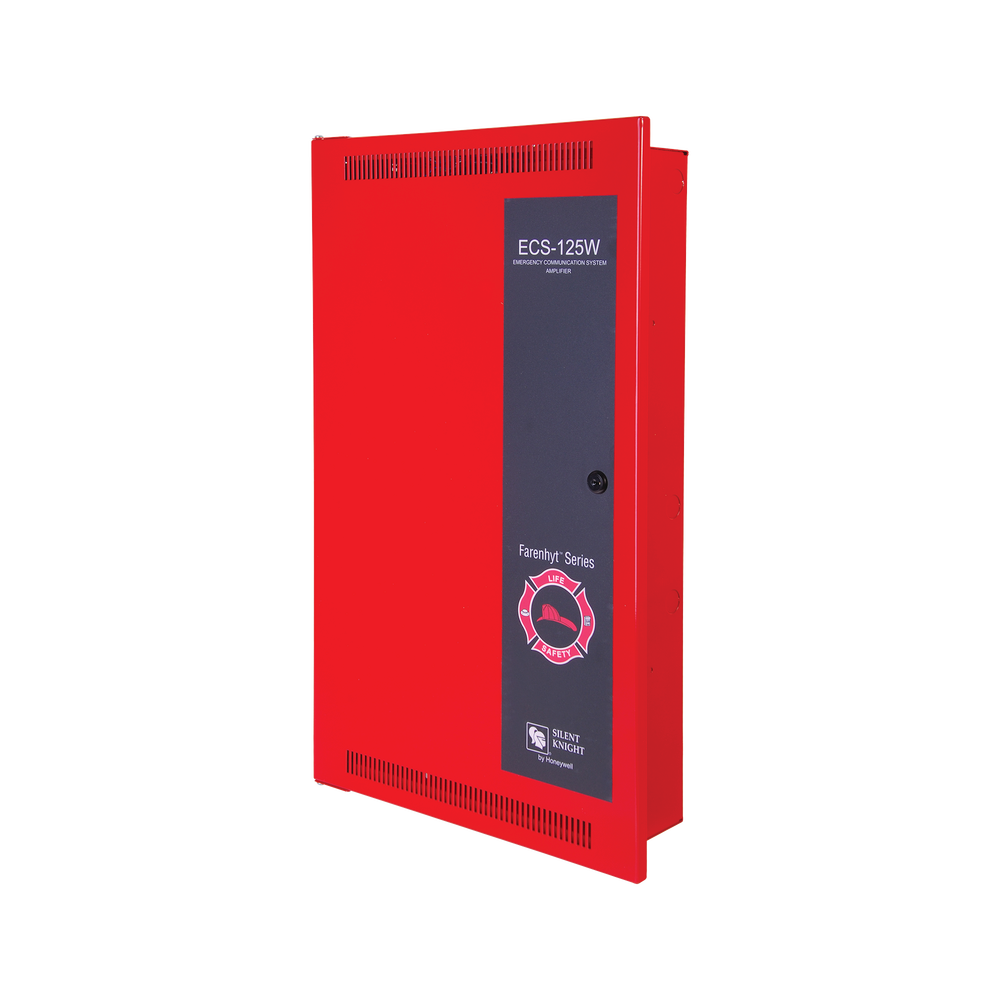

ECS-125W
The ECS-125W is a 125-watt intelligent amplifier for use with the IFP-100ECS, IFP-1000ECS, and IFP-2000ECS. The ECS-125W is used to amplify audio messages for distribution throughout the facility. Designed as a self-contained distributed amplifier, it can be conveniently located near the protection zone to reduce wiring requirements.
Each ECS-125W is capable of producing 125 watts of audio power. Up to eight ECS-125Ws can be used in the voice evacuation system.

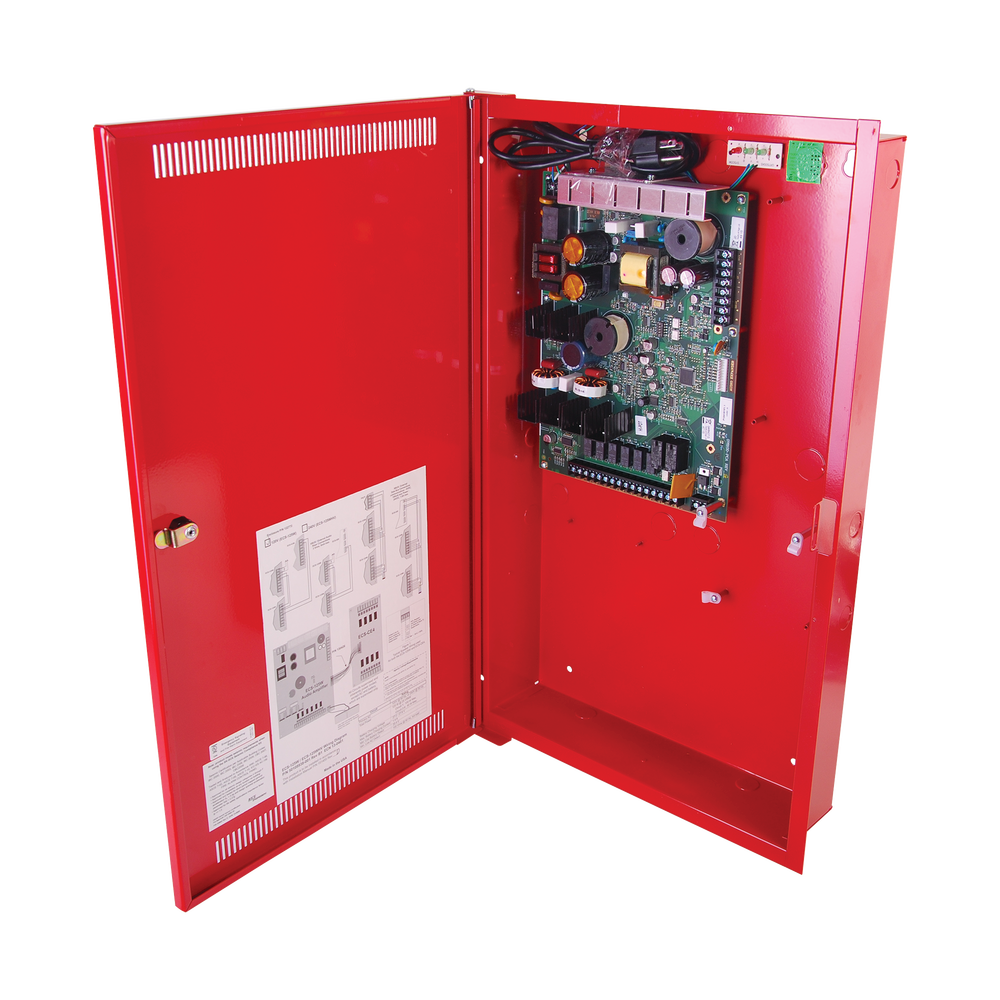

The ECS-125W has its own battery-backed power supply and four speaker circuits, which can be expanded to eight speaker circuits with the optional ECS-CE4. The ECS-125W is fully monitored by the main panel for trouble conditions.

Characteristics:
• Addressable SBUS, up to eight ECS-125Ws per system for a total of 1000 Watts.
• Each ECS-125W is supervised and has four built-in audio circuits expandable to eight with the ECS-CE4 for a total system of 64 audio circuits.
• ECS-125W uses easy wire harness installation to connect the ECS-CE4 expansion audio circuit.
• Can be mounted up to 1.8 km away from the ECS-Series panel.
• The ECS-125W has its own power supply and backup battery.
• Selection of 25 volts or 70.7 volts operation.
• Six-wire ECS system connection: two wires for the voice bus and four wires for SBUS connections.
• UL 864 and UL 2572.
• OSHPD (CA) OSP-0065-10.
• CSFM 7300-0559: 0173.
