• Suscriptor ePMP Force 180 5GHz, 200+ Mbps con antena integrada de 16 dBi (C050900C171A)
1 3

CAMBIUM NETWORKS

ePMP Force 180 5GHz, 200+ Mbps Subscriber with Integrated 16 dBi Antenna (C050900C171A)

ePMP Force 180 5GHz, 200+ Mbps Subscriber with Integrated 16 dBi Antenna (C050900C171A)

$814.140 COP
$890.466 COP $814.140 COP
Sale Sold out
Shipping calculated at checkout.

ePMP Force 180 5GHz, 200+ Mbps Subscriber with Integrated 16 dBi Antenna (C050900C171A)



Force 180

5
GHz 200+
 16 Mbps
dBi

QUALITY OF SERVICE

A powerful multi-level prioritization scheme that can be configured by the operator

network to enable the delivery of differentiated services.

SECURITY

128-bit AES encryption, L2 and L3 firewall rules, support for different levels

User-friendly, HTTP/SSH support provides enhanced security.

FLEXIBLE MODES OF OPERATION

Provides extremely low latency for PTP implementations, highly

Scalable without GPS synchronization and TDD operation for synchronized towers

ROBUST DESIGN

Operates in ambient temperatures as high as 60 degrees and as low as -30 degrees

Celsius

The ePMP Force 180 is the second generation of integrated ePMP radios. It is a 2x2 MIMO radio in the 5 GHz band, capable of up to 200 Mbps and featuring an integrated 16 dBi antenna. It can be used as a CPE, as an AP (without synchronization), or as a PTP.


Main functions

  • Gigabit Ethernet port
  • Supports Cambium PoE and standard PoE
  • Integrated 16 dBi antenna

Includes PoE injector and power cable.

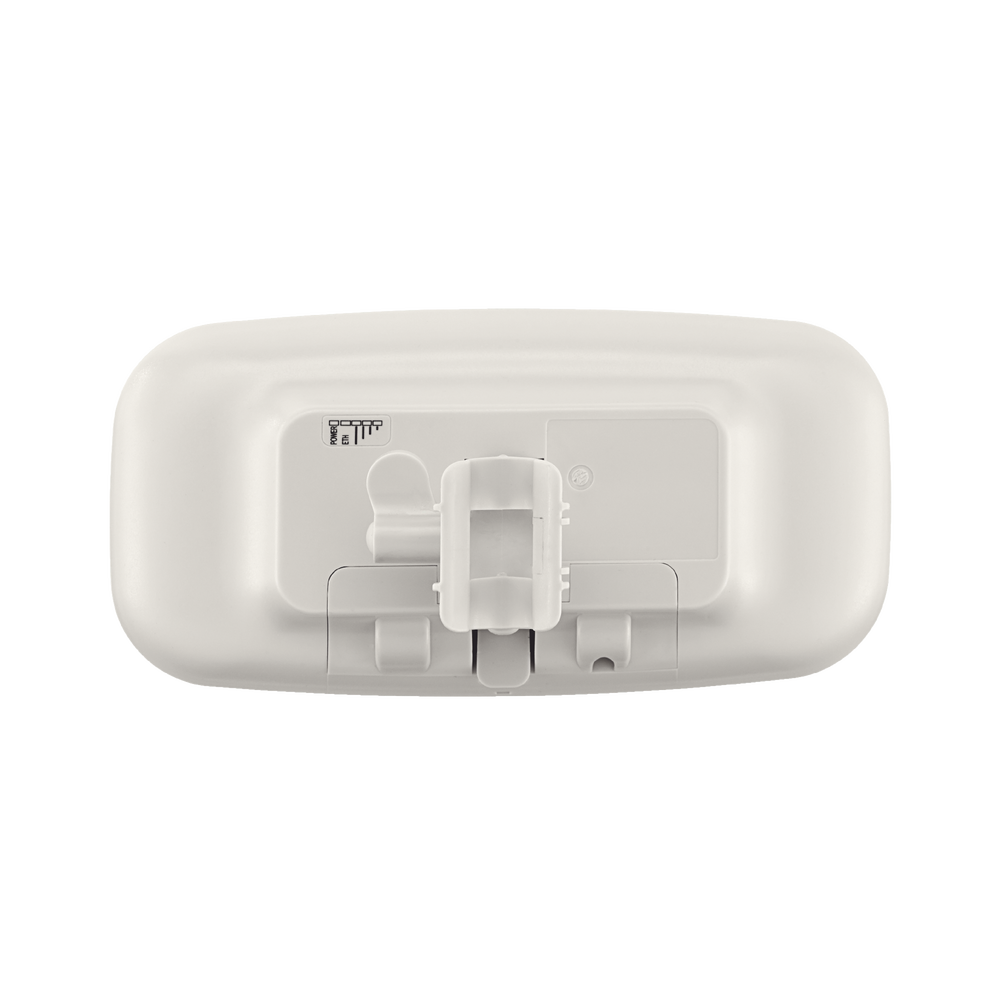

Includes tilt pole mount.

MIMO and modulation 2x2 MIMO/OFDM
Frequency range 4910 – 5970MHz (defined by country of operation)
Maximum power output 30 dBm combined (defined by country of operation)
Revenue 16 dBi
Maximum power consumption 10 W Maximum, 5 W Typical
Exterior protection IP55
Management HTTPS, SSH, SNMPv2c
Channel spaces Configurable in 5 MHz increments
MAC Layer Cambium Proprietary
Ethernet structure 10/100/1000BaseT, auto negotiated rate, Cambium PoE (included)
Protocols used IPv4, UDP, TCP, IP, ICMP, SSH, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
VLAN 802.1Q with 802.1p priority
Input voltage 10 to 30 V
Encryption 128-bit AES (CCMP mode)
Antenna Type Integrated
Channel width 5/10 MHz, 20/40 MHz
Warranty 3 years


Installation and assembly of the equipment



Step-by-step configuration via Web interface


cnMaestro

LINKPlanner

cnArcher

cnHeat

cnMaestro™ is an on-premises or cloud-based software platform for secure, end-to-end network control. cnMaestro Wireless Network Manager simplifies device management by offering complete network visibility and zero-touch provisioning. View and perform a full suite of wireless network management functions in real time. Optimize system availability, maximize performance, and meet the emerging needs of business and residential customers.

LINKPlanner allows you to model "what-if" scenarios (based on geography, distance, antenna height, transmit power, and other factors) to optimize system performance before purchase. Quickly design networks for optimal deployment and cost-effectiveness with ease. Available for Microsoft® Windows® and Mac® systems, it is a free and easy-to-use link design tool.

LINKPlanner leads the industry as the most reliable and intuitive RF link planning tool, with tens of thousands of links successfully deployed worldwide.

Raise the bar on installation accuracy with cnArcher™, the free mobile app that provides field technicians with the information they need to properly configure and align Cambium Networks PMP and ePMP wireless broadband subscriber modules.

Built on Cambium Networks’ expertise in RF planning, propagation, and modeling as seen in LINKPlanner and integrated with GIS data up to 1 meter in accuracy, cnHeat generates highly accurate RF predictions and derived services that accurately represent the reality of the RF world.

    QoS to prioritize Triple Play traffic (Video, Voice, and Data), Frequency range 4910-5970 MHz, Free cloud monitoring with cnMaestro, receive event notifications, Includes PoE power supply and mast or wall mount, Option to configure as point-to-point

Out of stock

MODELO: FORCE180
