Addressable Dual Monitor Module / Allows Adding Conventional Sensors to the Panel / Class B Wiring / Compatible only with Fire-Lite Addressable Panels

Addressable Dual Monitor Module / Allows Adding Conventional Sensors to the Panel / Class B Wiring / Compatible only with Fire-Lite Addressable Panels

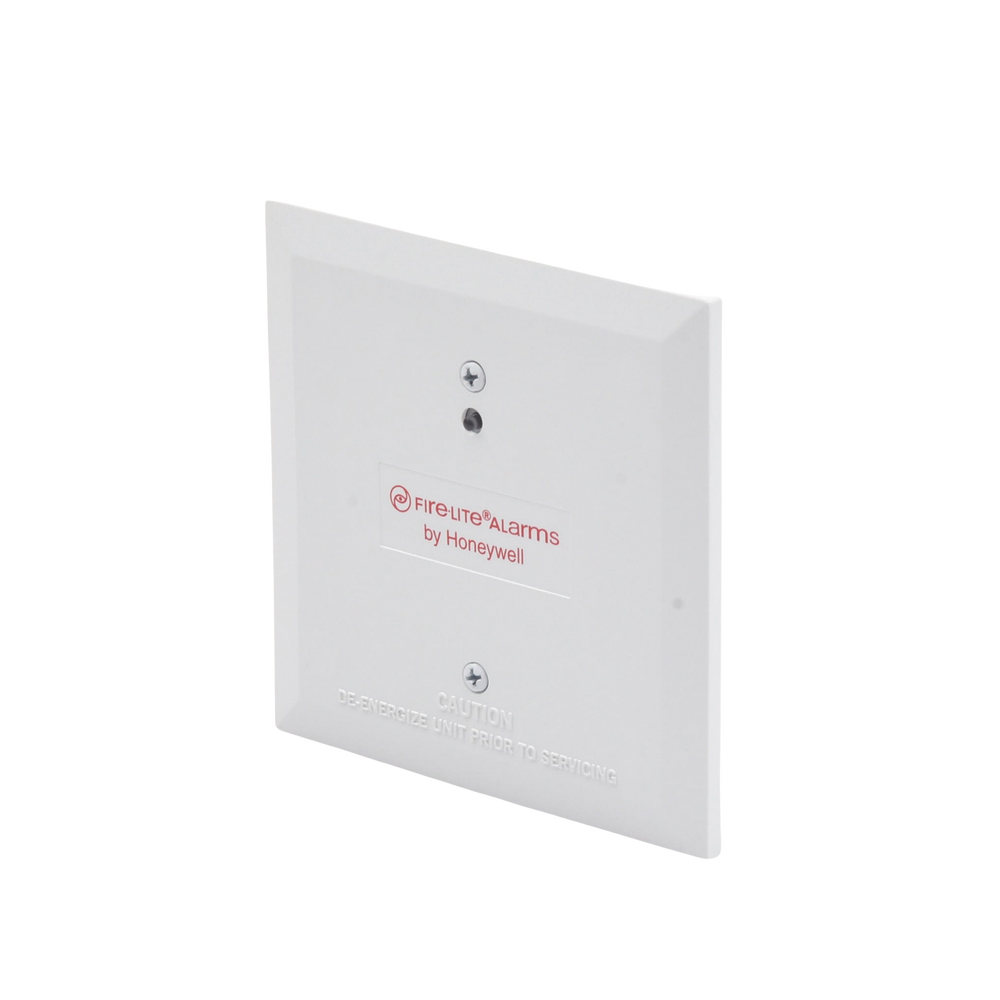

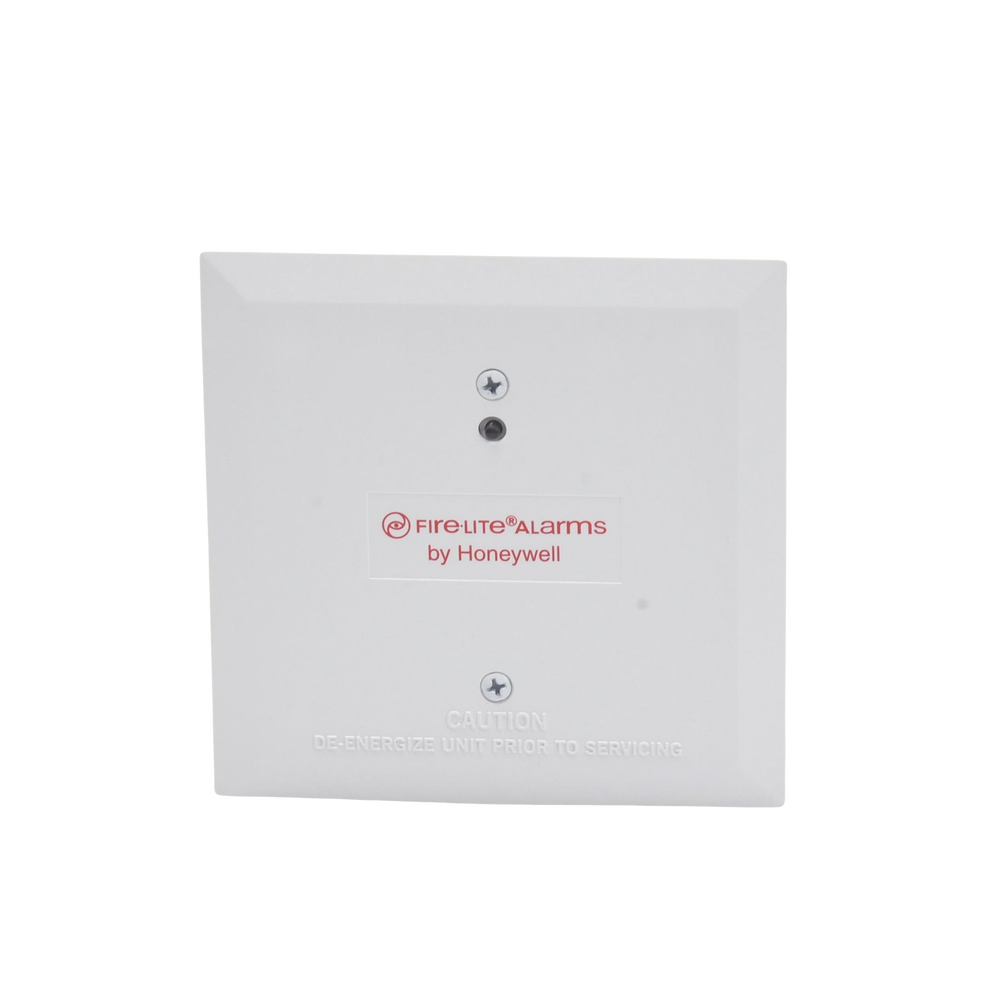

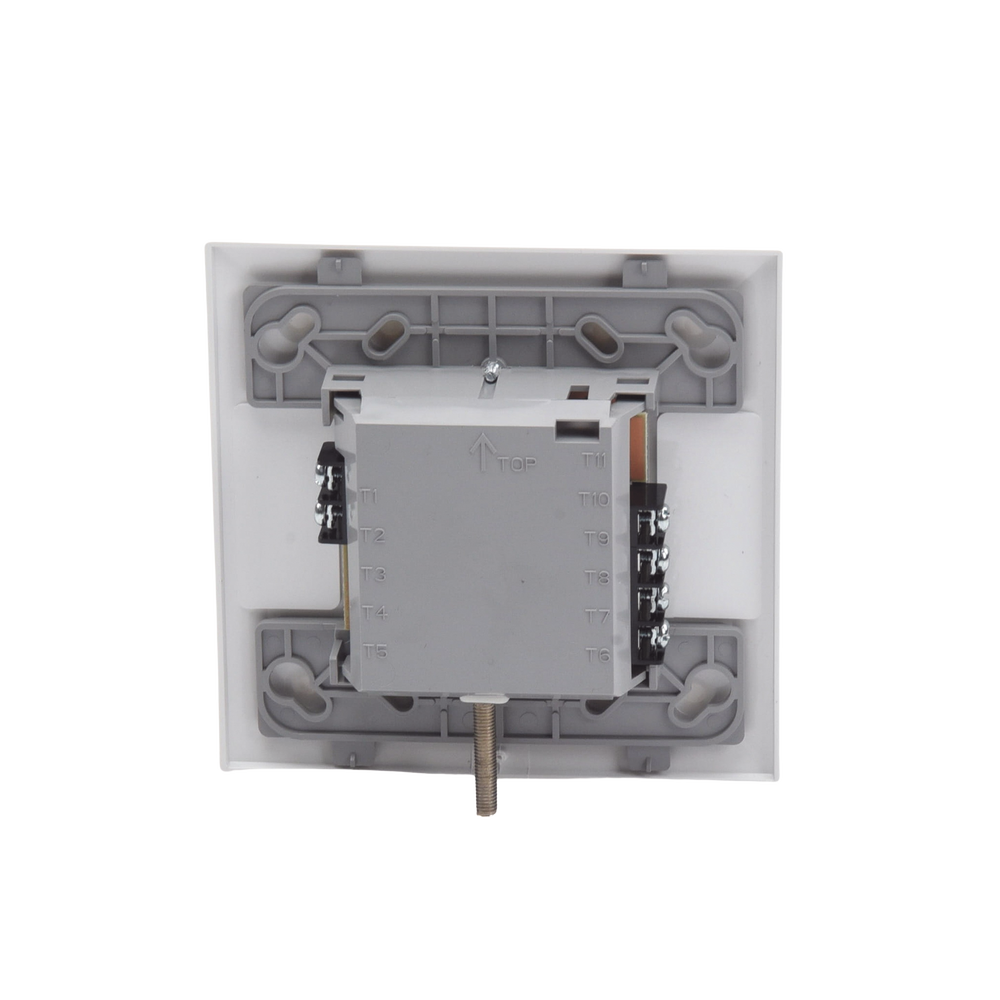

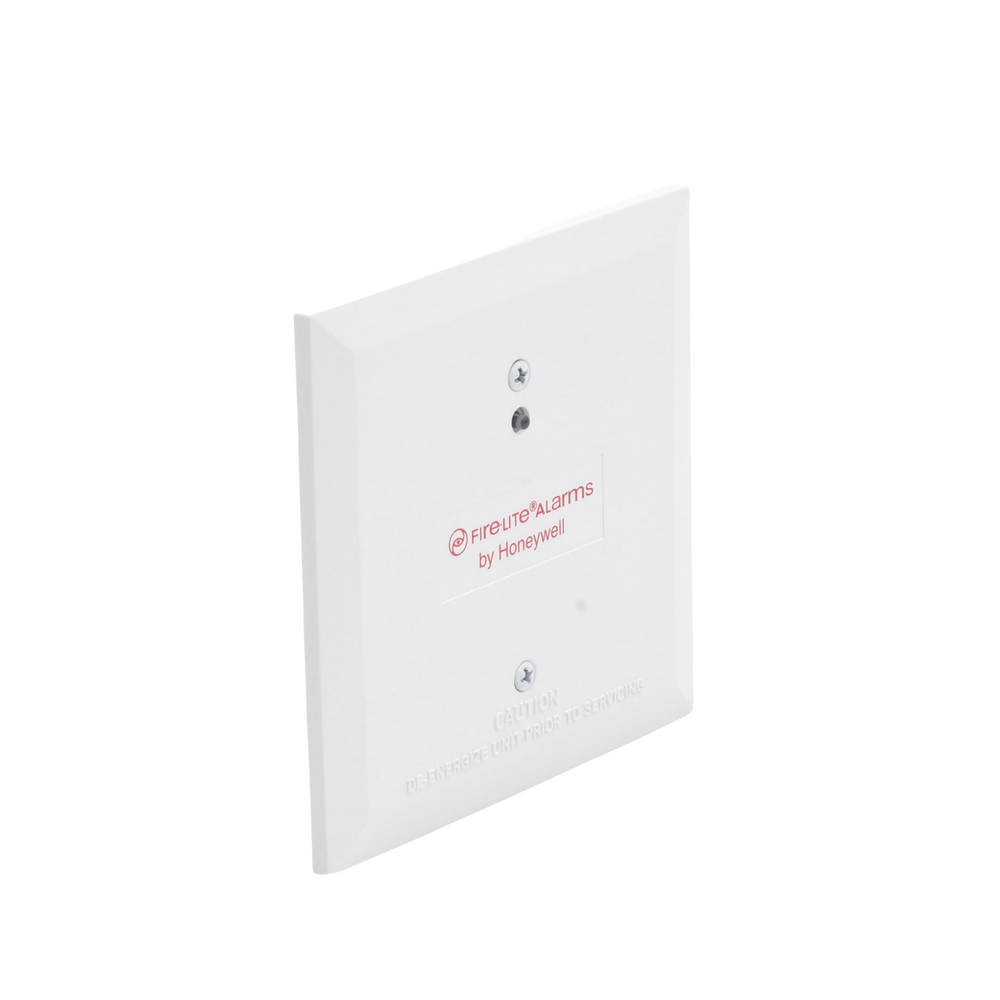

The MDF-300 is a dual addressable monitoring module that is suitable for a wide variety of applications. It is used to monitor two Initiating Device Circuits (IDCs) such as; heat detectors, smoke detectors, pull stations, gas detectors, flow sensors, pressure sensors, etc. It is used exclusively with Fire-Lite Endurance Series MS-9050UD, MS-9200UDLS, MS-9600UDLS Addressable Fire Detection Panels and the ES50X, ES50XI, ES200X, ES200XI, ES1000X, and ES1000XI.

Characteristics:

• UL, ULC, MEA, FM and CSFM Listed
• Monitor and supervise two Class B Initializing Device Circuits (IDCs)
• Two separate consecutive addresses
• It is automatically identified in the control panel
• Power supply: 24 Vdc
• Consumption: 6.4 mA
• Dimensions: 114 x 101 x 31 mm

Rotary Switch Direction, Status LED
