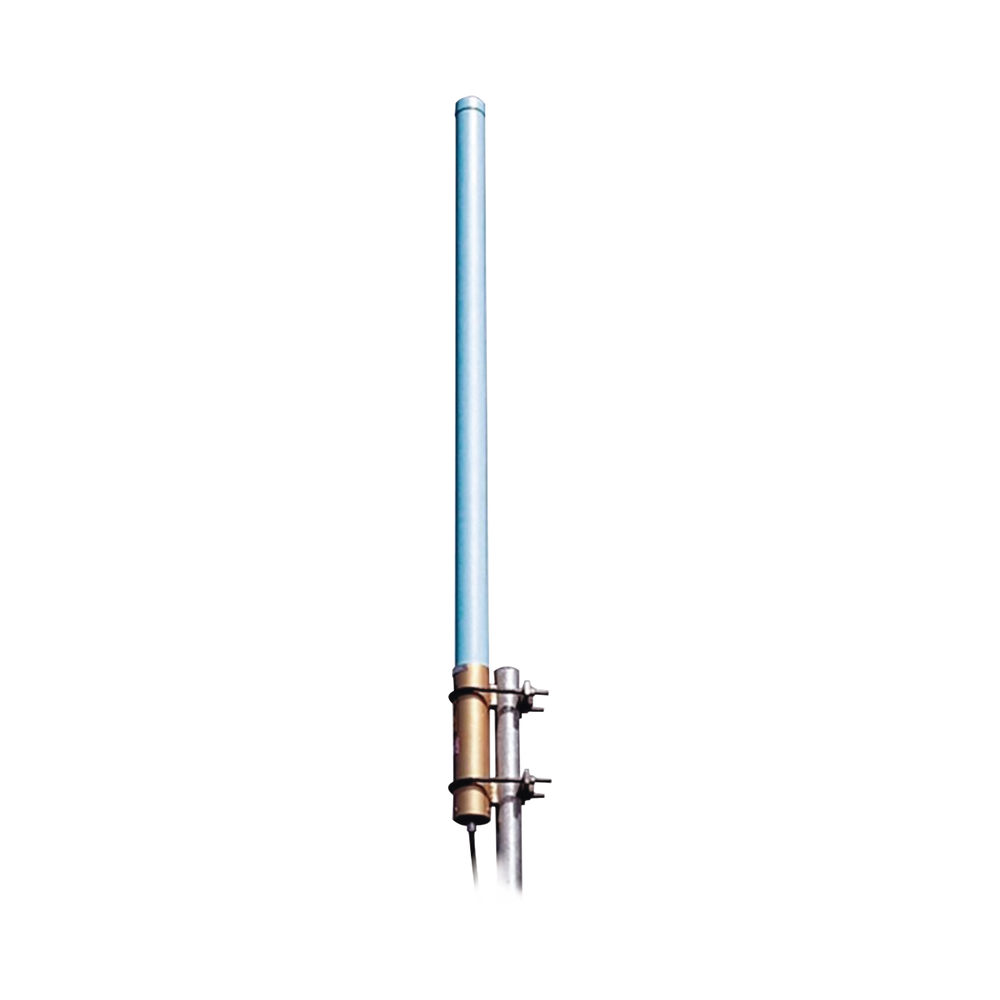

Omni/Base Antenna, Fiberglass, 148-174 MHz, 2.5 dB, 500W, N Female.

Omni/Base Antenna, Fiberglass, 148-174 MHz, 2.5 dB, 500W, N Female.

Omni/Base Antenna, Fiberglass, 148-174 MHz, 2.5 dB, 500W, N Female.

• Frequency range: 148-174 MHz.
• Gain: 2.5 dB.
• Bandwidth: 26 MHz.
• Power Range: 500 Watts.
• Impedance: 50 Ohm.
• VSWR: 1.5:1 or less.
• Radiation Pattern: Omnidirectional.
• Vertical Opening: 38º
• Connector: N Female (Optional 7-16 DIN Female).
• Dimensions (Length x diam. at base): 1.524 m. x 7 cm.
• Tower weight (Antenna + Mounts): 5.45 kg.
• Shipping weight: 7.27 kg.
• Wind resistance /12.7 mm, Ice: 322 /241 km/h.
• Mounting: Includes double clamp for pipes from 3.8 to 7.6 cm in diameter.

*Ask for delivery time.
