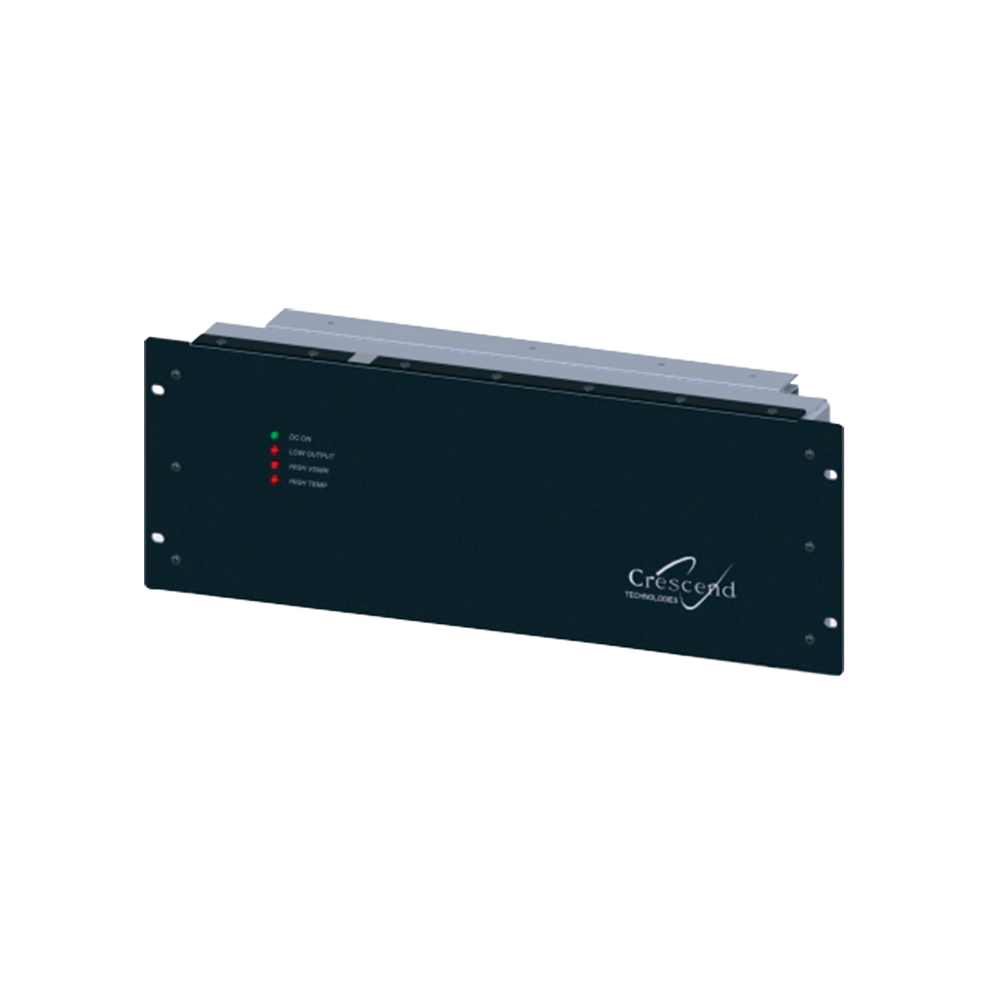

Continuous Duty Amplifier, 403-450 MHz, 2-5W Input / 100W Output, 26A, 13.8 Vdc, N Females.

Continuous Duty Amplifier, 403-450 MHz, 2-5W Input / 100W Output, 26A, 13.8 Vdc, N Females.

Continuous Duty Amplifier, 403-450 MHz, 2-5W Input / 100W Output, 26A, 13.8Vdc.

• Frequency Range: 403-450 MHz (UL).
• Operating Voltage: +13.8 VDC.
• Current Consumption: 26 Amps (Max).
• Duty Cycle: 100%.
• Input Power: 2-5 Watt.
• Output Power: 100 Watt, factory set.
• Spurious and Harmonic: Meets FCC requirements.
• Input/Output Impedance: 50 ohm (Nominal).
• VSWR Load Tolerance: VSWR Protection.
• LED Indicators : CD Power, Low Output, High VSWR and Temp.
• Alarm: Terminal for Alarm Status.
• Input and Output Connectors: N Type Females.
• Cooling Method: Forced air fan over the heatsink.
• Operating Temperature Range: -30º C to +60º C.
• Storage and Transport Temperature: -40º C to +70º C.
• Humidity: 80% at +40º C (non-condensing).
• Altitude: 3000 meters maximum.
