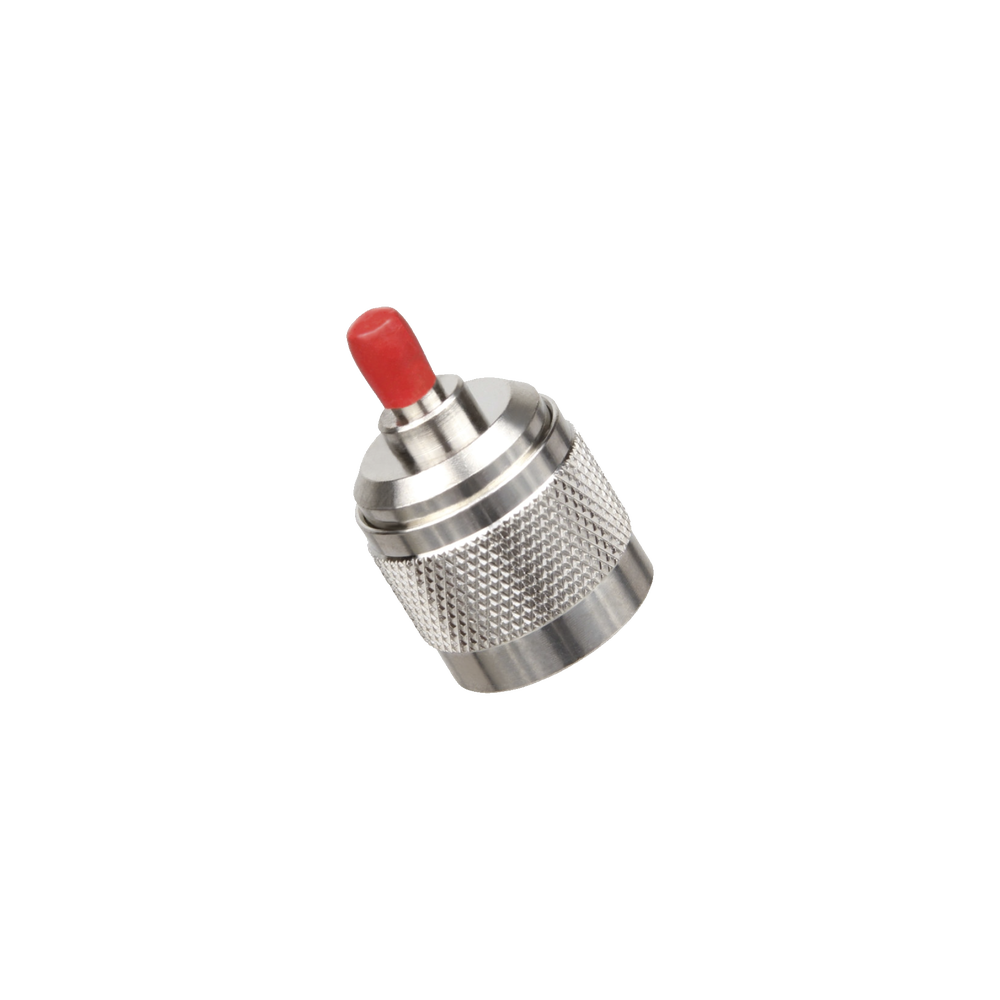

50 Ohm, 1/4 Watt Terminal Load on N Male connector.

50 Ohm, 1/4 Watt Terminal Load on N Male connector.

50 Ohm, 1/4 Watt Terminal Load on N Male connector.

• Frequency band: 0 - 1000 MHz
• Input Power (Max): 0.5 W.
• Return Loss (Min.): 26 dB.
• Impedance (Nom.): 50 Ohm.
• RF Connector Type: N Male.
• Finish: Polished.
• Heat Sink: Aluminum.
• Total Size (Height x Width): 32 x 19 mm.
• Net Weight: 0 kg.
• Shipping Weight: 0.1 kg.
• Operating Temperature Range: -30ºC to +60ºC.
• Operating Humidity Range: 90% Non-condensing.

*Ask for Delivery Time.
