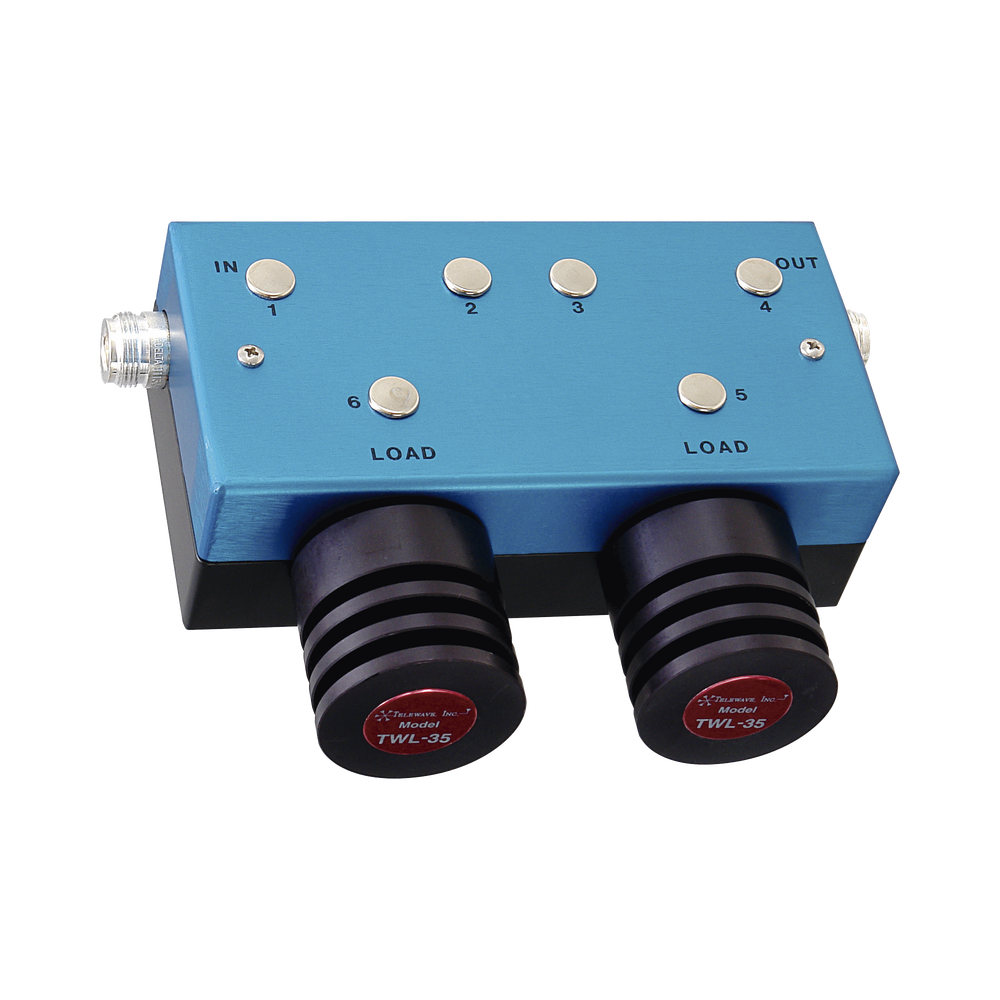

Double Isolator 118-174 MHz, 70 dB Isolation, Adjustable in ± 4 MHz, up to 100 Watt.

• Frequency band: 118-174 MHz.
• Tuning range (typ.): ± 4 MHz.
• Insulator Type: Dual.
• Isolation (typical/min.): 70 dB/60 dB.
• Insertion loss (typical): 0.8 dB.
• Impedance: 50 Ohm.
• VSWR (typical): 1.25:1.
• Input power: See graph in Technical Sheet.
• Load(s) included: See table in Technical Sheet.
• Connectors: N-Female.
• Temperature range: -30 °C to +60 °C).
• Dimensions (Length x Width x Depth): 16.5 x 11.5 x 5 cm.
• Weight: 2.7 kg.
• Shipping weight: 3.2 kg.

*Ask for delivery time.
