12-Line Business IP Phone with 5 Feature Keys and 4-Way Conferencing, PoE

12-Line Business IP Phone with 5 Feature Keys and 4-Way Conferencing, PoE

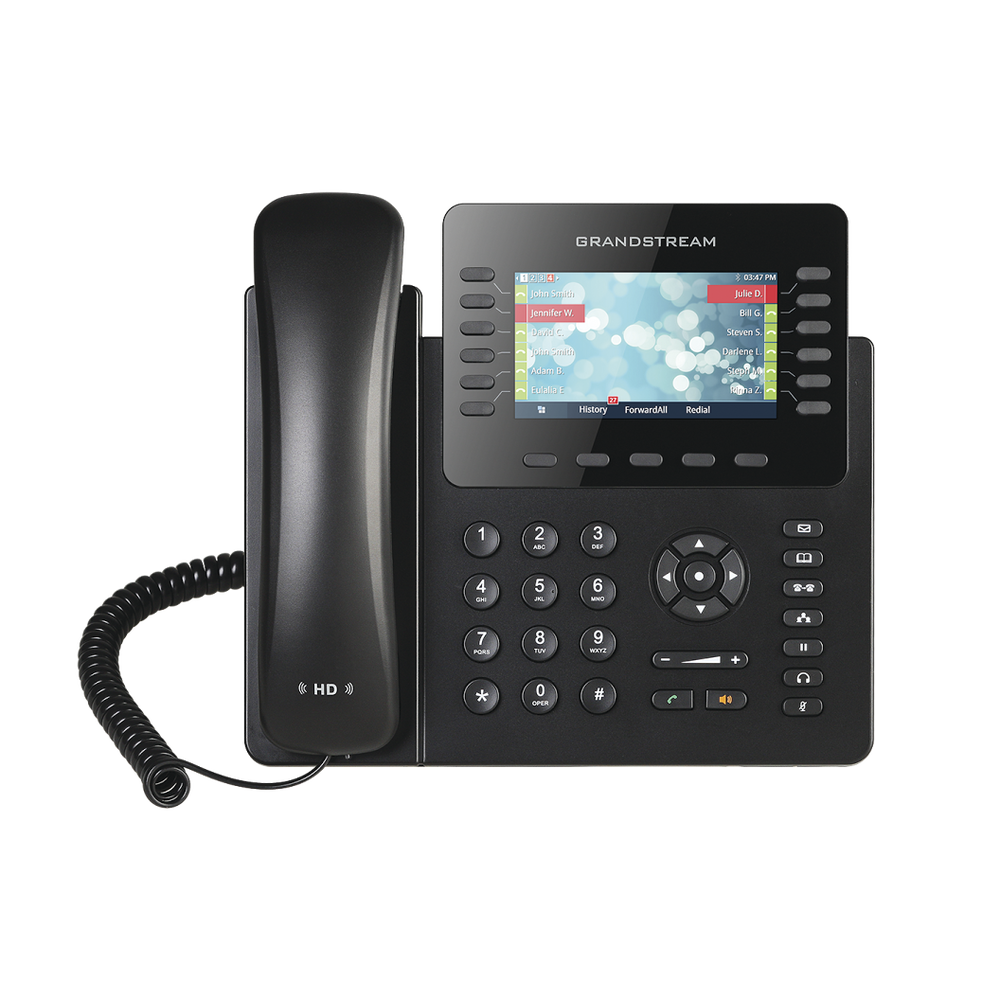

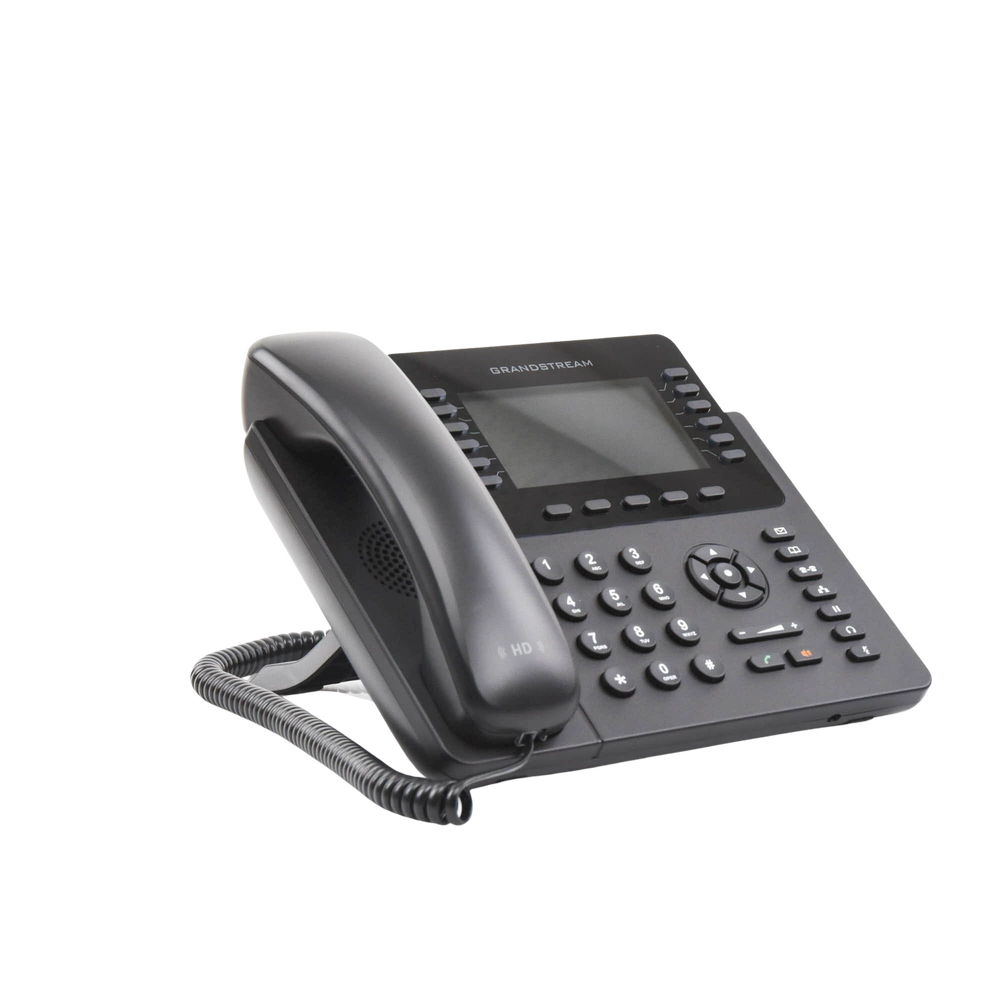

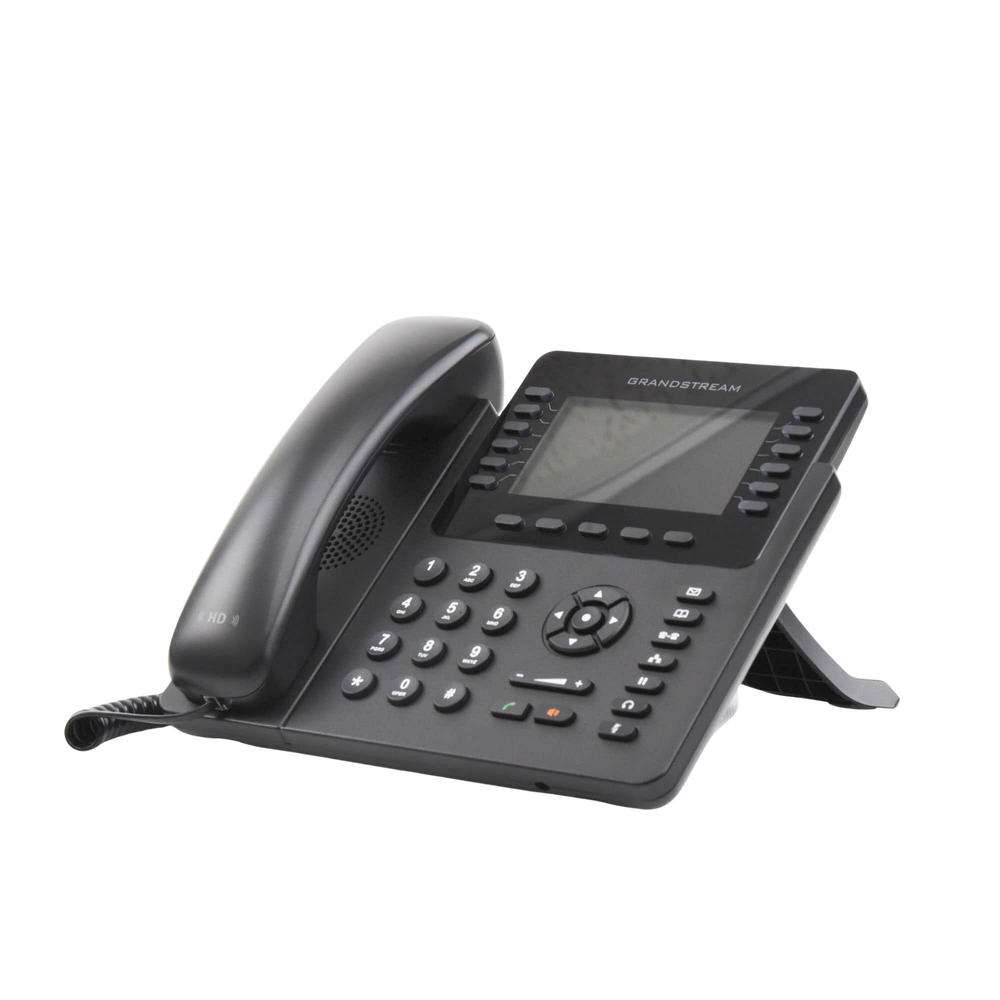

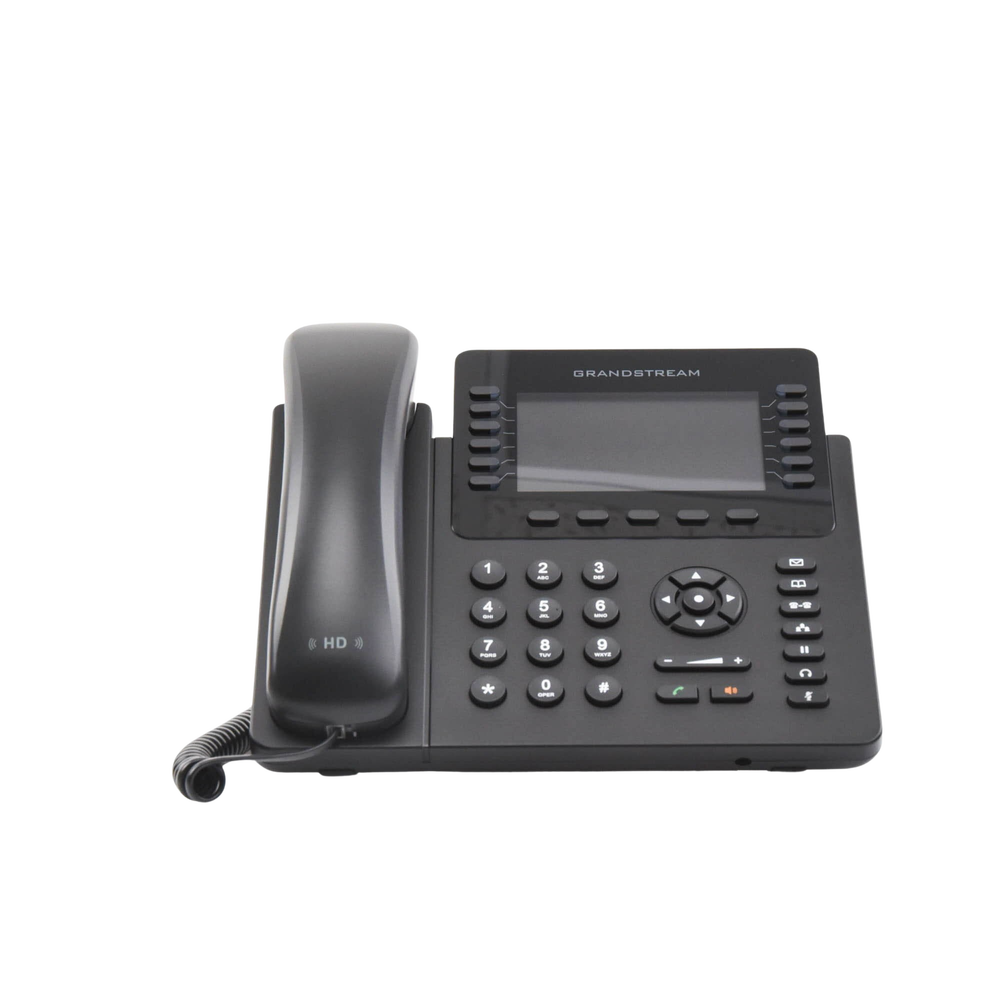

The GXP2170 is a powerful enterprise-grade IP phone ideal for busy users handling high call volumes. This top-of-the-line phone features 12 lines and 6 SIP accounts, utilizing a 4.3-inch color LCD display and HD audio. The GXP2170 supports the fastest connections with its dual Gigabit ports. It features built-in PoE and Bluetooth for pairing with mobile devices and Bluetooth headsets. It also allows for connecting and powering up to four cascading extension modules with LCD displays to access up to 160 BLF contacts. The GXP2170 also features up to 48 on-screen digital BLF keys for contact operations. With advanced security protection and broad interoperability with most SIP devices and leading SIP/NGN/IMS platforms, the GXP2170 is the perfect choice for users seeking the best in business phones with advanced functionality and performance.

Main:

- 12 Lines, 6 SIP accounts, 5 programmable XML function keys and 5-way conferencing.

- 4.3-inch LCD color graphic display (480x272).

- HD Audio.

- Dual Gigabit network ports.

Expansion:

- Can power up to 4 GXP2200EXT modules.

Telephone functions:

Hold, Transfer, Forward (Unconditional/No Answer/Busy), 5-way Conferencing, Call Park/Retrieve, Downloadable Phonebook (XML, LDAP, up to 500 contacts), Call Waiting, Call History (up to 200 records), Auto Dial on Hook, Auto Answer, Click to Dial, Flexible Dial Plan, Hot Desking, Custom Music Ringtones, Server Redundancy, and Failover.

Codecs:

G7.29A/B, G.711μ/a-law, G.726, G.722(wide-band), in-band and out-of-band DTMF(in audio, RFC2833, SIP INFO).

Interfaces:

- Dual switched 10/100/1000 Mbps auto-sensing Ethernet ports.

- RJ9 headset connector (allows EHS with Plantronics headsets).

Security:

User and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x Media Access Control.

Quality of service:

Layer QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, Di Serv, MPLS).

Languages:

Spanish, English, German, Italian, French, Portuguese, Russian, Croatian, Simplified and Traditional Chinese, Korean, Japanese.

Protocols and standards:

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6.

Accordance:

FCC: Part 15 (CFR 47) Class B, CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 60950.1.

Physical and electrical characteristics:

- Universal power supply; Input: 100-240VAC 50-60Hz; Output: 12VDC, 1A. / PoE 802.3af , 5.4-9.2W.

- Base or wall mountable.

- Dimensions: 228 x 206 x 46 mm.

- Weight: 0.94 kg.

- Operating temperature: 0~40ºC.

Package contents:

GXP2170 telephone, corded handset, stand base, universal power supply, network cable, Quick Installation Guide, brochure, GPL License.

*1 year warranty.

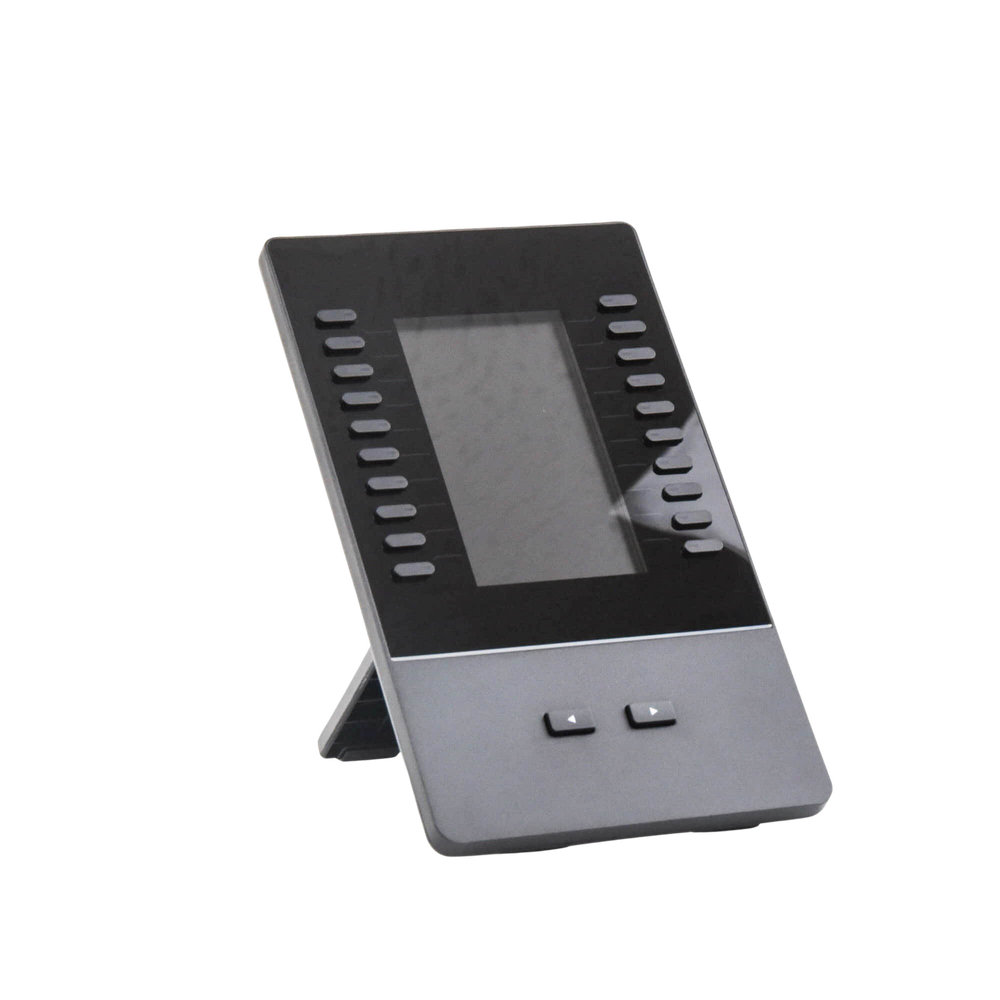

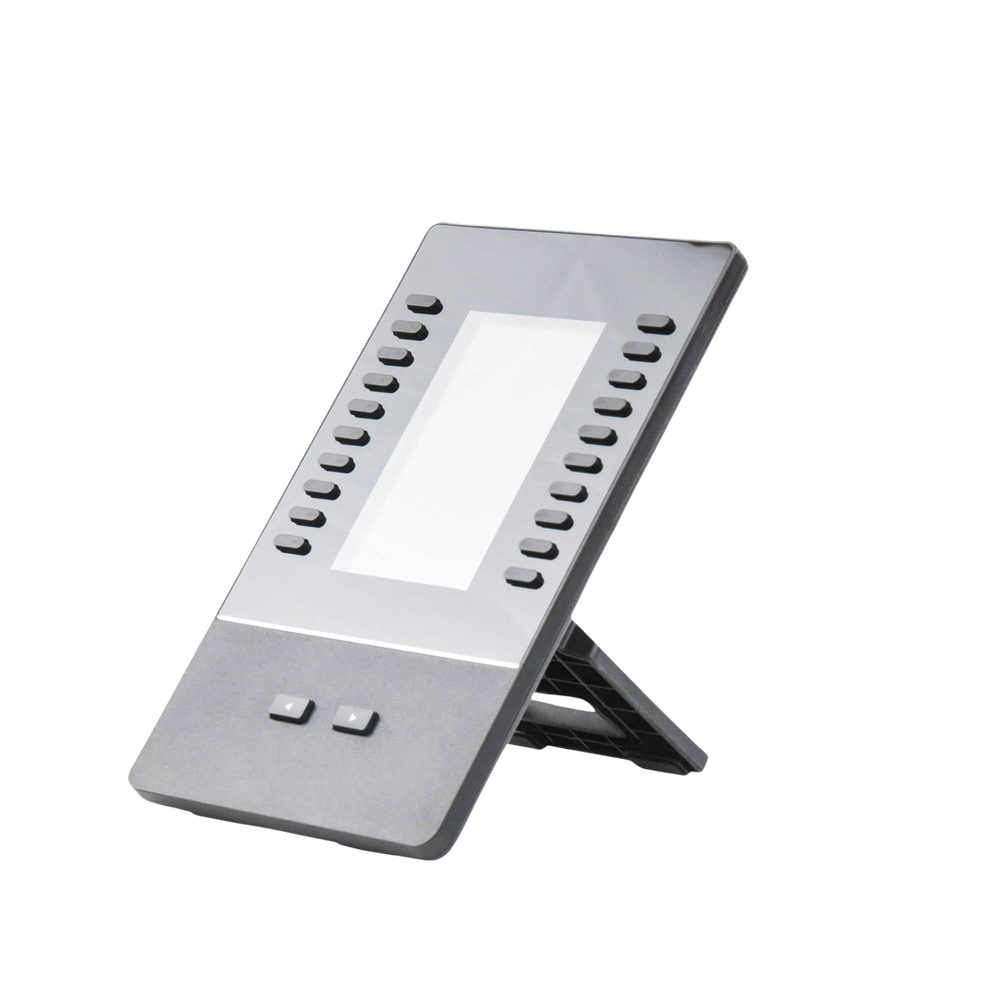

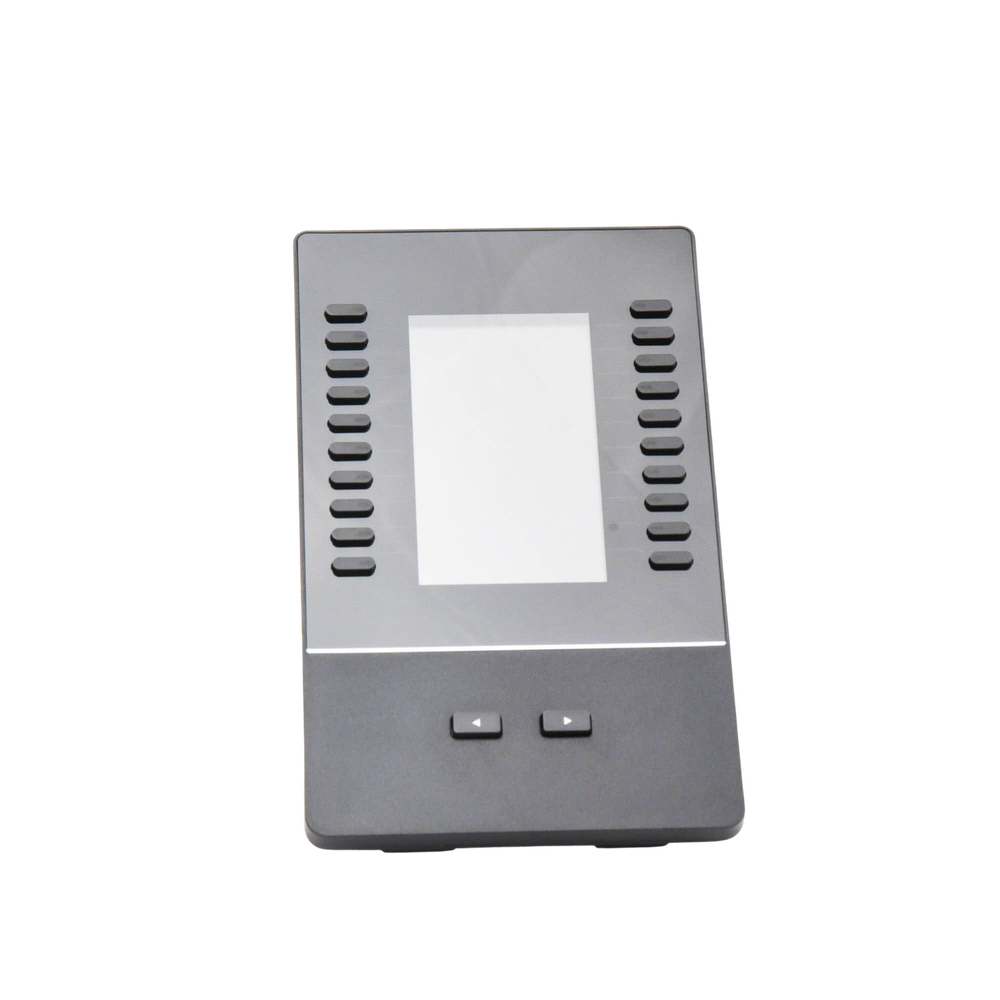

GXP2170 with a GXP2200EXP expansion module
