Android Enterprise IP Phone for 6-Line Conference and 7-Way Conference with Touchscreen

Android Enterprise IP Phone for 6-Line Conference and 7-Way Conference with Touchscreen

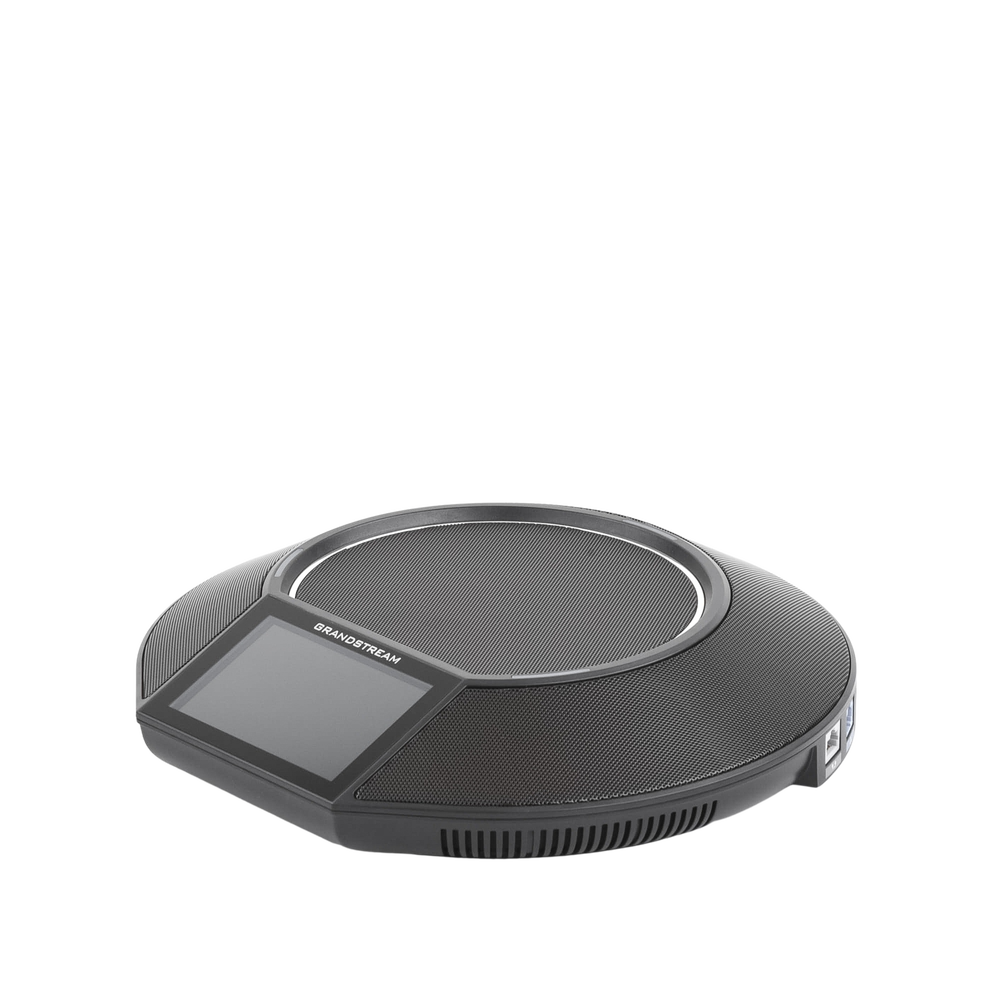

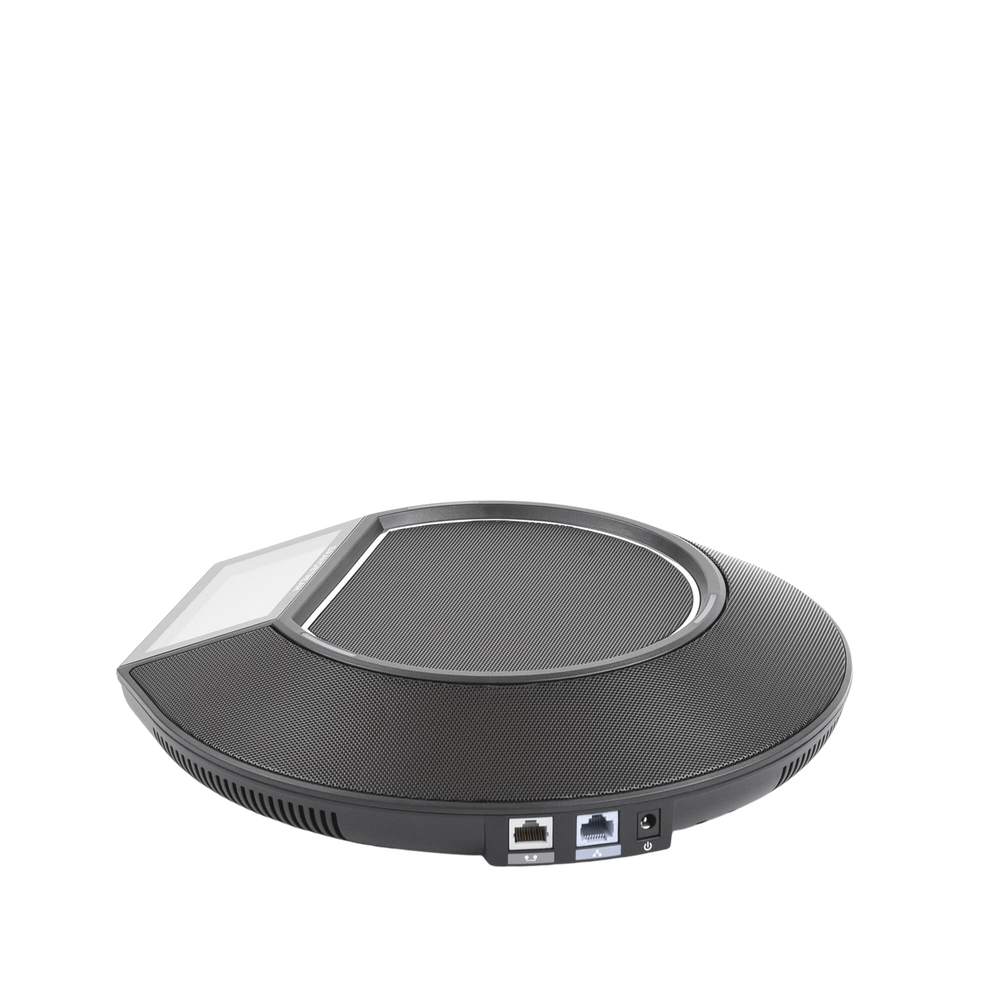

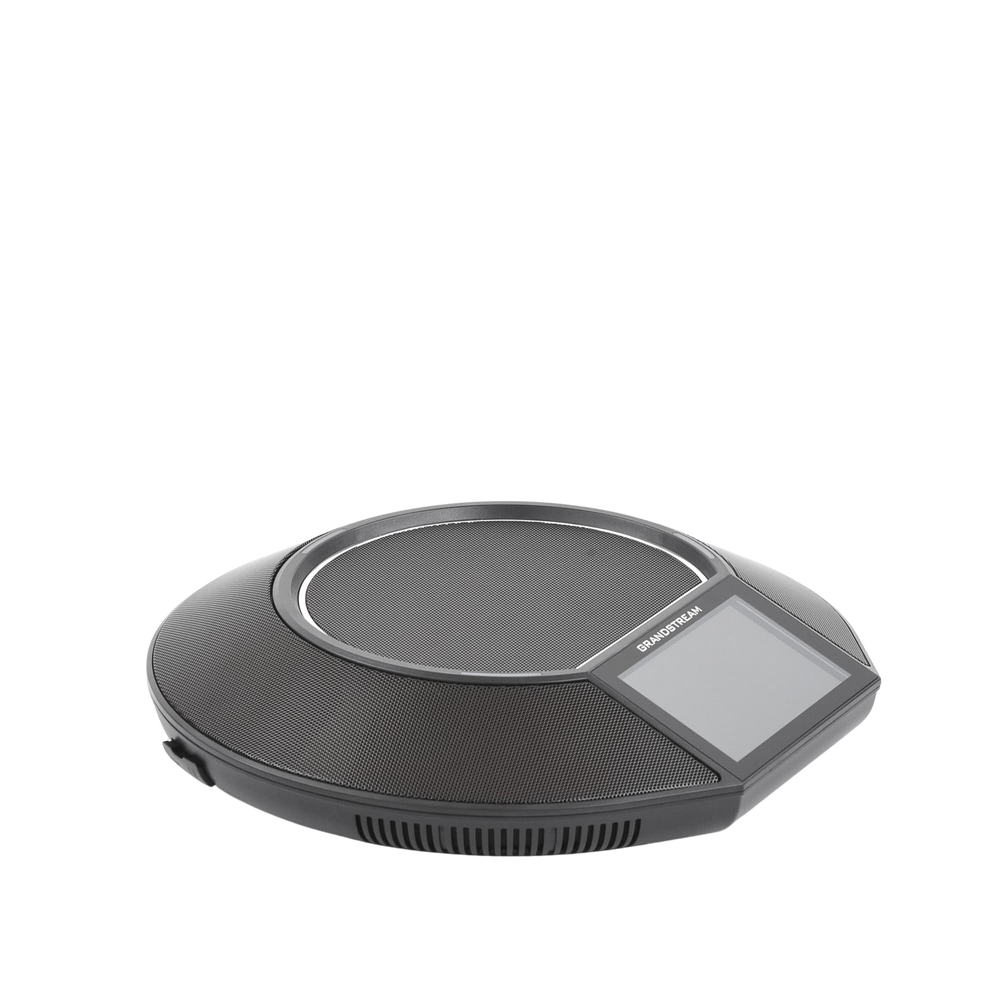

The GAC2500 is the ideal solution for conference rooms, delivering excellent audio quality to all participants in conference rooms, boardrooms, and offices. It includes support for up to six lines with up to six SIP accounts, a 4.3-inch capacitive touchscreen, Gigabit Ethernet, 7-way voice conferencing, and cascading.

The GAC2500 is based on Android and offers full access to all applications in the Google Play Store, including popular apps like Skype and Google Hangouts. The GAC2500 provides HD audio quality, automated provisioning for easy deployment, advanced security protection for privacy, and broad interoperability with most external SIP devices and major SIP/NGN/IMS platforms.

Main:
- 6 lines, 6 SIP accounts and 7-way conference.
- 3 Cardioid microphones; Pickup distance up to 4 meters.
- 1 8W speaker with a range of up to 5 meters.
- 4.3' 800 x 480 LCD touch screen.
- HD Audio.

Interfaces:
- Wi-Fi 802.11 b/g/n.
- Integrated Bluetooth 4.0.
- Auto-sensing Ethernet port with built-in PoE+ (IEEE 802.3at Class4).
- 3.5mm auxiliary audio port, USB Micro-B, RJ48 serial port.

Telephone functions:
6 SIP accounts, hold, transfer, forward, 7-way conference, Parking
call forwarding, call pickup, downloadable phonebook (XML, LDAP, up to 2000 contacts), call waiting, call log (up to 2000 records), XML screen customization, auto-answer, click-to-dial, flexible dial plan, hot desking (shared workstations), personalized music ringtones and music on hold, server redundancy and fail-over.

Sample applications:
Skype, Google Hangouts, Skype for Business (Lync), Internet Browser, Adobe Flash, Facebook, Twitter, YouTube, Google Calendar, Mobile Phone Data Import/Export via Bluetooth, etc. API/SDK available for advanced custom application development.

Codecs:
Support for G.711μ/a, G.722 (wideband), G.723 (pending), G.726-32, G.729 A/B, In-band and Out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC.

Interfaces:
- Dual switched 10/100/1000 Mbps auto-sensing Ethernet ports.
- RJ9 headset connector (allows EHS with Plantronics headsets).

Security:
User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x Media Access Control.

Quality of service:
Layer QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiffServ, MPLS).

Languages:
Spanish, English, German, Italian, French, Portuguese, Russian, Croatian, Simplified and Traditional Chinese, Korean, Japanese.

Protocols and standards:
FCC: Part 15 (CFR 47) Class B; UL 60950 (power adapter)
CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, EN62479, RoHS
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 4268.

Accordance:
FCC: Part 15 (CFR 47) Class B; UL 60950 (power adapter) CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, EN62479, RoHS RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 4268.

Physical and electrical characteristics:
- Universal Power Supply: Input: 100-240VAC 50-60Hz; Output: 12VDC, 2A (24W).
- Dimensions: 280 x 285 x 60 mm.
- Weight: 1.34 kg.
- Operating temperature: 0~40ºC.

Package contents:
GAC2500 Phone, Universal Power Supply, Network Cable, USB Cable, RJ48 Cascade Cable, Quick Installation Guide.


*1 year warranty.
