Full HD Video Conferencing System with Zoom and presentation sharing output

Full HD Video Conferencing System with Zoom and presentation sharing output

- Supports Point-to-Point and 3-way video conferencing via SIP Servers.
- You can join video conferences created with IPVideoTalk Pro (GVC-3200) and BlueJean.

The GVC3202 is an innovative solution that offers businesses a revolutionary video conferencing system with unprecedented flexibility and the power to support multiple protocols.
and popular and creative video conferencing platforms. The SIP-based GVC3202 supports Grandstream's robust IPVideoTalk Pro platform for plug-and-play video conferencing while also interoperable with any third-party SIP video conferencing platform, offering a great option for expanding or deploying a third-party platform. Additionally, the GVC3202 features an innovative, patent-pending embedded MCU that supports up to 3-way conferencing with local mixing between SIP and other protocols.


Main:
- Compressed Full HD video platform with a speed of only 512 Kbps for smooth, reliable streaming without the need for expensive internet connections.
- Supports any SIP platform and Android application.
- Includes built-in microphone as well as external microphone and speaker.
- FullHD 2MP 1920x1080 real-time camera with 9x optical zoom.
- API/SDK available for developing advanced custom applications.

- Compatible with IPVideoTalk platform, requires annual licensing: IPVTGVCADDONL1Y or IPVTGVCADDON1Y, request a quote from your sales agent.

Telephone functions:
Hold, transfer, forward (unconditional/no answer/busy), park/pickup, 3-way audio/video conferencing, downloadable XML phonebook, LDAP, call waiting, call history, flexible dial plan, custom music ringtones, server redundancy and failover.

Voice Codecs:
G.711µ/a, G.722 (bandwidth), G.726-32, iLBC (pending), Opus, G.722.1, G.722.1c (pending), In-band and Out-of-band DTMF (In audio, RFC2833, SIP INFO).

Video Codecs:
H.264 BP/MP/HP, video resolution up to 1080p, frame rate up to 30 fps, bit rate up to 4 Mbps.

Interfaces:
- 10/100/1000 Mbps Ethernet port with auto-sensing.
- 2 HDMI 1080p video outputs.
- 1 VGA/HDMI video input for content.
- 1x USB 2.0, SD, external speaker port, reset pin.

Security:
User and administrator passwords, MD5 and MD5-sess based authentication, 256-bit TLS encryption configuration file, 128/256-bit SRTP, HTTPS, 802.1x media access control.

Quality of service:
Layer QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, Di Serv, MPLS).

Languages:
Spanish, English, German, Italian, French, Portuguese, Russian, Croatian, Simplified and Traditional Chinese, Korean, Japanese.

Protocols and standards:
SIP RFC3261, BFCP, TIP (pending), RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (single record, SRV, NAP-TR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, TCP/IP/UDP, IPv6 (pending), FEC, FECC, (pending: H.323, H.245, H.225, H.235, H.241, H.460).

Accordance:
FCC: Part 15 (CFR 47) Class B, UL 60950 (power adapter), Part 15C, Part 15E.407, Part 2.1091 CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, EN62479, RoHS, EN301893, EN62311 RCM: AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 4268.

Physical and electrical characteristics:
- Power supply: 12 VDC@5A (60W).
- Operating temperature: 0~40ºC.

Package contents:

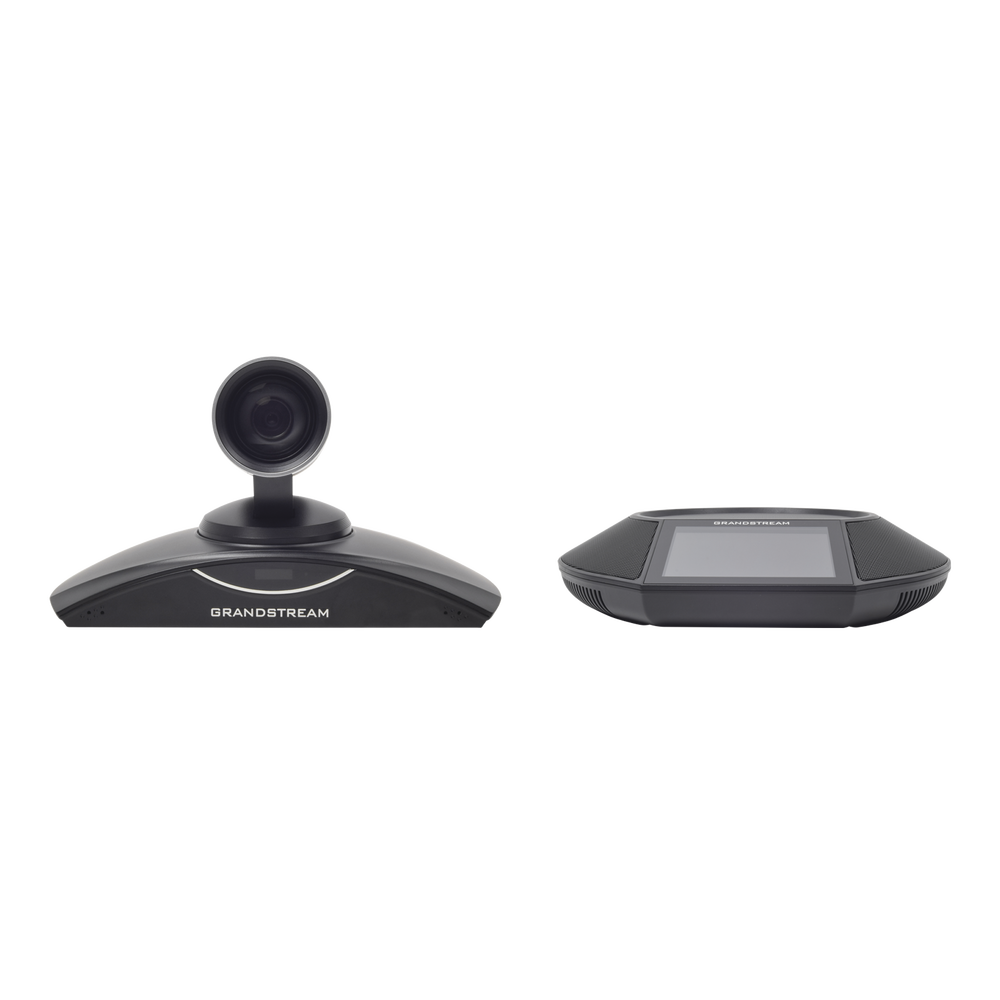

GVC3202 Video Conferencing System, External USB Speakerphone/MIC (IP Conference Phone Model GAC2500), Remote Control, Universal Power Supply, Network Cable (1.5 meters), USB Extension Cable (5 meters), Mounting Kit, 3 HDMI Cables (One 1.5 meter cable, One 3 meter cable and One 5 meter cable), Lens Cap, Quick Installation Guide, Brochure, GPL License.


*1 year warranty.

* IPVTGVCADDONL1Y or IPVTGVCADDON1Y license is required for use with IPVideoTalk. Please ask your sales agent for a quote.

* It is recommended to use the IP-VideoTalk video conferencing platform to have all the functionalities specified by the equipment. Using other video conferencing platforms does not guarantee that all the equipment's functions are compatible.
