MIKROTIK
(BaseBox 2) Connectorized PTP and PTMP Access Point at 2.4 GHz 802.11 b/g/n, Up to 1000 mW of Power, Has a miniPCIe Slot for Expansion
(BaseBox 2) Connectorized PTP and PTMP Access Point at 2.4 GHz 802.11 b/g/n, Up to 1000 mW of Power, Has a miniPCIe Slot for Expansion
Couldn't load pickup availability
(BaseBox 2) Connectorized PTP and PTMP Access Point at 2.4 GHz 802.11 b/g/n, Up to 1000 mW of Power, Has a miniPCIe Slot for Expansion

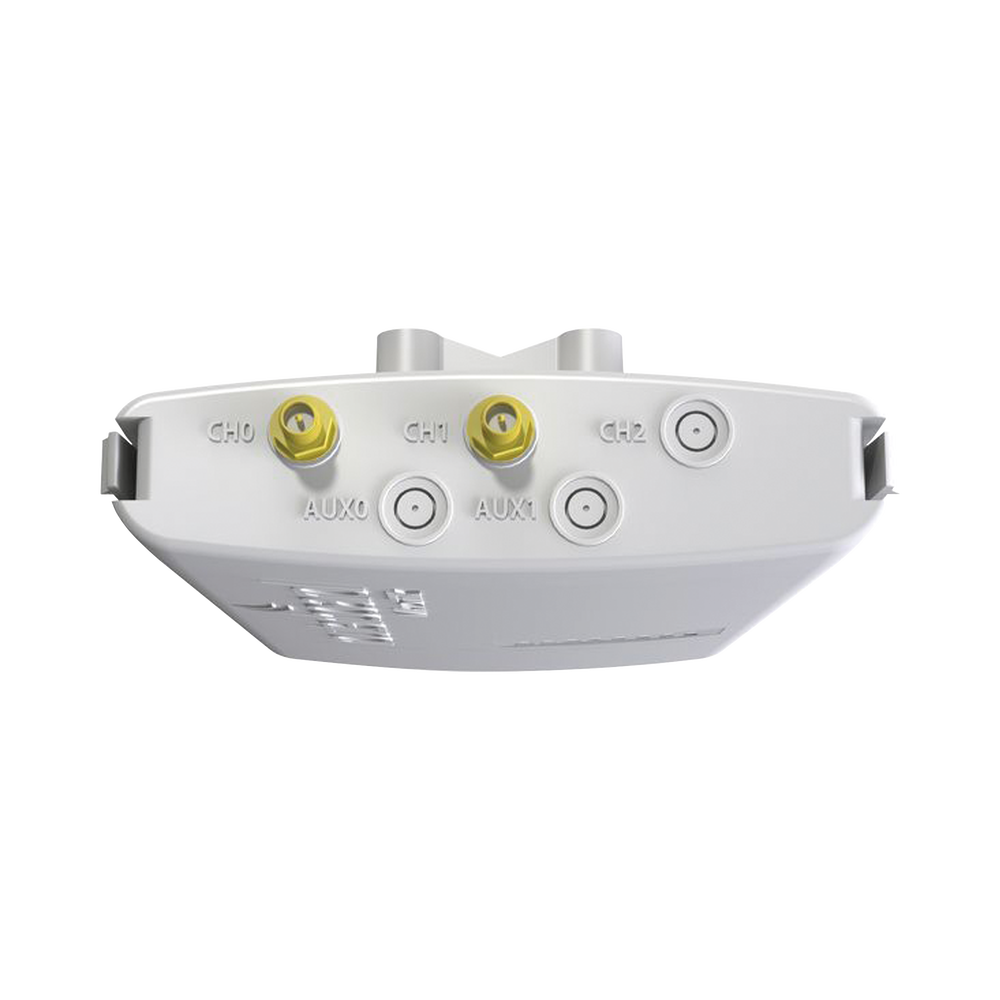

The BaseBox2 is a 2.4GHz outdoor wireless device based on our popular RB912 model, equipped with two SMA antenna connectors and a cable cover for moisture protection. Three additional antenna connector slots are also available, should you wish to use the BaseBox miniPCIe slot for an additional wireless interface to create a dual-band device or a 3G/4G modem.
The case can be opened with one hand and is protected from the elements. The USB, Ethernet, and grounding cable outlets are located on the bottom, behind a protective door.
It comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. The package also includes a PoE injector and a power supply.
Specs
| Details | |
|---|---|
| Product code | RB912UAG-2HPnD-OUT |
| Architecture | MIPSBE |
| CPU | AR9342 |
| CPU core count | 1 |
| Nominal CPU frequency | 600 MHz |
| RouterOS License | 4 |
| Operating system | RouterOS |
| RAM size | 64 MB |
| Storage size | 64 MB |
| Storage type | NAND |
| Room temperature tested | -40°C to 70°C |
| MTBF | Approximately 100,000 hours at 25°C |
Feeding
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE on input voltage | 8-30 V |
| Number of DC inputs | 1 (PoE input) |
| Maximum energy consumption | 10 W |
| Fan count | Passive |
Wireless specifications
| Details | |
|---|---|
| Maximum wireless data rate of 2.4 GHz | 300 Mbit/s |
| Number of 2.4 GHz wireless chains | 2 |
| 2.4 GHz wireless standards | 802.11b/g/n |
| 2.4GHz Wireless Chip Model | AR9342 |
| 2.4 GHz wireless generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yeah |
| USB slot type | USB Type A |
| Maximum USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB Temperature Monitor | Yeah |
| Voltage monitor | Yeah |
Certifications and approvals
| Details | |
|---|---|
Out of stock
MODELO: RB912UAG-2HPND-OUT
