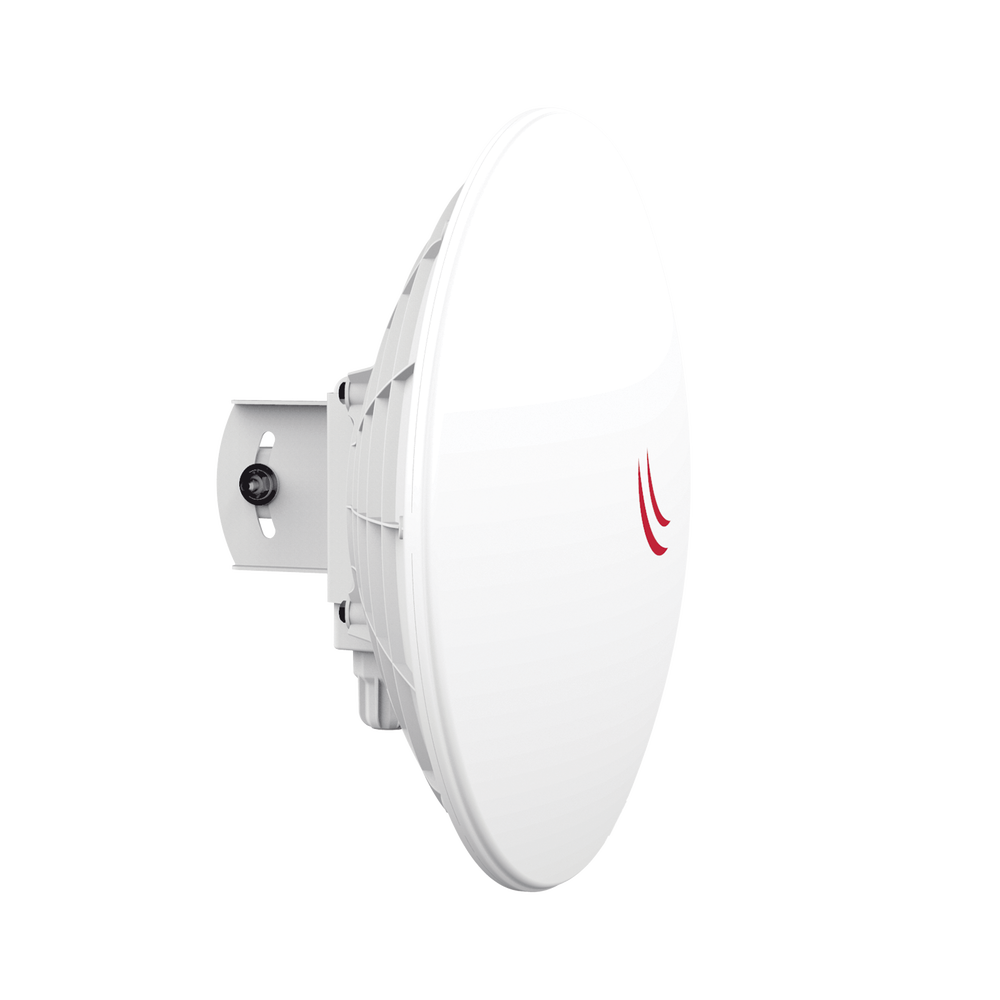

(DynaDish 5) 5GHz 802.11 a/n/ac Subscriber with Integrated 25 dBi Antenna, Up to 1000 mW

(DynaDish 5) 5GHz 802.11 a/n/ac Subscriber with Integrated 25 dBi Antenna, Up to 1000 mW

$1.092.226 COP
$1.194.622 COP $1.092.226 COP
Sale Sold out
Shipping calculated at checkout.

(DynaDish 5) 5GHz 802.11 a/n/ac Subscriber with Integrated 25 dBi Antenna, Up to 1000 mW

The DynaDish 5 is a new 802.11ac outdoor device with an integrated 25dBi antenna. Compact in design, it's a simple, fully integrated product with everything you need to quickly deploy a reliable point-to-point link.

The DynaDish 5 is powered by a new 720MHz CPU from Qualcomm.

Specs

Details
Product code RBDynaDishG-5HacDr3
Architecture MIPSBE
CPU QCA9557
CPU core count 1
Nominal CPU frequency 720 MHz
Dimensions Ø 404 mm, height 175 mm (without stand)
RouterOS License 3
Operating system RouterOS
RAM size 128 MB
Storage size 16 MB
Storage type FLASH
Room temperature tested -40°C to 70°C
MTBF Approximately 200,000 hours at 25°C

Feeding

Details
PoE in 802.3af/at
PoE in input voltage 11-60 V
Number of DC inputs 1 (PoE input)
Maximum energy consumption 9 W
Fan count Passive

Wireless specifications

Details
Maximum wireless data rate of 5 GHz 867 Mbit/s
Number of 5 GHz wireless chains 2
5 GHz Wireless Standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 25
5GHz Wireless Chip Model QCA9892
5 GHz wireless generation Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports 1

Other

Details
PCB Temperature Monitor Yeah
Voltage monitor Yeah

Certifications and approvals

Details
Certification CE, FCC, IC, EAC, ROHS

Wireless specifications

5 GHz Transmit (dBm) Receive sensitivity
6 MBit/s 31 -96
54 MBit/s 28 -81
MCS0 30 -96
MCS7

Out of stock

MODELO: RBDYNADISHG-5HACD
