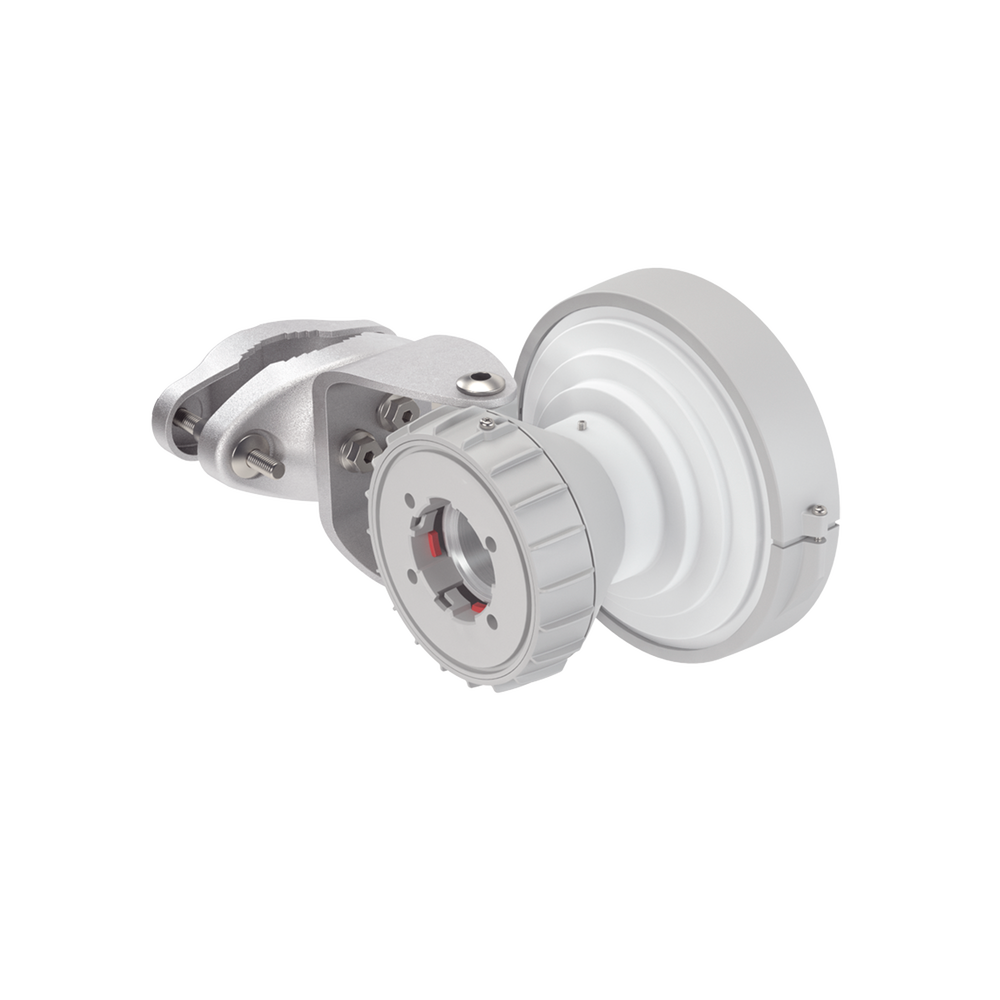

60° Symmetrical Sector Antenna 13.2 dBi, 5180-6400 MHz, Sidelobe-Free, Outdoor, TwistPort Ready with Cambium, Mimosa, Ubiquiti and MikroTik
- Marca
- RF ELEMENTS
- Referencia / SKU
-
SH-TP-5-60
- Disponibilidad
-
Agotado por ahora
- Envíos a toda Colombia. El envío y el IVA se calculan al pagar.
- Pago seguro y factura electrónica.
- ¿Dudas? Escríbenos por WhatsApp
Descripción y especificaciones
60° Symmetrical Sector Antenna 13.2 dBi, 5180-6400 MHz, Sidelobe-Free, Outdoor, TwistPort Ready with Cambium, Mimosa, Ubiquiti and MikroTik
Technical Specifications:
Connector Type: TwistPort (model varies depending on the radio you want to connect, you can see them in "Optional Accessories").
Protection level: IP 55.
Temperature withstand: -31 to 55°C.
Wind speed supported: 160 km/h.
Maximum gain: 13.2 dBi.
The high-tech sector antenna.
Symmetrical RF sectors are horn antennas with a symmetrical radiation beam pattern and an industry shift toward the TwistPort™ connector. Symmetrical sectors offer a perfect blend of features that address the key weaknesses of current sector antenna technology.

Ready for TwistPort connector
Symmetrical sector antennas feature the TwistPort connector, a patent-pending, guided and locking connection port. This type of connector is virtually lossless; there are no connections to RF connectors or RF cables that typically cause signal loss. Connecting radios is completely simple; "twist and lock."
Without side lobes
Symmetrical sector antennas have naturally attenuated sidelobes. They offer the industry's best front-to-back ratio and the lowest sidelobe radiation. Symmetrical sector antennas are perfect for installations where a high density of antennas is required at a site.
Compact antenna
Symmetrical Sector Antennas are very compact, only 20 to 25% the size of a traditional sector antenna.
The compact size allows us to save space in the tower and makes it easy to install.
- 60° vertical 60° horizontal, Ideal for Point-to-Multipoint, Requires TwistPort, Includes bracket, 1-year warranty
