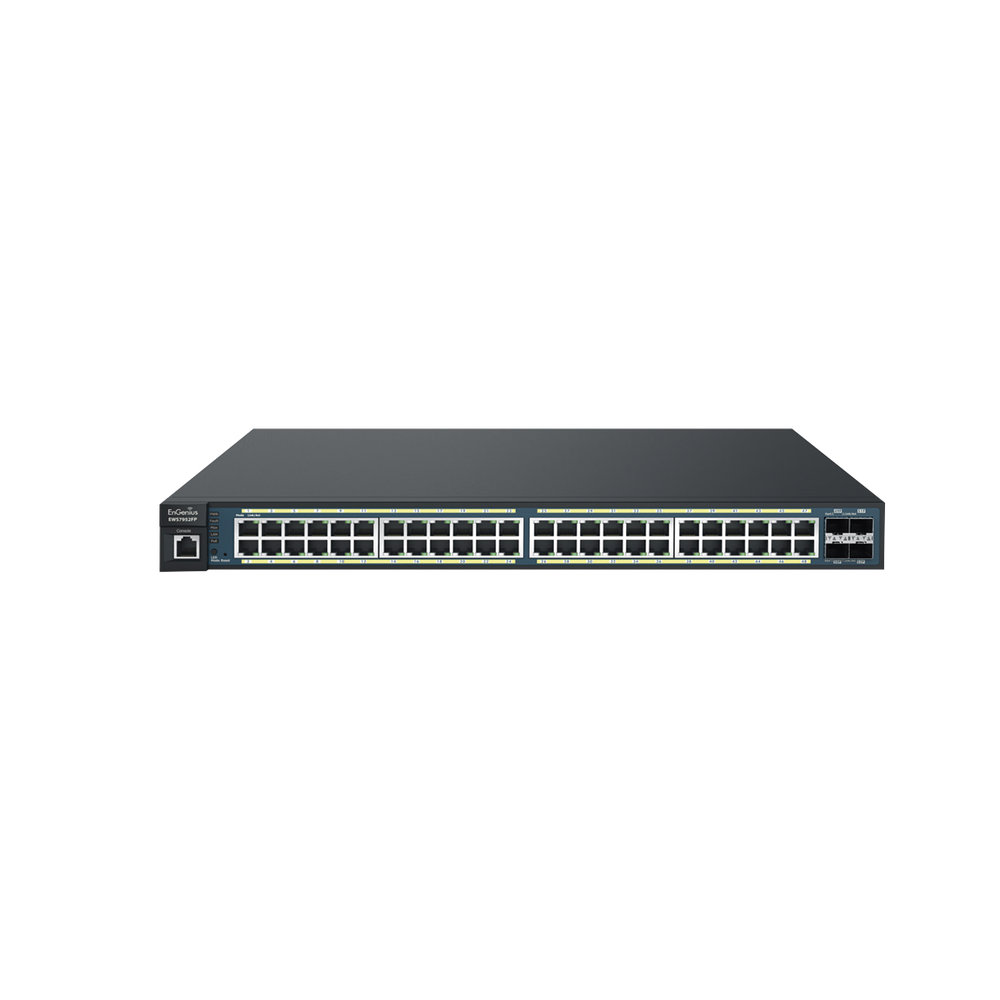

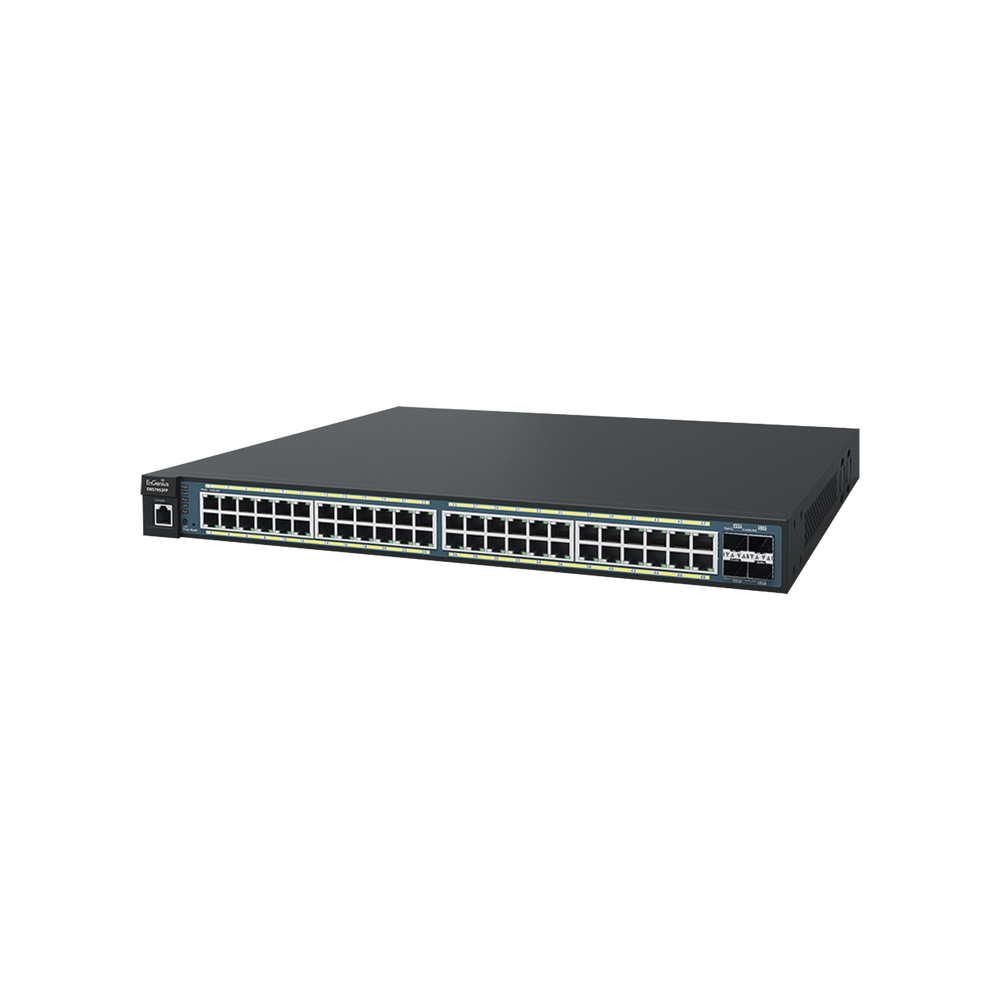

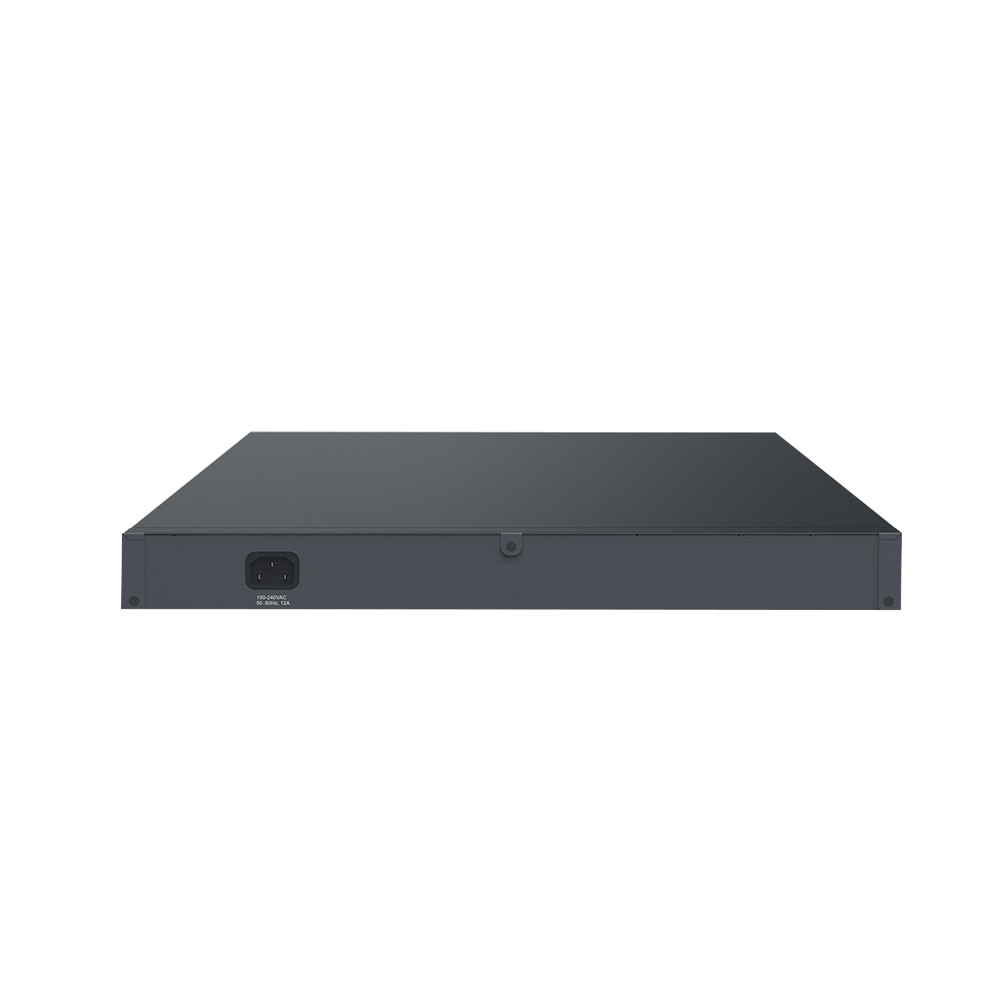

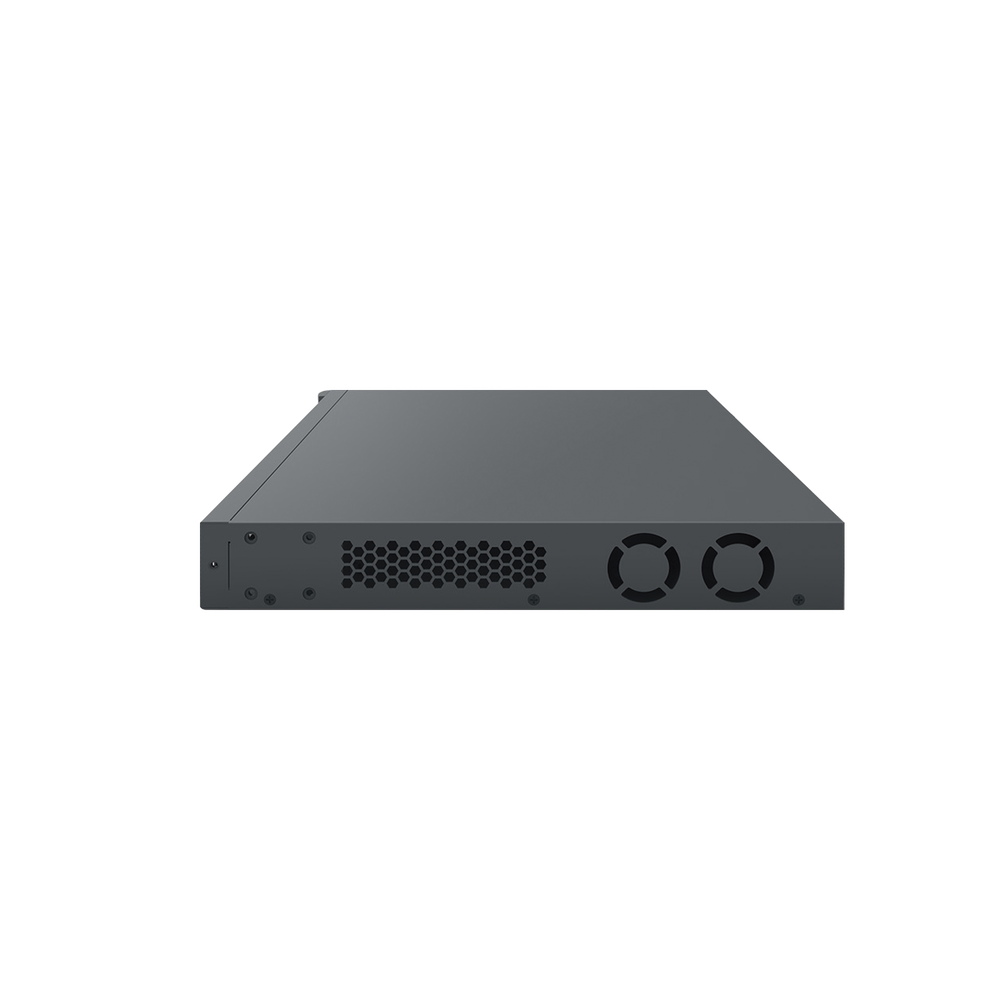

Neutron Series 48-Port Managed PoE Switch and Controller (Manages up to 50 Enturbo, Neutron Access Points)

Neutron Series 48-Port Managed PoE Switch and Controller (Manages up to 50 Enturbo, Neutron Access Points)

The EWS7952FP features simplified network configuration, monitoring, and management options along with an intuitive web interface. Manage up to 50 Neutron EWS access points locally and centrally manage wired and wireless networks through ezMaster. Power compatible PoE+ devices such as IP cameras, VoIP phones, and access points.

Technical specifications

Port standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 10000Base-T Ethernet
802.3x Full Duplex Flow Control

Network ports
48 10/100/1000 Mbps Ports
4 x 10/100/1000 Mbps SFP ports
1 RJ45 console port

Switching performance capacity: 104 Gbps
SDRAM: 256 MB
Flash memory: 32 MB
Packet buffer memory: 1.5 MB
Address database size: 8,000 MAC addresses

Ability
PoE Standard PoE: Ports 1~48 IEEE 802.3at/af compliant ports
PoE: All Gigabit Ethernet ports / Up to 30 W

Max PoE Support
740 W

Power supply
100 ~ 240VAC, 50-60Hz
12A

Remote Monitoring and Management with ezMaster

EnGenius' ezMaster software makes it easy to configure and maintain multiple sites, saving time, minimizing on-site visits, and reducing operating costs—all without paying for licenses or subscriptions.
