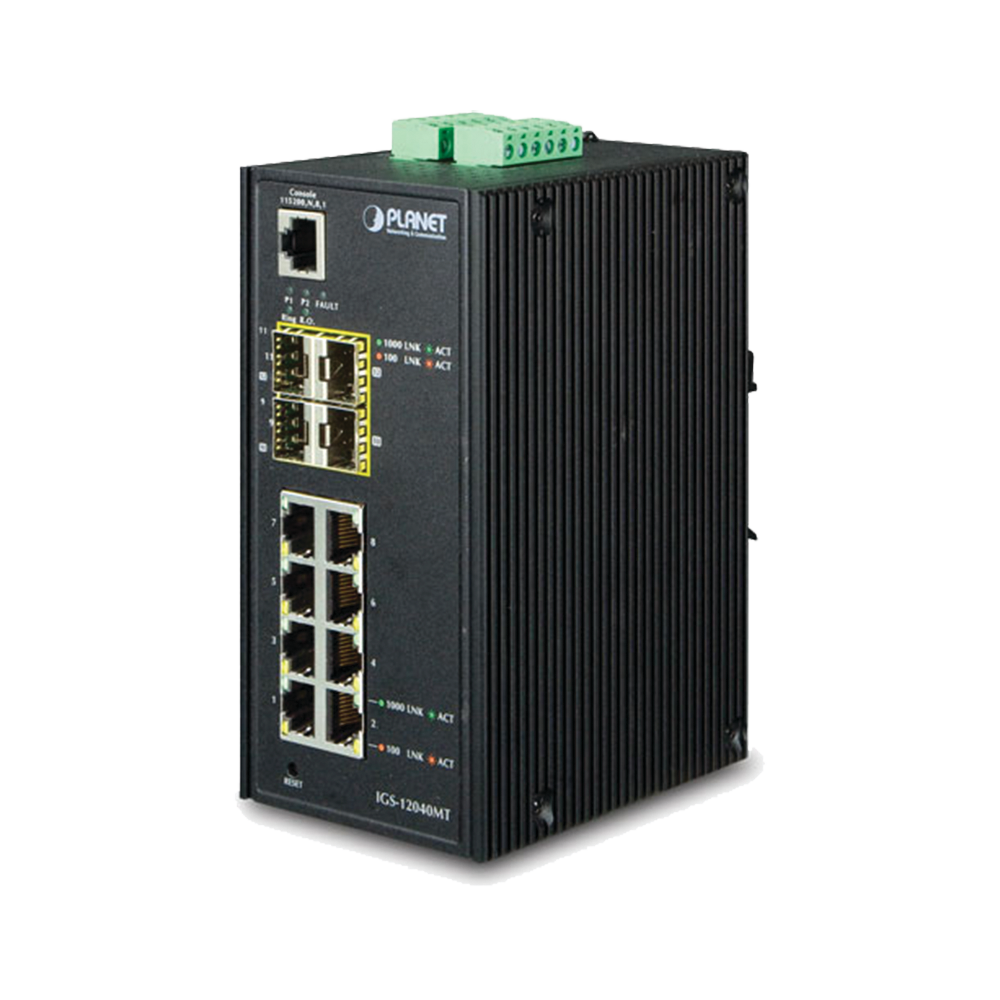

8-Port 10/100/1000T + 4-Port 100/1000X SFP Managed Industrial Switch

8-Port 10/100/1000T + 4-Port 100/1000X SFP Managed Industrial Switch

Ports

• 8-Port 10/100/1000BASE-T copper RJ45
• 4 x 100/1000BASE-X mini-GBIC/SFP slots , SFP auto-sensing
• An RJ45 console interface for easy administration and configuration

Hardware specifications

• Throughput: 17.85Mpps
• Power: 12 - 72 VDC, 24 VAC (Power supplies not included)

Layer 2 Features

• Storm Control Support
• VLAN support
• Spanning Tree Protocol Support
• Link Aggregation Support
• Provides port mirroring (many-to-1)
• Port mirroring of incoming or outgoing traffic from a particular port
• ERPS (Ethernet Ring Protection Switching) Support
• IEEE 1588 and Synchronous Ethernet network timing

Features of Layer 3 IP Routing

• Supports up to 32 static routes and route summary

Quality of Service

• Enter the egress and ingress speed, you can limit these values ​​per port and maintain control of the bandwidth
• 8 priority queues on all switch ports
• Traffic classification
• Strict priority and Weighted Round Robin (WRR) QoS policies
• QoS support and bandwidth control per port
• DSCP Remarking

Security

• Authentication
• Access control list
• MAC source binding / IP addressing
• DHCP Snooping to filter out dubious DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC addresses to IP addresses bound
• IP Source Guard prevents IP spoofing attacks
• Auto DoS rule to defend against DoS attacks
• IP address management to prevent unauthorized users
