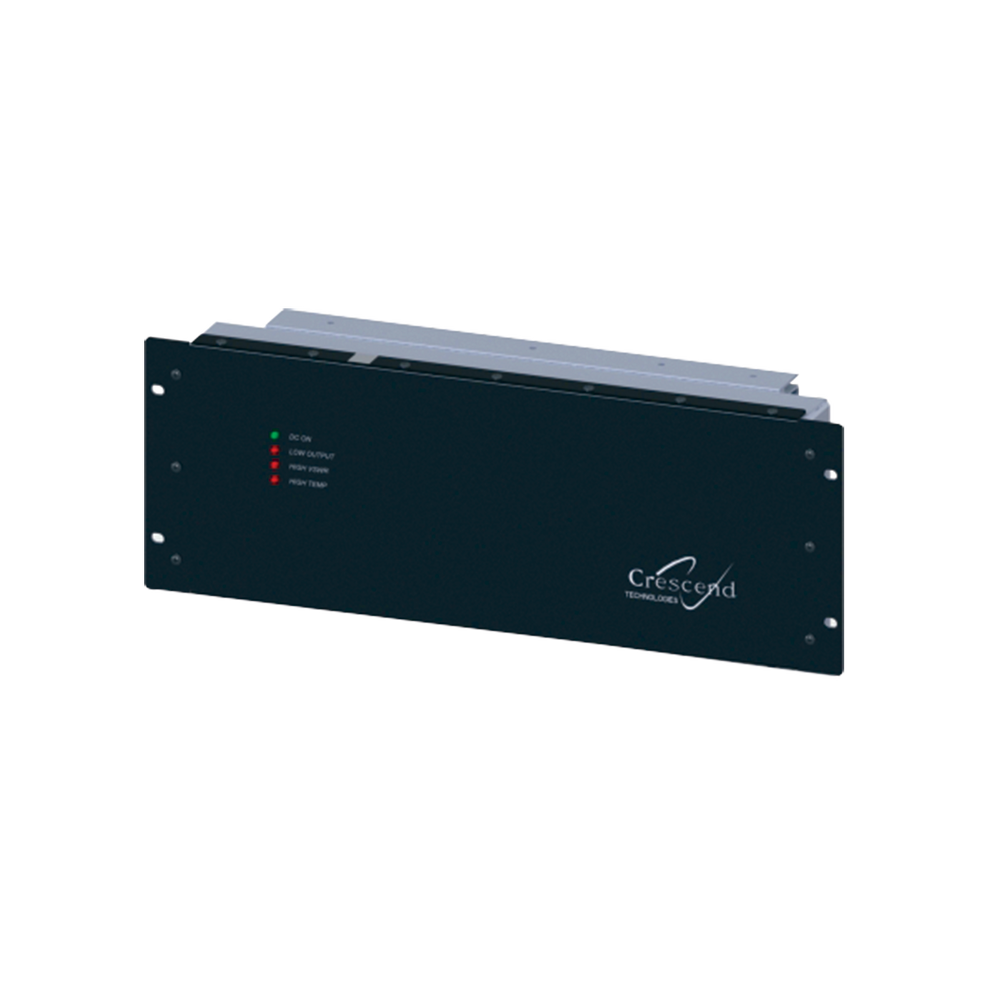

Continuous Duty Amplifier, 450-512 MHz, 2-5W Input/100W Output, 26 A, 13.8 Vdc.

• Frequency Range: 450-512 MHz (UH)
• Operating Voltage: +13.8 VDC
• Current Consumption: 26 Amps (Max)
• Duty Cycle: 100%
• Input Power: 2-5 Watt.
• Output Power: 100 Watt, factory set
• Spurious and Harmonic: Meets FCC requirements
• Input/Output Impedance: 50 ohm (Nominal)
• VSWR Load Tolerance: VSWR Protection
• LED Indicators : CD Power, Low Output, High VSWR, Temp.
• Alarm: Terminal for Alarm Status
• Input and Output Connectors: Type 'N' Females
• Cooling Method: Forced air fan over the heatsink
• Operating Temperature Range: -30º C to +60º C
• Storage and Transport Temperature: -40º C to +70º C
• Humidity: 80% at +40º C (non-condensing)
• Altitude: 3000 meters maximum.
