CAMBIUM NETWORKS

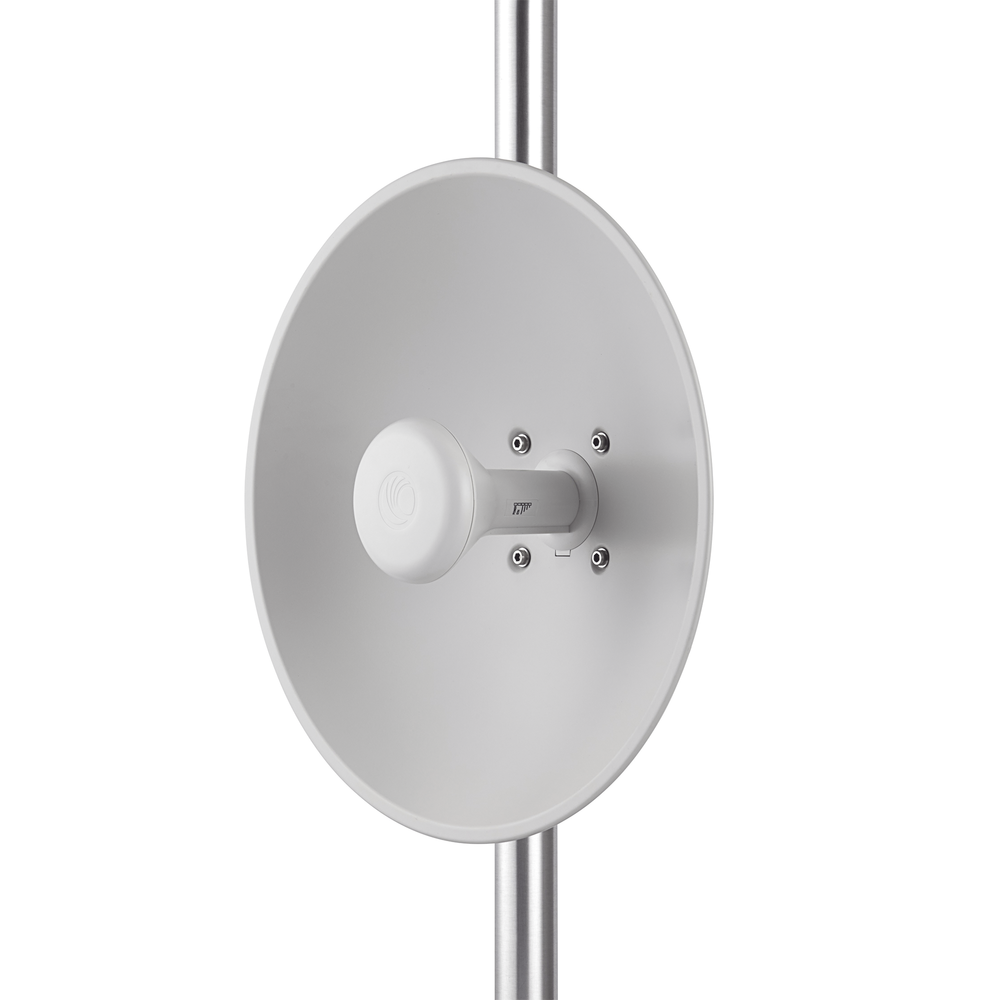

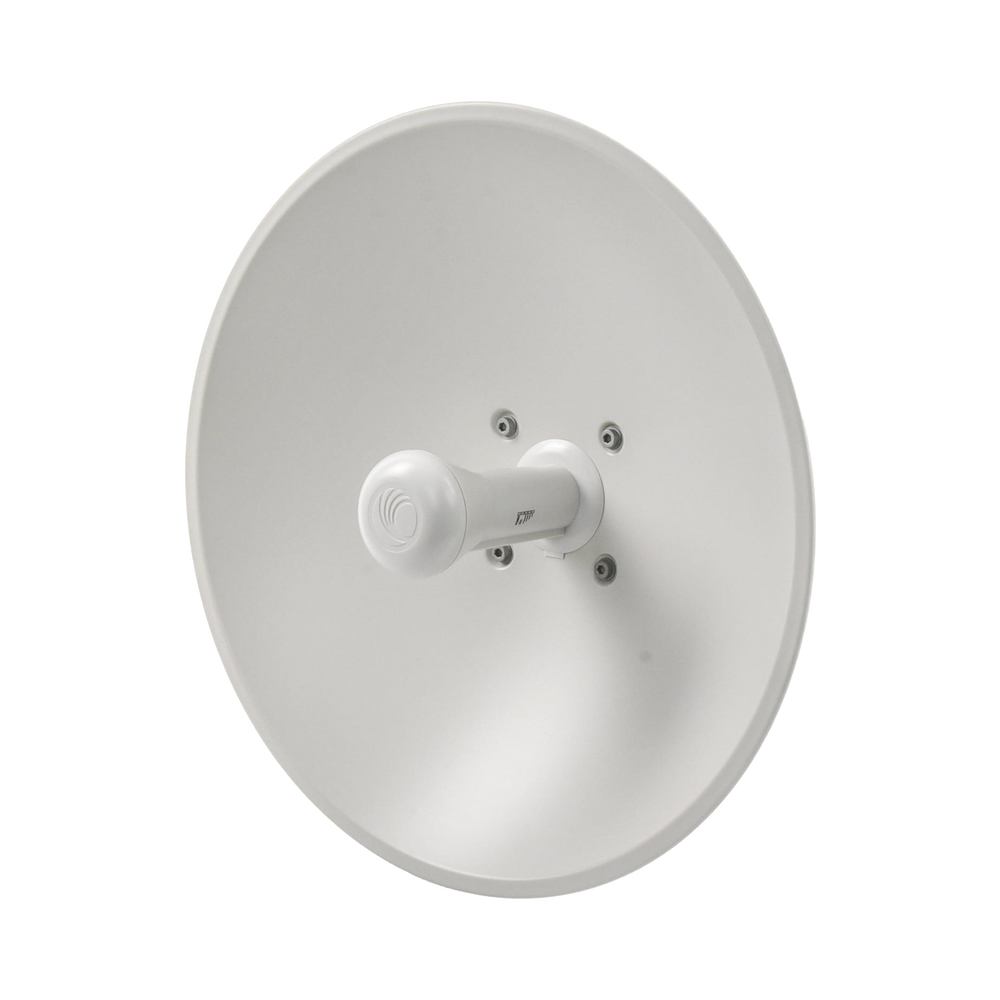

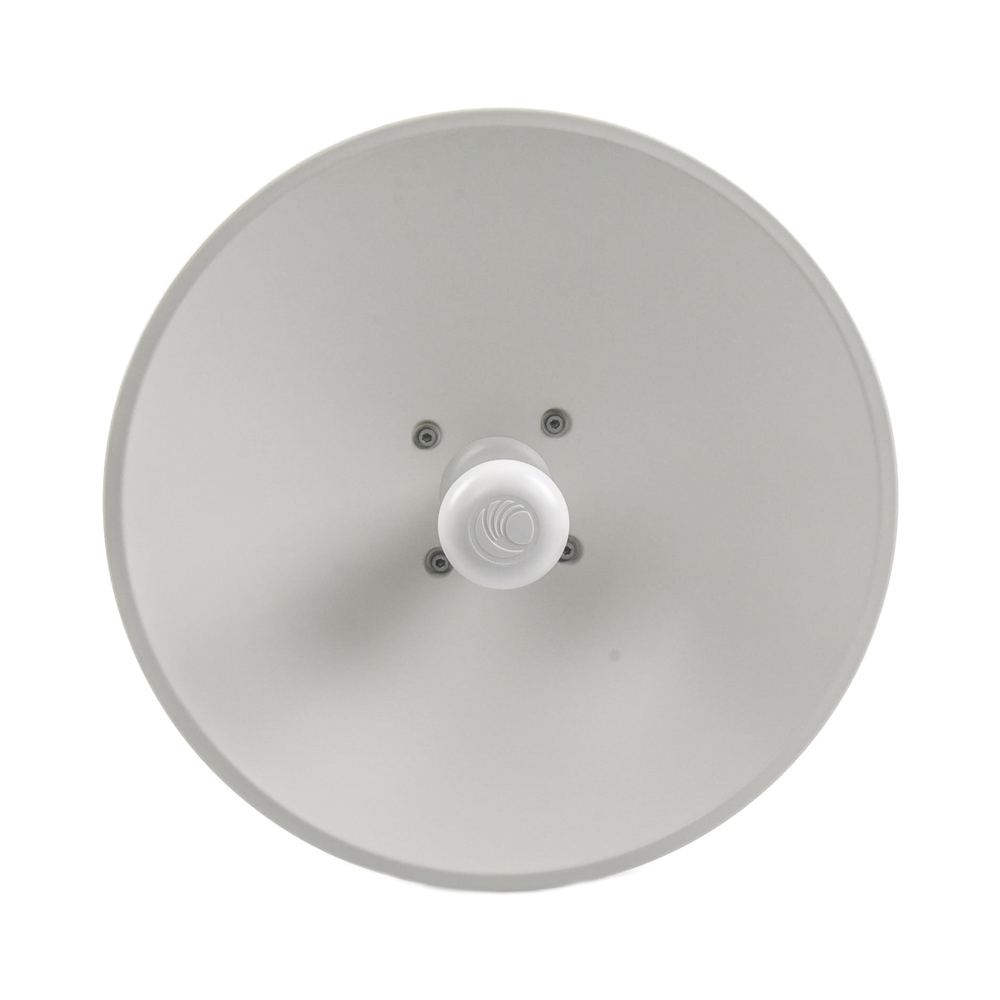

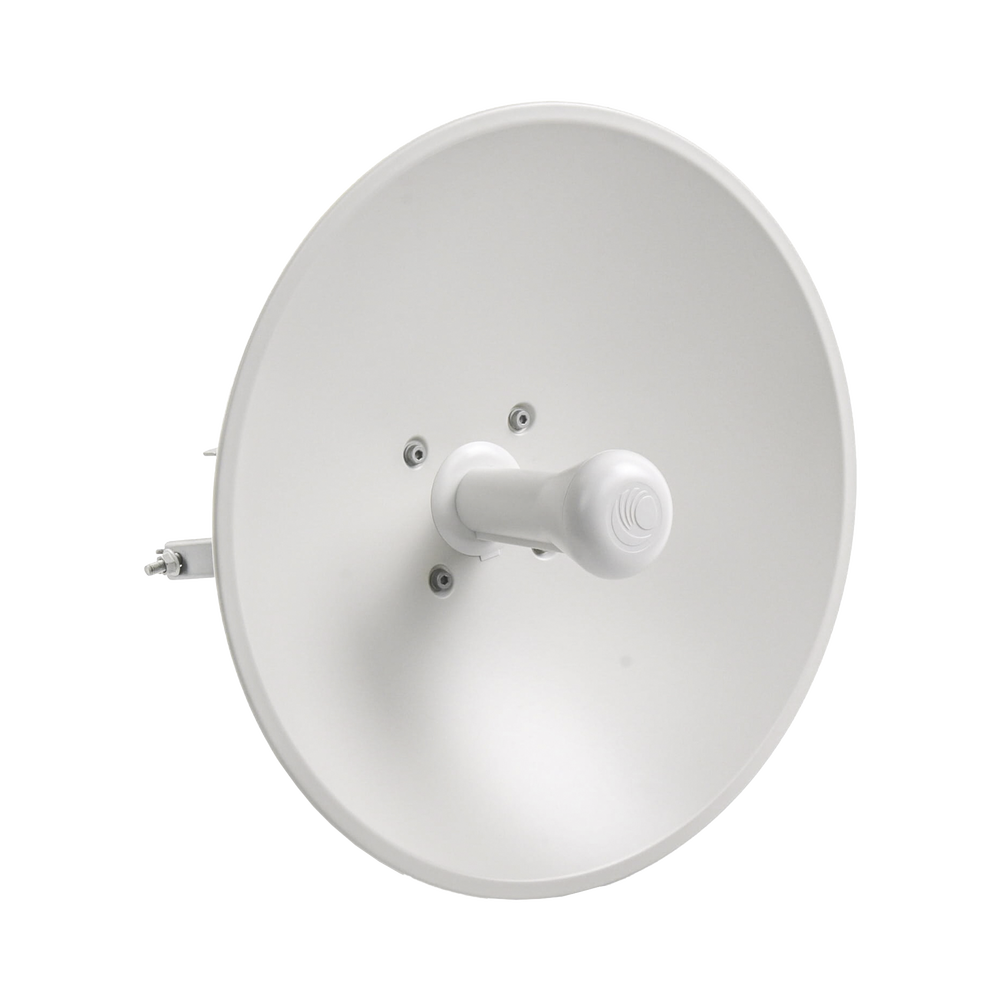

ePMP Force 200-25 for wireless links in high-interference areas, low latency, 25 dBi antenna, 4910-5970 MHz
ePMP Force 200-25 for wireless links in high-interference areas, low latency, 25 dBi antenna, 4910-5970 MHz
Couldn't load pickup availability
ePMP Force 200-25 for wireless links in high-interference areas, low latency, 25 dBi antenna, 4910-5970 MHz
Force 200 5 GHz
5
GHz 220
25 Mbps
dBi
|
QUALITY OF SERVICE A powerful multi-level prioritization scheme that can be configured by the network operator to enable the delivery of differentiated services. |
SECURITY 128-bit AES encryption, L2 and L3 firewall rules, support for different user levels, HTTP/SSH support provide enhanced security. |
|
FLEXIBLE MODES OF OPERATION Provides extremely low latency for PTP deployments, highly scalable mode without GPS synchronization and TDD operation for synchronized towers |
ROBUST DESIGN Operates in ambient temperatures as high as 60 degrees and as low as -30 degrees Celsius |
The ePMP Force 200 is the second generation of the high-gain ePMP radio. It is a 2x2 MIMO radio in the 5 GHz band, capable of 200+ Mbps and featuring an integrated 25 dBi antenna. It can be used as a CPE, as an AP (without timing), or as a PTP.
Main functions
- Gigabit Ethernet port
- Supports Cambium PoE and standard PoE (30Vdc)
- Includes PoE
- Includes tilt hardware
- Integrated 25 dBi satellite dish
| MIMO and modulation | 2x2 MIMO/OFDM |
| Frequency range | 4910 – 5970MHz (defined by country of operation) |
| Maximum power output | 30 dBm combined (defined by country of operation) |
| Revenue | 25 dBi |
| Maximum power consumption | 10 W Maximum, 5 W Typical |
| Exterior protection | IP55 |
| Management | HTTPS, SSH, SNMPv2c |
| Channel spaces | Configurable in 5 MHz increments |
| MAC Layer | Cambium Proprietary |
| Ethernet structure | 10/100/1000BaseT, rate auto negotiated Cambium PoE (included) |
| Protocols used | IPv4, UDP, TCP, IP, ICMP, SSH, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping |
| VLAN | 802.1Q with 802.1p priority |
| Input voltage | 10 to 30 V |
| Encryption | 128-bit AES (CCMP mode) |
| Antenna Type | Integrated parabolic |
| Channel width | 5/10/20/40 MHz |
| Warranty | 3 years |
|
|
|
|
cnMaestro |
LINKPlanner |
cnArcher |
cnHeat |
| cnMaestro™ is an on-premises or cloud-based software platform for secure, end-to-end network control. cnMaestro Wireless Network Manager simplifies device management by offering complete network visibility and zero-touch provisioning. View and perform a full suite of wireless network management functions in real time. Optimize system availability, maximize performance, and meet the emerging needs of business and residential customers. |
LINKPlanner allows you to model "what-if" scenarios (based on geography, distance, antenna height, transmit power, and other factors) to optimize system performance before purchase. Quickly design networks for optimal deployment and cost-effectiveness with ease. Available for Microsoft® Windows® and Mac® systems, it is a free and easy-to-use link design tool. LINKPlanner leads the industry as the most reliable and intuitive RF link planning tool, with tens of thousands of links successfully deployed worldwide. |
Raise the bar on installation accuracy with cnArcher™, the free mobile app that provides field technicians with the information they need to properly configure and align Cambium Networks PMP and ePMP wireless broadband subscriber modules. |
Built on Cambium Networks’ expertise in RF planning, propagation, and modeling as seen in LINKPlanner and integrated with GIS data up to 1 meter in accuracy, cnHeat generates highly accurate RF predictions and derived services that accurately represent the reality of the RF world. |
- Quality of service to prioritize Triple Play traffic (Video, Voice and Data), High performance and low latency (3-5 ms), Free cloud monitoring with cnMaestro, receive event notifications, Includes PoE power supply and mast mount, Option to configure as point-to-point
Out of stock
MODELO: FORCE200
