MU-MIMO 4x4:4ac Access Point, 4.9-6.2 GHz, 360º, 18 dBi, High Capacity, Point-to-Multipoint up to 1.5 Gbps

MU-MIMO 4x4:4ac Access Point, 4.9-6.2 GHz, 360º, 18 dBi, High Capacity, Point-to-Multipoint up to 1.5 Gbps

Mimosa Networks Direct Support Link (Help Center)
http://ap.help.mimosa.co/home

Mimosa Networks Warranty Process Link (Help Center)
http://mimosa.co/warranty.html

High-capacity solutions for WISPs with massive bandwidth
multipoint

Point-to-Multipoint solutions up to 1.5 Gbps with 4x4:4ac MIMO in free band

The A5-18 and A5-14 series, 360° integrated antenna versions, and the A5c series, connectorized access version, from Mimosa Networks are solutions for point-to-multipoint links with multiple 4x4:4ac MU-MIMO users, with the highest bandwidth capacity on the market, up to 1.5 Gbps aggregate, and with the best cost benefit; since it is 100% designed for WISP systems, being a great and economical alternative to fiber optic layouts, deploying voice and data services of the highest speed over the air to homes or businesses. Thanks to its multiple technologies such as multiple 4x4:4ac MU-MIMO users, signal sectorization, hotspot system, GPS + GLONASS system, 24/7 spectrum analyzer for both sites, cloud management, and high bandwidth; links can be established from hundreds of meters to 3 km, establishing high-capacity coverage micro pops for hundreds of clients.

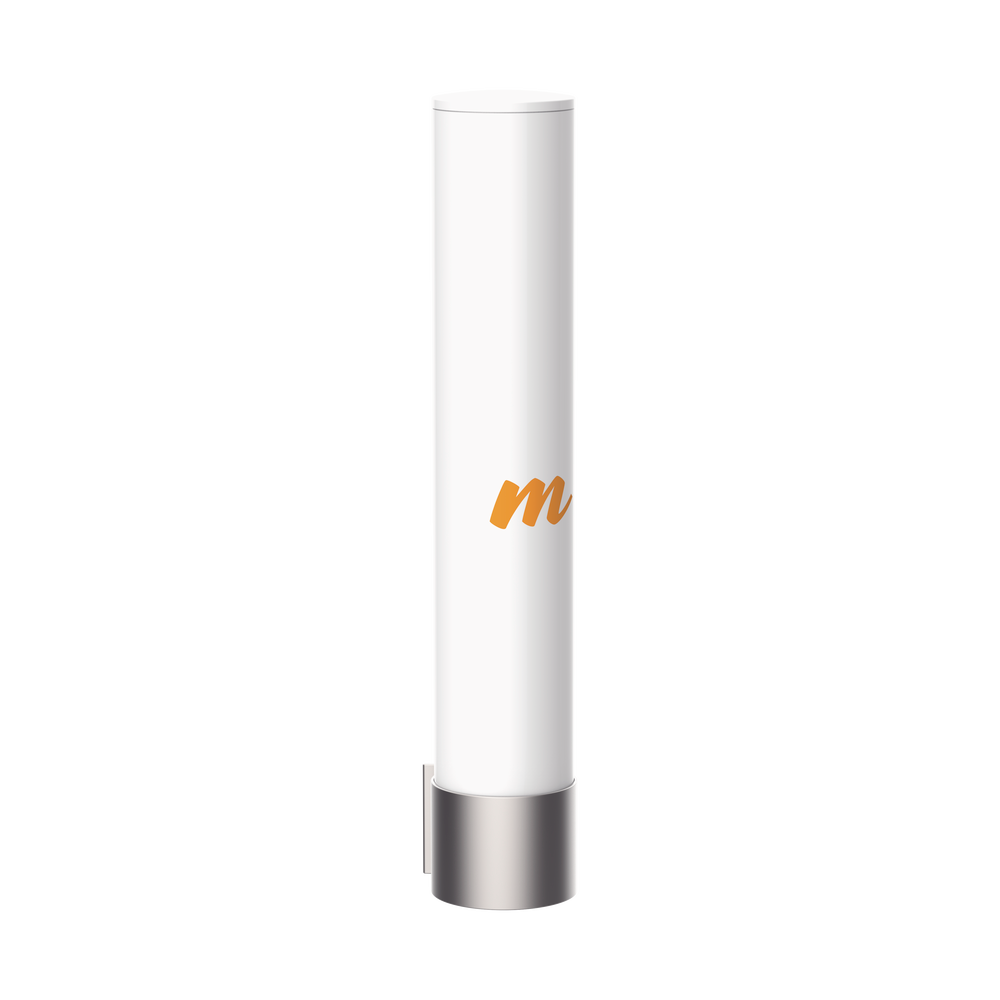

A5-18 MU-MIMO 4X4:4ac Access Point, Integrated 360°, 18 dBi, 802.11ac

• Frequency: 4900 - 6200 MHz (supports the new 5600-5650 MHz band).
• Distance from 0 to 3 km depends on local regulations restrictions.
• Maximum performance up to 1.5 Gbps aggregate speed in DL/UL.
• Antenna gain 18 dBi, dual polarization V/H.
• Beamwidth 70° in (3 dB) azimuth.
• Electric tilt 4°.
• Transmission power: 30 dBm.
• Height 668 mm (26.29”), width 142.44 mm (5.61”).
• Weight: 2.73 kg (6 lbs).

General Features of Access Points A5-18, A5-14 and A5c

• Integrated GPS + GLONASS system.
• Integrated 2.4 GHz 802.11b/g/n radio for management via WiFi.
• MIMO and modulation: 4x4:4 MIMO OFDM up to 256 QAM.
• DL/UL bandwidth management: 50/50, 75/25, 25/75% and automatic.
• 4x4:4ac MU-MIMO technology and Beamforming for streaming to multiple simultaneous clients.
• Up to 100 high-speed clients or 250 low-speed clients.
• Operation mode: access point.
• Channel widths: 20 / 40 / 80 MHz.
• Low latency 8 ms.
• GPS + GLONASS synchronization for spectrum optimization in Tx and Rx.
• Colocation** 1 PPS GPS Tx/Rx. Availability of multiple APs on the same tower and reuse of spectrum channels.
• Network processing: Advanced access point and client management control.
• Management services: Mimosa Cloud+ plus for SNMPv2** management and monitoring and HTTPS syslog.
• Intelligent spectrum management system:
-Integrated 24/7 spectrum analyzer for constant recording without affecting the link.
-Automatic mode for self-optimization of channel and bandwidth usage.
• Access control list to allow, deny and observe traffic flow at L2 and L3 layers.
• Wireless protocols: Time Division Multiple Access (TDMA), Wi-Fi RTS/CTS, Wi-Fi interoperability, Mimosa GPS Sync**.
• Sensitivity (MCS 0): -87 dBm @ 80 MHz, -90 dBm @ 40 MHz, -93 dBm @ 20 MHz.
• Front-to-rear signal ratio (Noise-to-Ratio) > 30 dB.
• Cross-polarization isolation ≥ 20 dB.
• For outdoor use IP 67.
• Operating humidity: 5 to 100% condensation.
• Maximum operating altitude: 4,420 m (14,500').
• Shocks and vibrations: ETS 300-019-2-4 class 4M5.
• UV polymer housing.
• Wind resistance: 200 km/h (125 mph).
• Temperature range: -40 to 55°C (-40 to 131°F).
• Curved mount for attachment to mast and metal straps.
• Very light weight for easy installation on a tower or mast.
• Maximum power consumption of 15 to 25 W, ideal for solar-powered systems.

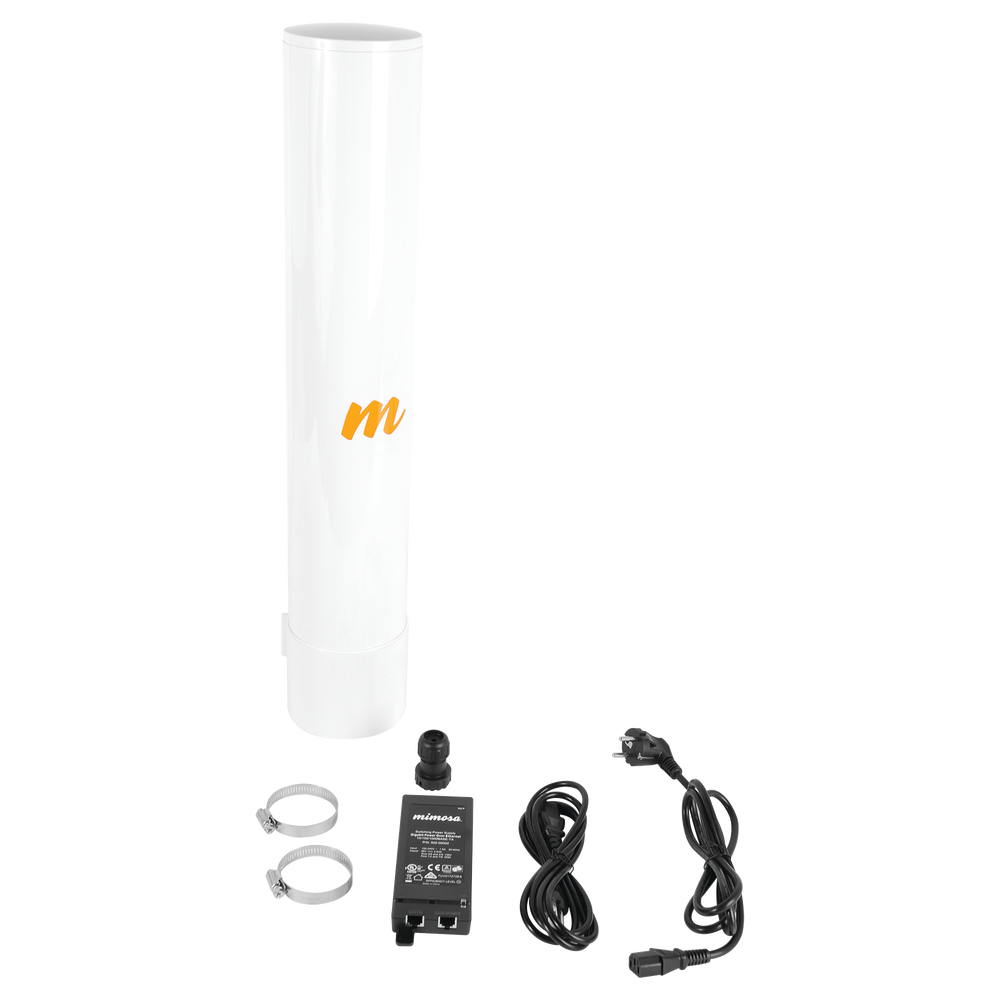

• Power supply: 48 - 56 Vdc via included passive PoE injector, supports 802.3at.
• Integrated ESD surge protection.
• Network interface: Gigabit Ethernet.
• Security: WPA2 + Mimosa 802.1x RADIUS, VLAN Management.
• Supports 4 pre-configured levels of QoS management.
• Traffic allocation per UL/DL subscriber.

*4.9 GHz uses 20 MHz channels (USA only, regulations vary by region).
**Available in future firmware versions.
