Interface for Fire-Lite SWIFT Series Wireless Annunciator

Interface for Fire-Lite SWIFT Series Wireless Annunciator

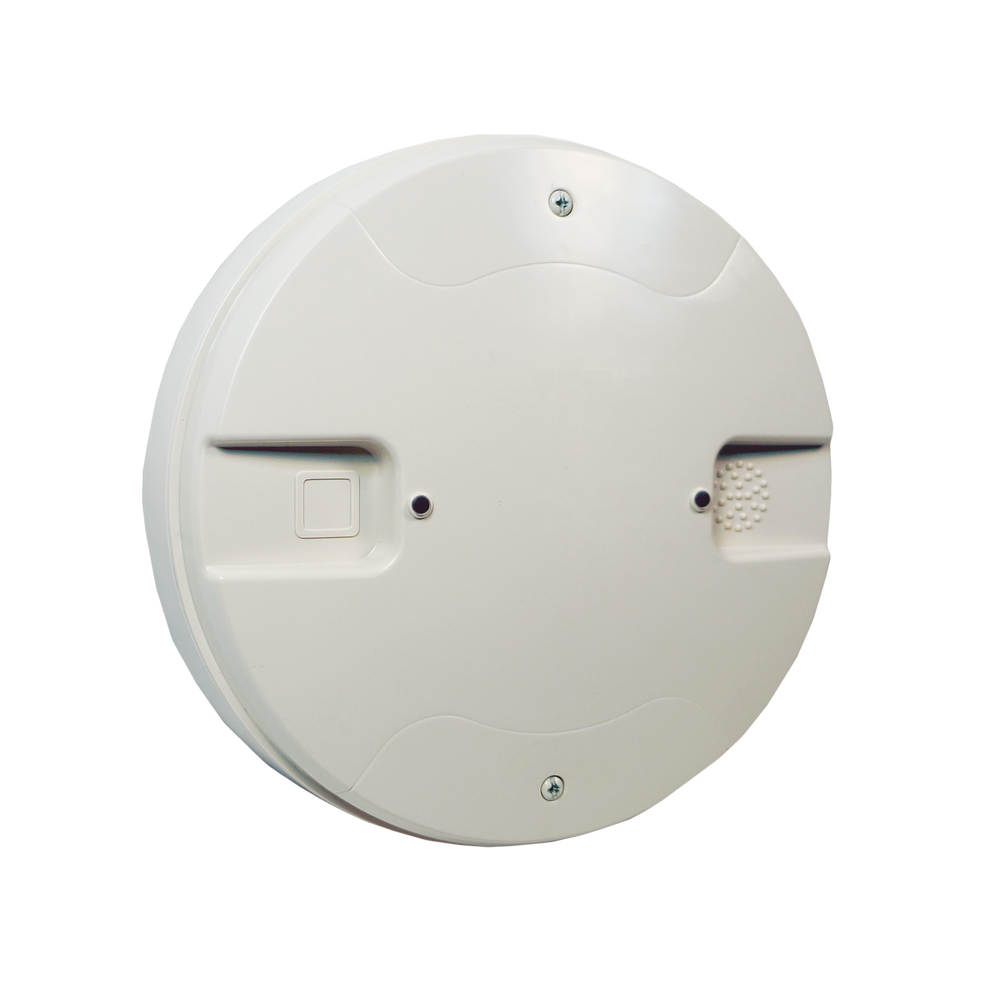

The W-DIS-D is a wireless display controller that is required to annunciate any specific event on the system's wireless network. It receives event information from the wireless network and then connects to a dedicated ANN-80-W to annunciate it. All standard fire alarm events will be reported on the MS-ES50X, ES200X and MS-9600(UD)LS just like a standard wired device. For any specific wireless network event (such as low battery), a general trouble will be annunciated on the FACP and specific information will be annunciated on the ANN-80-W.

• Listed: UL, FM, and NFPA
• Receive wireless network-specific information directly from the mesh network
• Connects to an ANN-80-W annunciator to display specific wireless network events (such as low battery).
• Uses the standard ANN-BUS protocol to communicate with the ANN-80-W annunciator
• Requires 24 Vdc power supply
