MIKROTIK
(NetMetal 5 triple) 5 GHz 802.11ac Connectorized Access Point 2x2 or 3x3 configurable, Up to 2000mW of Power
(NetMetal 5 triple) 5 GHz 802.11ac Connectorized Access Point 2x2 or 3x3 configurable, Up to 2000mW of Power
Couldn't load pickup availability
(NetMetal 5 triple) 5 GHz 802.11ac Connectorized Access Point 2x2 or 3x3 configurable, Up to 2000mW of Power
This NetMetal version is equipped with a miniPCI-express slot, a SIM slot for 3G/4G device or additional wireless card, a high-power 3x3 triple-chain 802.11ac wireless connection and three RP-SMA connectors for external antennas.

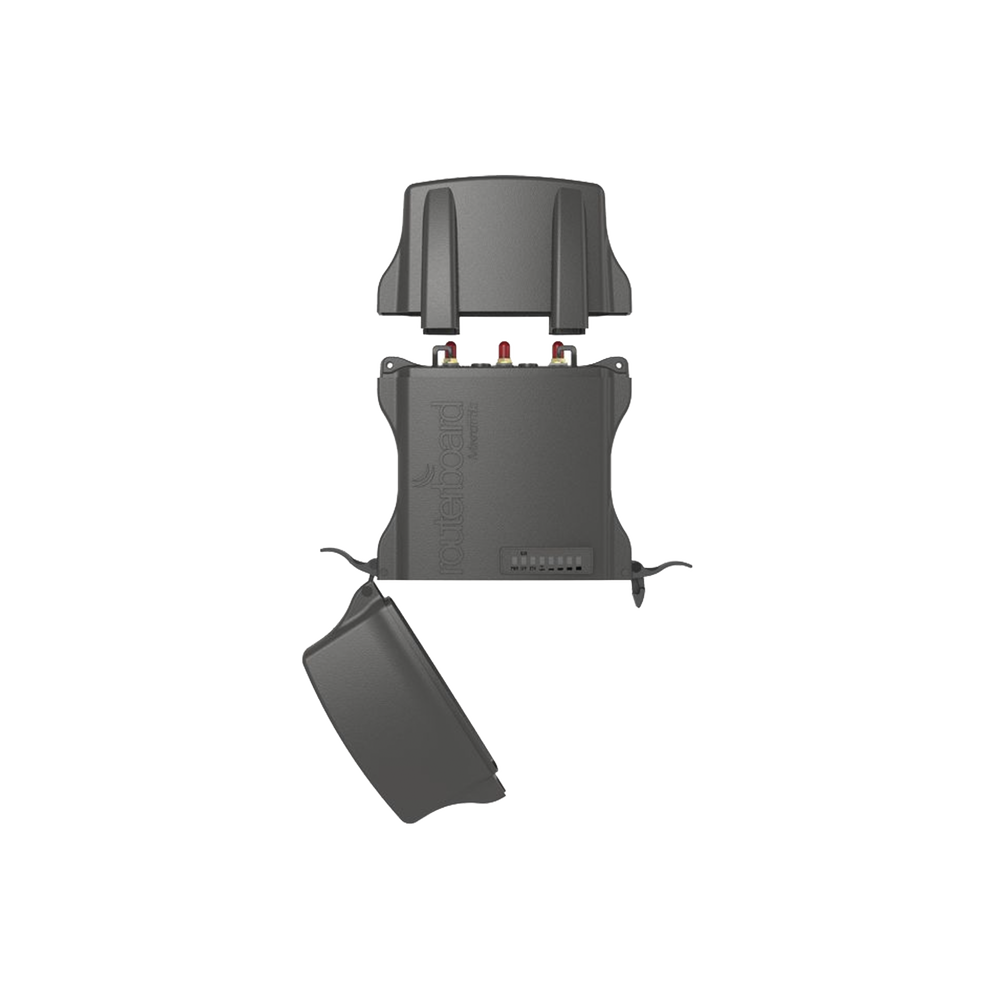

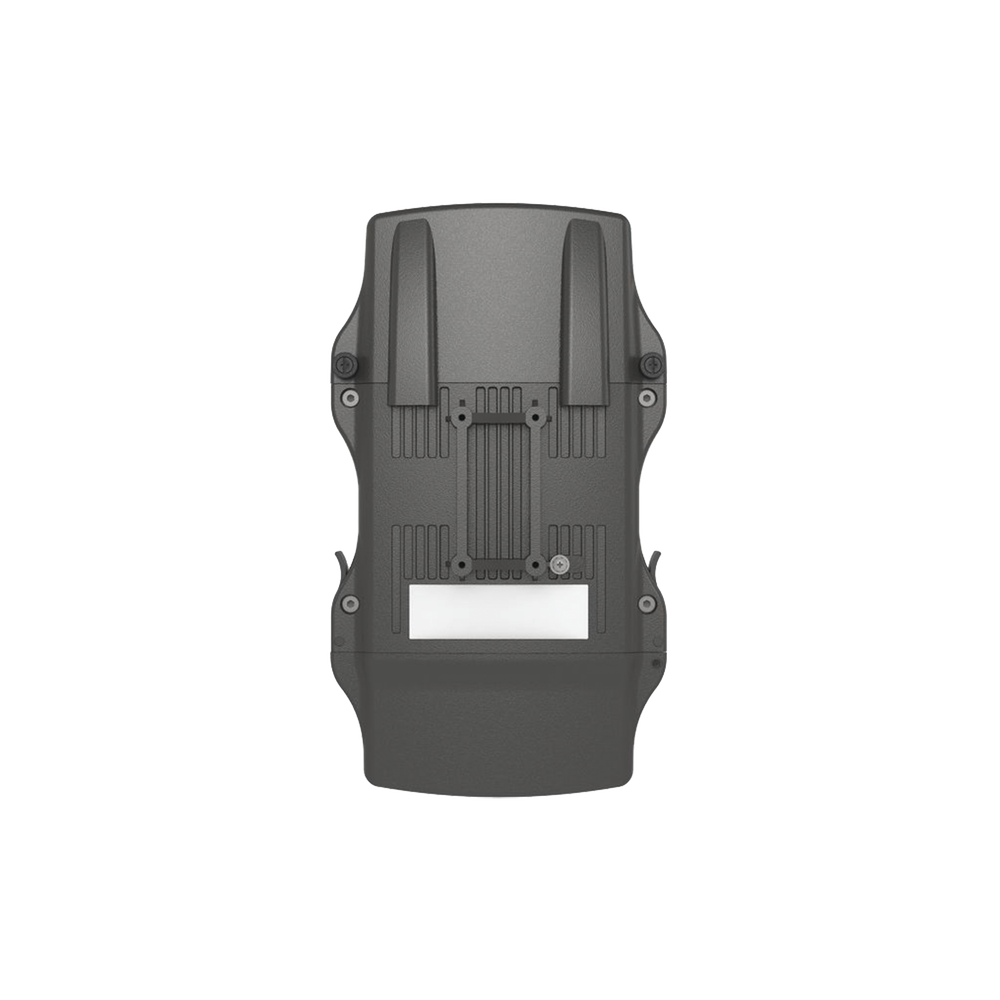

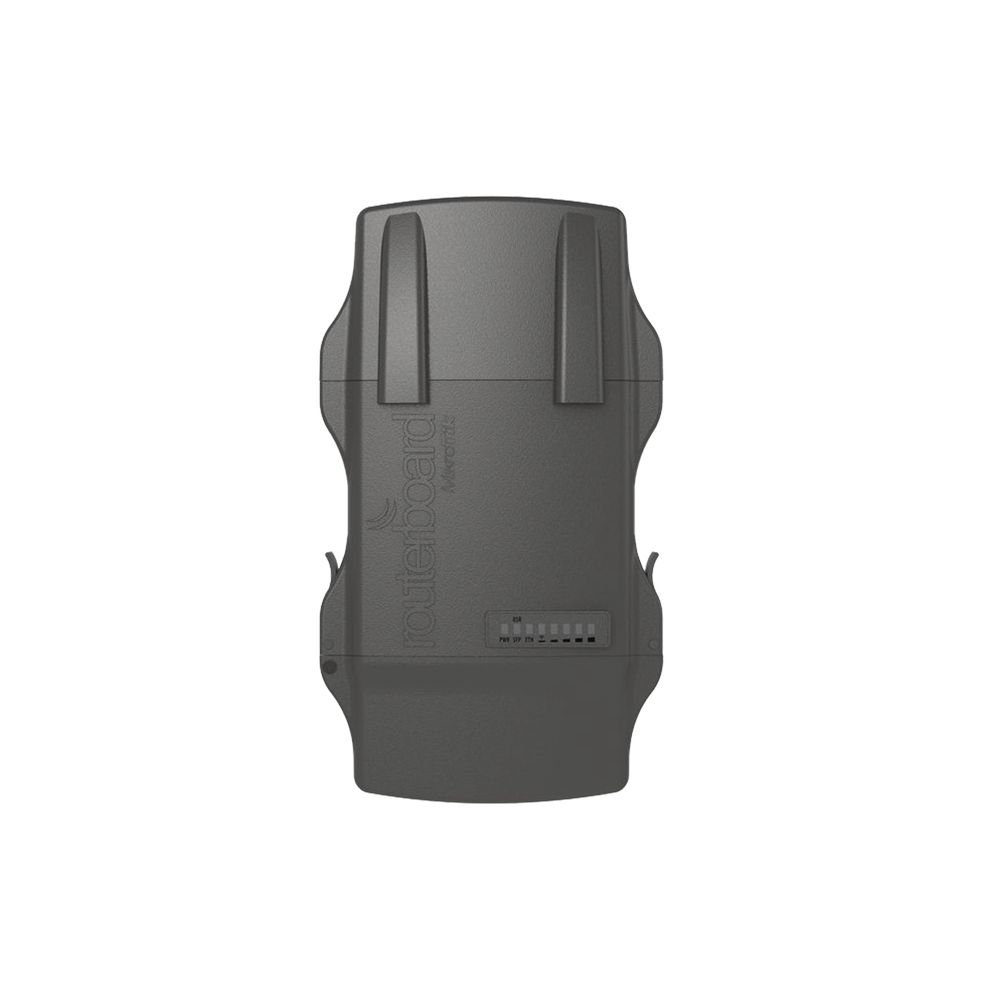

NetMetal is an 802.11a/n/ac wireless device in a weatherproof (IP54) metal housing. Its rugged design is built to withstand the harshest conditions, yet it's easy to use and can be opened and closed with one hand. The solid aluminum housing also acts as a reliable heat sink for its high-powered radio.

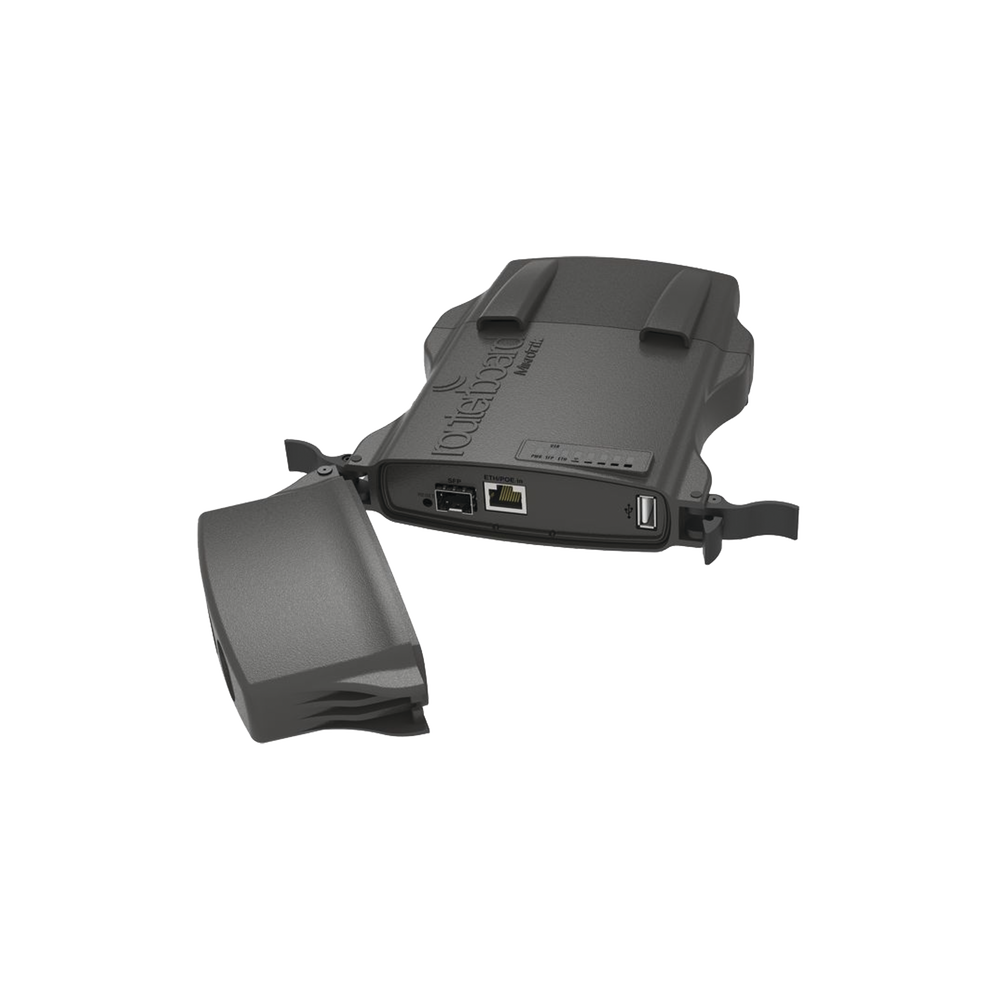

The NetMetal is equipped with a powerful 720Mhz CPU, 128MB of RAM, a Gigabit Ethernet port, 802.11ac wireless, an SFP slot, USB, RP-SMA connectors for external antennas, and a RouterOS L4 license.
Specs
| Details | |
|---|---|
| Product code | RB922UAGS-5HPacT-NM |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| Nominal CPU frequency | 720 MHz |
| Dimensions | 143x247x48mm (PCB) |
| RouterOS License | 4 |
| Operating system | RouterOS |
| RAM size | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Room temperature tested | -40°C to 70°C |
| MTBF | Approximately 200,000 hours at 25°C |
Feeding
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input voltage | 8-30 V |
| Number of DC inputs | 1 (PoE input) |
| Maximum energy consumption | 23 W |
| Fan count | Passive |
Wireless specifications
| Details | |
|---|---|
| Maximum wireless data rate of 5 GHz | 1300 Mbit/s |
| Number of 5 GHz wireless chains | 3 |
| 5 GHz Wireless Standards | 802.11a/n/ac |
| 5GHz Wireless Chip Model | QCA9880 |
| 5 GHz wireless generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yeah |
| SFP ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yeah |
| USB slot type | USB Type A |
| Maximum USB current (A) | 1 |
Other
| Details | |
|---|---|
Share
Out of stock
MODELO: RB922UAGS-5HPACT-NM
