MIKROTIK
(NetMetal 5) 5GHz 802.11 a/n/ac 2X2 Access Point, Up to 1260mW Connectorized with SIM Slot
(NetMetal 5) 5GHz 802.11 a/n/ac 2X2 Access Point, Up to 1260mW Connectorized with SIM Slot
Couldn't load pickup availability
(NetMetal 5) 5GHz 802.11 a/n/ac 2X2 Access Point, Up to 1260mW Connectorized with SIM Slot
This NetMetal version is equipped with a miniPCI-express slot a SIM slot for 3G/4G device or additional wireless card, a high power 2x2 dual chain 802.11ac wireless and two RP-SMA connectors for external antennas

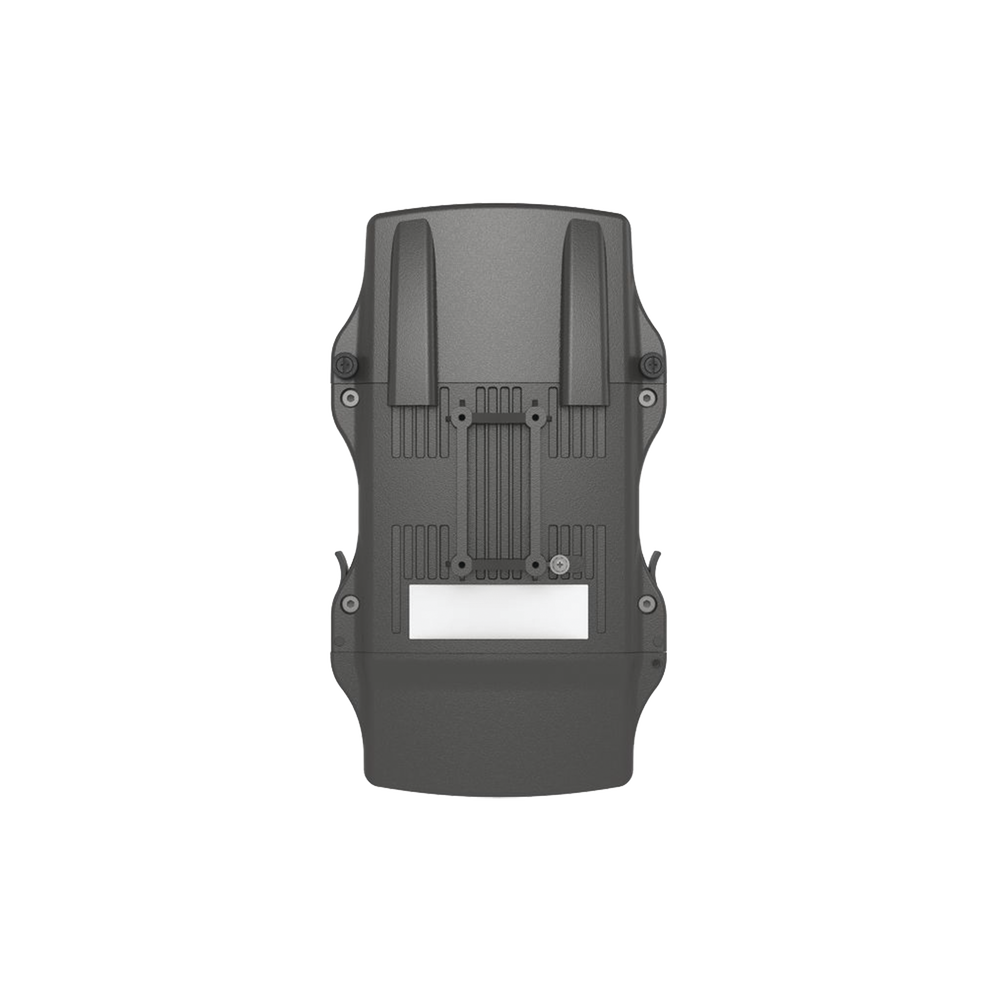

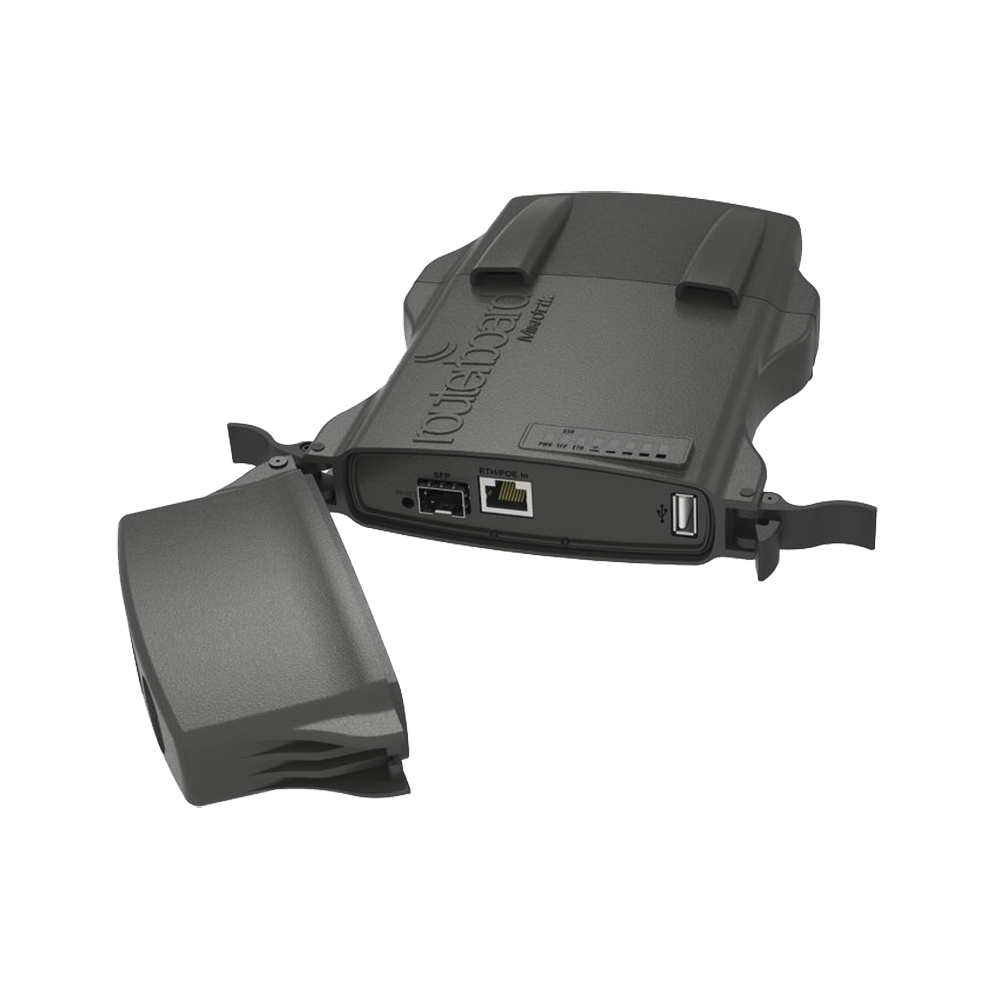

The NetMetal is an 802.11ac wireless device in a waterproof metal enclosure (IP54). Its rugged design is made to withstand the toughest conditions, but at the same time it is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for its high output power radio.
The NetMetal is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.
Specs
| Details | |
|---|---|
| Product code | RB922UAGS-5HPacD-NM |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| Nominal CPU frequency | 720 MHz |
| Dimensions | 143x247x48mm (PCB) |
| RouterOS License | 4 |
| Operating system | RouterOS |
| RAM size | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Room temperature tested | -40°C to 70°C |
| MTBF | Approximately 200,000 hours at 25°C |
Feeding
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input voltage | 8-30 V |
| Number of DC inputs | 1 (PoE input) |
| Maximum energy consumption | 19 W |
| Fan count | Passive |
Wireless specifications
| Details | |
|---|---|
| Maximum wireless data rate of 5 GHz | 867 Mbit/s |
| Number of 5 GHz wireless chains | 2 |
| 5 GHz Wireless Standards | 802.11a/n/ac |
| 5GHz Wireless Chip Model | QCA9882 |
| 5 GHz wireless generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yeah |
| SFP ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yeah |
| USB slot type | USB Type A |
| Maximum USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB Temperature Monitor | Yeah |
| Voltage monitor | |
Share
Out of stock
MODELO: RB922UAGS-5HPACD-NM
