MIKROTIK

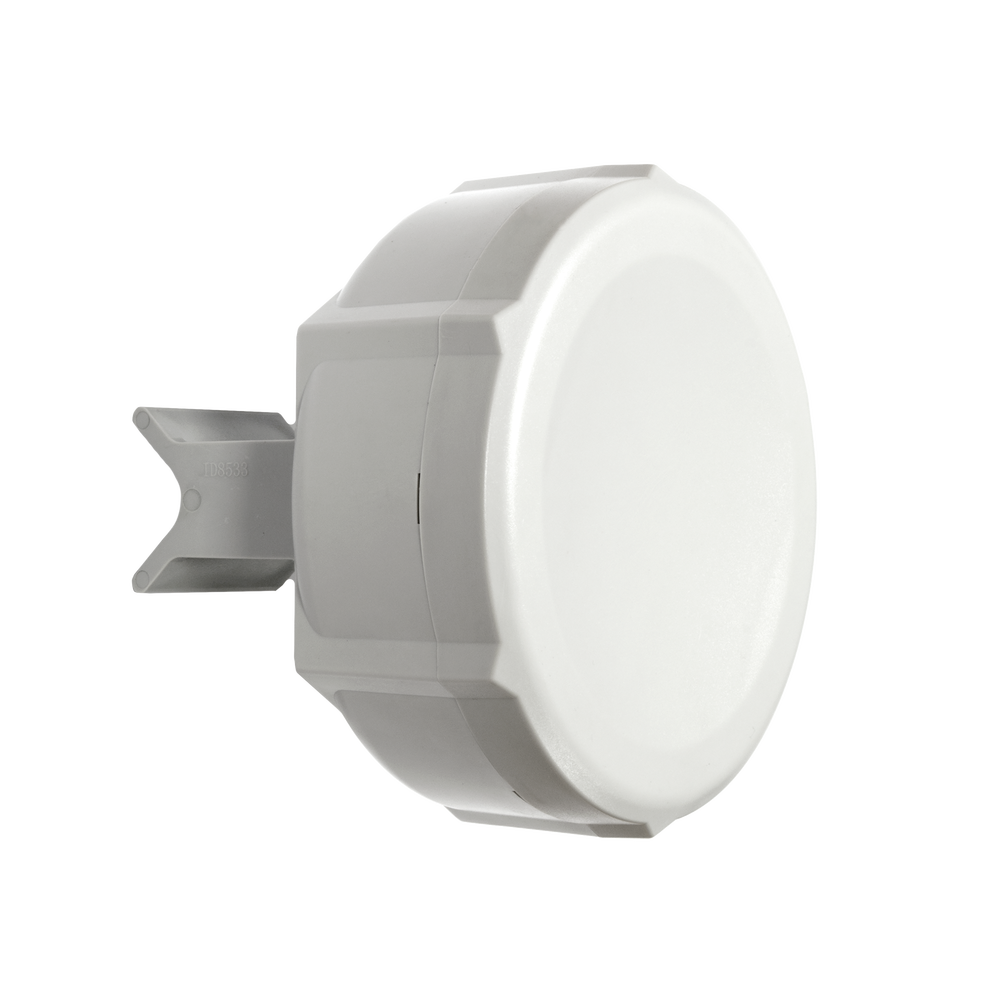

(SXT SA5 ac) 5GHz 802.11 a/n/ac Access Point, Integrated 14 dBi 90° Antenna, Up to 1000 mW
(SXT SA5 ac) 5GHz 802.11 a/n/ac Access Point, Integrated 14 dBi 90° Antenna, Up to 1000 mW
Couldn't load pickup availability
(SXT SA5 ac) 5GHz 802.11 a/n/ac Access Point, Integrated 14 dBi 90° Antenna, Up to 1000 mW
The new AC standard is here, with up to 866 Mbps over-the-air data rates, 256-QAM modulation, and 80 MHz channels. 802.11a/n/ac opens up new possibilities and speeds never before possible.
The SXT ac is a new addition to our 802.11ac product line. Two models are currently available: a standard 28-degree antenna, and the SA model with a 90-degree beamwidth sector antenna. It also supports the 802.11a/n standard, the Nstreme and Nv2 protocols, and is backward compatible with all RouterBOARD devices. Both devices feature Gigabit Ethernet.
New products are backward compatible; for example, you can replace your legacy 5GHz 802.11a/n access point with a new 802.11ac product and your existing clients will still be able to connect to it.
Specs
| Details | |
|---|---|
| Product code | RBSXTG-5HPacD-SA |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| Nominal CPU frequency | 720 MHz |
| RouterOS License | 4 |
| Operating system | RouterOS |
| RAM size | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Room temperature tested | -40°C to 70°C |
| MTBF | Approximately 200,000 hours at 25°C |
Feeding
| Details | |
|---|---|
| PoE in | 802.3af/at |
| PoE in input voltage | 12-57 V |
| Number of DC inputs | 1 (PoE input) |
| Maximum energy consumption | 12 W |
| Fan count | Passive |
Wireless specifications
| Details | |
|---|---|
| Maximum wireless data rate of 5 GHz | 867 Mbit/s |
| Number of 5 GHz wireless chains | 2 |
| 5 GHz Wireless Standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 14 |
| 5GHz Wireless Chip Model | QCA9892 |
| 5 GHz wireless generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yeah |
| USB slot type | USB Type A |
| Maximum USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB Temperature Monitor | Yeah |
| Voltage monitor | Yeah |
Certifications and approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
Wireless specifications
