(SXT Lite5 ac) 5GHz 802.11 a/n/ac CPE/PTP, Integrated 16 dBi 28º Antenna, Up to 794 mW Power.
- Marca
- MIKROTIK
- Referencia / SKU
-
RBSXT5HACD2N
- Disponibilidad
-
Agotado por ahora
- Envíos a toda Colombia. El envío y el IVA se calculan al pagar.
- Pago seguro y factura electrónica.
- ¿Dudas? Escríbenos por WhatsApp
Descripción y especificaciones

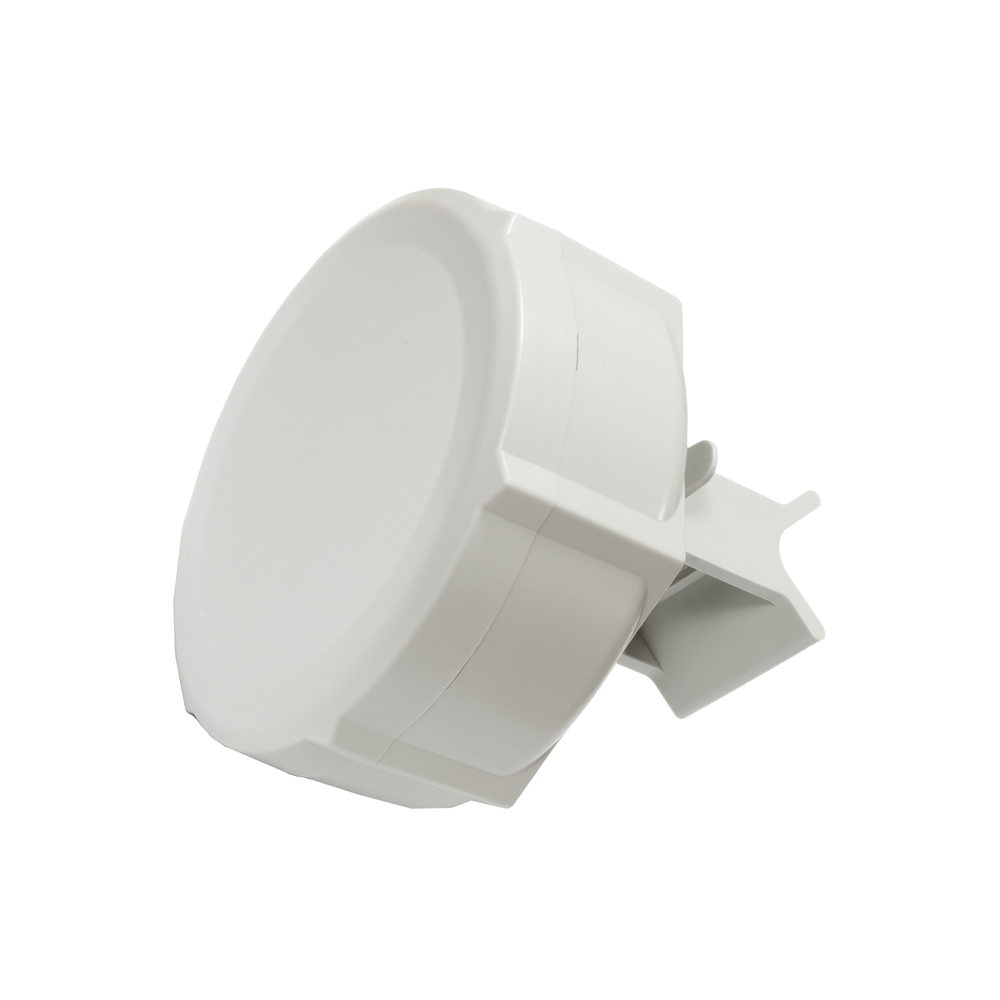

(SXT Lite5 ac) 5GHz 802.11 a/n/ac CPE/PTP, Integrated 16 dBi 28º Antenna, Up to 794 mW Power.
The SXT Lite5 ac is a low-cost device in the 802.11ac product line.
The unit is equipped with a powerful 650MHz CPU, 64MB of RAM, a 10/100Mbps Ethernet port, and a 16dBi 5GHz antenna with a 28-degree aperture.
The SXT Lite5 ac supports 256 QAM modulation and 80 MHz channels, so you get more speed for the same frequency width as 802.11 devices. It also supports 802.11a/n, Nv2, and Nstreme modes and is backward compatible with all legacy RouterBOARD devices. The new QCA-9892 industrial wireless chip provides support for 5/10 MHz channel width for the 802.11a/n standard.
The SXT Lite5 ac has a 2.4 GHz management interface (supports only one connection); if you enable it first via Ethernet, you can connect to the device with your 2.4 GHz laptop or phone to configure it.
General Specifications
| Details | |
|---|---|
| Product Code | RBSXT5HacD2nr2 |
| Architecture | MIPS-BE |
| CPU | QCA9531 |
| Number of CPU cores | 1 |
| CPU frequency | 650 MHz |
| Dimensions | 140x140x56mm |
| License level | 3 |
| Operating System | RouterOS |
| RAM memory | 64 MB |
| Storage | 16 MB |
| Storage type | FLASH |
| Operating Temperature | -30 + 70 C |
Feeding
| Details | |
|---|---|
| Energy consumption | 8W |
| Number of power inputs | 1 (PoE-IN) |
| PoE Type | Passive PoE |
| Supply voltage | 8-30 V |
Wireless Features
| Details | |
|---|---|
| Wireless 2.4 GHz number of chains | 1 |
| Wireless 2.4 GHz operating standards | 802.11b/g/n |
| 2.4 GHz antenna gain | 1.5 dBi |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz operating standards | 802.11ac |
| 5 GHz antenna gain | 16 |
| Wireless 5 GHz chip model | QCA9892 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Wireless Specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 17 | -93 |
| 11MBit/s | 17 | -86 |
| 6MBit/s | 17 | -90 |
| 54MBit/s | 15 | -71 |
| MCS0 | 17 | -90 |
| MCS7 | 13 | -68 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 29 | -96 |
| 54MBit/s | 26 | -81 |
| MCS0 | 29 | -96 |
| MCS7 | 25 | -77 |
| MCS9 | 22 | -72 |
Ethernet Test Results
| RBSXT5HacD2nr2 | QCA9531 100M one port test | ||||||
| Mode | Configuration | 1518 bytes | 512 bytes | 64 bytes | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 173.6 | 88.9 |
| Bridging | 25 bridge filter rules | 8.1 | |||||
