(GrooveA 52) Access Point, Dual Band (2.4 or 5 GHz) 802.11 a/b/g/n, Up to 500mW, Includes 6 dBi Omnidirectional Antenna.
(GrooveA 52) Access Point, Dual Band (2.4 or 5 GHz) 802.11 a/b/g/n, Up to 500mW, Includes 6 dBi Omnidirectional Antenna.
(GrooveA 52) Access Point, Dual Band (2.4 or 5 GHz) 802.11 a/b/g/n, Up to 500mW, Includes 6 dBi Omnidirectional Antenna.

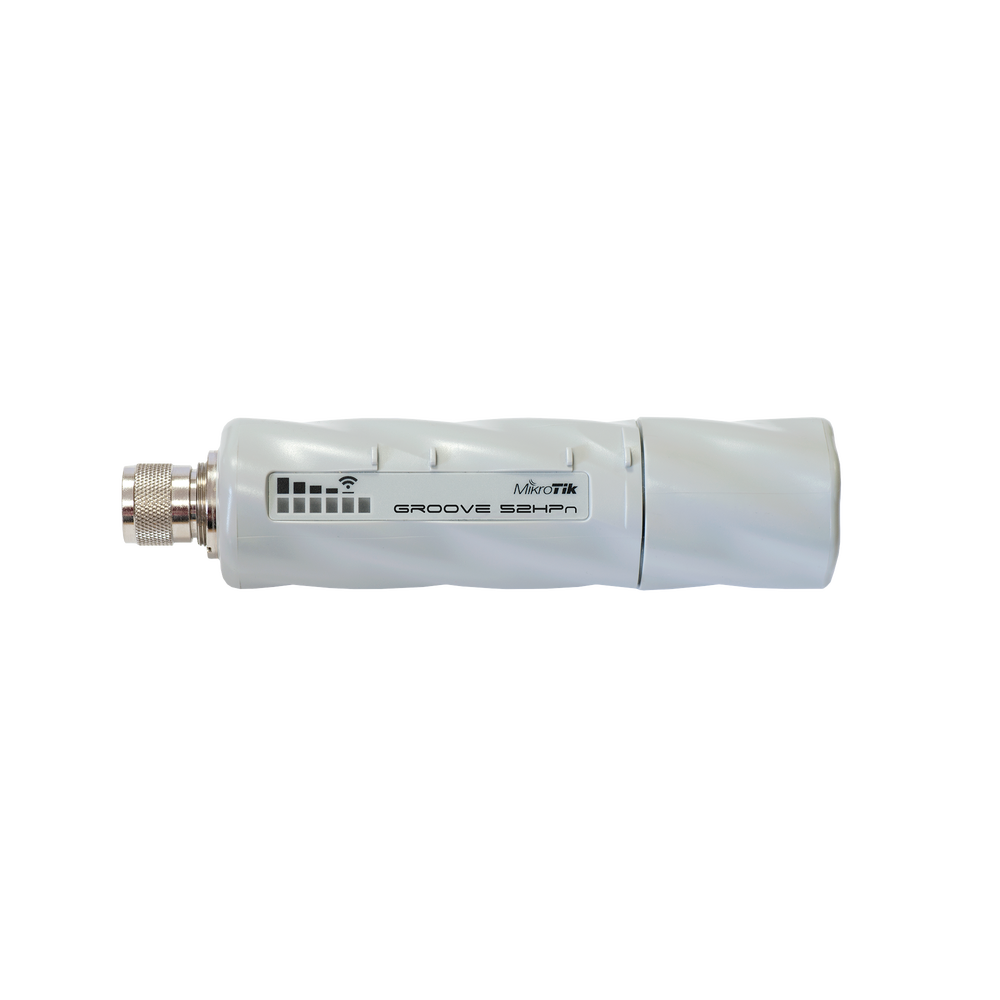

Our smallest outdoor series model: a full-featured wireless RouterBOARD powered by RouterOS. Weatherproof, durable, and ready to use. It features a 10/100 Ethernet port with PoE support and a built-in wireless radio. It features software-selectable 2 or 5 GHz wireless mode and high output power. GrooveA also supports AP mode.
With Nv2 TDMA technology, aggregate throughput of up to 125 Mbit is possible! It features a built-in N-male connector and pole attachment points, so you can connect it to an antenna directly or use a standard antenna cable. LED signal indicators make installation and alignment easy.

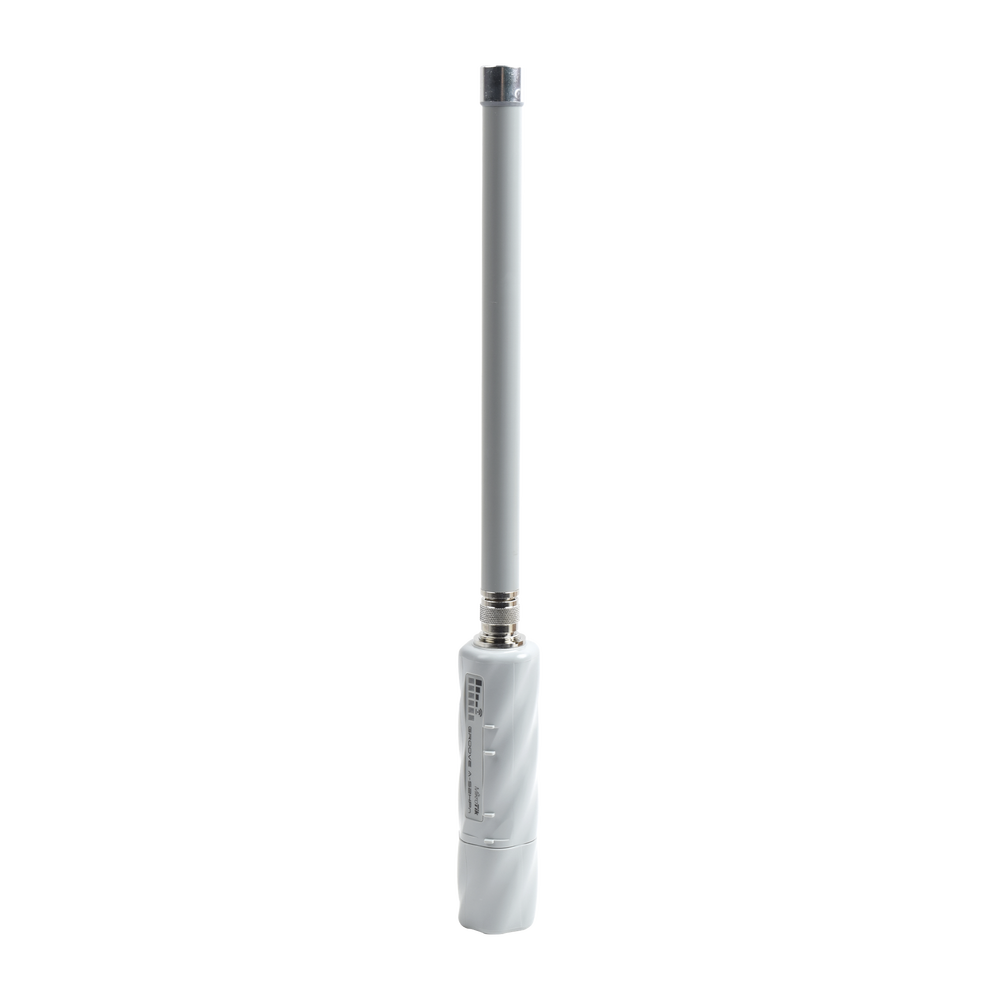

NEW: Now comes with an omnidirectional antenna (6dBi 2.4GHz, 8dBi 5GHz).

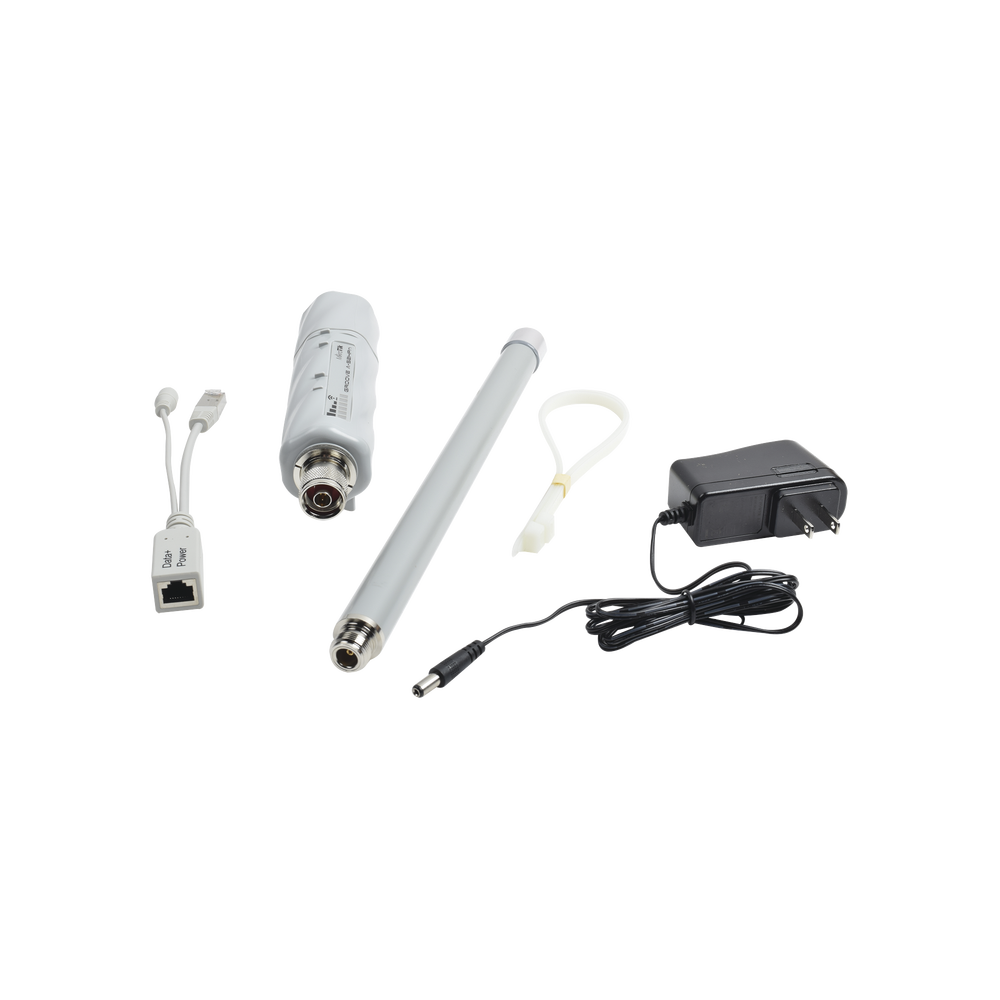

The box contains: slot-in unit, mounting loops, PoE injector, power adapter, omnidirectional antenna (6dBi 2.4GHz, 8dBi 5GHz).
Specs
| Details | |
|---|---|
| Product code | RBGrooveA-52HPn |
| Architecture | MIPSBE |
| CPU | AR9342 |
| CPU core count | 1 |
| Nominal CPU frequency | 600 MHz |
| Dimensions | 177 x 44 x 44 mm, 193 g |
| RouterOS License | 4 |
| Operating system | RouterOS |
| RAM size | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Room temperature tested | -40°C to 70°C |
| MTBF | Approximately 100,000 hours at 25°C |
Feeding
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input voltage | 9-30 V |
| Number of DC inputs | 1 (PoE input) |
| Maximum energy consumption | 6 W |
| Fan count | Passive |
Wireless specifications
| Details | |
|---|---|
| Maximum wireless data rate of 2.4 GHz / 5 GHz | 150 Mbit/s |
| Number of 2.4 GHz / 5 GHz wireless chains | 1 |
| 2.4 GHz / 5 GHz wireless standards | 802.11b/g/n, 802.11a/n |
| Antenna gain dBi for 2.4 GHz / 5 GHz | 6 |
| 2.4GHz/5GHz Wireless Chip Model | AR9342 |
| 2.4 GHz / 5 GHz wireless generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Other
| Details | |
|---|---|
| PCB Temperature Monitor | Yeah |
| Voltage monitor | Yeah |
Certifications and approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive sensitivity |
|---|---|---|
| 1 MBit/s | 27 | -97 |
