MIKROTIK
(OmniTIK 5 PoE) 5GHz 802.11 a/n Omnidirectional Access Point, Integrated 7.5 dBi Antennas, Includes 5 Fast Ethernet Ports, 4 Ports with PoE Output
(OmniTIK 5 PoE) 5GHz 802.11 a/n Omnidirectional Access Point, Integrated 7.5 dBi Antennas, Includes 5 Fast Ethernet Ports, 4 Ports with PoE Output
Couldn't load pickup availability
(OmniTIK 5 PoE) 5GHz 802.11 a/n Omnidirectional Access Point, Integrated 7.5 dBi Antennas, Includes 5 Fast Ethernet Ports, 4 Ports with PoE Output

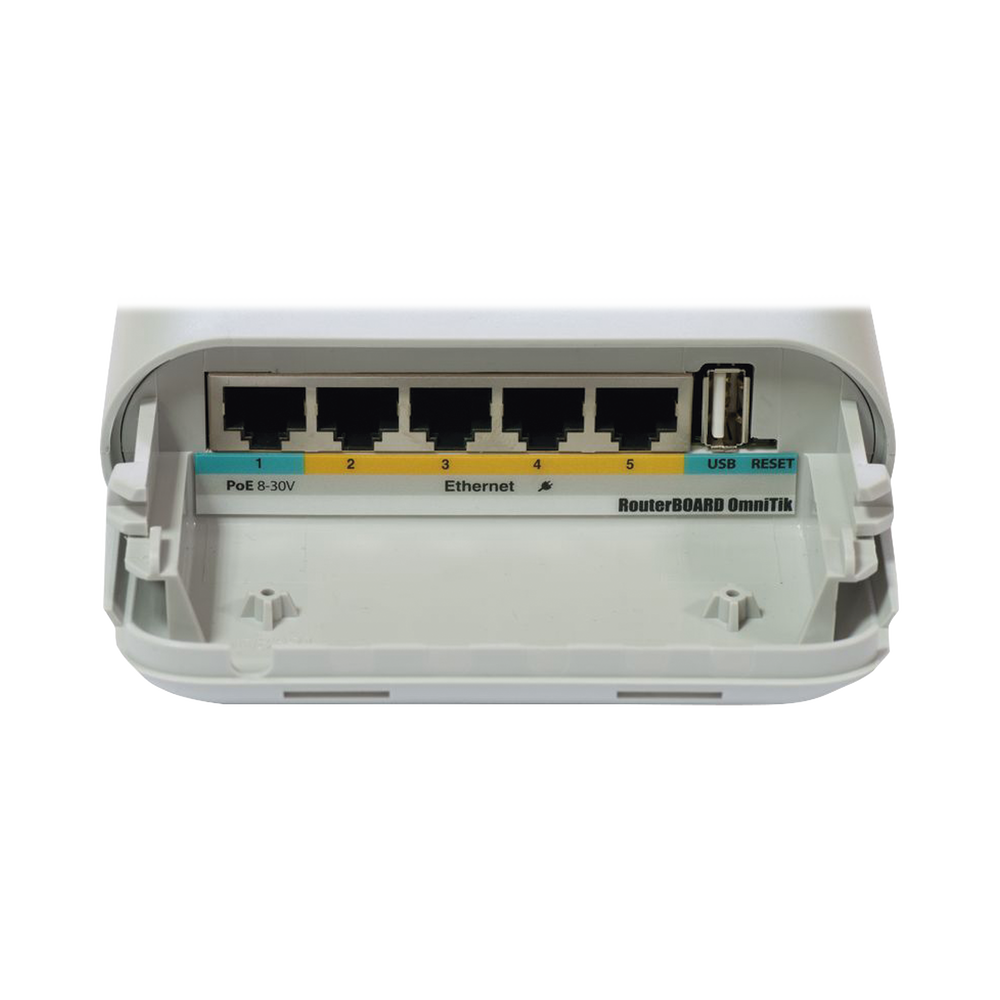

The OmniTIK is a weatherproof outdoor AP with dual-polarized omnidirectional antennas—the perfect companion to our SXT or any other standard 5GHz 802.11a/n device. Weatherproof, durable, and ready to use, it has five 10/100 Ethernet ports, PoE support, and a built-in 1000mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with an aggregate throughput of up to 200Mbps.
The LED signal indicators on the back are fully customizable, displaying Ethernet or wireless signal activity, or any other RouterOS information. The USB port offers the option of connecting a 3G modem or storage drive.
The OmniTIK UPA also features power output on its Ethernet ports. Ports 2-5 can power other PoE-enabled devices with the same voltage applied to the unit. Fewer power adapters to worry about.
The box contains OmniTik UPA-5HnD, mounting loops, PoE injector, 24v 2.5A power adapter
Specs
| Details | |
|---|---|
| Product code | RBOmniTikUPA-5HnD |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| Nominal CPU frequency | 600 MHz |
| Dimensions | 368x125x55mm |
| RouterOS License | 5 |
| Operating system | RouterOS |
| RAM size | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Room temperature tested | -40°C to 70°C |
| MTBF | Approximately 100,000 hours at 25°C |
Feeding
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input voltage | 11-30 V |
| Number of DC inputs | 1 (PoE input) |
| Maximum energy consumption | 59 W |
| Maximum power consumption without accessories | 11 W |
| Fan count | Passive |
PoE-out
| Details | |
|---|---|
| PoE output ports | Ether2-Ether5 |
| PoE out | Passive PoE |
| Maximum output per output port (input <30 V) | 1 A |
| Maximum total output (A) | 2 A |
Wireless specifications
| Details | |
|---|---|
| Maximum wireless data rate of 5 GHz | 300 Mbit/s |
| Number of 5 GHz wireless chains | 2 |
| 5 GHz Wireless Standards | 802.11a/n |
| Antenna gain dBi for 5 GHz | 7.5 |
| 5GHz Wireless Chip Model | |
Out of stock
MODELO: RBOMNITIKUPA-5HND
