MIKROTIK
5GHz ac Wireless RouterBoard, 1 Gigabit Port, 720MHz CPU, L4 License
5GHz ac Wireless RouterBoard, 1 Gigabit Port, 720MHz CPU, L4 License
Regular price
$680.478 COP
Regular price
$744.273 COP
Sale price
$680.478 COP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
5GHz ac Wireless RouterBoard, 1 Gigabit Port, 720MHz CPU, L4 License

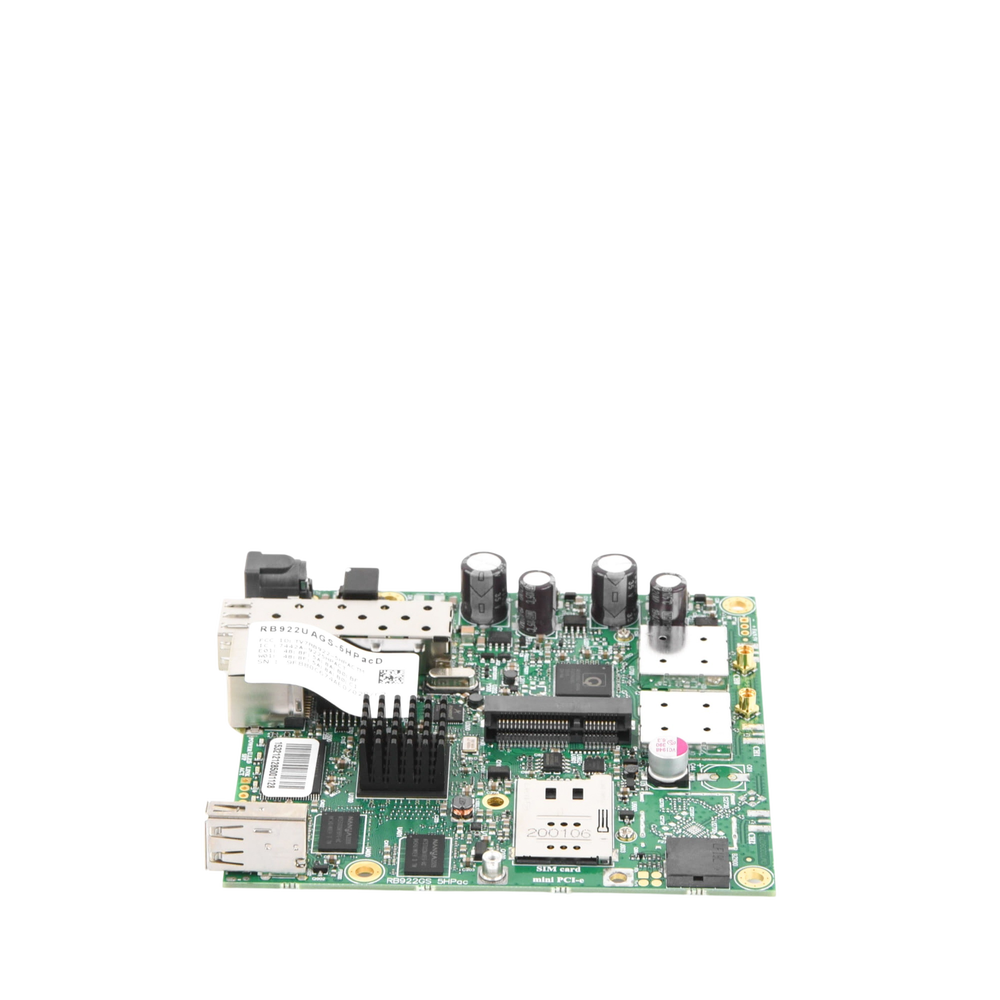

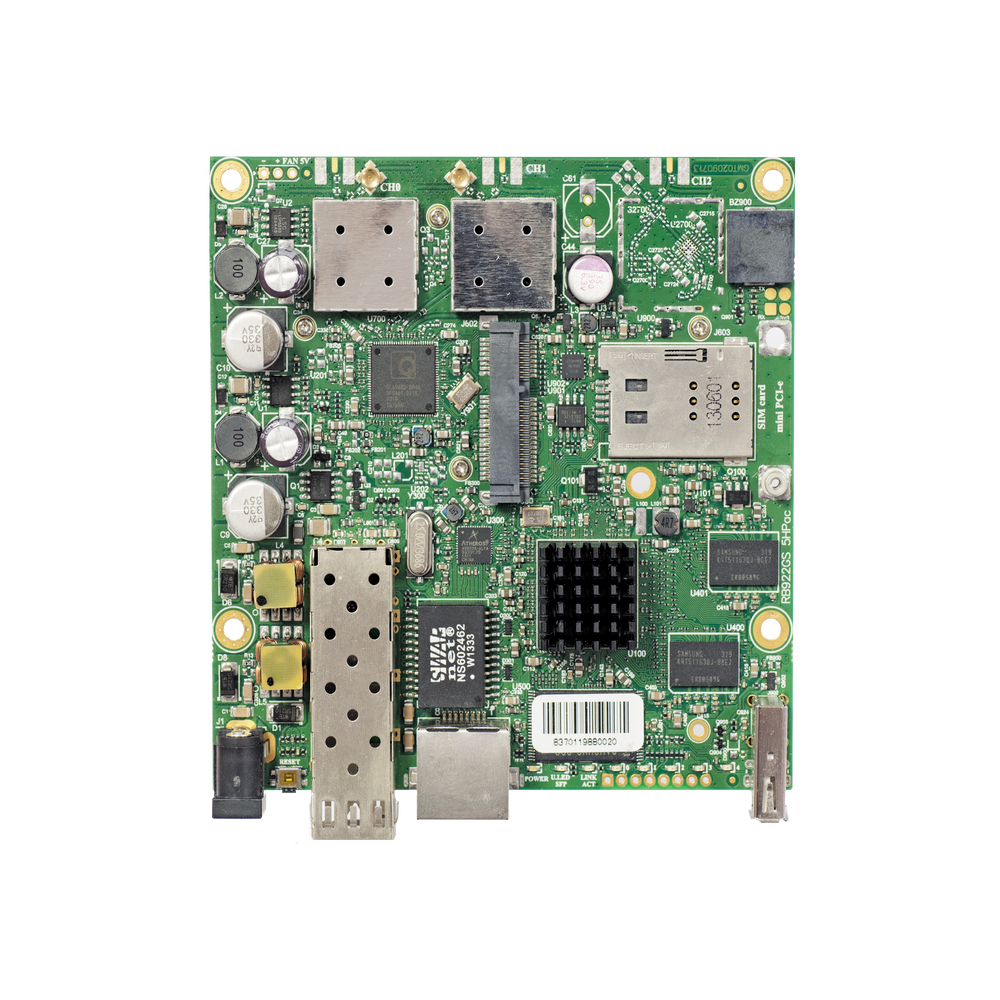

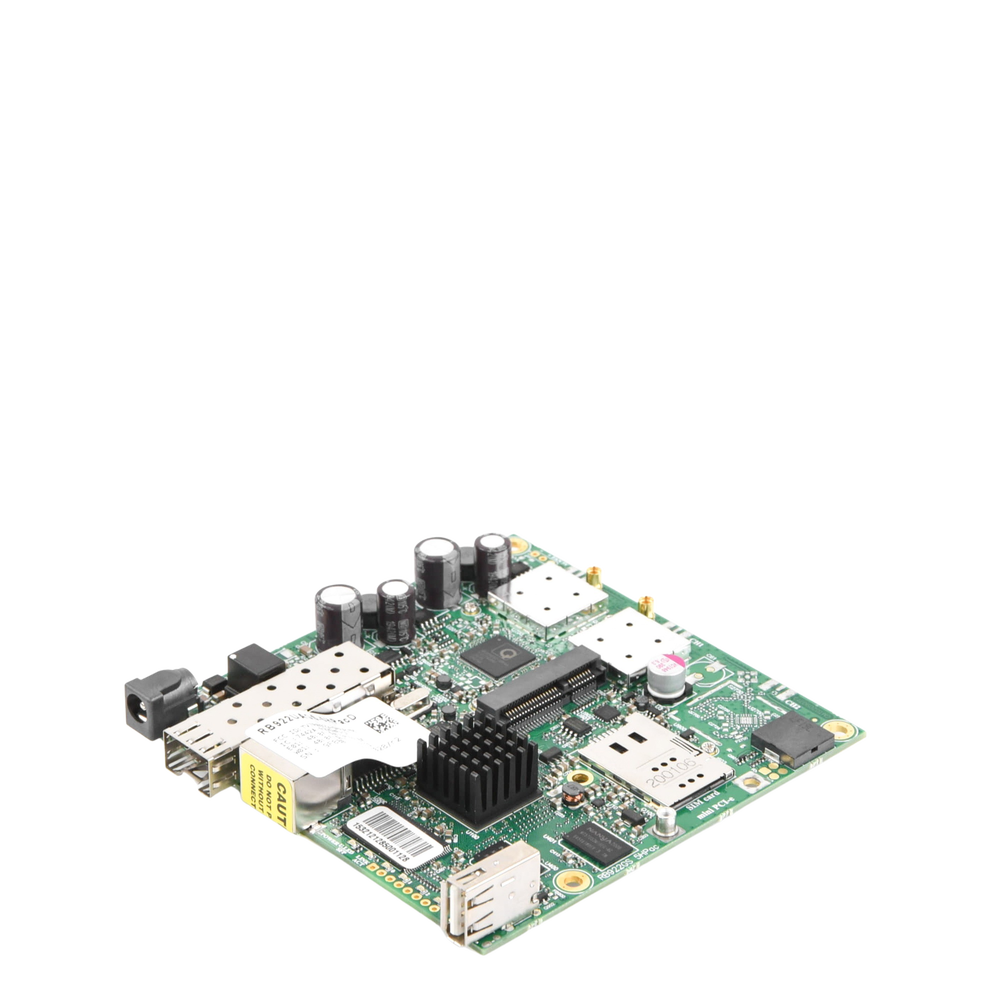

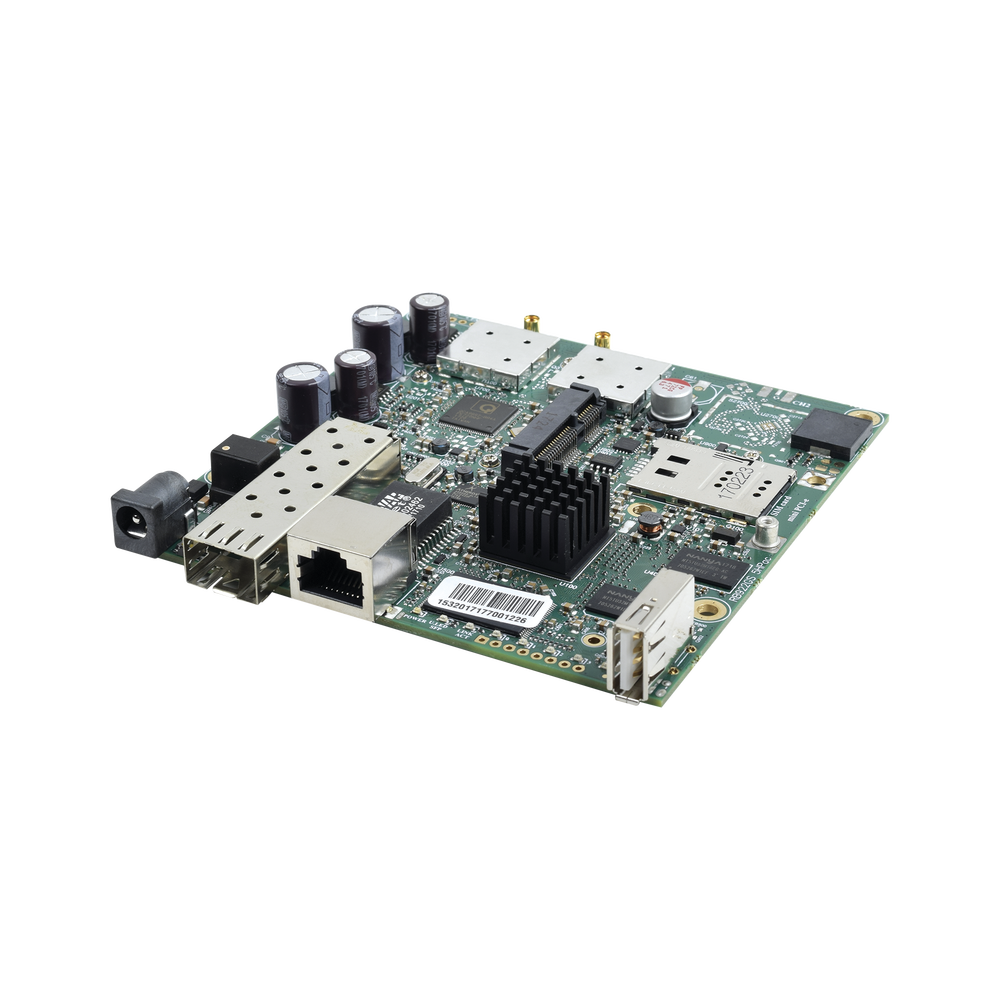

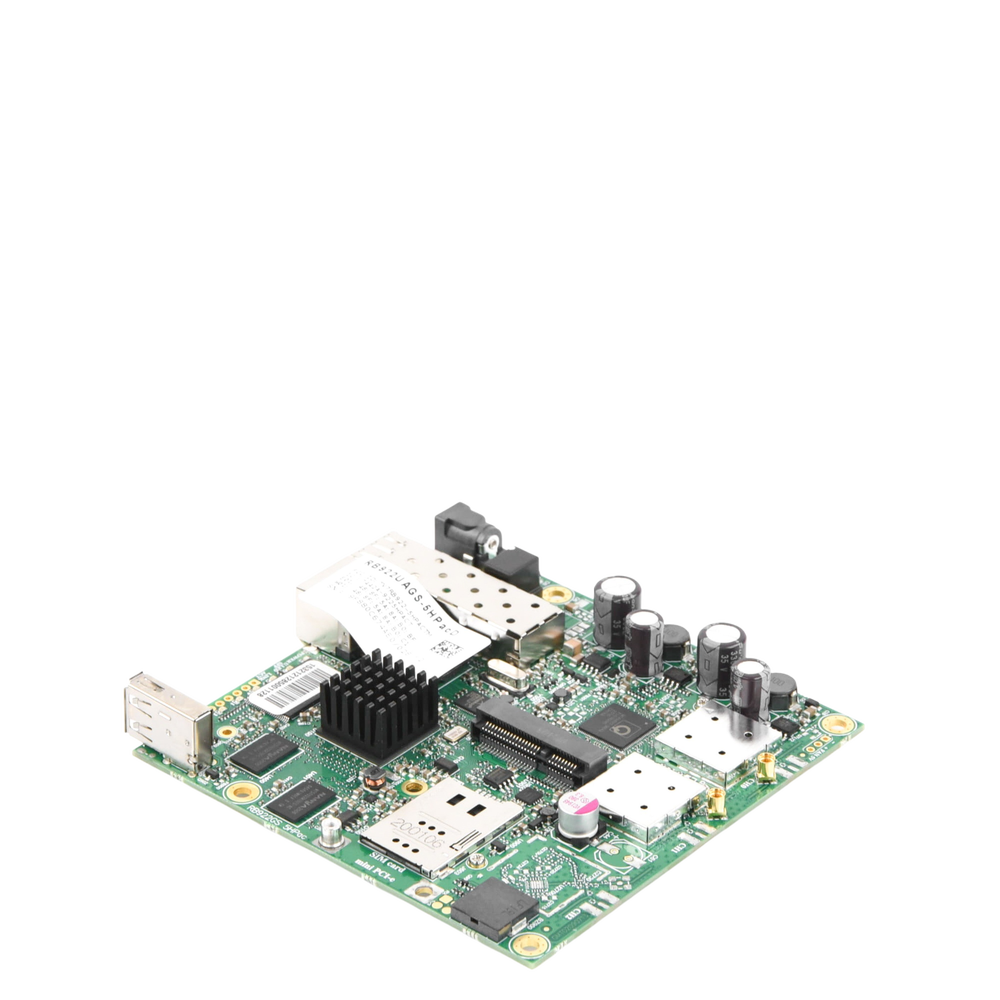

RouterBOARD RB922UAGS-5HPacD is a very versatile wireless router, perfect for building your own solution. It supports the new 802.11ac standard for high-speed wireless connection (up to 866 Mbit data rate and 20/40/80 MHz channels). The device has ports and slots for many uses: 1x SFP cage, miniPCIe slot with SIM for 3G/4G modem or other wireless card, USB port, Gigabit Ethernet port, and two MMCX connectors for the powerful integrated 802.11ac 2x2 radio. It comes with RouterOS L4 (AP) license.
Specs
| Details | |
|---|---|
| Product code | RB922UAGS-5HPacD |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| Nominal CPU frequency | 720 MHz |
| Dimensions | 105x105mm |
| RouterOS License | 4 |
| Operating system | RouterOS |
| RAM size | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Room temperature tested | -40°C to 70°C |
| MTBF | Approximately 100,000 hours at 25°C |
Feeding
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input voltage | 8-30 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input voltage | 8-30 V |
| Maximum energy consumption | 17 W |
| Fan count | Passive |
Wireless specifications
| Details | |
|---|---|
| Maximum wireless data rate of 5 GHz | 867 Mbit/s |
| Number of 5 GHz wireless chains | 2 |
| 5 GHz Wireless Standards | 802.11a/n/ac |
| 5GHz Wireless Chip Model | QCA9882 |
| 5 GHz wireless generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yeah |
| SFP ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yeah |
| USB slot type | USB Type A |
| Maximum USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB Temperature Monitor | Yeah |
Share
Out of stock
MODELO: RB922UAGS-5HPACD
