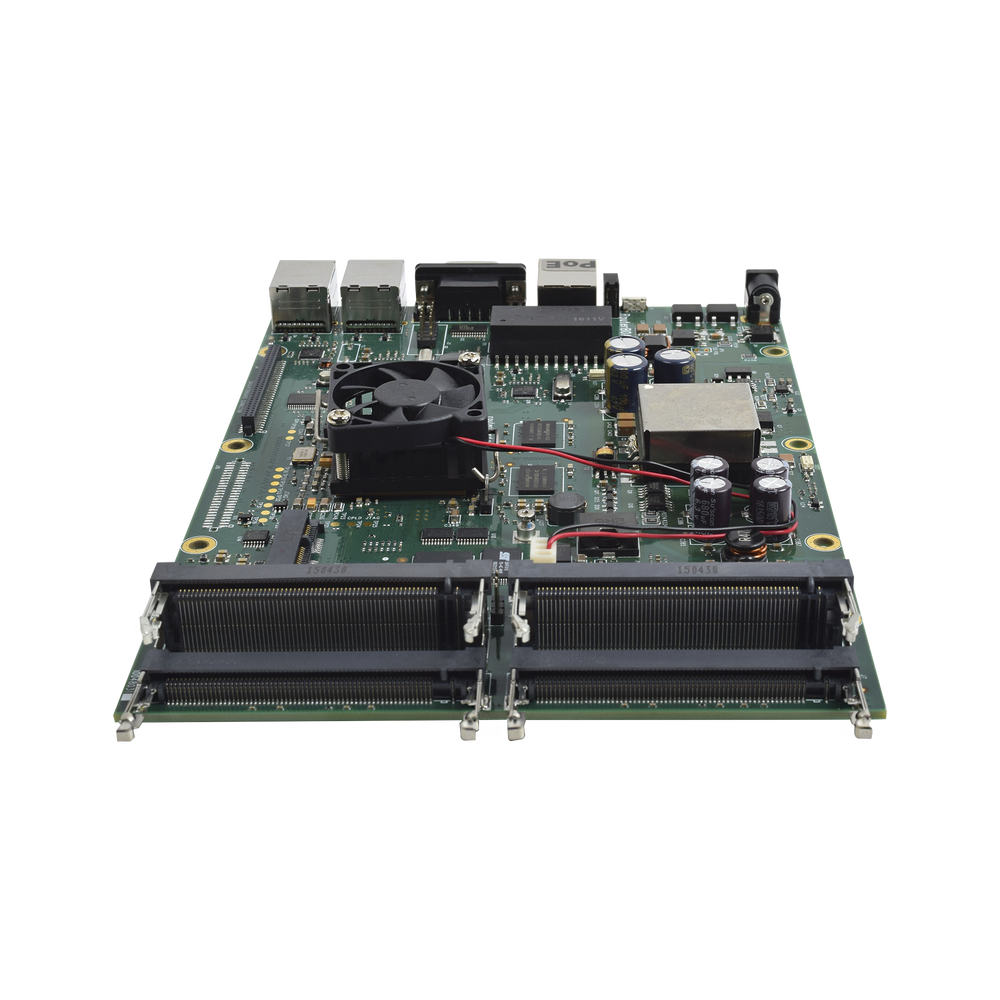

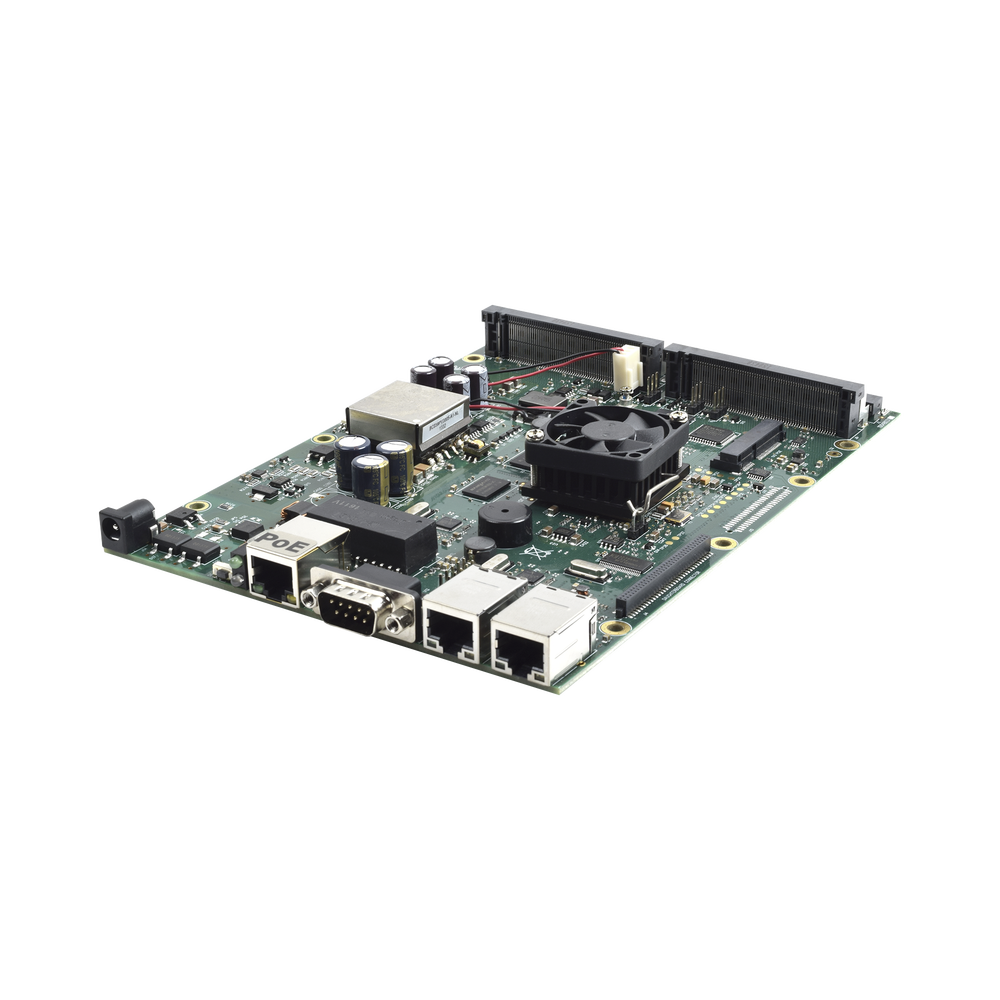

(RB800) RouterBOARD, 3 Gigabit ports, 4 miniPCI expansion slots to offer 8x8 MIMO

The RB800 is an advanced, high-performance wireless platform. It features four miniPCI slots, three Gigabit Ethernet ports, two daughterboard connectors (one PCI and one PCI-e), one MiniPCI-e slot, and one Compact Flash slot.

Two daughterboard connectors allow you to expand the number of wired and wireless ports, and the new high-power CPU is capable of supporting them all.

The RB800 has a daughterboard connector, so it offers a wealth of expansion possibilities. You can purchase the RB502 to add two miniPCI slots, the RB604 to add four miniPCI slots, or the RB816 to add 16 Ethernet ports!

This is the new definition of wireless networking power. Combined with RouterOS, the RB800 is the most powerful and sophisticated wireless router manager, firewall, and bandwidth manager.

The RB800 is the perfect choice for implementing a custom Wi-Fi solution.

*1 year warranty.

Main features of RouterOS

General Specifications

Feeding

Ethernet

Peripherals

Others

Ethernet test results

RB800		MPC8533 1G all-port test
Mode	Configuration	1518 bytes		512 bytes		64 bytes
		kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	243.5	2,957.1	330.4	1,353.3	883.8	452.5
Bridging	25 bridge filter rules	162.3	1,971.0	185.3	759.0	187.4	95.9
Routing	none (fast path)	243.5	2,957.1	330.0	1,351.7	755.4	386.8
Routing	25 simple queues	205.0	2,489.5	294.4	1,205.9	303.2	155.2
Routing	25 IP filter rules	121.4	1,474.3	122.9	503.4	122.6	62.8

1. All tests are done with Xena Networks specialized test equipment (XenaBay), and done according to RFC2544 (Xena2544)
2. Max throughput is determined with 30+ second attempts with 0.1% packet loss tolerance in 64, 512, 1518 byte packet sizes
3. Values ​​in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

4 MiniPCI Expansion Slots for 8x8 MIMO, 1 MiniPCI-e Expansion Slot, Expansion Dock (Sold Separately), License Level: 6
