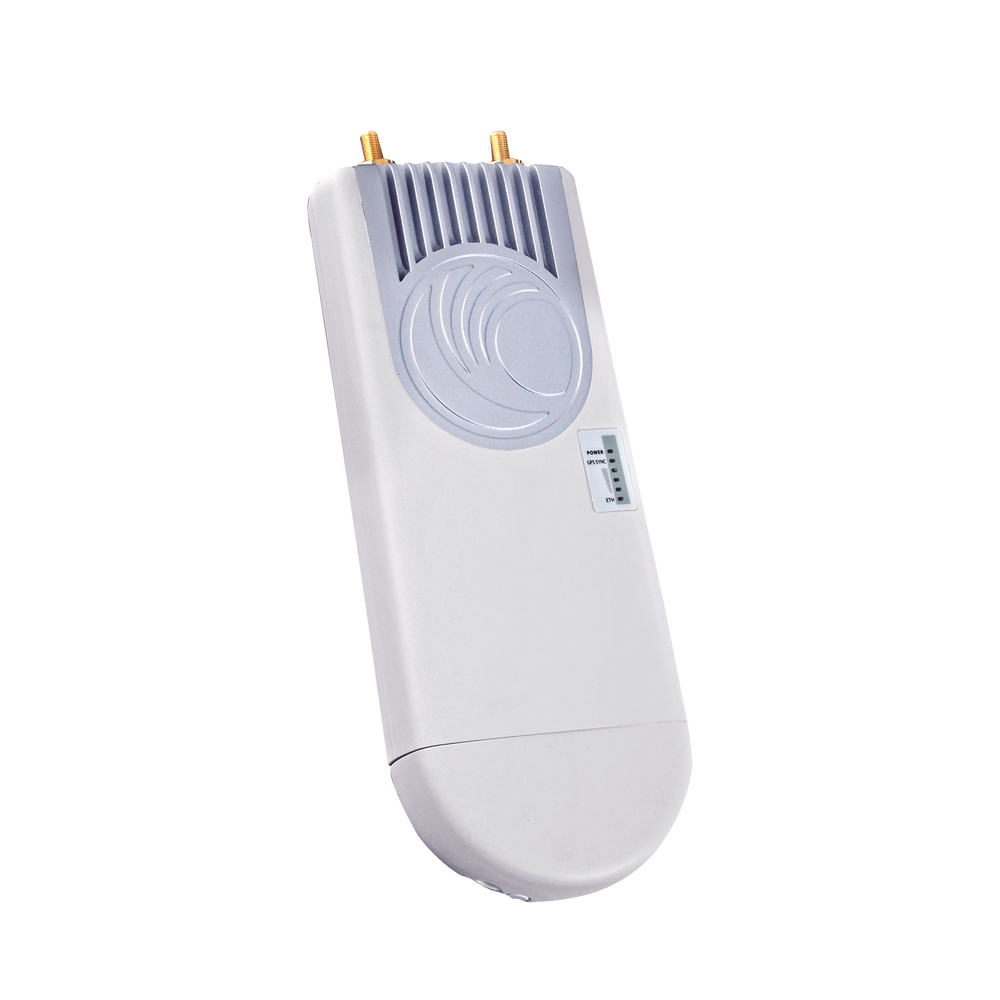

ePMP - Point - Point/Multipoint in free band connectorized with GPS for 10 subscribers - (C050900R151A)
ePMP - Point - Point/Multipoint in free band connectorized with GPS for 10 subscribers - (C050900R151A)
Couldn't load pickup availability
ePMP - Point - Point/Multipoint in free band connectorized with GPS for 10 subscribers - (C050900R151A)
GPS Sync Radio
5
GHz 220
10 Mbps
Subscribers
Cambium Networks' ePMP solution provides stable coverage across large service areas and improved
the existing infrastructure to provide reliable, high-quality broadband connectivity that can be deployed
quickly. The ePMP 1000 supports an impressive throughput of over 200 Mbps to deliver high-speed services.
bandwidth, such as voice over IP, video and data to end users.
| MIMO and modulation | 2x2 MIMO/OFDM |
| Bandwidth | 5/10 MHz, 20/40 MHz |
| Frequency range | 4.9 - 5.9 GHz |
| Maximum power output | 30 dBm combined (5.8 GHz band.) |
| Revenue | Depending on the connected antenna |
| Maximum power consumption | 10 W Max, 7.5 W Typical |
| Exterior protection | IP55 |
| Management | HTTPS, SSH, FTP, SNMPv2c |
| Antenna connector | External (RP-SMA connectors) |
| Channel spaces | Configurable in 5 MHz increments |
| MAC Layer | Cambium Proprietary |
| Ethernet structure | 10/100/1000BaseT, rate auto negotiated (Cambium PoE) |
| Protocols used | IPv4, UDP, TCP, IP, ICMP, SSH, SNMPv2c, HTTPs, FTP |
| VLAN | 802.1Q with 802.1p priority |
| Input voltage | 24 to 30 V |
| Encryption | 128-bit AES (CCMP mode) |
| Warranty | 3 years |
| Dimensions | 269 x 110 x 77 mm |
| Weight | 520 g |
| Protector vs. downloads |
1 Joule Integrated |
Version up to 10 Subscribers per Radio.
|
cnMaestro |
LINKPlanner |
cnArcher |
cnHeat |
| cnMaestro™ is an on-premises or cloud-based software platform for secure, end-to-end network control. cnMaestro Wireless Network Manager simplifies device management by offering complete network visibility and zero-touch provisioning. View and perform a full suite of wireless network management functions in real time. Optimize system availability, maximize performance, and meet the emerging needs of business and residential customers. |
LINKPlanner allows you to model "what-if" scenarios (based on geography, distance, antenna height, transmit power, and other factors) to optimize system performance before purchase. Quickly design networks for optimal deployment and cost-effectiveness with ease. Available for Microsoft® Windows® and Mac® systems, it is a free and easy-to-use link design tool. LINKPlanner leads the industry as the most reliable and intuitive RF link planning tool, with tens of thousands of links successfully deployed worldwide. |
Raise the bar on installation accuracy with cnArcher™, the free mobile app that provides field technicians with the information they need to properly configure and align Cambium Networks PMP and ePMP wireless broadband subscriber modules. |
Built on Cambium Networks’ expertise in RF planning, propagation, and modeling as seen in LINKPlanner and integrated with GIS data up to 1 meter in accuracy, cnHeat generates highly accurate RF predictions and derived services that accurately represent the reality of the RF world. |
Out of stock
MODELO: EPMP-5GL
