MIKROTIK
Router Board, 10 Ethernet Ports, 1 SFP Port, 2.4 GHz Wide Coverage Wi-Fi, 4 dBi Antennas, up to 1 Watt of Power
Router Board, 10 Ethernet Ports, 1 SFP Port, 2.4 GHz Wide Coverage Wi-Fi, 4 dBi Antennas, up to 1 Watt of Power
Couldn't load pickup availability
Router Board, 10 Ethernet Ports, 1 SFP Port, 2.4 GHz Wide Coverage Wi-Fi, 4 dBi Antennas, up to 1 Watt of Power
The RB2011Ui is a series of low-cost multiport devices. Designed for indoor use, it is available in many different cases, with a multitude of options.
The RB2011 is powered by RouterOS, a full-featured routing operating system that has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load and link balancing, and real-time configuration and monitoring are just a few of the many features supported by RouterOS.

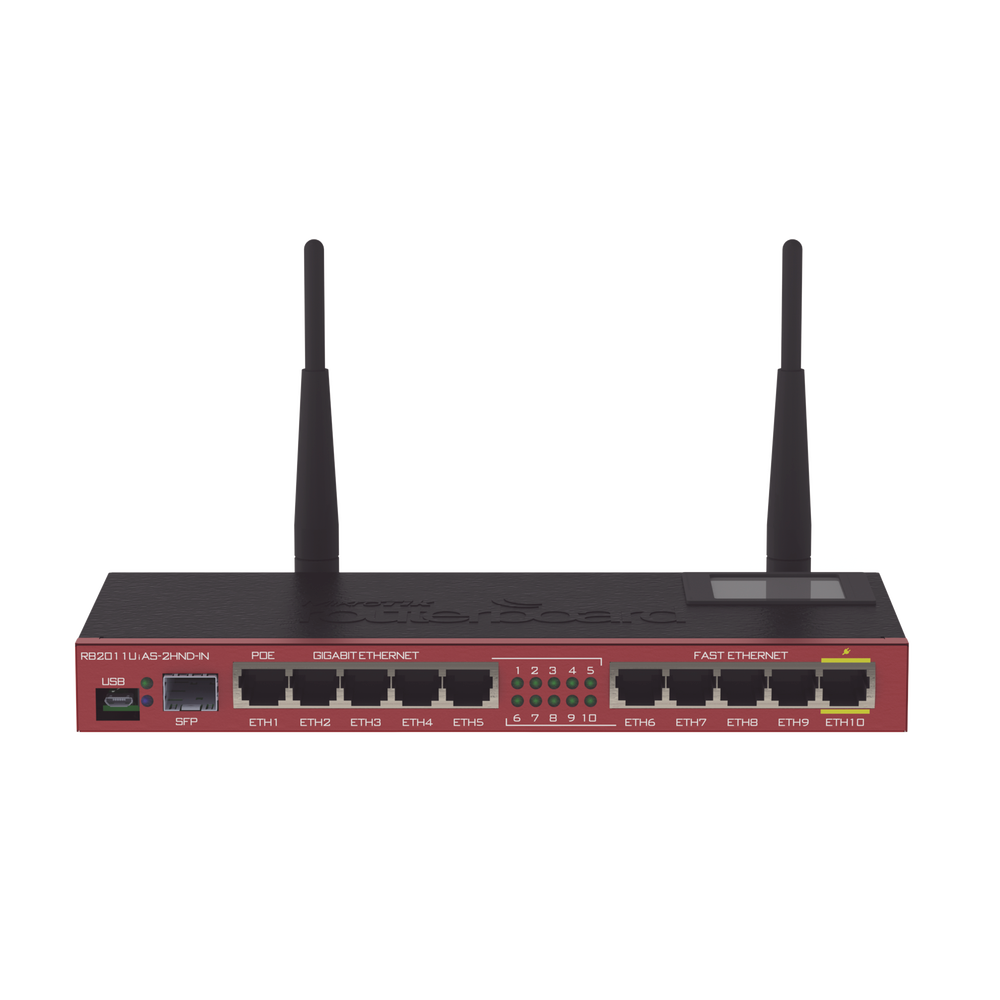

RouterBOARD 2011UiAS-2HnD has most of the features and interfaces of all our wireless routers. It is powered by the new Atheros 600MHz 74K MIPS network processor, has 128MB RAM, five Gigabit LAN ports, five Fast Ethernet LAN ports and SFP cage (SFP module not included). In addition, it features a powerful dual-chain 2.4GHz (2312-2732MHz depending on country regulations) 802.11bgn wireless AP, RJ45 serial port, USB port and RouterOS L5 license, as well as desktop case with power supply, two 4dBi Omni antennas and LCD panel.
The RB2011Ui also has passive PoE output capability on the last port (ETH10), this means you can power another device by simply connecting it via a normal Ethernet cable.
*1 year warranty.
Specs:
| Details | |
|---|---|
| Product code | RB2011UiAS-2HnD-IN |
| Architecture | MIPSBE |
| UPC | AR9344 |
| CPU core count | 1 |
| Nominal CPU frequency | 600 MHz |
| Dimensions | 214mm x 86mm for PCB |
| License level | 5 |
| Operating system | RouterOS |
| RAM size | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Room temperature tested | -35C to +65C |
Feeding
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE out | Passive PoE |
| PoE on input voltage | 8-30 V |
| Number of DC inputs | 2 (DC connector, PoE-IN) |
| DC jack input voltage | 8-30 V |
| Maximum output per port (input <30 V) | 510 mA |
| Max total out (A) | 510 mA |
| Maximum energy consumption | 6W |
| Maximum power consumption without accessories | 6W |
Wireless
| Details | |
|---|---|
| Number of 2.4 GHz wireless chains. | 2 |
| 2.4 GHz wireless standards | 802.11b/g/n |
| dBi gain antenna for 2.4 GHz | 4 |
| 2.4 GHz wireless chip model | AR9344 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 5 |
| 10/100/1000 Ethernet ports | 5 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yeah |
| SFP ports | 1 |
Peripherals
| Details | |
|---|---|
| Serial port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yeah |
| USB slot type | USB Type A |
| Maximum USB current (A) | |
Out of stock
MODELO: RB2011UIAS-2HND-IN
