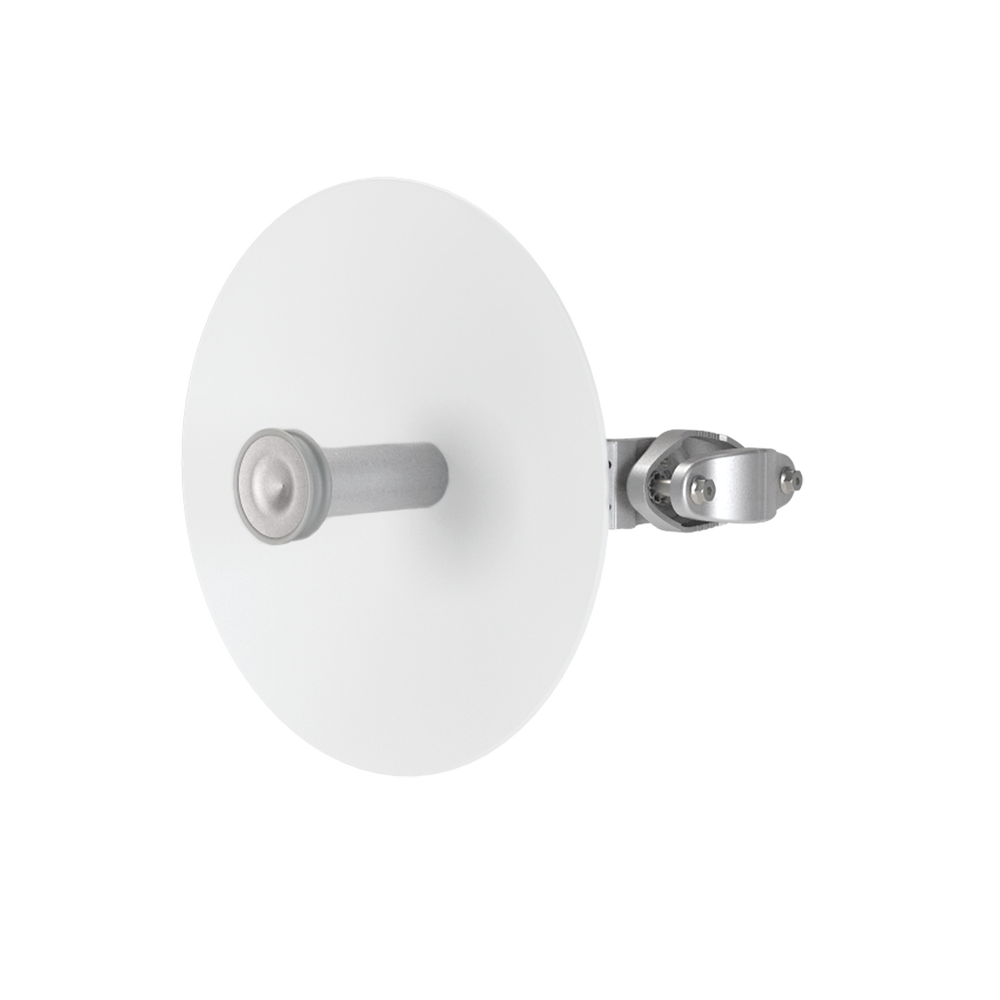

UltraDish Directional Antenna (Requires TwistPort) 24 dBi

Ideal for EPMP, ROCKETM5, R5ACPTP equipment

-Simultaneous Dual Polarity (Vertical and Horizontal).
-Dimensions: 390 x 267 mm / Weight: 2.3 kg
-Gain: 24 dBi
-Frequency Range: 5.1 - 5.8 GHz.
-Includes Tower Assembly.

Requires TWISPORT Adapter depending on equipment:
-TPADAPTOREPMP FOR EPMP
-TPADAPTORRM5 FOR ROCKET M5
-TPADAPTORR5AC FOR ROCKET AC
-TPADAPTORR5ACPTP FOR ROCKET 5ACPTP

HIGH GAIN DIRECTIONAL ANTENNA

Directional antenna features TwistPort connector that reduces sidelobes for maximum performance

TwistPort connector

It has a new and original design that sets new standards for outdoor wireless equipment in terms of performance, scalability, ease of use and simplicity of deployment.

Virtually no losses

TwistPort connectors are virtually lossless: there are no coaxial connectors that cause significant signal loss. Compared to widely used coaxial cables and connectors, TwistPort loss is almost impossible to measure. Suppressed sidelobe radiation reduces interference and allows installation in noisy areas.

The new definition of Easy

TwistPort is the new definition of "easy." By integrating the mechanics and RF connection into the same body, connecting the radio to the antenna is simple and brilliant, and can be done with just one hand.
