Non-Directional Power Sensor for 450-512 MHz.

Non-Directional Power Sensor for 450-512 MHz.

Non-Directional Power Sensor for 450-512 MHz.

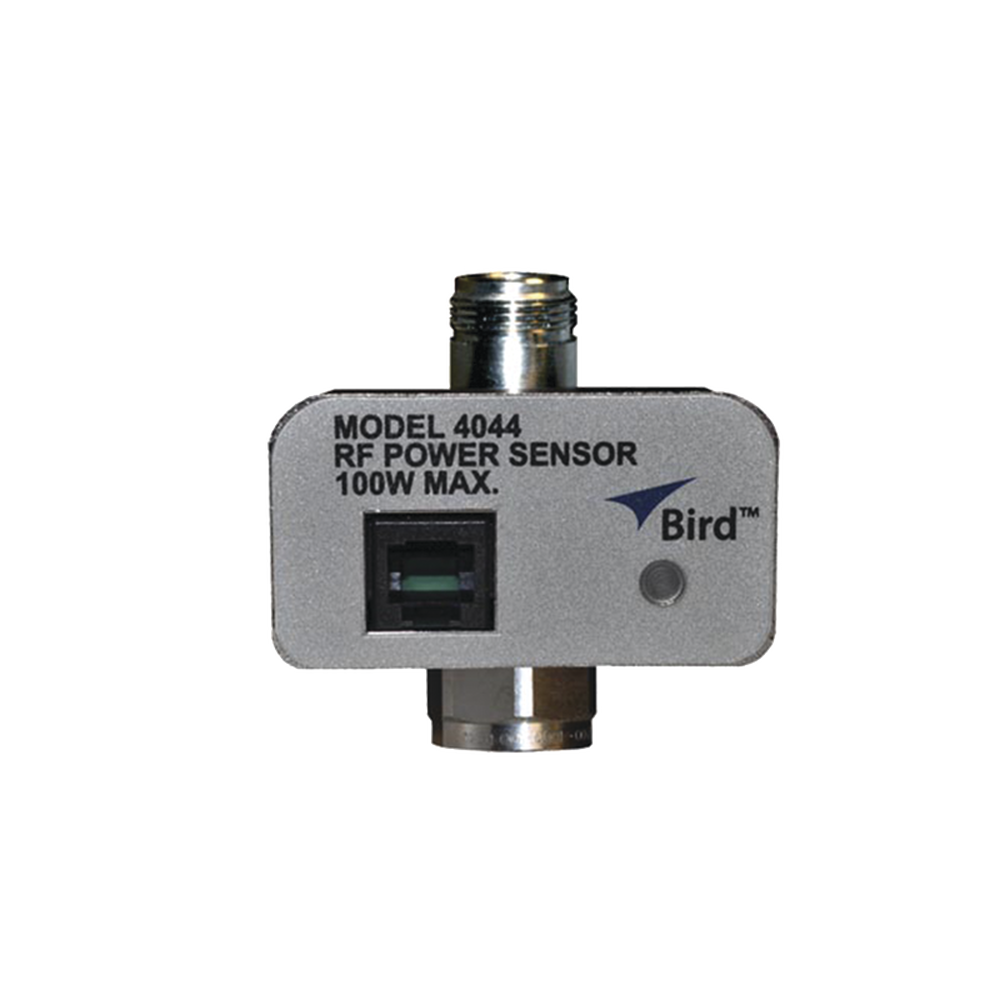

• Model: 4044
• Frequency Range by Model.

4044-1-440404-0201: 144 MHz to 174 MHz.
4044-1-450404-0201: 380 MHz to 420 MHz.
4044-1-460404-0201: 450 MHz to 512 MHz.
4044-1-470404-0201: 762 MHz to 806 MHz.
4044-1-480404-0201: 806 MHz to 869 MHz.
4044-1-490404-0201: 896 MHz to 940 MHz.

• Average Power Max.: 100 W.
• Dynamic Range: 20 dB.
• Accuracy: +/- 5% of reading.
• Impedance: 50 Ohm.
• Insertion Loss: < 0.1 dB.
• VSWR per Insertion: <1.07:1
• Passive Intermodulation (PIM): <-145 dBc.
• Instrument Interface: 0-4 VDC via RJ- 25 connector .
• RF Connectors: N(M) / N(F).
• Power Supply: 7/18 VDC, <50 mA (from 3141).
• Operating Temperature: 0 to 50°C.
• Dimensions: 2.3” (50 mm) Width x 2.2” (56 mm) Length x 1.7” (43 mm) Height.
• Weight: 0.3 lbs (0.14 kg).

*Ask for Delivery Time.
