8-Port Giga + 2-Port SFP Managed Desktop Switch

8-Port Giga + 2-Port SFP Managed Desktop Switch

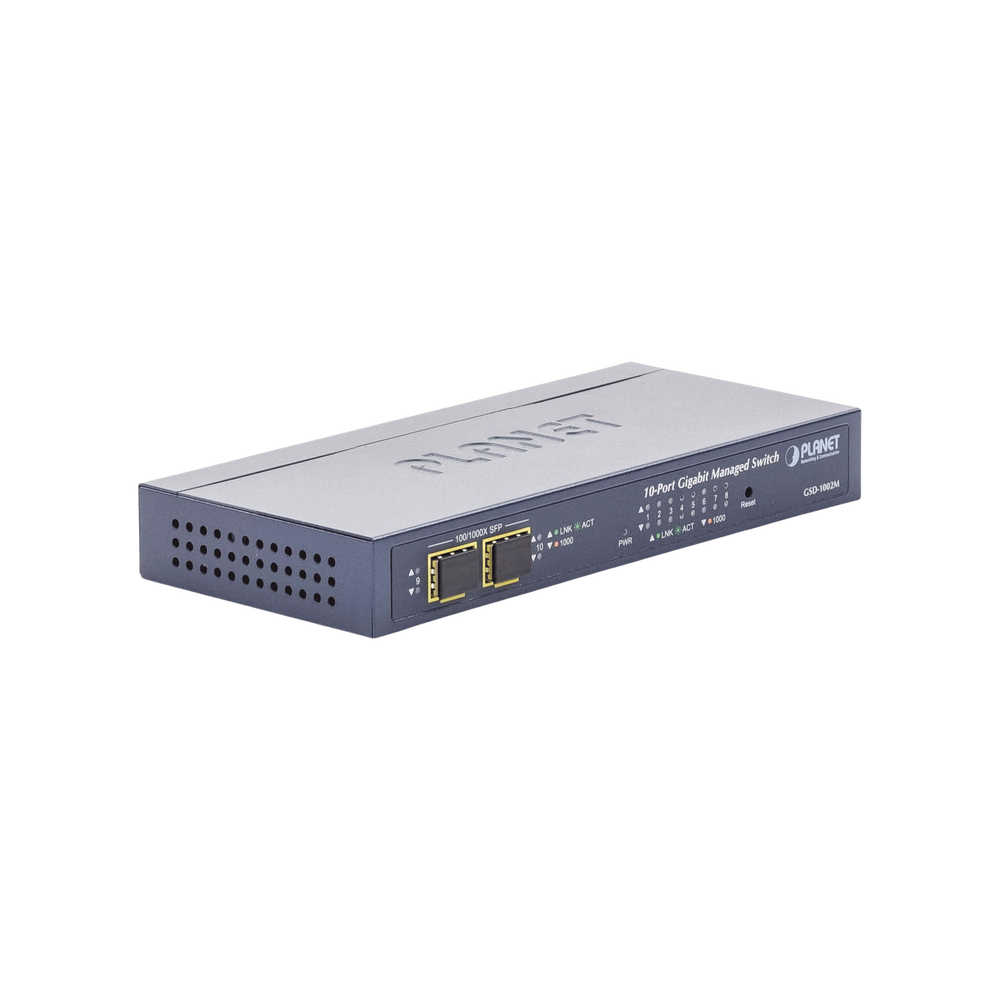

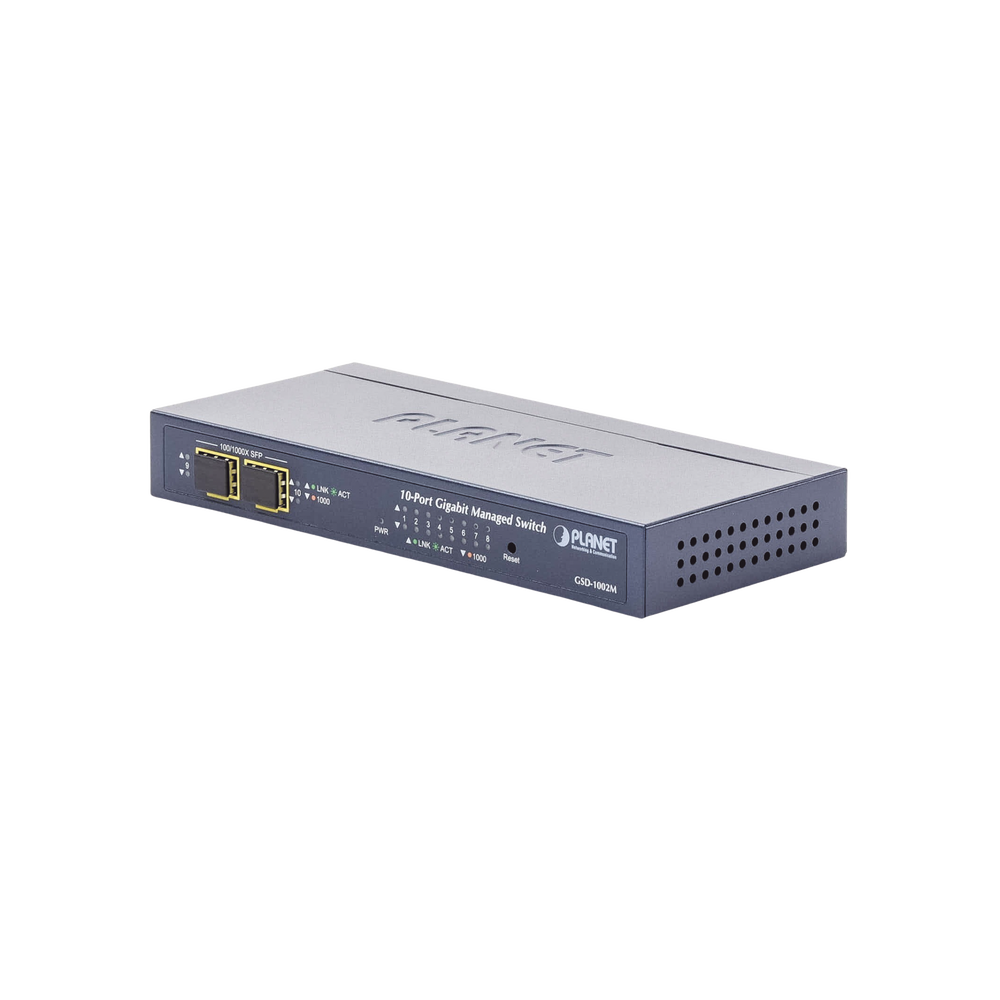

PLANET GSD-1002M is a 10/100/1000Mbps + 2-port 100/1000X SFP managed desktop switch specially designed to build a reliable full Gigabit backbone to transmit and forward data to the remote network via optical fiber. It provides 8-port 10/100/1000Base-T copper and 2 additional 100/1000Base-X SFP optical fiber interfaces with dual power system. In addition to supporting 20Gbps switching fabric to handle extremely large amounts of video, voice, and important data in a secure topology, the GSD-1002M provides an easy-to-use yet advanced IPv6/IPv4 management interface and abundant L2/L4 switching features. It is the best investment for enterprises/SOHOs expanding or upgrading their network infrastructure.

Portable size for FTTD solution
The GSD-1002M provides high-performance edge service and a plug-and-play design for Fiber to the Desktop (FTTD) solutions. FTTD service is a fiber-optic cabling solution with reliable, scalable, low-cost cabling architectures and long-distance capability. The GSD-1002M supports dual- speed 100Base-FX and 1000Base-SX/LX SFP (Small Form-Factor Pluggable) fiber optic modules to connect to the fiber access point, offering high flexibility for installation in a communications closet or main computer room for SMBs.

Physical ports

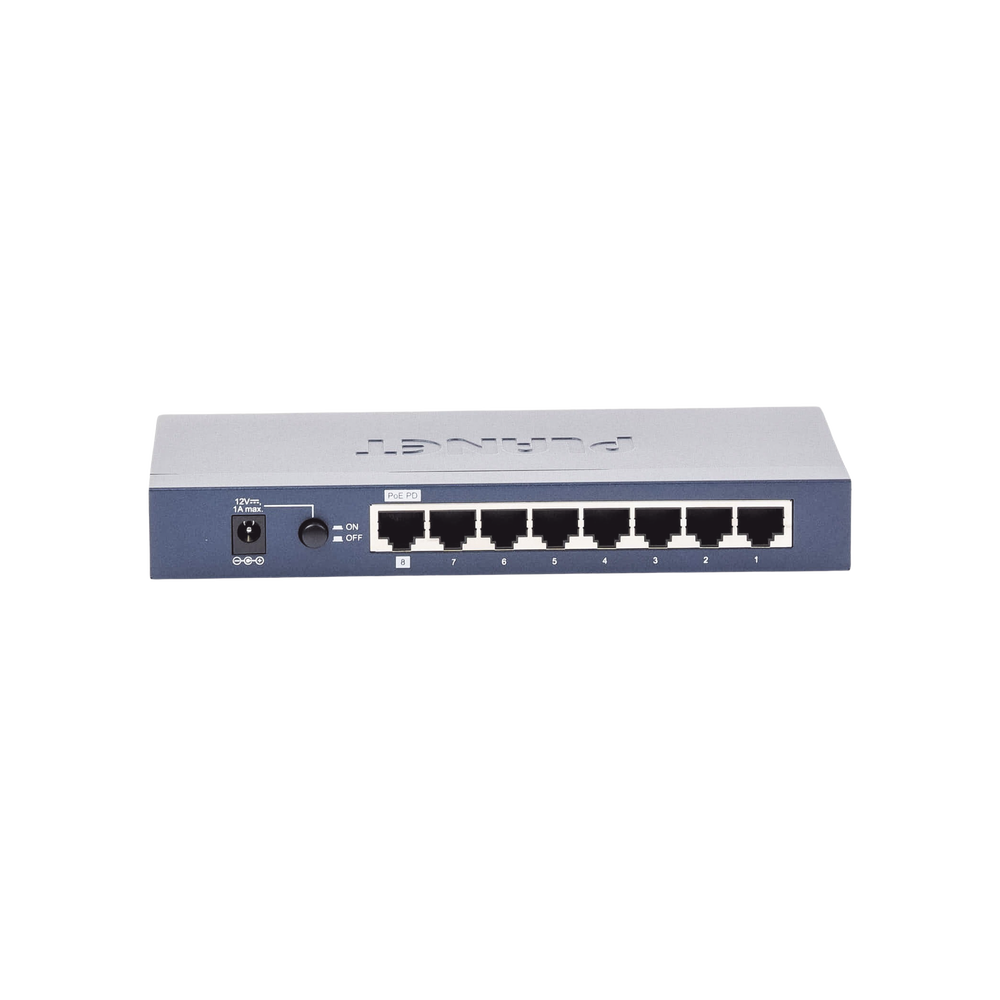

• 8 10/100/1000Mbps Gigabit Ethernet ports with auto-MDI/MDI-X supported
• 1 port (port 8) supports 802.3af/at PoE 48~56V DC inline power

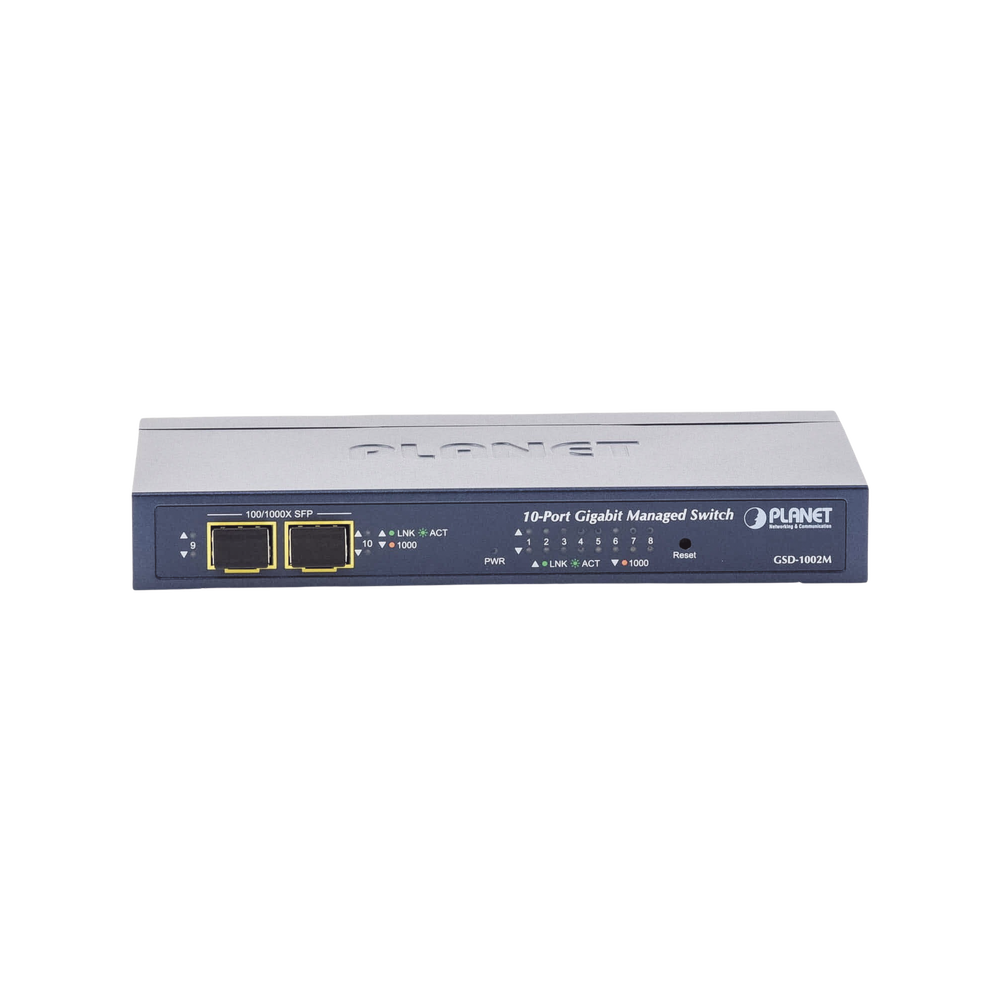

• 2 100/1000BASE-X/SFP mini-GBIC slots

Facility

- 802.3af/at PoE IN

- 12V DC power adapter acceptable

• Dual Power Design

Level 2 functions

- IEEE 802.1Q Tagged VLAN

- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)

- VLAN Protocol

- Voice VLAN

- Private VLAN

- Management VLAN

- GVRP

- STP (Spanning Tree Protocol)

- RSTP (Rapid Spanning Tree Protocol)

- MSTP (Multiple Spanning Tree Protocol)

- STP BPDU Guard, BPDU Filtering and BPDU Forwarding

- IEEE 802.3ad Link Aggregation Control Protocol (LACP)

- Cisco ether-channel (static trunk)

- Maximum 8 link groups, up to 8 ports per link group

• Prevents packet loss with backpressure (half-duplex) and IEEE 802.3x frame pause flow control (full-duplex)
• High-performance store-and-forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize network bandwidth
• Supports VLAN
• Supports Spanning Tree Protocol
• Supports link aggregation
• Provides Mirror Port (many-to-1)
• loop protection to prevent broadcast loops

Quality of service

- Broadcast / Unknown-Unicast / Multicast-Unknown

- IEEE 802.1p CoS

- TOS / DSCP / IP Precedence of IPv4 / IPv6 packets

• Ingress/Egress Limit Rate for port bandwidth control
• storm control support
• traffic classification
• strict priority and tabulated CoS Round Robin (WRR) policies

multicast

• Supports IGMP v2 and v3 snooping
• Supports MLD v1 and v2 snooping
• support for IGMP mode
• IGMP snooping port filtering
• Browsing MLD port filtering

Security

- IEEE 802.1X port-based network access authentication

- Built-in RADIUS client to cooperate with RADIUS servers

- RADIUS/TACACS access authentication + user login

• Authentication
• Access Control List
IPv4/IPv6 IP-based ACL, MAC-based ACL
• MAC Security
- Static MAC - MAC Filtering
• Port security for MAC address entries, Source filter
• DHCP monitoring to filter out distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with the MAC address binding to the invalid IP address
• IP Source Guard prevents phishing attacks
• DoS Attack Prevention
• SSH / SSL

administration

- Web Switch Management

- Telnet Command Line Interface

- SNMP v1, v2c and v3

- Secure SSH/SSL access

• IPv4 and IPv6 dual stack management
• Switch administration interface
• Control user privilege levels
• Built-in client (TFTP) Trivial File Transfer Protocol
• BOOTP and DHCP for IP address assignment
• System maintenance

*3 year warranty.
