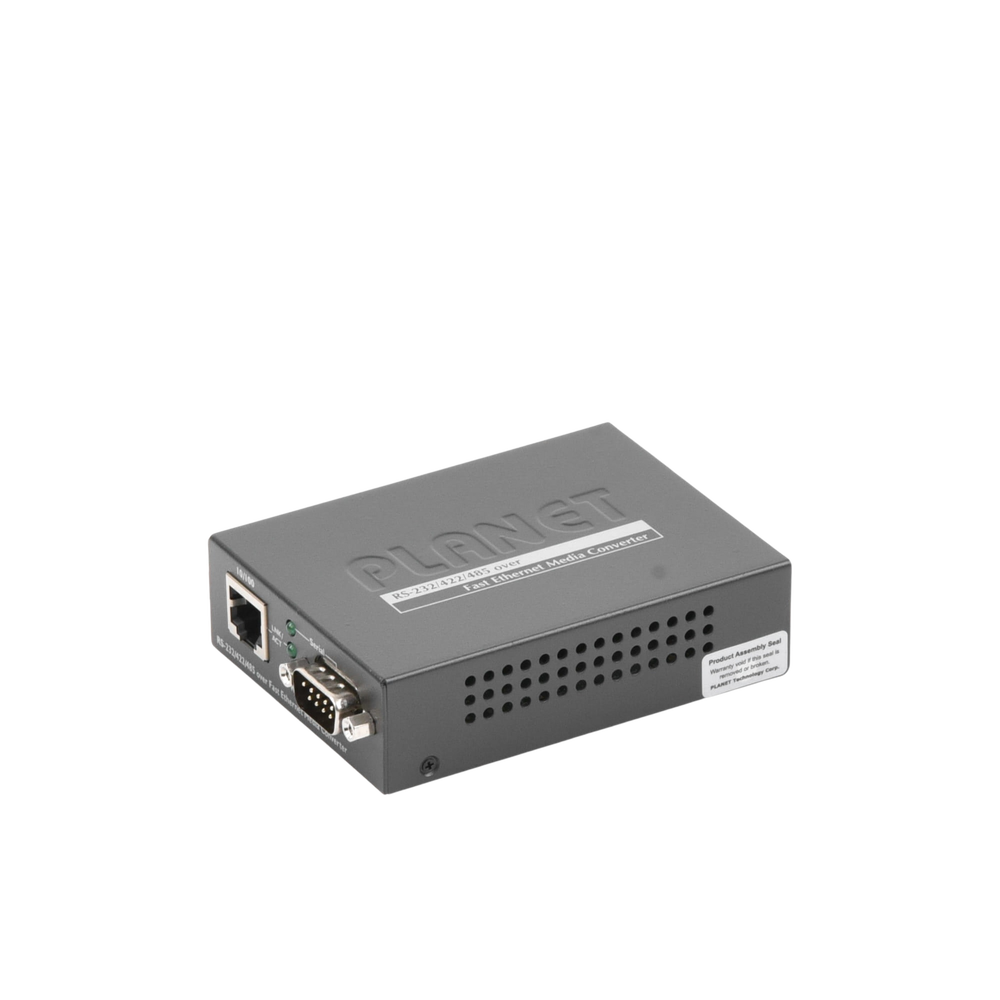

• Convertidor de Medios de RS-232, RS-422 de 4 Hilos y RS-485 de 2 ó 4 Hilos a Fast Ethernet
1 3

PLANET

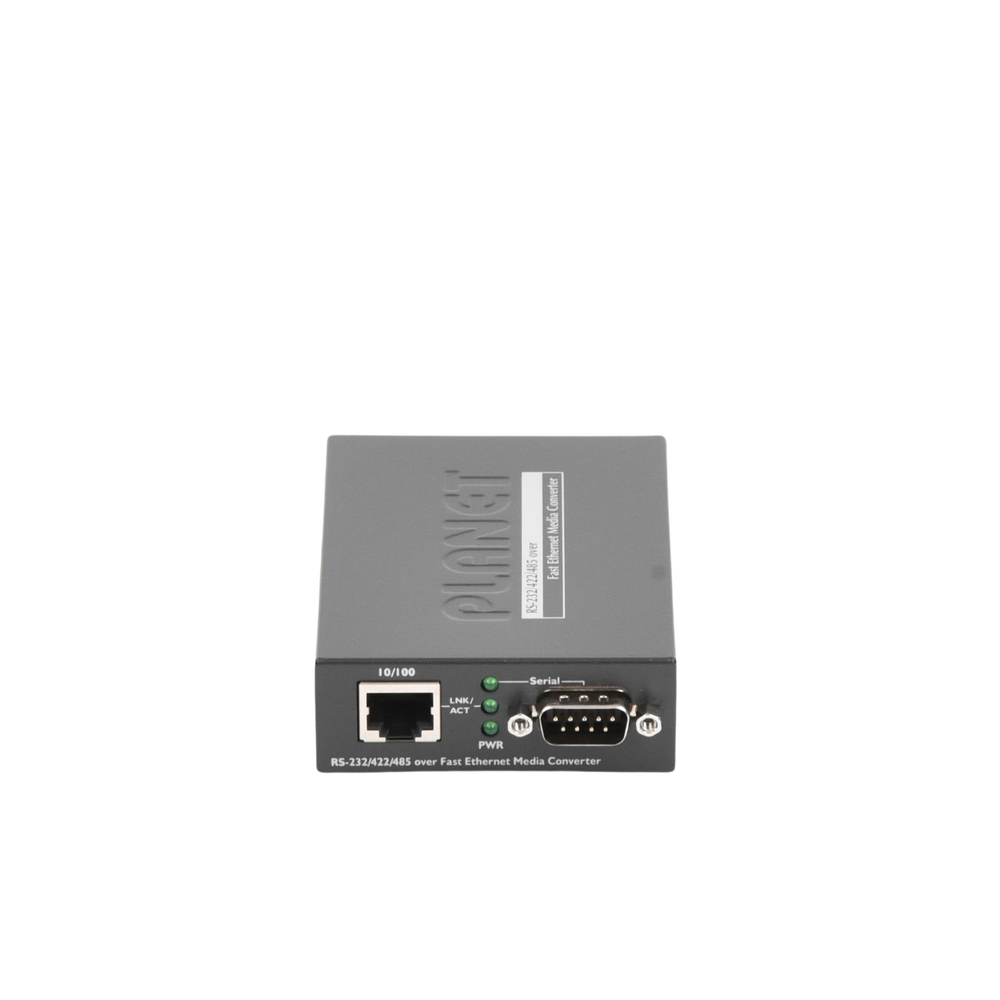

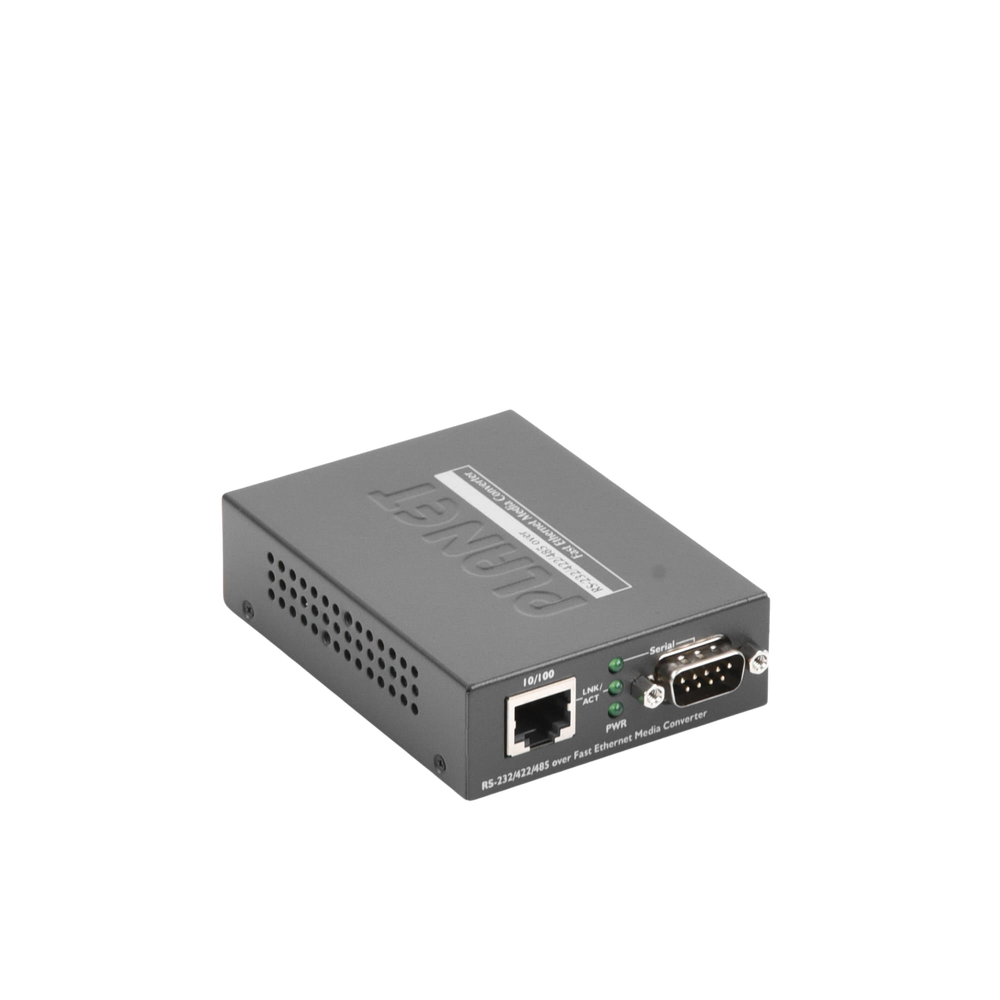

RS-232, 4-Wire RS-422, and 2 or 4-Wire RS-485 to Fast Ethernet Media Converter

RS-232, 4-Wire RS-422, and 2 or 4-Wire RS-485 to Fast Ethernet Media Converter

$299.768 COP
$433.804 COP $299.768 COP
Sale Sold out
Shipping calculated at checkout.

RS-232, 4-Wire RS-422, and 2 or 4-Wire RS-485 to Fast Ethernet Media Converter



Common ICS-10x Applications

Specs:

Serial port
Interface RS-232 / RS-422 / RS-485
Connector DB9 3 in 1
Baud rate (data rate) 300bps to 921600Kbps
Signs RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-
RS-485 (2 wires): Data +, Data-
RS-485 (4-wire): Tx+, Tx-, Rx+, Rx-
Fast Ethernet port
Standard 10/100Base-TX
Connector RJ-45
Distance 100 m
Wire Twisted pair
Protection Built-in 1.5KV magnetic isolation
Management Web administration
PLANET Smart Discovery Utility
COM virtual utility platform supports Windows Base Only:
Windows XP
Windows Server 2003
Windows 7
Windows Server 2008
Windows 8 (You must install the latest version of WinPcap)
Windows Server 2012 (You must install the latest version of WinPcap)
Mode of operation Server
TCP Client TCP Client
UDP
Virtual COM Server Peer Connection
Telnet
-Local pair connection (master)
-Remote (slave)
Dimensions 97 x 70 x 26 mm
Weight 200g
Power supply
External power adapter 5V DC / 2A max.
Energy consumption 5.5 Watts (Max)
Temperature Operating temperature: 0 ~ 50 degrees C
Storage temperature: -10 ~ 70 degrees C
Operating humidity: 10% ~ 90% RH
Storage humidity: 5% ~ 90% RH
Chassis compatible with media converter MC-700 / MC-1500 / MC-1500R



    Web interface for administration, Includes 5 Vdc/2A power supply, Supports temperatures from 0 to 50 °C

Out of stock

MODELO: ICS-100
