MIKROTIK
Wireless Switch 2.4GHZ 802.11B/G/N, 8 10/100/1000Mbps Ports, 1 1000BASE-X SFP Port
Wireless Switch 2.4GHZ 802.11B/G/N, 8 10/100/1000Mbps Ports, 1 1000BASE-X SFP Port
Regular price
$1.020.717 COP
Regular price
$1.116.409 COP
Sale price
$1.020.717 COP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

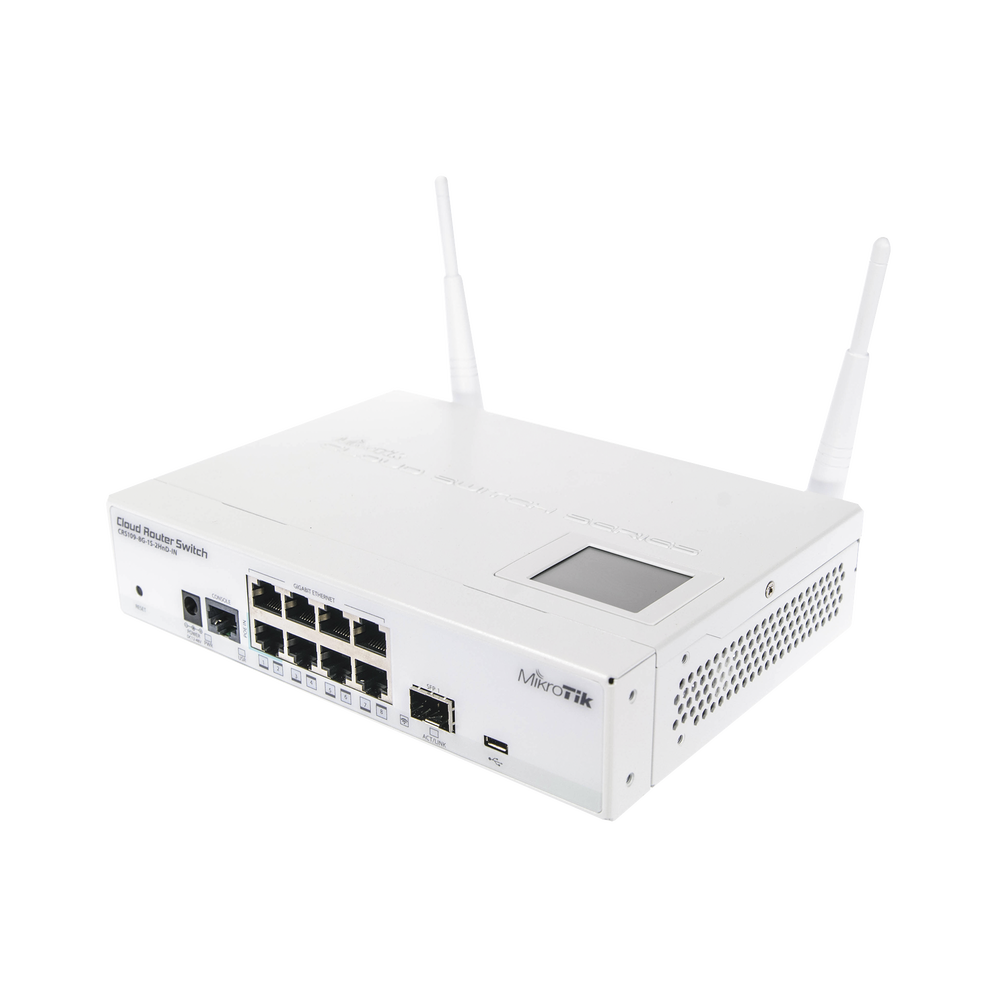

Wireless Switch 2.4GHZ 802.11B/G/N, 8 10/100/1000Mbps Ports, 1 1000BASE-X SFP Port
CRS109-8G-1S-2HnD-IN
The Cloud Router Switch 109-8G-1S-2HnD-IN is the new, low-cost, small-sized member of our CRS series. It comes with eight Gigabit Ethernet ports and high-power 1000mW 2.4GHz wireless. The product supports 10-57V and is 802.3af/at compliant!
Our CRS series combines the best features of a fully functional router and a Layer 3 switch, powered by the familiar RouterOS. All switch-specific configuration options are available in a dedicated switch menu, but if desired, ports can be removed from the switch configuration and used for routing purposes.
Specifications
| Details | |
|---|---|
| Product code | CRS109-8G-1S-2HnD-IN |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 200x145x45mm |
| License level | 5 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -35C to +65C tested |
Powering
| Details | |
|---|---|
| Max Power Consumption | 13W |
| PoE in | Passive PoE |
| 802.3af support | forks |
| PoE in input voltage | 10-57 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input voltage | 10-57 V |
Wireless
| Details | |
|---|---|
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 4 |
| Wireless 2.4 GHz chip model | AR9344 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
Fiber
| Details | |
|---|---|
| SFP DDMI | forks |
| SFP ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| Serial port | RJ45 |
| USB Power Reset | Forks |
| USB slot type | microUSB type AB |
Other
| Details | |
|---|---|
| PCB temperature monitor | Forks |
| Voltage Monitor | Forks |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 29 | -97 |
| 11MBit/s | 28 | -90 |
| 6MBit/s | 30 | -96 |
| 54MBit/s | 25 | -76 |
| MCS0 | 30 | -96 |
| MCS7 | 23 | -73 |
Switching results
| CRS109-8G-1S-2HnD-IN | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 64 bytes | 512 bytes | 1518 bytes | |||
| kpps | Mbps | kpps | Mbps | kpps | |||
Share
Out of stock
MODELO: CRS109-8G-1S-2HND-IN
