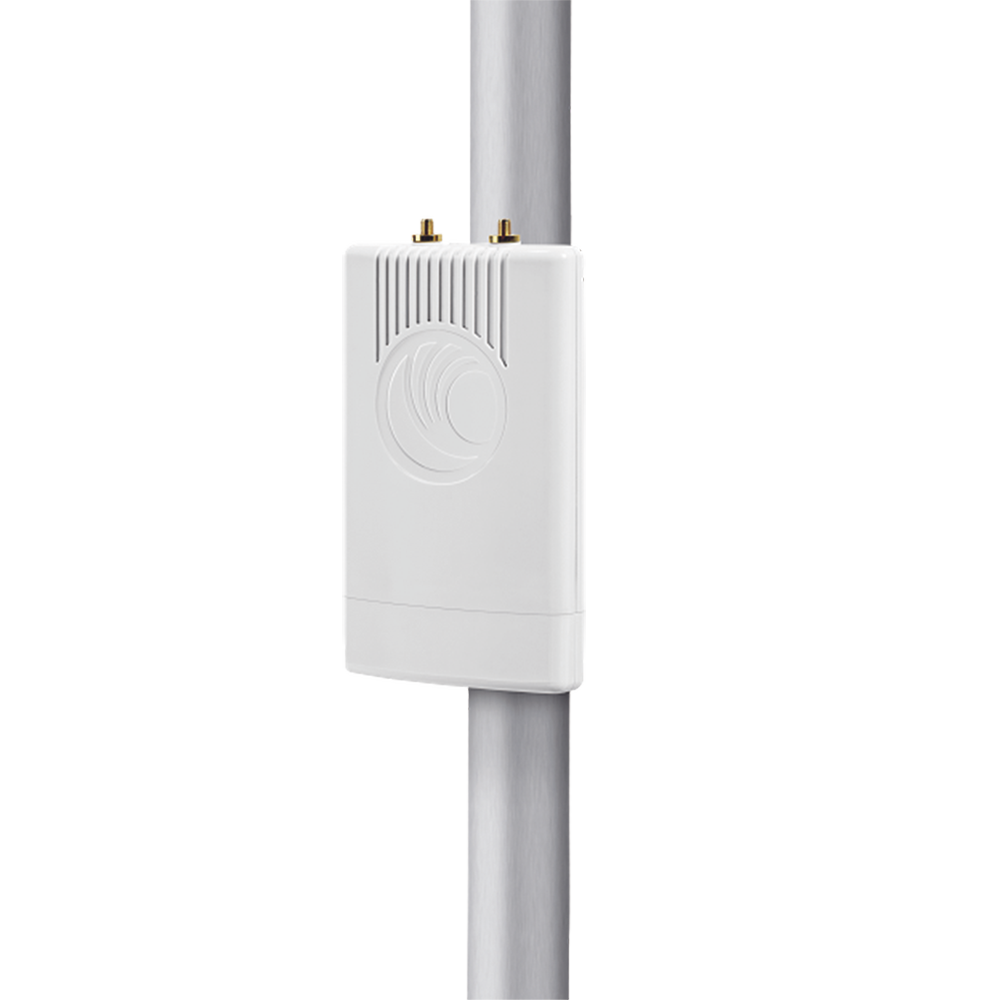

ePMP2000 Access Point with Full Intelligent Filtering, 120 Subscribers (C050900A131A)
ePMP2000 Access Point with Full Intelligent Filtering, 120 Subscribers (C050900A131A)
Couldn't load pickup availability
ePMP2000 Access Point with Full Intelligent Filtering, 120 Subscribers (C050900A131A)
5
GHz 220
Real Mbps Filter
Dynamic
 HYPURE™ TECHNOLOGY ePMP 2000 consists of Smart Beamforming and Intelligent Filtering, Hypure is a breakthrough technology to keep your network operating at its best in challenging real-world conditions. |
 COMPATIBILITY Use the proven and globally deployed ePMP 1000, Force 180, and Force 200 subscriber modules with ePMP 2000. |
 FREQUENCY REUSE With frequency reuse enabled by GPS synchronization, ePMP allows you to scale your network where others can't. |
 SCALABILITY The advanced, scalable scheduling mechanism supports up to 120 subscribers without degrading overall system performance. |
 QUALITY OF SERVICE Multiple configurable quality of service levels allow you to support a wide range of network services, with the performance your customers expect. |
 SECURITY With 128-bit AES wireless link encryption, L2 and L3 firewall rules, support for different user levels, and HTTPS/SSH support, ePMP provides enhanced security to keep your network safe. |
| MIMO and modulation | 2x2 MIMO/OFDM |
| Frequency range | 5150 – 5970 MHz (defined by country of operation) |
| Maximum power output | 30 dBm combined (defined by country of operation) |
| GPS synchronization | Yes, by internal GPS or CMM4 |
| Maximum power consumption | 20 W Maximum |
| Exterior protection | IP55 |
| Management | HTTPS, SSH, SNMPv2c |
| Channel spaces | Configurable in 5 MHz increments |
| MAC Layer | Cambium Proprietary |
| Ethernet structure | 100/1000 BaseT, 802.3at |
| Protocols used | IPv4, UDP, TCP, IP, ICMP, SSH, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping |
| VLAN | 802.1Q with 802.1p priority |
| Input voltage | 44 V to 59 V with PoE (included) 56 V, standard 802.3at PoE |
| Encryption | 128-bit AES (CCMP mode) |
| Antenna connection | SMA |
| Channel width | 5/10/20/40 MHz |
| Dimensions | 22.2 x 12.4 x 4.5 cm (8.75 x 4.9 x 1.75 in) |
| Weight | 0.7 kg (1.5 lbs) |
| Protector vs. downloads | 1 Joule Integrated |
Warranty : 3 Years
PoE included and power connection cable
Version up to 120 subscribers
Smart filter Noise is always a concern, and as more transmitters are deployed, it will continue to be a concern.
a critical factor in operation. While almost all radios have some form of filtering, many use
static filters that block only noise from outside the full operating spectrum of the radios. While
This provides a clear channel for operation, these systems with fixed filters still allow noise
from neighboring channels affects system performance. Cambium Networks solutions use the
dynamic filtering with a static filter to block noise from outside the operating spectrum, but also
a dynamic filter to block adjacent channel interference. As the system switches to
another channel, the system automatically blocks noise from adjacent channels to improve the quality of
the signal.
|
 |
Frequency reuseFrequency is limited. There will never be more of it. By reusing frequencies when deployed in a back-to-back configuration, a network operator can effectively use the same frequency twice to connect users. In large deployments, a network operator can connect thousands of users by reusing the same frequencies in the field service area. This technology maximizes the use of available frequencies and can provide access to thousands of users in a small amount of spectrum. |
|
Out of stock
MODELO: EPMP-2K
