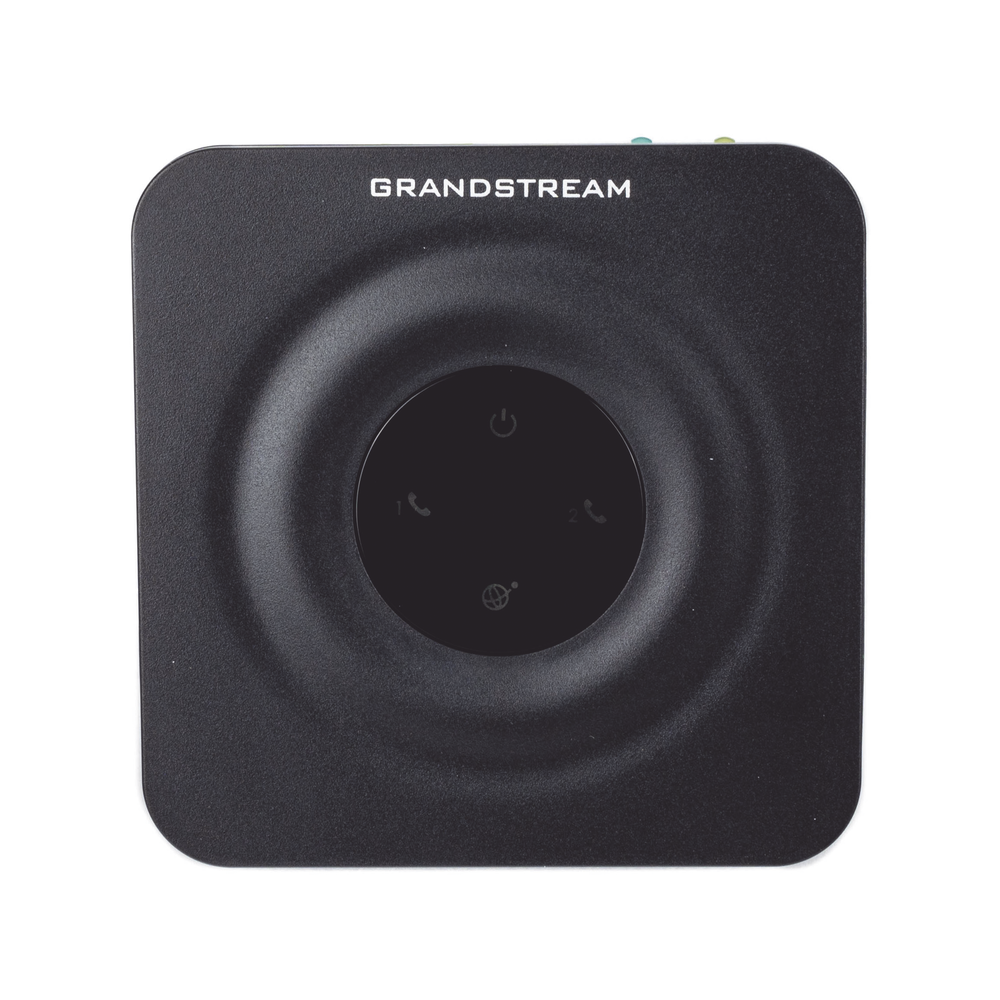

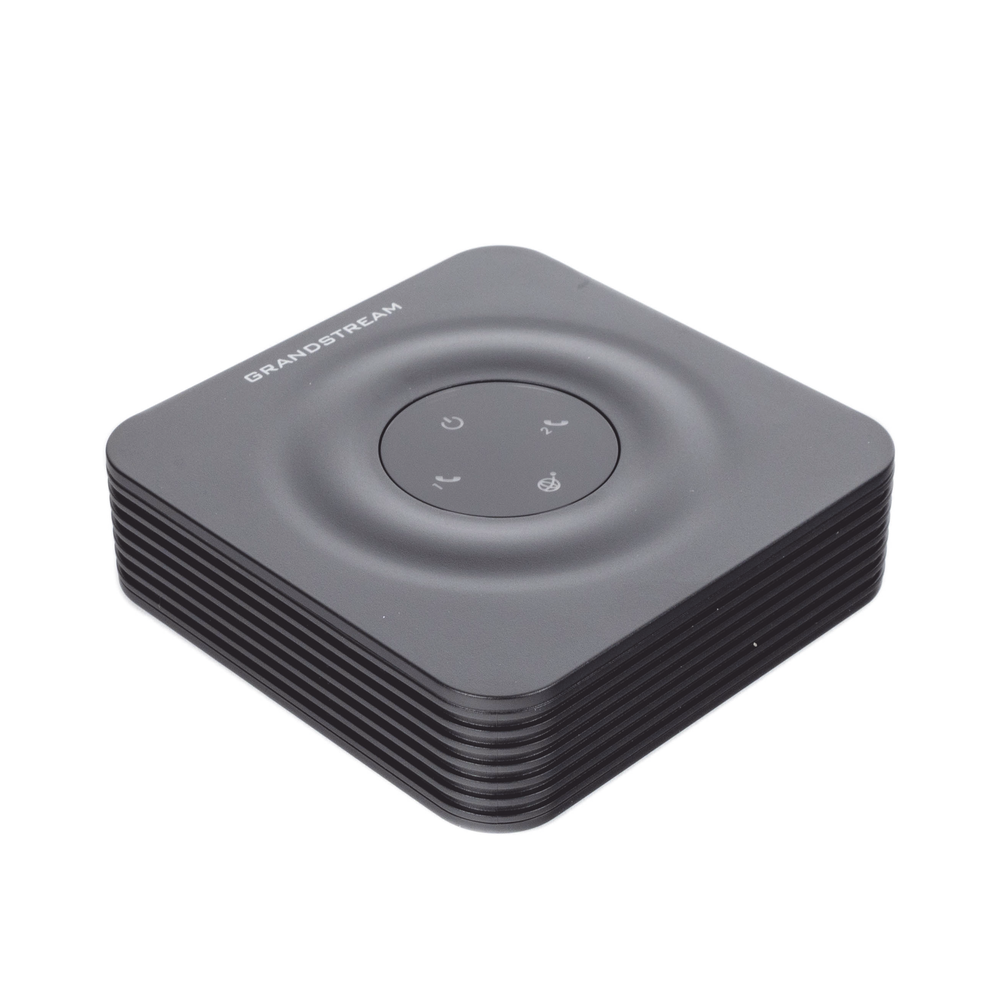

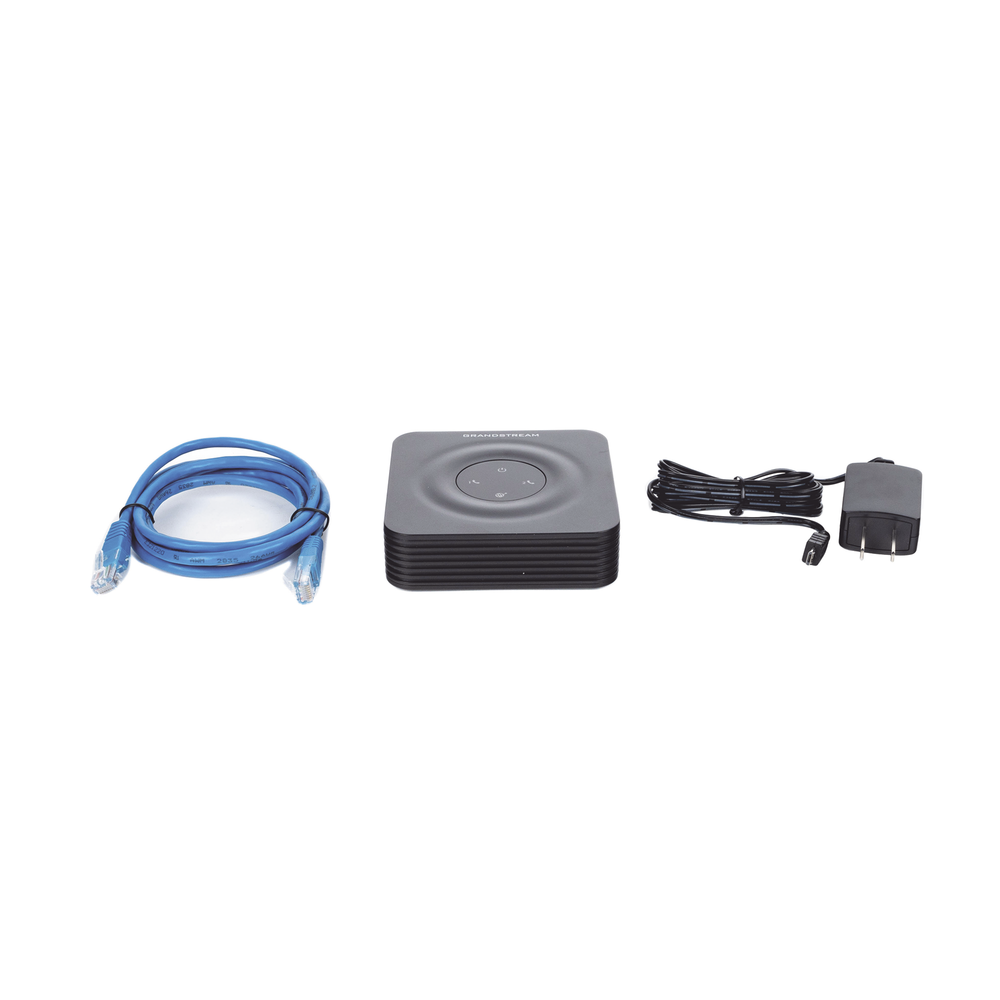

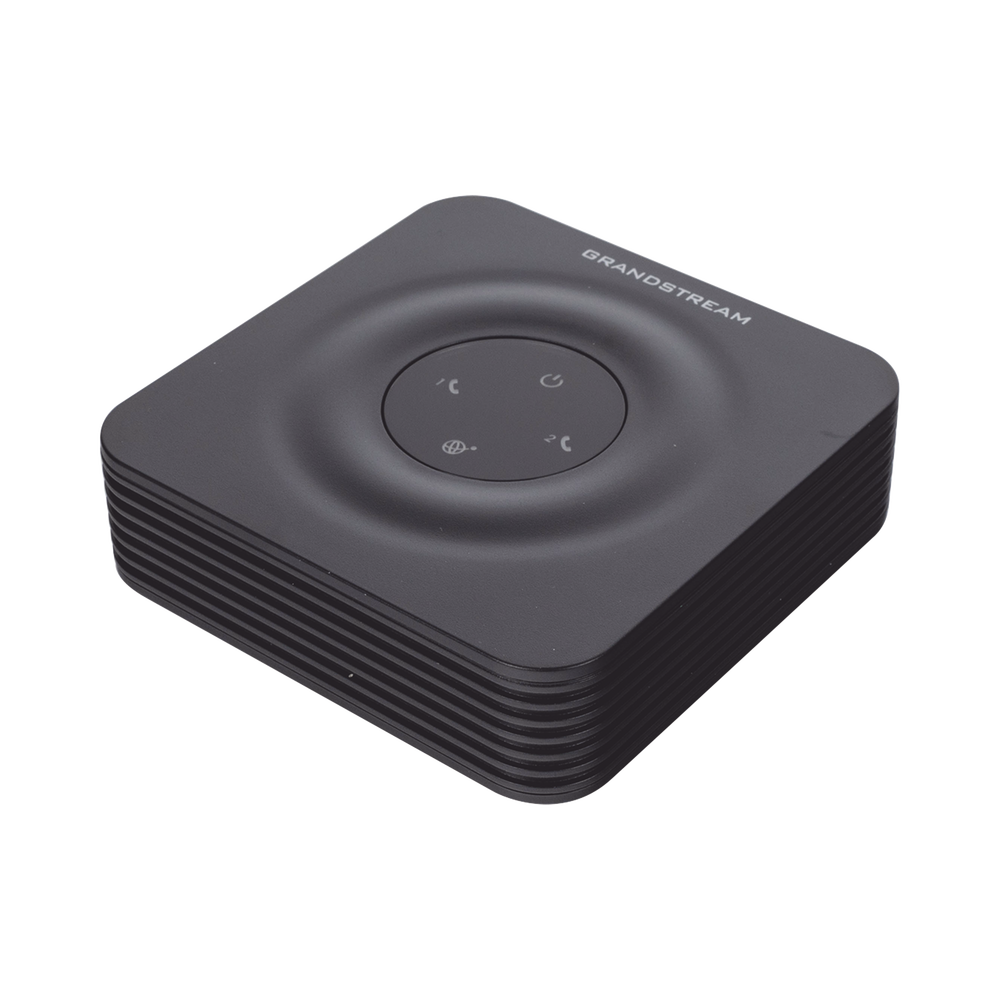

2-Port FXS Analog Telephone Adapter (ATA)

2-Port FXS Analog Telephone Adapter (ATA)

The HT802 is a 2-port Analog Telephone Adapter (ATA) that enables users to create a high-quality, easy-to-manage IP telephony solution for residential and office environments. Its ultra-compact size, voice quality, advanced VoIP functionality, security protection, and auto-provisioning options allow users to take advantage of VoIP over analog phones and empower service providers to offer high-quality IP service. The HT802 is an ideal ATA for individual use and large-scale commercial IP voice deployments.

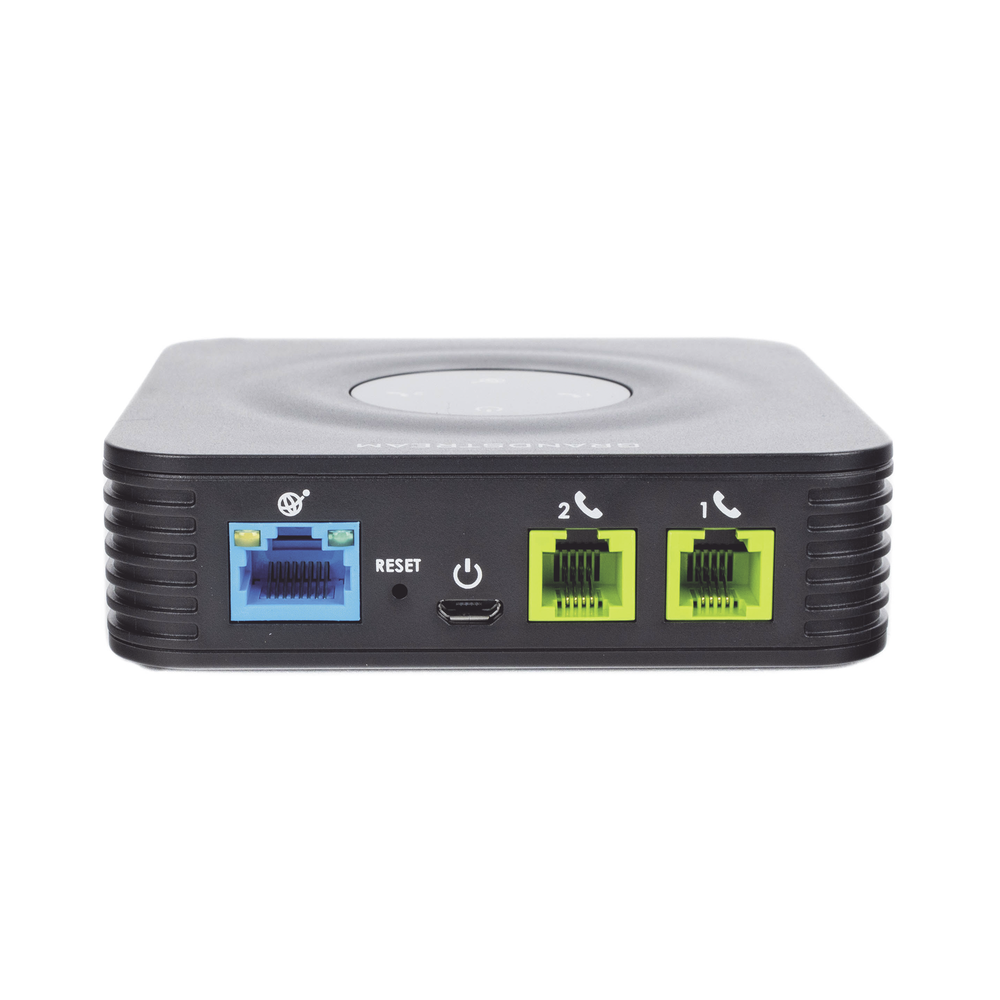

• Supports 2 SIP profiles via 2 FXS ports and one 10/100Mbps port
• TLS and SRTP security encryption technology to protect calls and accounts
• Options for automated provisioning Supports 3-way voice conferencing
• automatically switches to the secondary server if the primary server loses connection
• Supports T.38 fax for creating fax over IP
• Supports a wide range of caller ID formats
• Use with Grandstream UCM series of IP PBXs for rapid provisioning setup

Physical Characteristics:
Universal Power Supply Input: 100-240VAC, 50-60Hz
Output: 5.0VDC/1.0A

Atmosphere
Operating: 32º – 104ºF or 0º – 40ºC
n storage: 14º – 140ºF or -10º – 60ºC
Humidity: 10 – 90%, non-condensing

Dimension and Weight 100mm x 100mm x 29.5mm, 114g



*1 year warranty.
