CAMBIUM NETWORKS

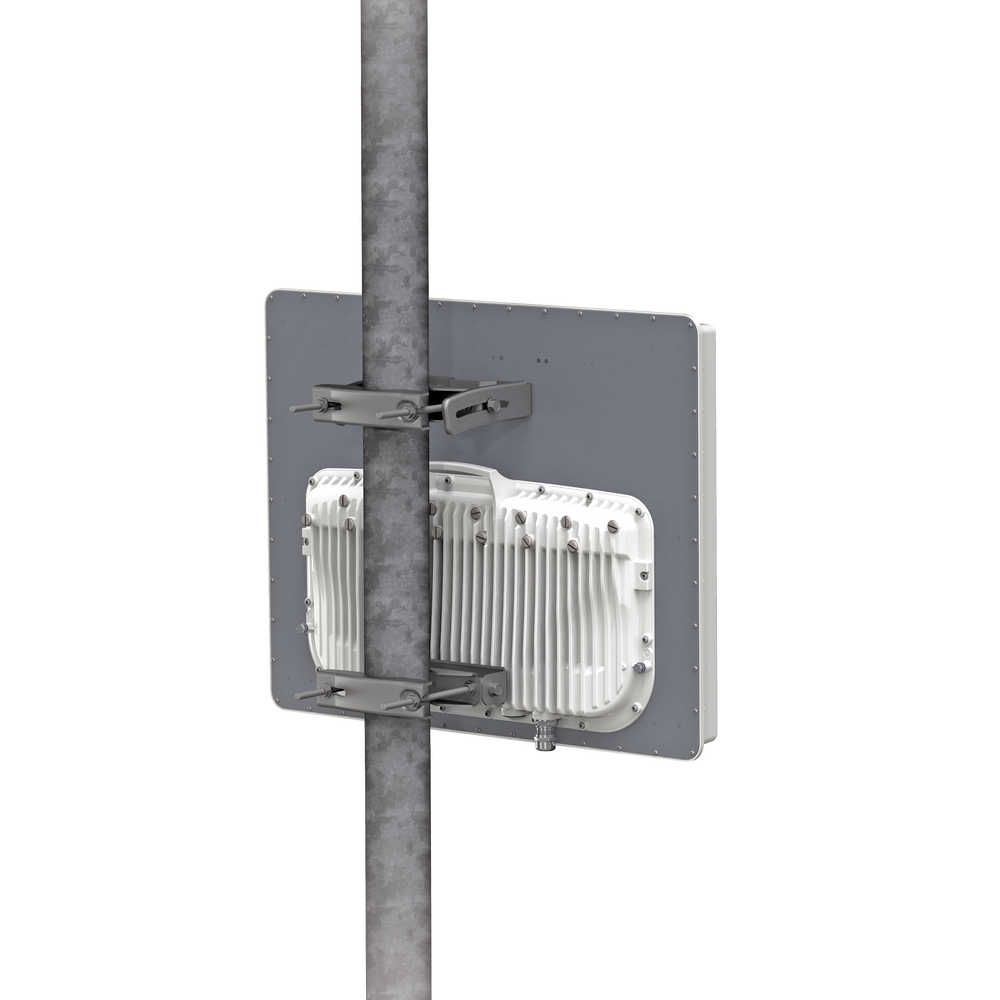

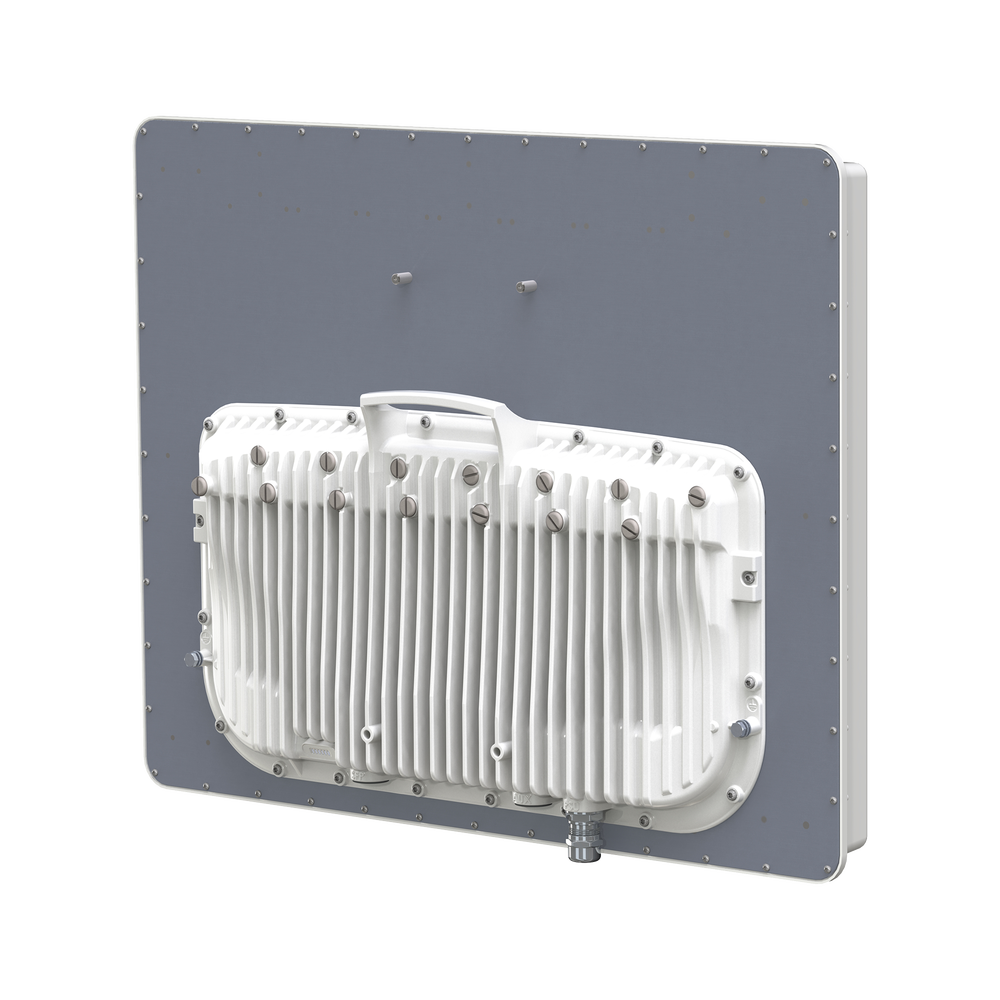

cnMedusa - Multipoint Access Point with 90-degree antenna/1.2 Gbps/Beamforming Technology/Mu-Mimo 14x14 - C050045A101A
cnMedusa - Multipoint Access Point with 90-degree antenna/1.2 Gbps/Beamforming Technology/Mu-Mimo 14x14 - C050045A101A
Couldn't load pickup availability
cnMedusa - Multipoint Access Point with 90-degree antenna/1.2 Gbps/Beamforming Technology/Mu-Mimo 14x14 - C050045A101A
Smart
MU-MIMO Beamforming
14 x 14 90º
PMP Integrated Antenna
Up to 1.2 Gbps
Cambium Networks introduces the new PMP 450m , the access point whose deployment changes everything. The first to incorporate cnMedusa ™ Massive MU-MIMO technology, it achieves unprecedented spectral efficiency in a single integrated device with cloud management from a single control panel.
Set to revolutionize the WISP market, the PMP 450m access point with cnMedusa enables operators to quickly deliver higher-speed internet connections to multiple users, locations, and devices.
Includes:
- An integrated 90-degree sector antenna array with Beam-forming technology.
- Integrated radio with a single cable connection.
Features:
- Greater capacity . The PMP 450m can provide a usable throughput of over 400 Mbps per sector, while simultaneously connecting up to seven subscriber modules.
- Market-leading spectrum management efficiency. Throughput of over 550 Mbps in the 20 MHz channel (20+ bps/Hz), and up to 40 bps/Hz when deployed in a frequency reuse configuration.
- Operation on all unlicensed 5 GHz bands.
- Investment protection . The PMP 450m is fully compatible with PMP 450 subscriber modules (SMs) in your existing network.
| Frequency Range | 5150-5925 MHz |
| Channel width | 10 MHz*, 20 MHz, and 40 MHz* |
| Network port | 100/1000BaseT, full duplex, auto negotiated (802.3) |
| Protocols used | IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Network Management | HTTP, HTTPS, Telnet, FTP, SNMP v3 |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p |
| Subscribers by sector | Up to 238 |
| Latency | 10 ms, Typical |
| GPS synchronization | Yes, via Autosync (CMM5 or UGPS) |
| Quality of Service (QoS) | Different levels of QoS |
| Antenna | 90° Integrated sector (dual polarity, H+V) |
| Antenna gain | 17 dBi |
| Maximum transmission power | 24 dBm combined |
| MTBF | > 40 years |
| Around | IP67, IP66 |
| Temperature / Humidity | -40°C to +60°C (-40°F to +140°F), 0-95% |
| Encryption | Approx. 14.2 kg (31 lbs) |
| Consumption | 70 W typical, 80 W peak (up to 110 W maximum with AUX port + Auxiliary PoE enabled) |
| Input voltage | 42.5-59 V DC |
| Mounting | Mounting included |
| Dimensions (HxWxD) 52 | 2 x 65 x 11cm (20.3” x 25.7” x 4.4”) |
| Weight | Approx. 14.2 kg (31 lbs) |
| Warranty | 1 year |
Requires CG52A Power Supply
Beamforming
Multiple beams can be created simultaneously (up to 7) per time slot
Beamforming supported for DL and UL
MuMIMO: Yes (up to 7 SMs)
Massive MIMO: Yes (14x14)
MuMIMO supported in DL and UL*
Out of stock
MODELO: PMP-450M
