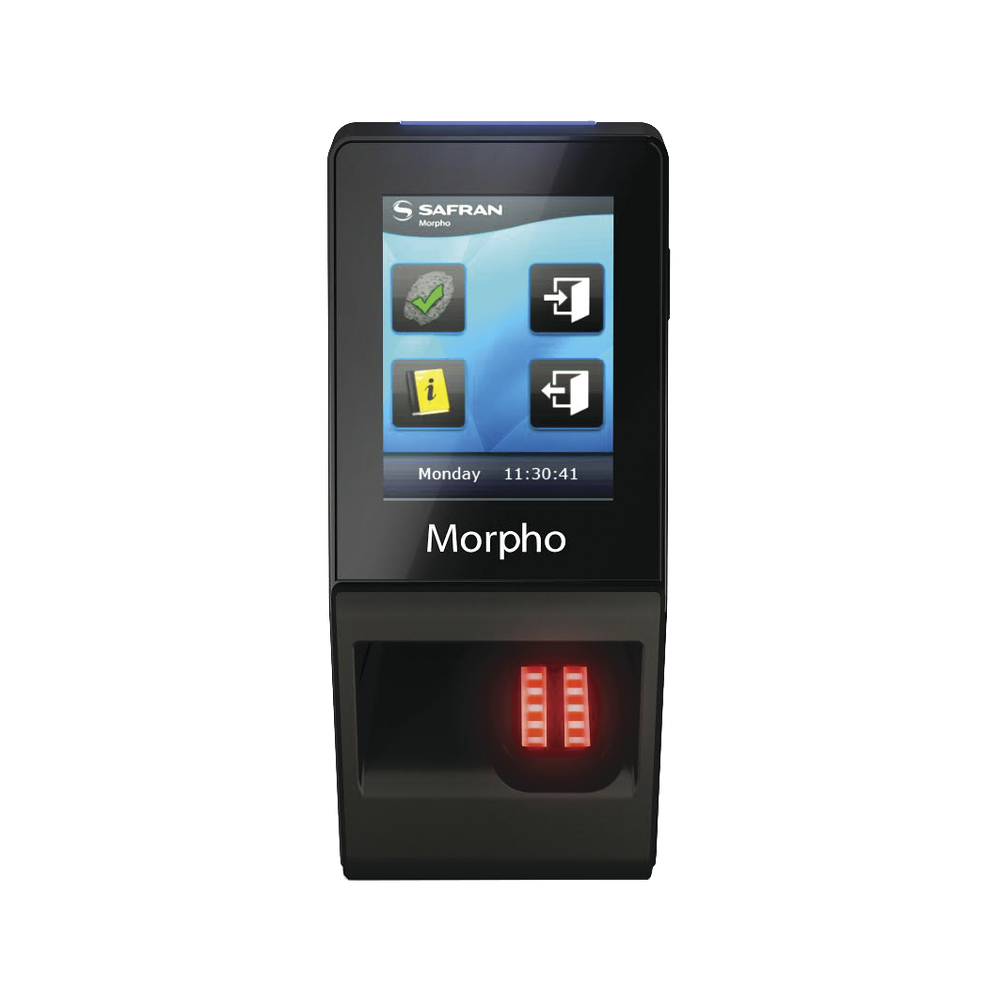

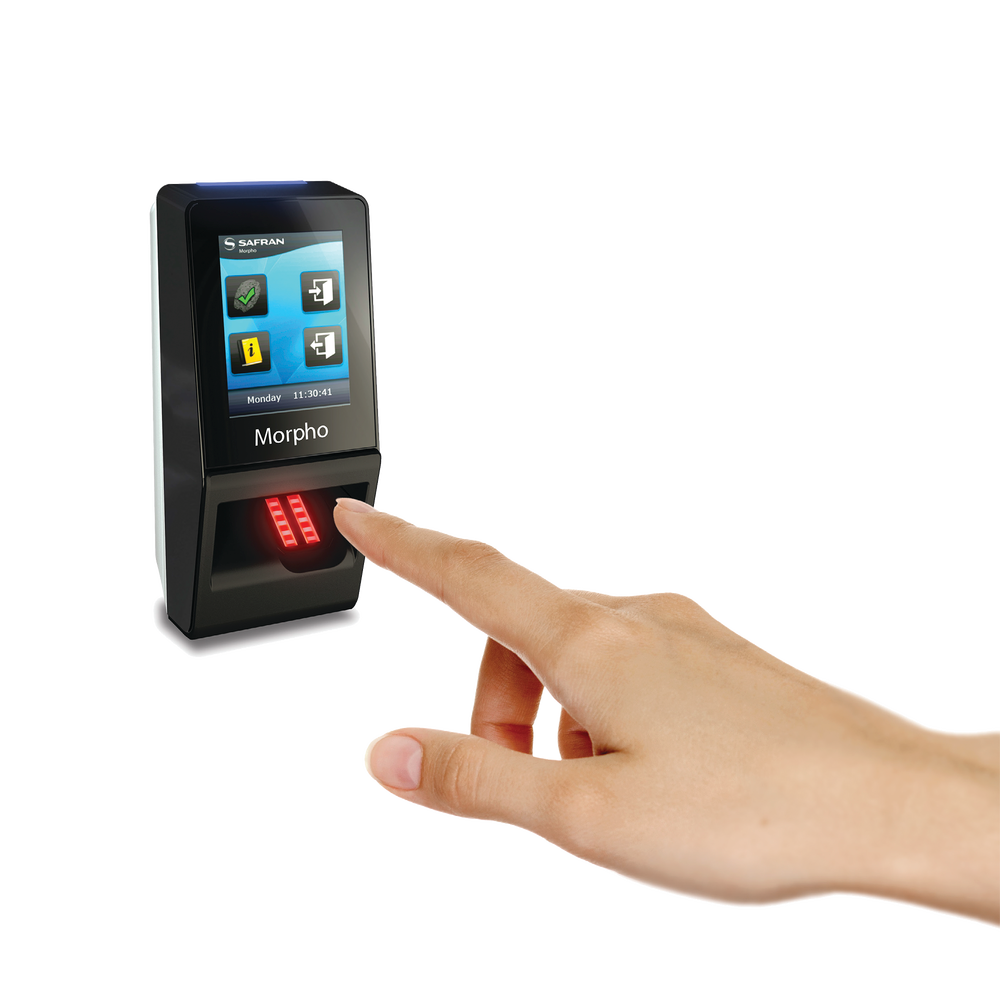

Sigma lite+ (plus) Series Fingerprint Reader with PROX HID PoE Reader, IP65 FBI Approved

Sigma lite+ (plus) Series Fingerprint Reader with PROX HID PoE Reader, IP65 FBI Approved

• With 2.8'' QVGA color touch screen and buzzer
• Improved interactivity on the MA SIGMA Lite+ thanks to its touch screen.
• Function keys (entry and exit) for attendance control.
• Entering User ID, PIN and BioPIN.
• Intuitive icons and real-time messages.
• Anti-fraud features.
• Fake finger detection.
• Coercion alert.
• Timed anti-return function.
• Handling white and black lists.

Technical characteristics:

• CPU: ARM® Cortex™-A9 core 1GHz
• Linux operating system
• FBI PIV IQS certified optical sensor
• Contactless card reader: Prox® (HID)
• Network/Communications: - Ethernet, RS485, USB - Wi-Fi optional
• Power: - 12V to 24V DC - Power over Ethernet (PoE), compatible with PoE+ switches • Internal storage capacity: Flash 512 MB, RAM 512 MB
• 500 users, expandable to 3,000 or up to 10,000 through licensing (*3 biometric templates per user, including the coercion template)
• Authorized user list of up to 250,000 IDs
• 1 Million transactions
• Wiegand input and output ports (configurable up to 512 bits),
• Relay, 2 GPI (including door monitoring), 2 GPO
• Safety switches (tamper)
• Operating conditions: - Temperature: -20°C to 55°C (-4°F to 131°F)
• Humidity: 10% to 80% (non-condensing)
• Ingress protection rating: IP65 indoors.
• Protection against mechanical impacts: IK08(3)
• Height*Width*Depth = 156*68*62 mm
• Weight: 280 grams
• EMC/Safety Standards: CE, CB, FCC
• RoHS, REACh and WEEE compliant

Memory Expansion Licenses

237708350
Upgrade License for 3000 users only for SIGMALITE and SIGMALITEPLUS (one license per reader)

293589574
Update License for 10,000 users for the entire SIGMA line
(one license per reader)

MMPRO reel recommended (sold separately)

Licensed Morpho Manager Software

Note: Some models may come in white or black.
